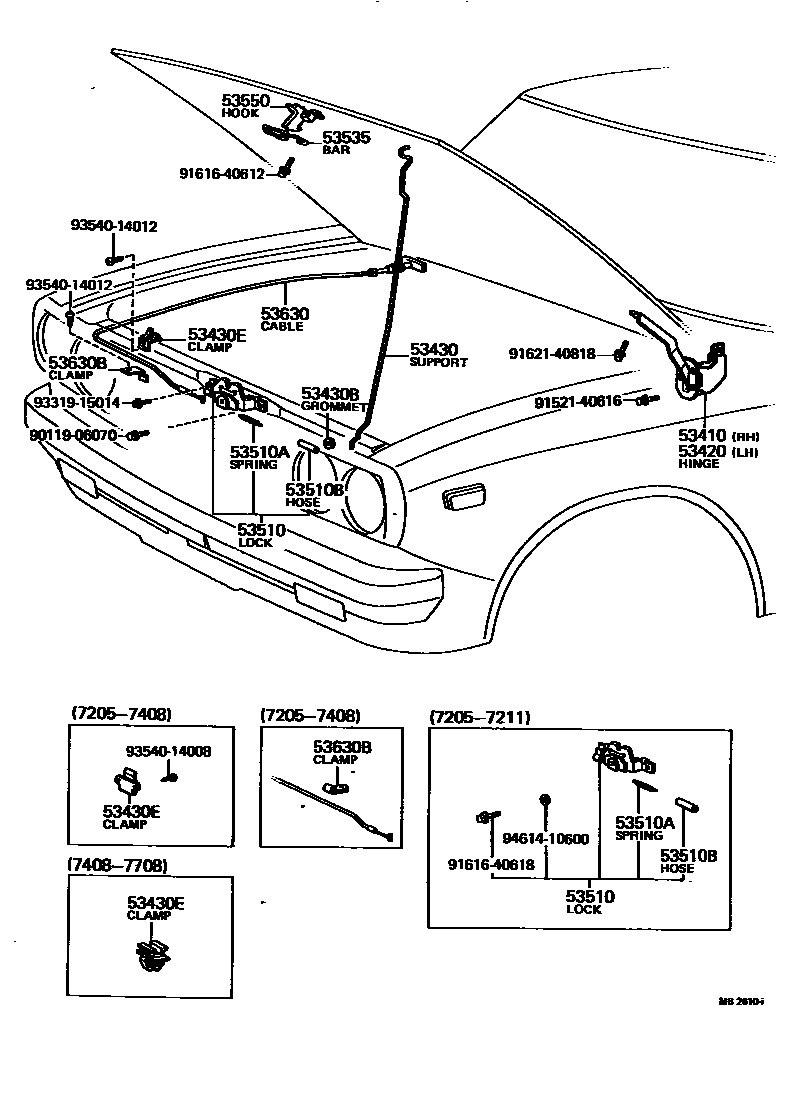

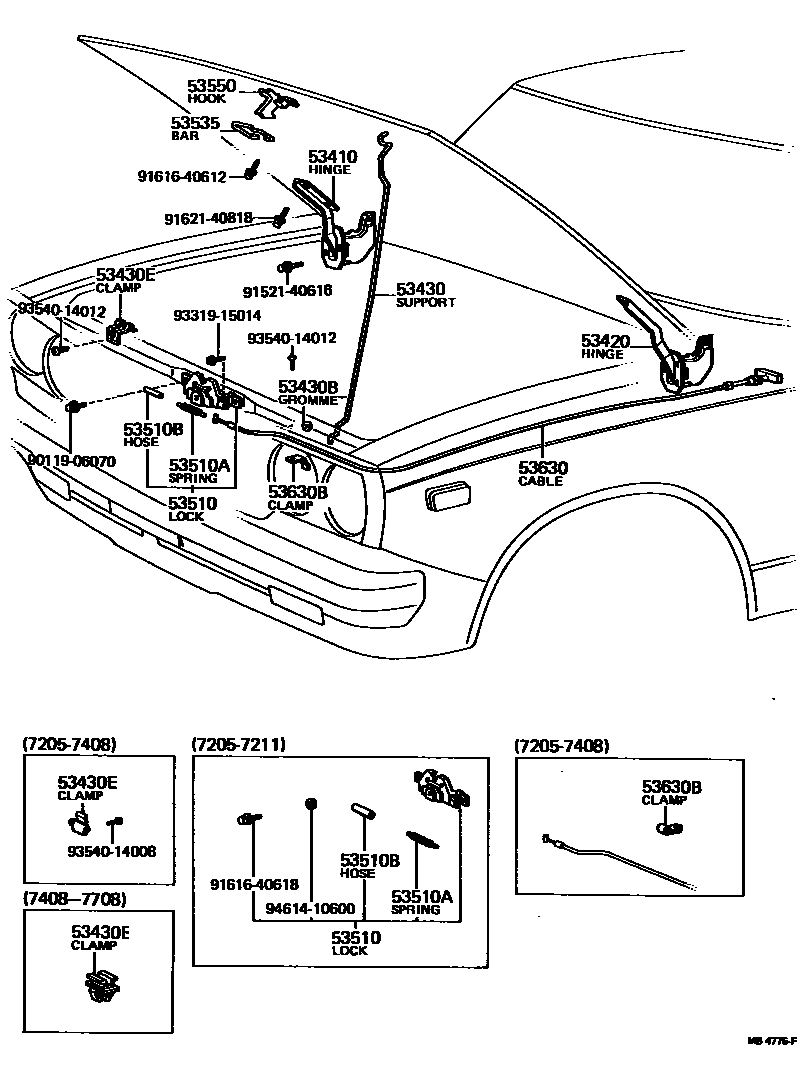

Toyota HILUX 发动机盖锁和铰链 — Figure 5354
Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-89103 |
| 53420 | Engine cover left hinge assembly | 53420-89102 |
| 53430 | Engine cover support rod assembly | 53431-89103 · 53431-89105 |
| 53430B | Gasket (for engine cover support rod) | 90480-15296 |
| 53430E | Engine cover support rod clip | 53439-20011 · 53439-89102 · 53439-89104 · 53455-89101 |
| 53510 | Engine cover lock assembly | 53510-29015 · 53510-29025 · 53510-89106 · 53510-89107 · 53510-89108 · 53510-89109 |
| 53510A | Tension spring (for hood lock) | 90506-10196 |
| 53510B | Hose (for hood lock) | 90446-12209 |
| 53535 | Engine hood lift torsion bar | 53535-89101 |
| 53550 | Engine cover auxiliary buckle assembly | 53550-89101 · 53550-89102 · 53550-89104 |
| 53630 | Engine hood lock control cable assembly | 53630-89104 · 53630-89105 |
| 53630B | Clip (for hood lock control cable) | 90461-10084 · 90463-10335 |
