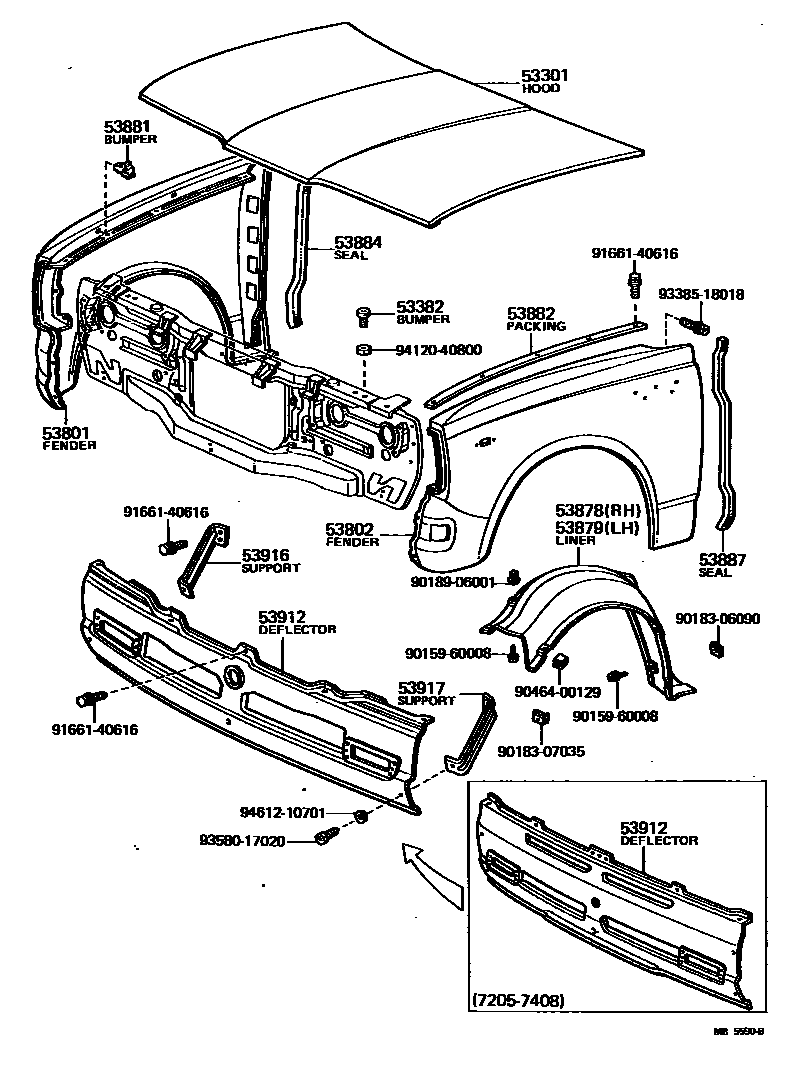

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-89106 · 53301-89107 · 53301-89109 |
| 53382 | Engine cover front buffer block | 53382-20011 · 53382-89101 |
| 53801 | Right front fender sub-assembly | 53801-89119 · 53801-89124 · 53801-89125 · 53801-89130 · 53801-89131 · 53801-89133 · 53801-89134 · 53801-89136 |
| 53802 | Left front fender sub-assembly | 53802-89113 · 53802-89117 · 53802-89119 · 53802-89124 · 53802-89126 · 53802-89128 · 53802-89129 · 53802-89132 |
| 53878 | Right front fender lining | 53875-89101 |
| 53879 | Left front fender lining | 53876-89101 |
| 53881 | fender to engine cover buffer block | 53349-10030 |
| 53882 | Front fender main seal | 53882-89102 |
| 53917 | Left bumper stone guard bracket | 53917-89101 |
