Toyota HILUX 前保险杠及附件 — Figure 5252

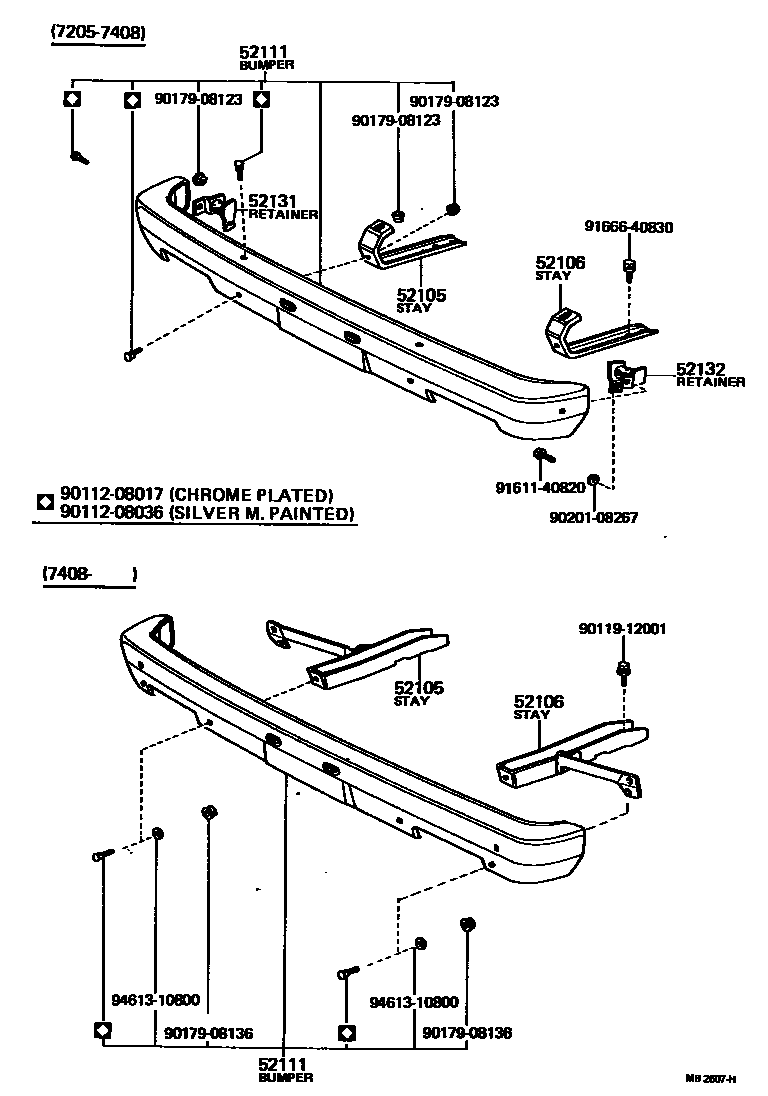

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52105 | Front bumper right side stay sub-assembly | 52011-89101 · 52141-89103 |
| 52106 | Front bumper left stay sub-assembly | 52012-89101 · 52141-89103 |
| 52111 | front bumper assembly | 52111-89803 · 52111-89804 · 52111-89805 · 52111-89806 |
| 52131 | Front bumper right side fixing bracket | 52015-89101 |
| 52132 | Front bumper left fixed bracket | 52016-89101 |
