Toyota HILUX 驾驶室悬置和车身悬置 — Figure 5251

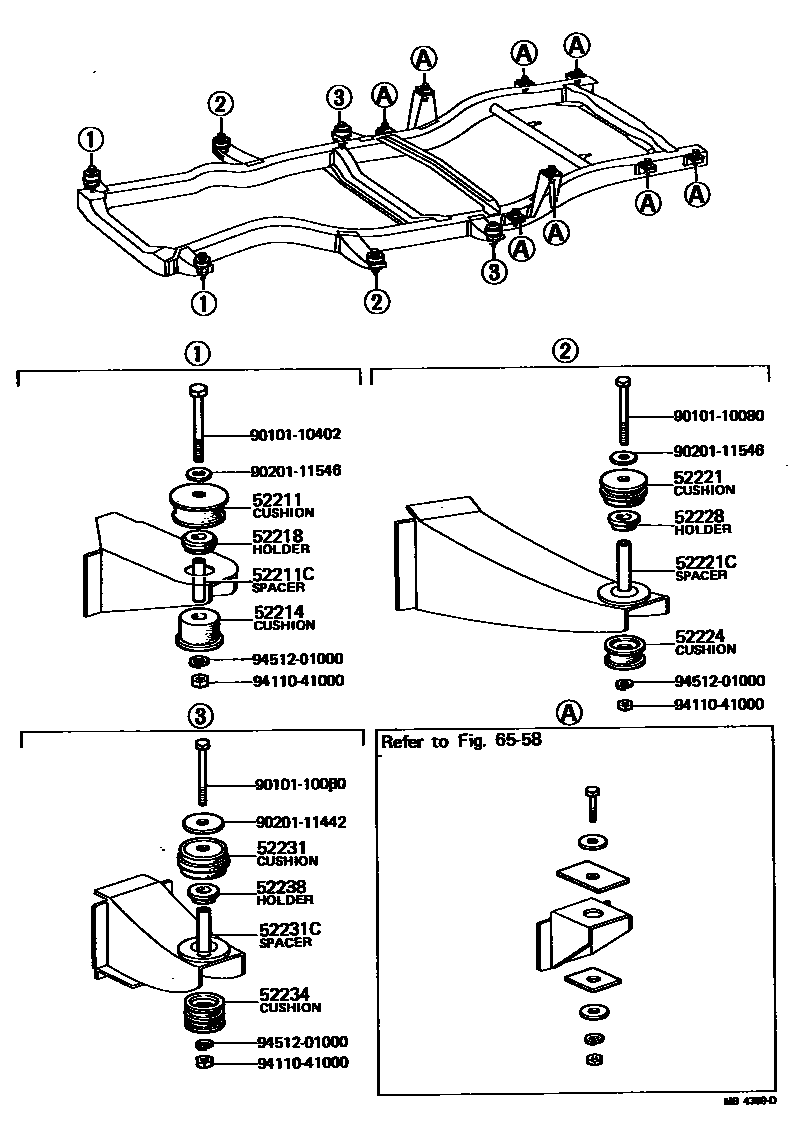

Toyota HILUX EPC diagram 5251, 驾驶室悬置和车身悬置, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52211 | Fixed cushion pad on body No. 1 | 52201-35010 |
| 52211C | Spacer sleeve (for body No. 1 fixed buffer pad) | 90440-16134 |
| 52214 | Body No. 1 lower fixed cushion | 52202-35010 |
| 52218 | Body No. 1 mounting bolt spacer fastener | 52228-35010 |
| 52221 | Fixed cushion pad on body No. 2 | 52021-35010 |
| 52221C | Spacer (for body No. 2 fixed cushion) | 90440-17135 |
| 52224 | Body No. 2 lower fixed cushion | 52022-35010 |
| 52228 | Body No. 2 mounting bolt spacer fixing piece | 52228-22010 |
| 52231 | Body No. 3 upper fixed cushion pad | 52203-35020 |
| 52231C | Spacer (for body No. 3 fixed cushion) | 90440-17135 |
| 52234 | Body No. 3 lower fixed cushion | 52204-35020 |
| 52238 | Body No. 3 mounting bolt spacer fixing piece | 52229-35010 |
