Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152

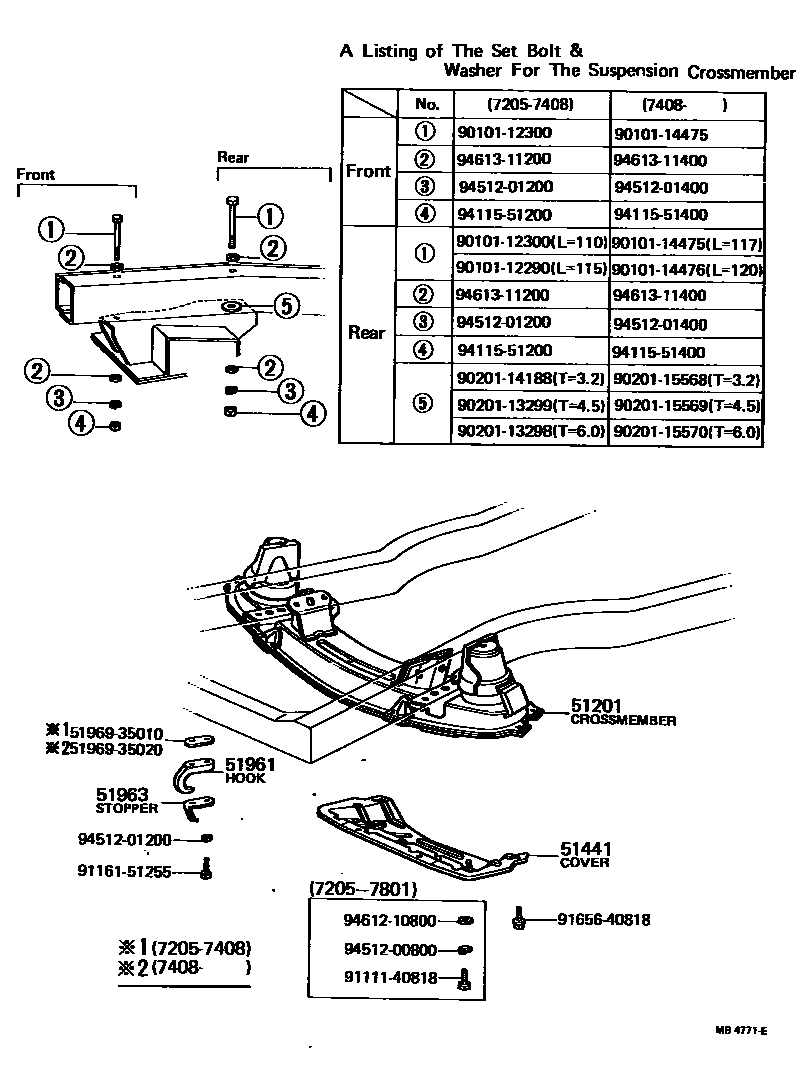

Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51202-35070 · 51202-35080 · 51202-35090 · 51202-35100 |
| 51441 | No. 1 engine bottom cover | 51441-35030 · 51441-35070 |
| 51961 | No. 1 hook | 51961-60010 |
| 51963 | Hook wire block | 51963-35010 |
