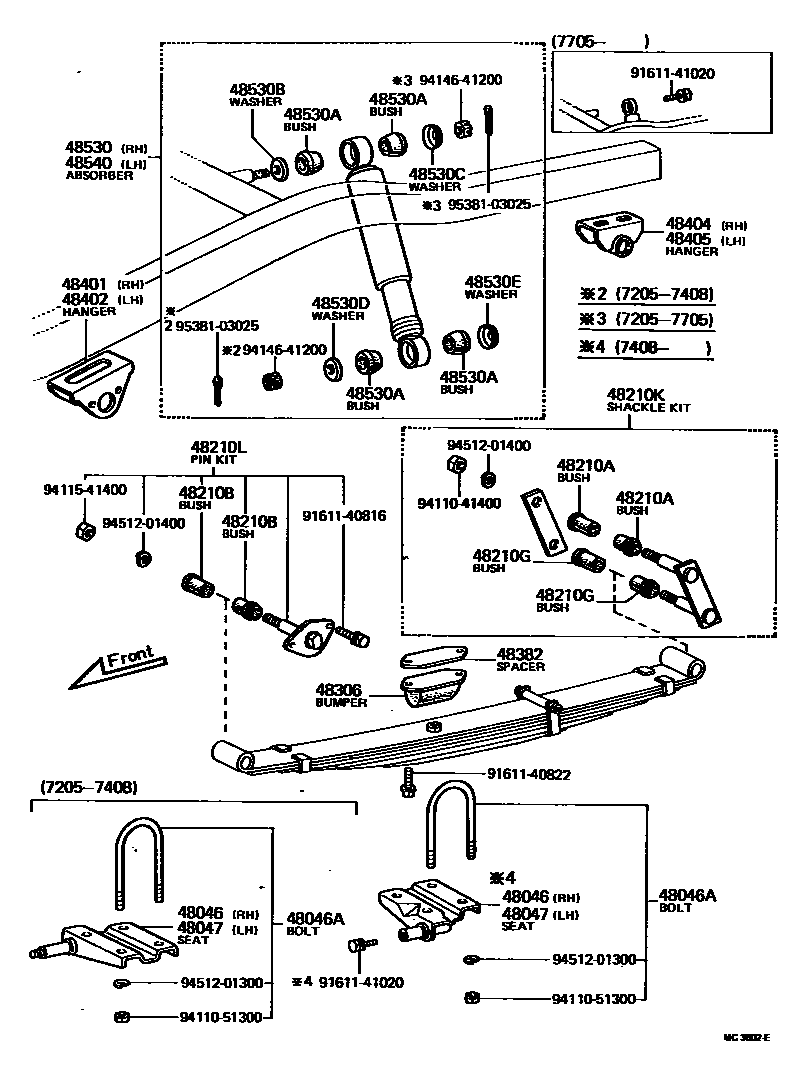

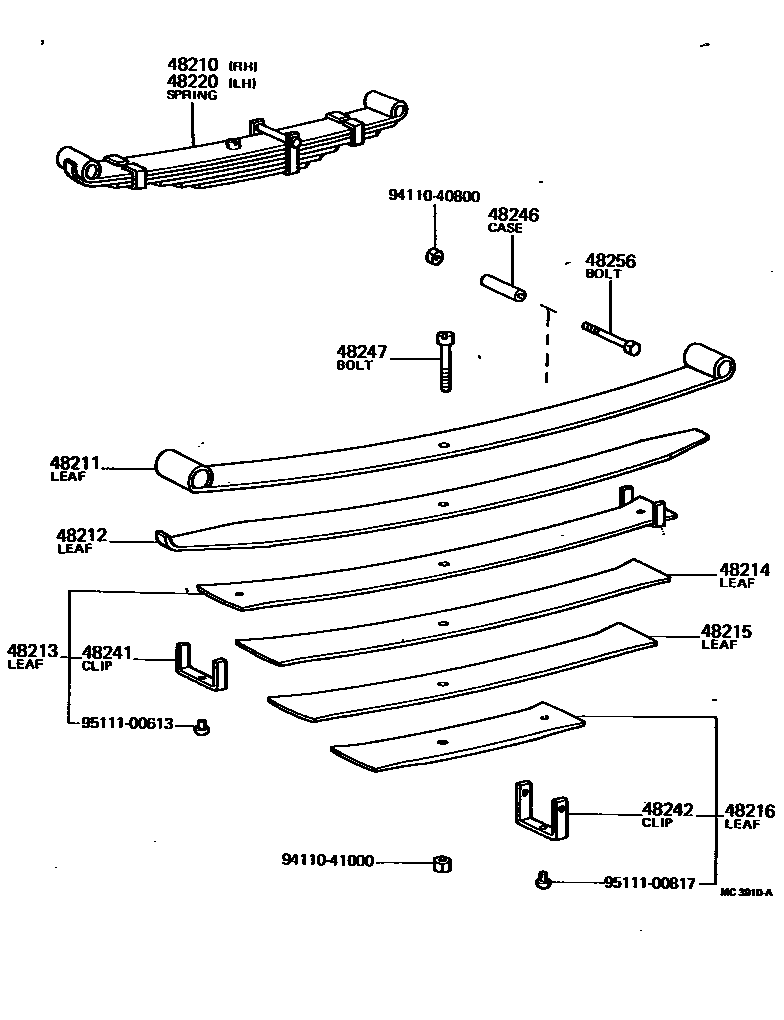

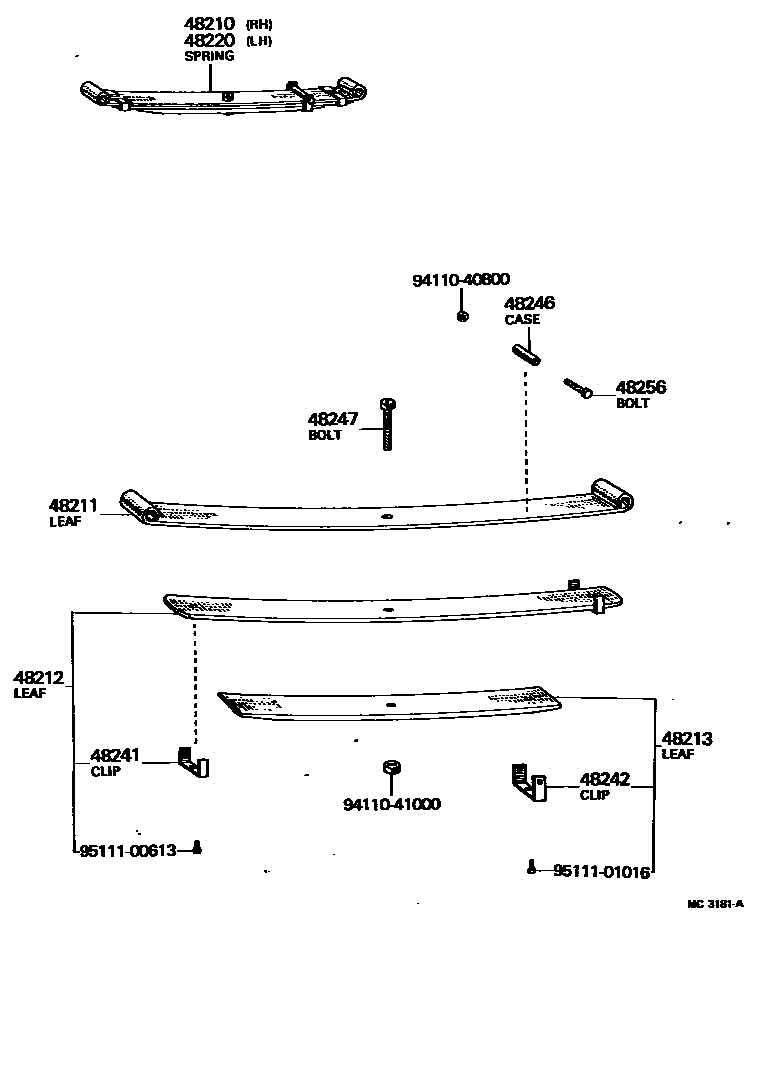

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804
Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48046 | Right spring U-bolt base sub-assembly | 48046-35050 · 48047-26021 |
| 48046A | U-bolt (for rear spring) | 90118-13103 · 90118-13133 |
| 48047 | Left spring U-bolt base sub-assembly | 48046-26021 · 48047-35050 |
| 48210 | Right rear spring assembly | 48210-35040 · 48210-35061 · 48210-35110 |
| 48210A | Upper bushing (for rear spring lug) | 90385-18046 |
| 48210B | Bushing (for rear spring pin) | 90385-18001 · 90385-18046 |
| 48210G | Lower bushing (for rear spring lug) | 90385-18046 |
| 48210K | Rear spring lifting lug assembly | 04483-26010 |
| 48210L | Rear spring pin assembly | 04484-27010 |
| 48211 | No. 1 rear leaf spring | 48211-35040 · 48211-35061 · 48211-35110 |
| 48212 | No. 2 rear leaf spring | 48202-35110 · 48212-35040 · 48212-35061 |
| 48213 | No. 3 rear leaf spring | 48202-35040 · 48202-35061 · 48203-35110 |
| 48214 | No. 4 rear leaf spring | 48214-35040 · 48214-35061 |
| 48215 | No. 5 rear leaf spring | 48215-35041 · 48215-35061 |
| 48216 | No. 6 rear leaf spring | 48203-35041 · 48203-35061 |
| 48220 | Left rear spring assembly | 48210-35040 · 48210-35061 · 48210-35110 |
| 48241 | No. 1 rear spring clip | 48241-35041 · 48241-35080 |
| 48242 | No. 2 rear spring clip | 48241-35060 · 48242-35041 · 48242-35110 |
| 48246 | rear spring clamp bolt housing | 48246-35040 · 48246-35041 |
| 48247 | rear spring center bolt | 48247-35040 · 48247-35080 |
| 48256 | Hex bolt (for rear spring clamp assembly) | 48256-35040 |
| 48306 | Rear spring buffer block sub-assembly | 48306-35011 |
| 48382 | Buffer block spacer | 48382-35012 |
| 48401 | Rear spring right front bracket sub-assembly | 48414-35030 · 48414-35040 |
| 48402 | Rear spring left front bracket sub-assembly | 48415-35020 · 48415-35030 |
| 48404 | Rear spring right rear bracket sub-assembly | 48416-35031 · 48416-35040 |
| 48405 | Rear spring left rear bracket sub-assembly | 48416-35031 · 48416-35040 |
| 48530 | Right rear shock absorber assembly | 48531-39075 · 48531-39076 · 48531-39077 · 48531-39236 · 48531-39256 |
| 48530A | Bushing (for rear shock absorber) | 90385-16007 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03003 · 90948-03012 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-03003 · 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 |
| 48540 | Left rear shock absorber assembly | 48531-39075 · 48531-39076 · 48531-39077 · 48531-39236 · 48531-39256 |
