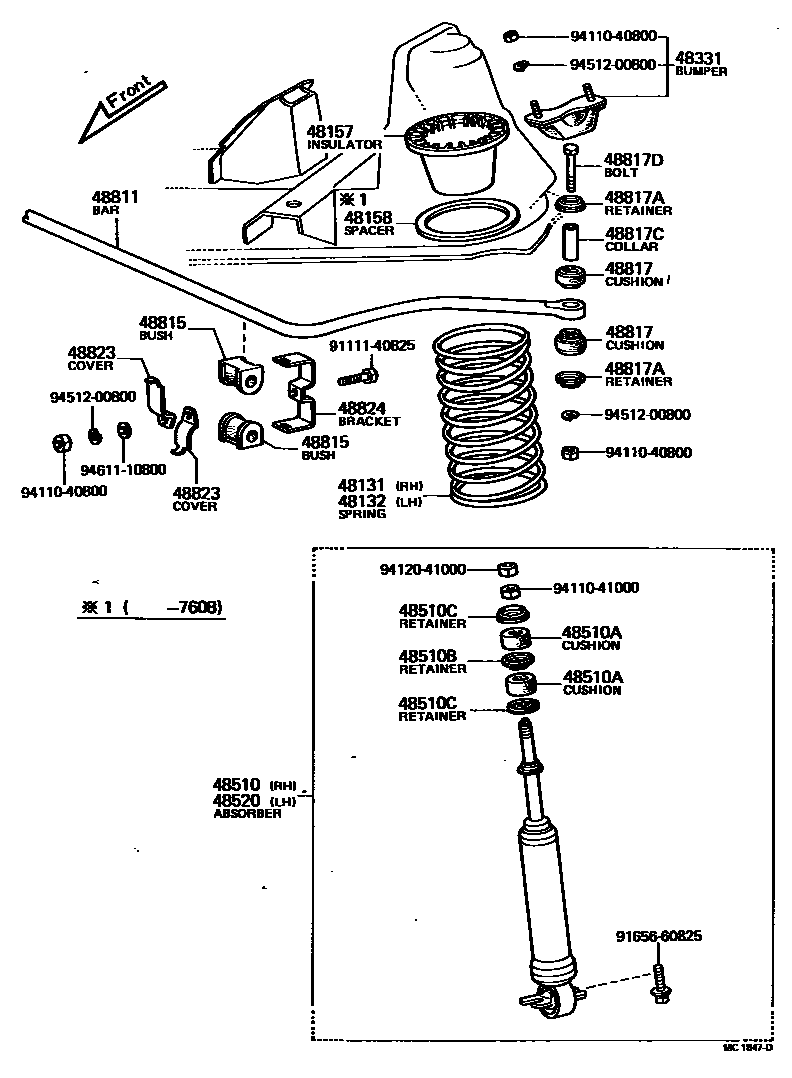

Toyota HILUX Front Spring & Shock Absorber — Figure 4803
Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-35030 · 48131-35031 · 48131-35040 · 48131-35041 · 48131-35050 · 48131-35051 · 48131-35060 · 48131-35090 |
| 48132 | Left front coil spring | 48131-35030 · 48131-35031 · 48131-35040 · 48131-35041 · 48131-35050 · 48131-35051 · 48131-35060 · 48131-35090 |
| 48157 | Front coil spring upper vibration isolation pad | 48157-20010 |
| 48158 | Front coil spring spacer | 48158-20010 |
| 48331 | No. 1 front spring buffer block | 48304-39035 |
| 48510 | Right front shock absorber assembly | 48511-39135 · 48511-39195 · 48511-39206 |
| 48510A | Front shock absorber cushion | 90948-01002 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-02005 |
| 48510C | No. 2 buffer pad block (for front shock absorber) | 90948-02004 |
| 48520 | Left front shock absorber assembly | 48511-39135 · 48511-39195 · 48511-39206 |
| 48811 | front stabilizer bar | 48811-35040 · 48811-35050 · 48811-35070 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-20020 · 48815-20030 |
| 48817 | Front stabilizer bar cushion | 48817-20010 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02010 |
| 48817C | Collar (for stabilizer bar) | 90387-08027 |
| 48817D | Bolt (for front stabilizer bar) | 91111-70855 · 91111-70856 |
| 48823 | Stabilizer bar linkage cover (for front) | 48823-30020 |
| 48824 | front stabilizer bar bracket | 48821-30010 |
