Toyota HILUX 前桥控制臂和转向节 — Figure 4802

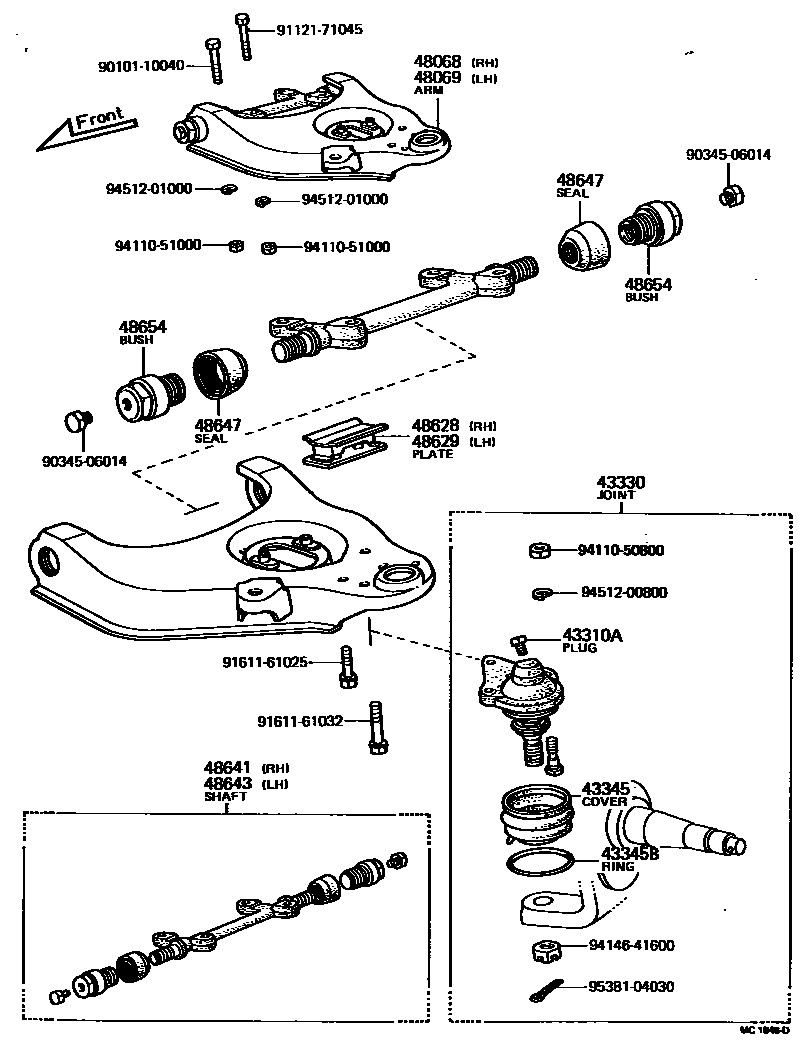

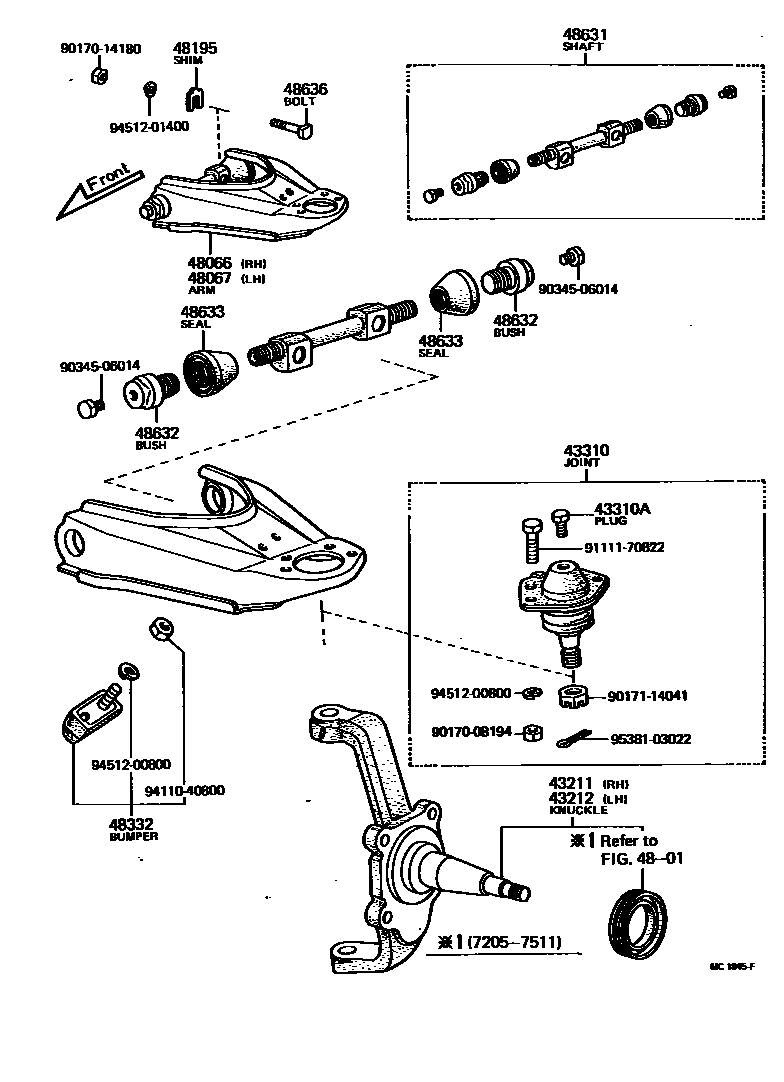

Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-26020 · 43211-35903 · 43211-35904 |
| 43212 | left steering knuckle | 43211-26020 · 43211-35903 · 43211-35904 |
| 43310 | Upper ball joint assembly | 43360-39015 |
| 43310A | Screw plug (for ball joint) | 90345-06014 |
| 43330 | Front lower ball joint assembly | 43330-39045 |
| 43345 | Lower ball joint dust cover | 43345-35010 |
| 43345B | Positioning ring (for lower ball joint dust cover) | 90522-58039 |
| 48066 | Right front suspension upper arm sub-assembly | 48066-35020 |
| 48067 | Left front suspension upper arm sub-assembly | 48067-35020 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-35030 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-35030 |
| 48195 | Camber angle adjustment washer | 90565-15016 · 90565-15017 · 90565-15018 |
| 48332 | No. 2 front spring buffer block | 48305-39025 |
| 48628 | Right lower arm buffer block | 48628-35020 · 48628-35030 |
| 48629 | Left lower arm buffer block | 48629-35020 · 48629-35030 |
| 48631 | Front suspension upper arm shaft | 04485-35010 |
| 48632 | Upper arm bushing | 48632-30012 |
| 48633 | Upper arm pivot dust seal | 48633-35010 |
| 48636 | Upper arm fixing bolt | 48636-35011 · 90101-14477 |
| 48641 | Right lower arm shaft | 04486-35020 |
| 48643 | left lower arm axis | 04487-35020 |
| 48647 | Lower arm bushing dust seal | 48645-35010 |
| 48654 | lower arm bushing | 48632-30012 |
