Toyota HILUX 制动配管和卡箍 — Figure 4708

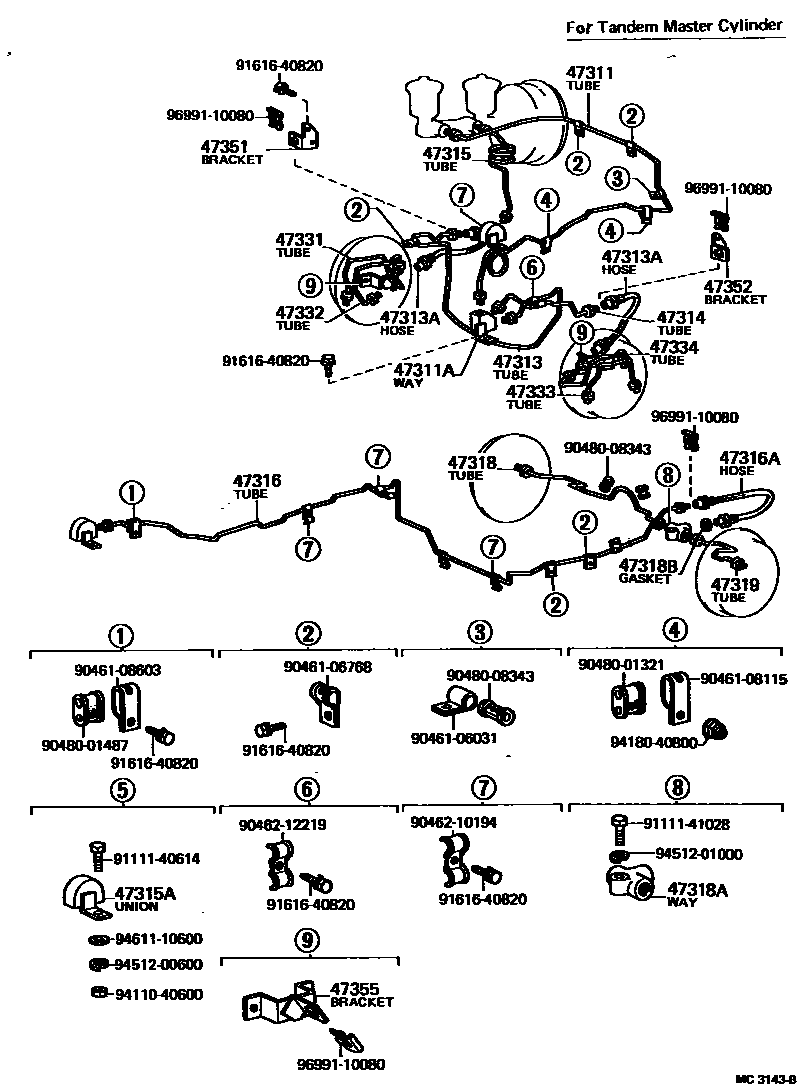

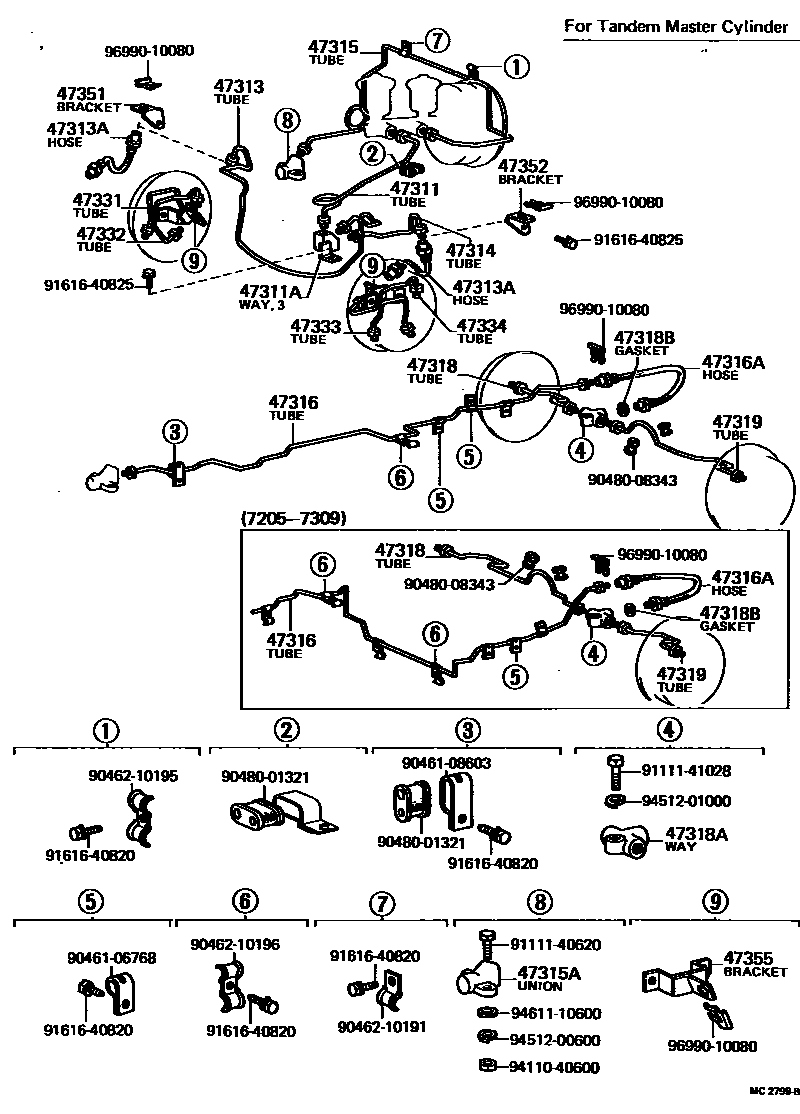

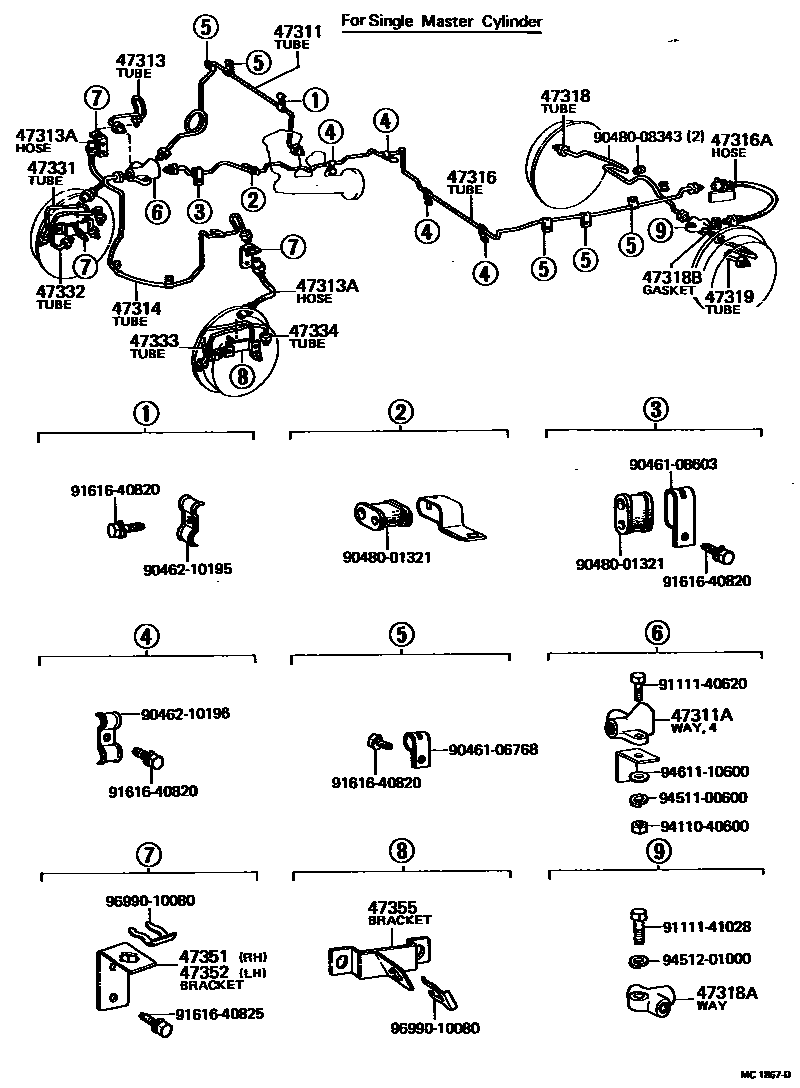

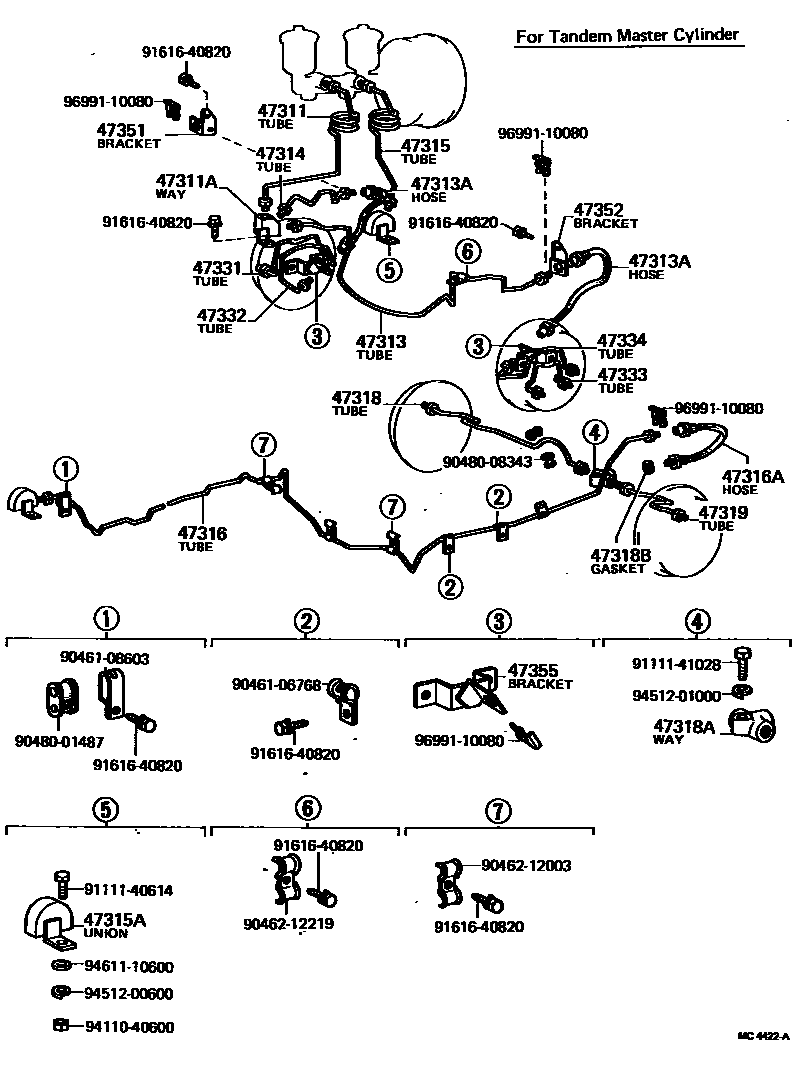

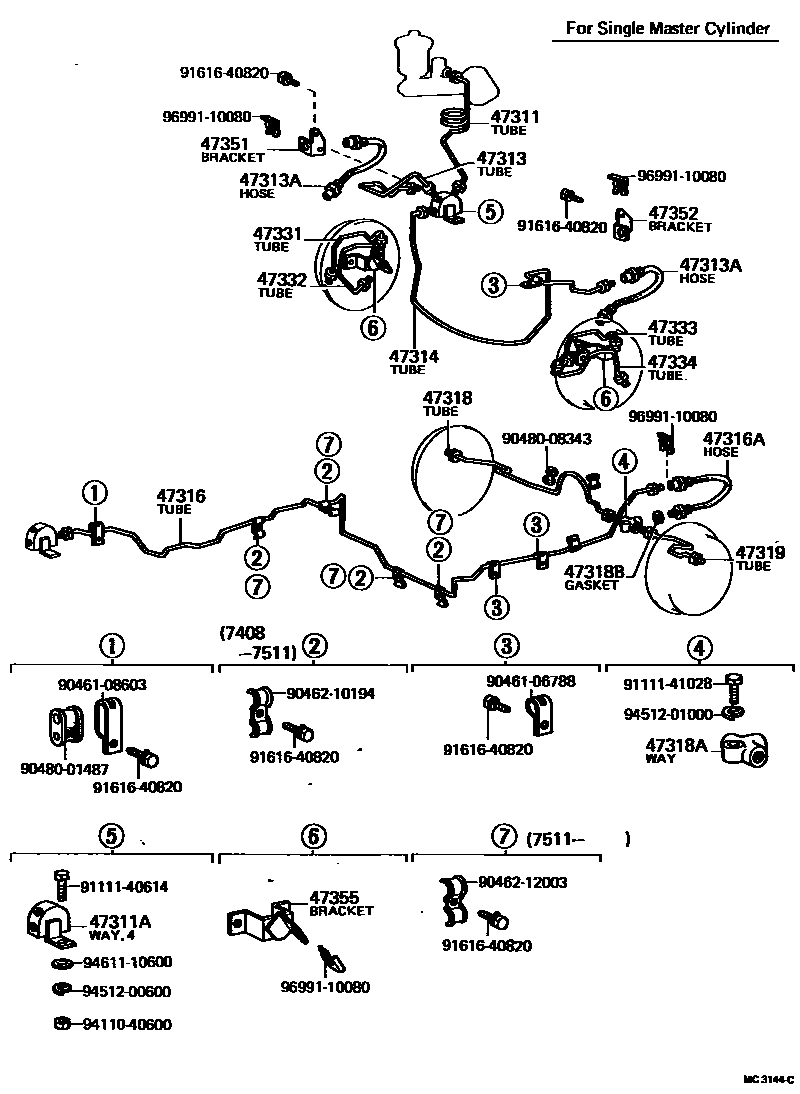

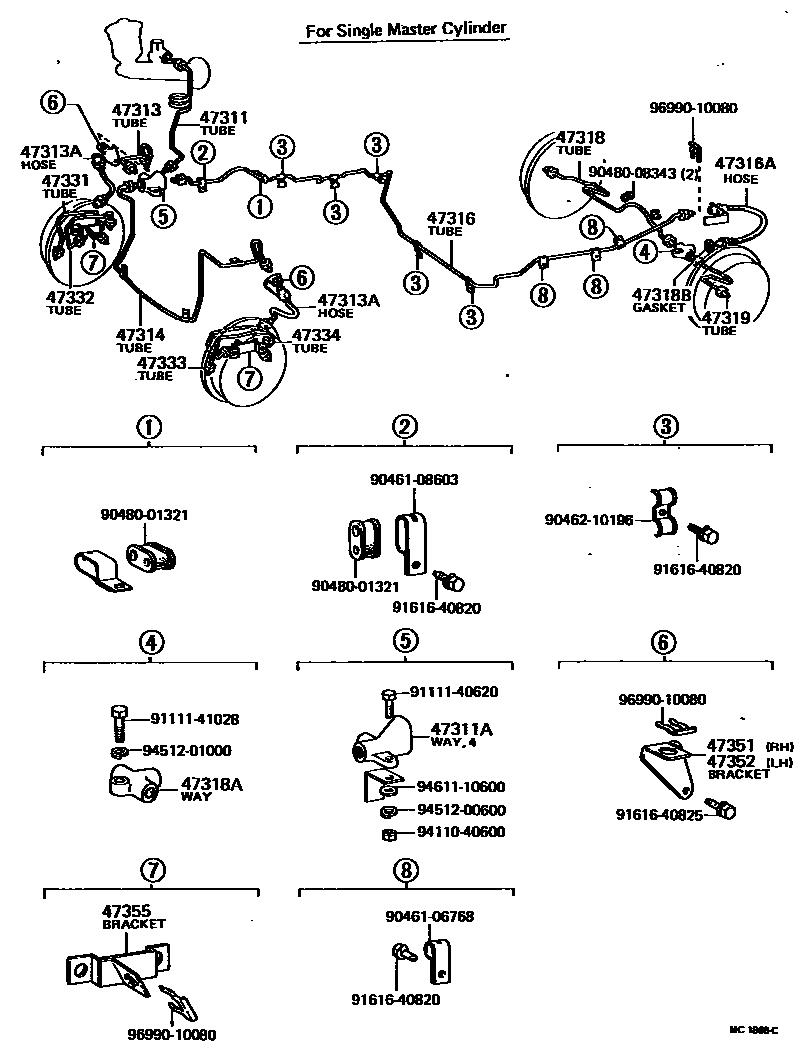

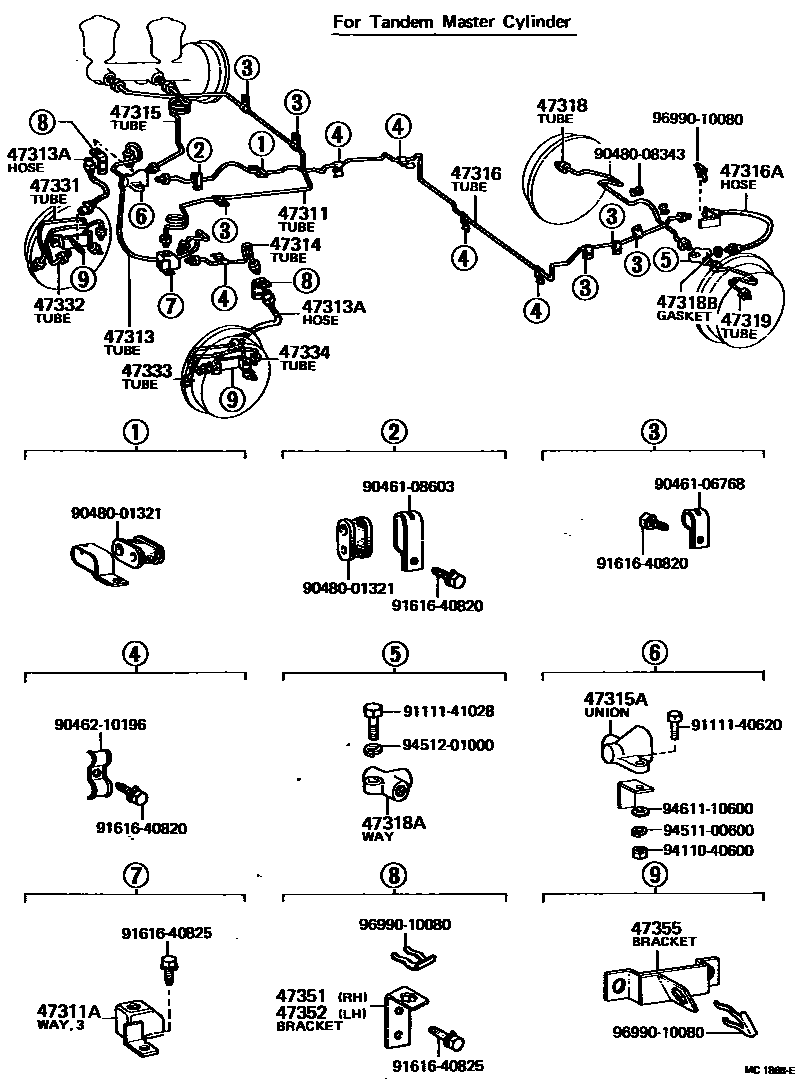

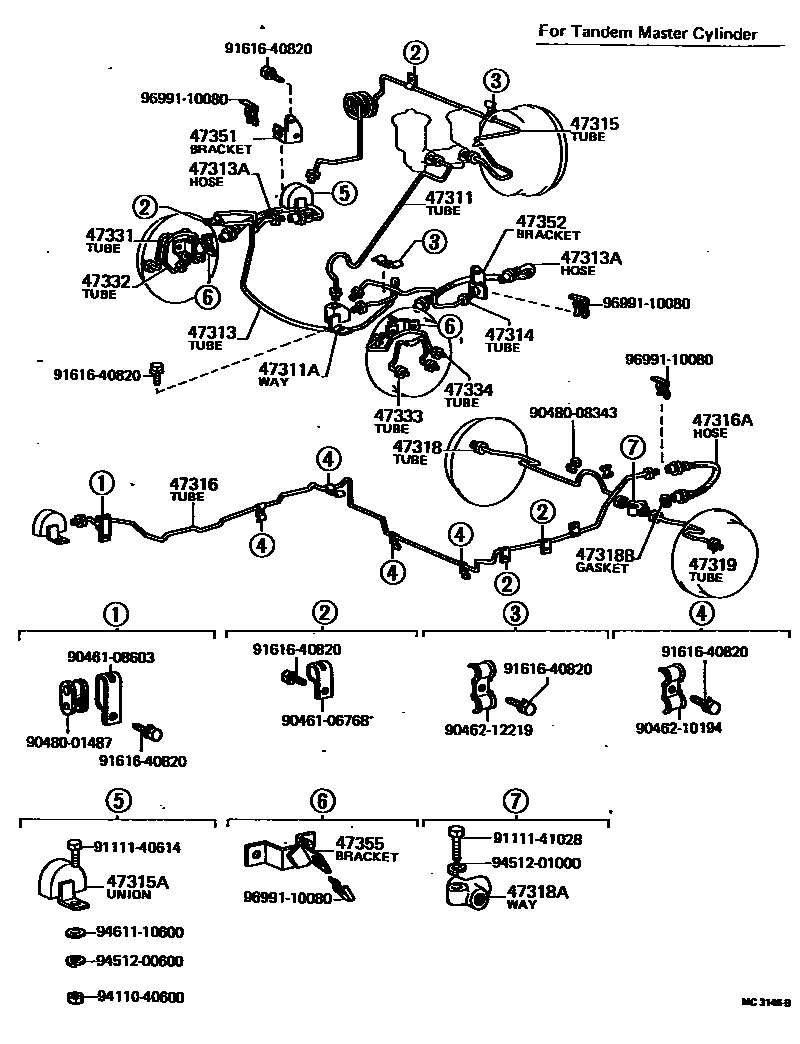

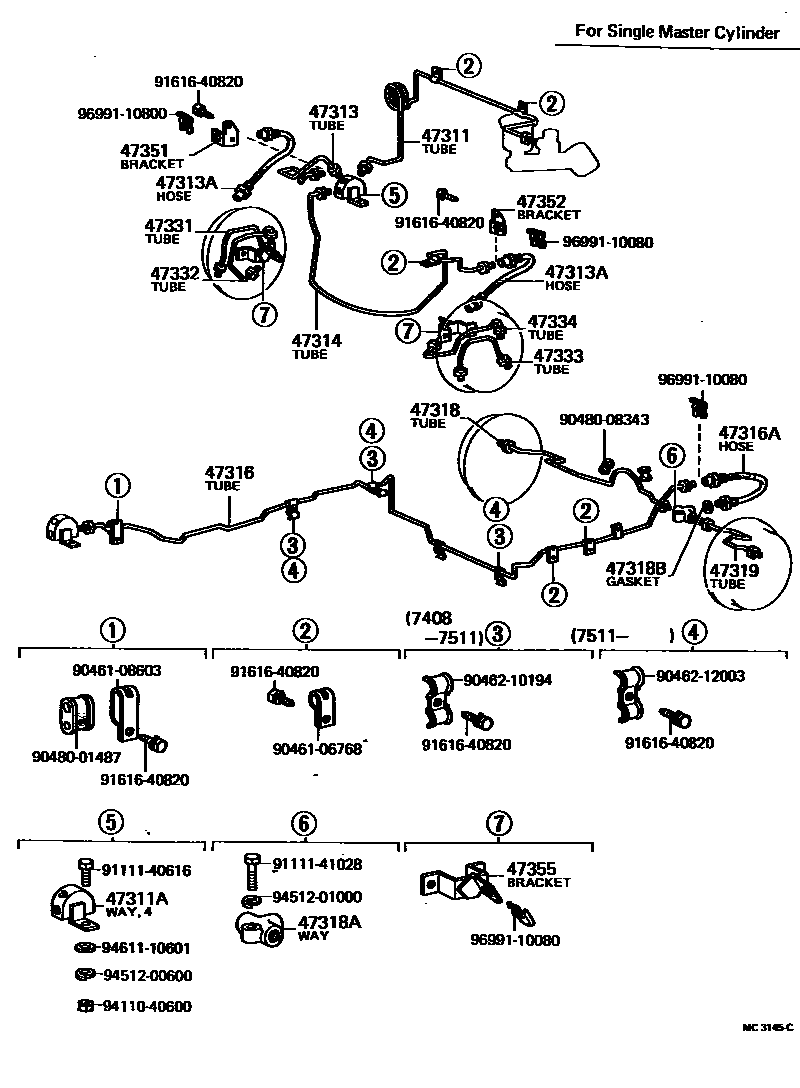

Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 10 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47311 | No. 1 front brake pipe | 47311-35150 · 47311-35160 · 47311-35170 · 47311-35180 · 47311-35200 · 47311-35201 · 47311-35210 · 47311-35220 · 47311-35240 · 47311-35241 · 47311-35242 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10123 · 90414-10047 · 90414-10050 |
| 47313 | No. 3 front brake pipe | 47313-35060 · 47313-35061 · 47313-35070 · 47313-35071 · 47313-35080 · 47313-35090 · 47313-35100 |
| 47313A | No. 1 front flexible hose | 90947-02089 · 90947-02231 · 90947-02248 |
| 47314 | No. 4 front brake pipe | 47314-35070 · 47314-35071 · 47314-35080 · 47314-35081 · 47314-35090 · 47314-35100 · 47314-35110 · 47314-35120 |
| 47315 | No. 5 front brake pipe | 47312-35060 · 47312-35070 · 47312-35100 · 47312-35110 · 47312-35111 |
| 47315A | Pipe fitting or coupling (for rear brake pipe) | 90412-10034 · 90412-10079 |
| 47316 | No. 6 front brake pipe | 47316-35120 · 47316-35130 · 47316-35140 · 47316-35150 · 47316-35160 · 47316-35161 · 47316-35170 · 47316-35171 · 47316-35181 · 47316-35200 · 47316-35201 · 47322-35020 |
| 47316A | Flexible hose (for rear brake pipe) | 96920-31462 · 96920-31463 |
| 47318 | No. 8 front brake pipe | 47318-35060 · 47318-35080 |
| 47318A | Pipe fitting (for right rear brake pipe) | 90413-10028 |
| 47318B | Pad (for right rear brake pipe) | 90430-10027 |
| 47319 | No. 9 front brake pipe | 47319-35060 · 47319-35080 |
| 47325 | No. 5 rear brake pipe | 47325-35010 |
| 47331 | No. 10 rear brake pipe | 47331-30061 · 47331-35020 |
| 47332 | No. 11 rear brake pipe | 47332-35022 · 47332-35023 · 47332-35024 · 47332-35025 |
| 47333 | No. 12 rear brake pipe | 47331-30061 · 47333-35020 |
| 47334 | No. 13 rear brake pipe | 47334-35022 · 47334-35023 · 47334-35024 · 47334-35025 |
| 47351 | Right front flex hose bracket | 47351-35040 · 47351-35041 · 47351-35050 |
| 47352 | Left front flex hose bracket | 47353-35020 · 47353-35021 · 47353-35030 |
| 47353 | Rear flex hose bracket | 47352-35030 |
| 47355 | Front No. 2 Flexible Hose Bracket | 47354-35010 · 47354-35011 · 47354-35020 · 47355-35010 · 47355-35011 · 47355-35020 |

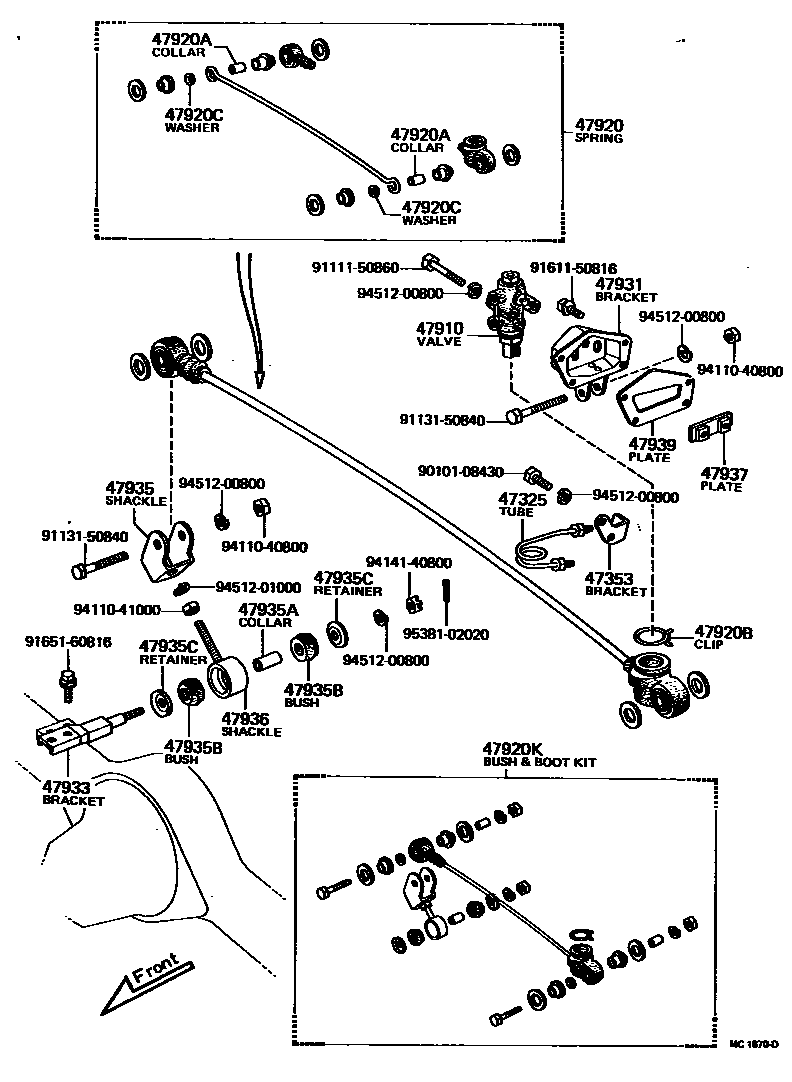

| 47910 | Load sensing proportional valve assembly | 47910-35010 |
| 47920 | Load sensing spring assembly | 47920-35010 |
| 47920A | Collar (for load sensing spring) | 90387-08099 |
| 47920B | Clamp (for load sensing valve dust cover) | 90467-31110 |
| 47920C | Washer (for load sensing spring) | 90202-10103 |
| 47920K | Load sensing spring bushing and boot assembly | 04477-35010 |
| 47931 | Load sensing valve bracket | 47931-35010 |
| 47933 | No. 1 load-sensing spring lifting eye bracket | 47933-35010 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-35010 |
| 47935A | Shaft collar (for load sensing spring lifting lugs) | 90387-08099 |
| 47935B | Bushing (for load sensing spring lifting lugs) | 90385-10064 |
| 47935C | Fixings (for load-sensing spring lifting lugs) | 90948-02033 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-35010 |
| 47937 | Load sensing valve fixing plate | 47937-35010 |
| 47939 | Valve bracket dustproof plate | 47939-35010 |
