Toyota HILUX 后鼓式制动器分泵和底板 — Figure 4706

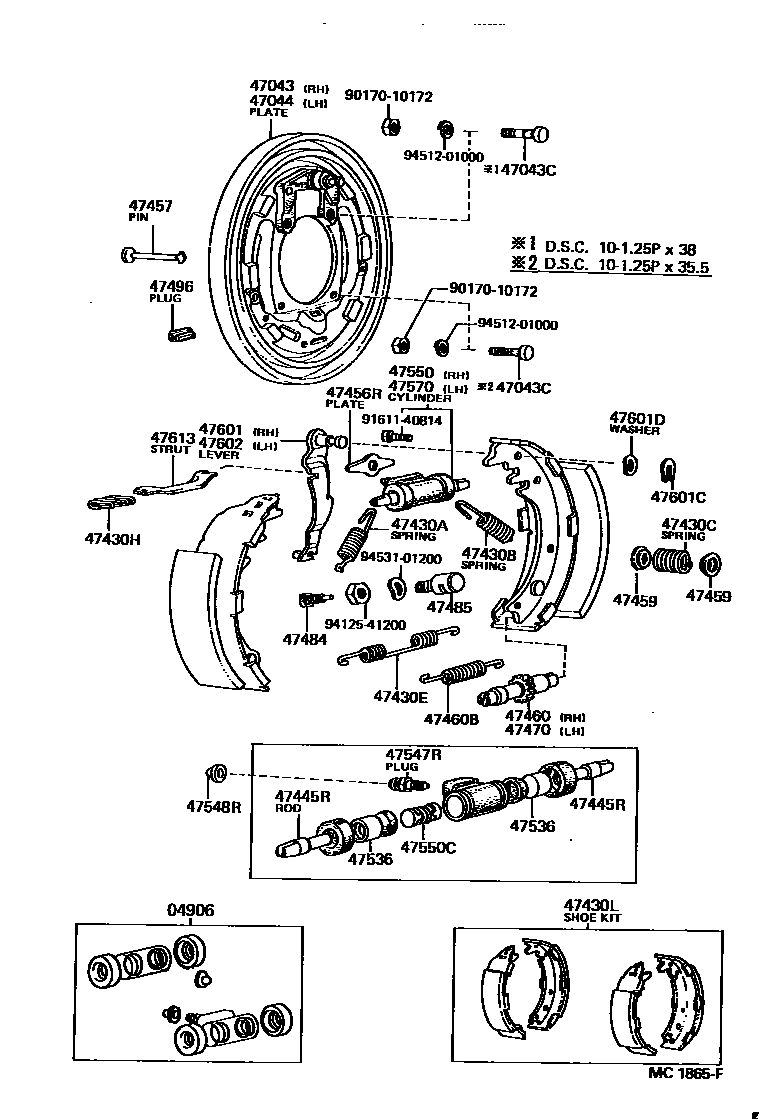

Toyota HILUX EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04906 | Rear wheel pump cup assembly | 04906-35080 |
| 47043 | Right rear brake base plate sub-assembly | 47043-35041 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 90114-10002 · 90114-10016 · 90114-10106 |
| 47044 | Left rear brake base plate sub-assembly | 47044-35031 |
| 47430A | Tension spring (for rear brake shoe return) | 90506-26331 |
| 47430B | Tension spring (for rear brake shoe return) | 90506-26394 |
| 47430C | Limit spring (for rear brake shoe) | 90501-20225 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-26002 · 90506-26411 |
| 47430H | Compression spring (for parking brake shoe push rod) | 90504-18012 |
| 47430L | Rear brake shoe assembly | 04495-26020 · 04495-35031 |
| 47445R | Rear cylinder lever | 47538-35010 |
| 47456R | Rear brake shoe guide | 47456-20010 |
| 47457 | Brake shoe limit spring pin (for rear wheel brake) | 47447-20010 |
| 47459 | Brake shoe limit spring seat (for rear wheel brake) | 47449-20011 |
| 47460 | Right brake shoe adjuster assembly (for rear wheel brake) | 47405-30010 |
| 47460B | Tension spring (for rear brake shoe adjuster) | 90506-23344 |
| 47470 | Left brake shoe adjuster assembly (for rear wheel brake) | 47406-30010 |
| 47484 | Rear brake shoe return spring clamp bolt | 47408-30020 |
| 47485 | Brake shoe return spring clip spacer or fixture | 47485-35010 |
| 47496 | Hole plug (for rear brake) | 47491-35040 |
| 47536 | Wheel brake cylinder piston (for rear wheel brake) | 47531-20071 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-39115 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 47509-20010 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-39115 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-35011 |
| 47601C | C-shaped washer (for rear brake) | 90213-07010 |
| 47601D | Wave washer (for rear brake) | 90206-10059 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-35011 |
| 47613 | Parking brake shoe push rod (for rear wheel brake) | 47613-35011 · 47614-35011 |
