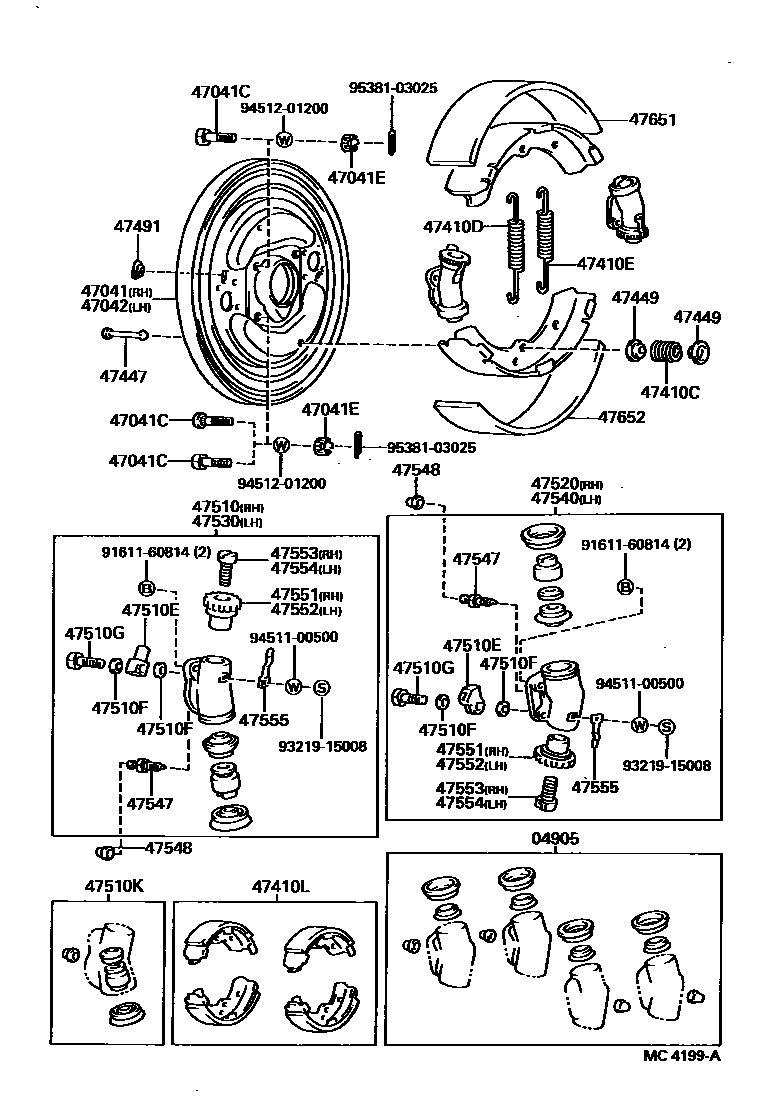

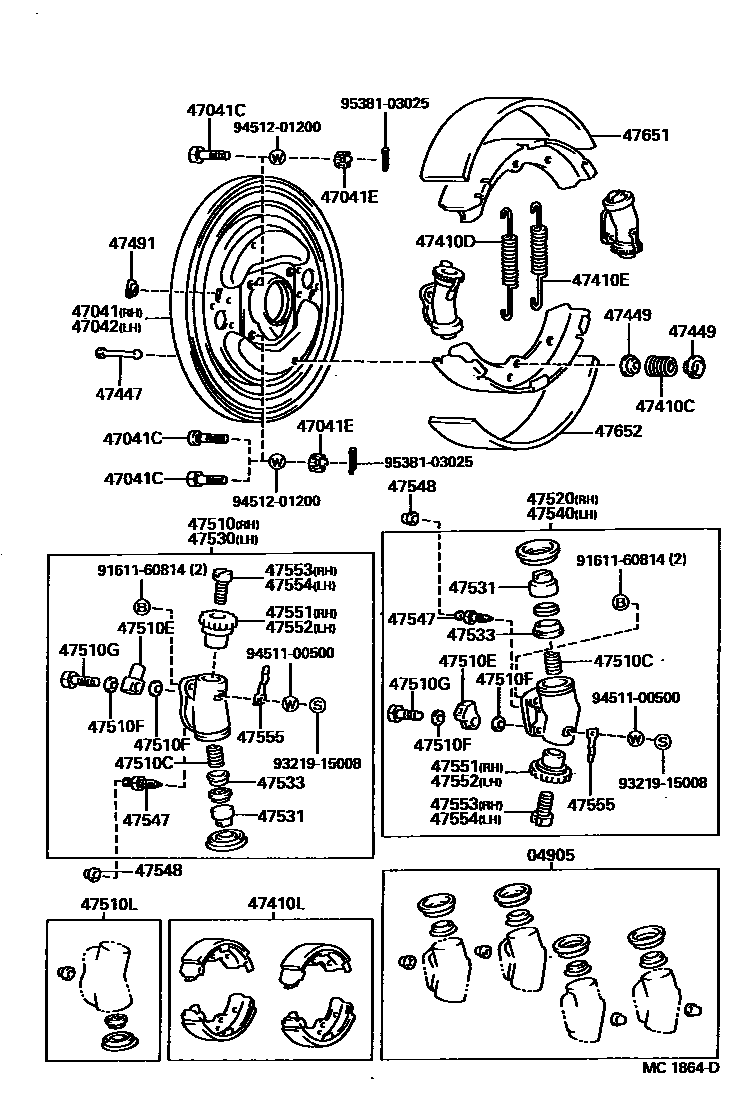

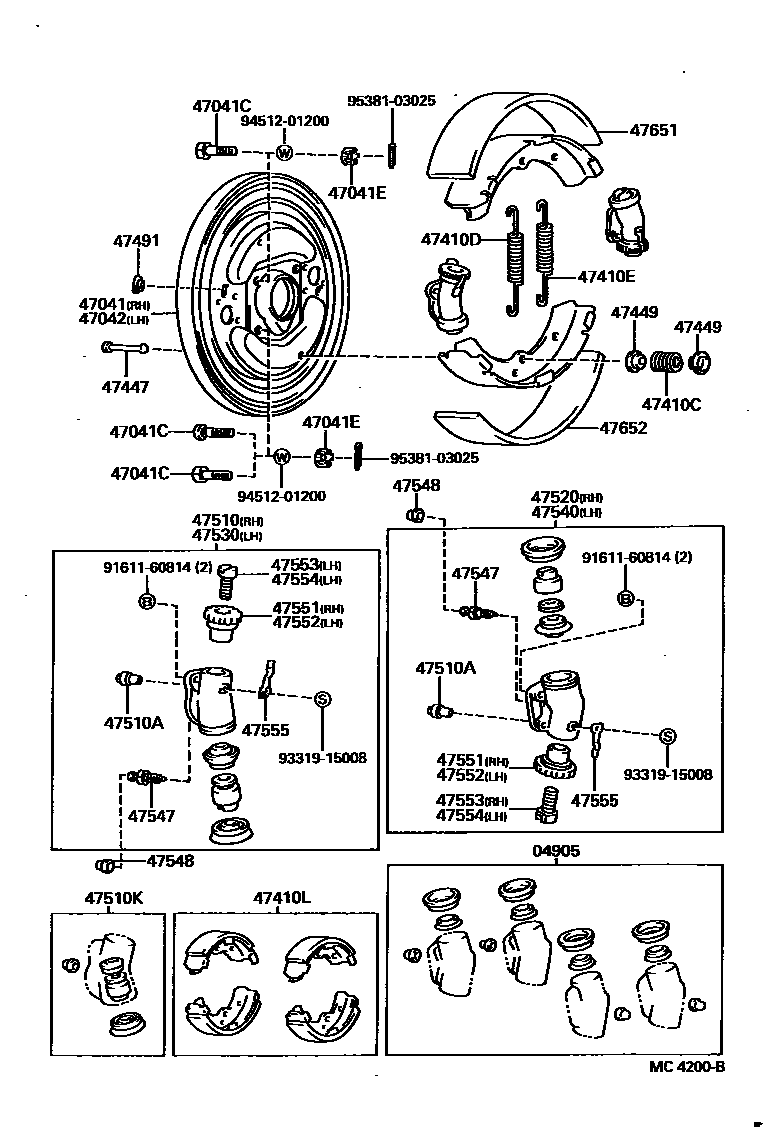

Toyota HILUX 前鼓式制动器分泵和底板 — Figure 4704
Toyota HILUX EPC diagram 4704, 前鼓式制动器分泵和底板, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04905 | Front wheel cylinder cup assembly | 04905-30012 · 04905-35050 |
| 47041 | Right front brake base plate sub-assembly | 47041-35030 · 47041-35031 |
| 47041C | Bolts (to secure the base plate to the knuckle arm) | 90102-12051 · 90102-12058 · 90102-12065 · 90114-12092 · 90114-12138 |
| 47041E | Nut (used to secure the base plate to the steering knuckle arm) | 94145-71200 |
| 47042 | Left front brake base plate sub-assembly | 47042-35010 · 47042-35011 |
| 47410C | Limit spring (for front brake shoes) | 90501-20225 |
| 47410D | Tension spring (for front brake shoe return) | 90506-23301 |
| 47410E | Tension spring (for front brake shoe return) | 90506-23301 |
| 47410L | front brake shoe assembly | 04494-30011 |
| 47447 | Brake shoe limit spring pin (for front wheel brake) | 47447-35030 |
| 47449 | Brake shoe limit spring seat (for front wheel brake) | 47449-20011 |
| 47491 | Hole plug (for front wheel brake) | 47491-35030 |
| 47510 | Right front wheel brake cylinder assembly (for front or upper side) | 47510-39095 · 47510-39096 |
| 47510A | Joint base (for front wheel brake cylinder) | 90410-03015 |
| 47510C | Compression spring (for front wheel brake cylinder) | 90501-09144 |
| 47510E | Connector (for front wheel brake cylinder) | 90405-10073 · 90405-10135 · 90405-10171 |
| 47510F | Pad (for front wheel brake cylinder) | 90430-10074 |
| 47510G | Joint bolt (for front wheel brake cylinder) | 90401-10047 |
| 47510K | Front wheel cylinder assembly | 04473-26010 · 04473-35040 |
| 47520 | Right front wheel brake cylinder assembly (for rear or lower side) | 47520-39065 · 47520-39066 |
| 47530 | Left front wheel brake cylinder assembly (for front or upper side) | 47530-39095 · 47530-39096 |
| 47531 | Wheel brake cylinder piston (for front wheel brake) | 47531-35110 |
| 47533 | Wheel cylinder piston spring seat (for front wheel brake) | 47533-30010 · 47533-30011 |
| 47540 | Left front wheel brake cylinder assembly (for rear or lower side) | 47540-39065 · 47540-39066 |
| 47547 | Bleed plug (for front drum brake) | 47547-12010 |
| 47548 | Bleeder plug cap (for front drum brake) | 31478-30010 |
| 47551 | Right front wheel cylinder adjustment nut (for front wheel brake) | 47551-40010 |
| 47552 | Left front wheel cylinder adjustment nut (for front wheel brake) | 47552-40010 |
| 47553 | Right front wheel cylinder adjustment bolt (for front wheel brake) | 47553-30051 |
| 47554 | Left front wheel cylinder adjustment bolt (for front wheel brake) | 47554-30051 |
| 47555 | Adjuster locking spring (for front wheel brake) | 47555-30020 |
| 47651 | Front brake shoe friction lining (for front or upper side) | 47651-30070 |
| 47652 | Front brake shoe friction lining (for rear or lower side) | 47651-30070 |
