Toyota HILUX 制动总泵 — Figure 4702

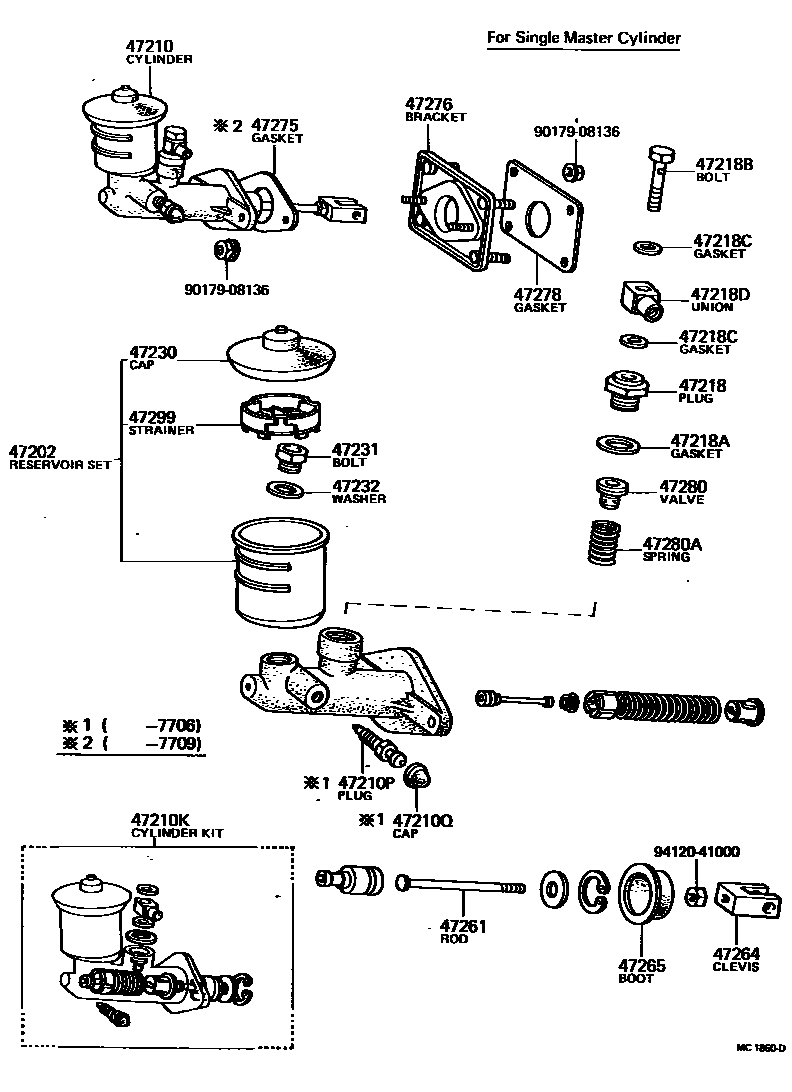

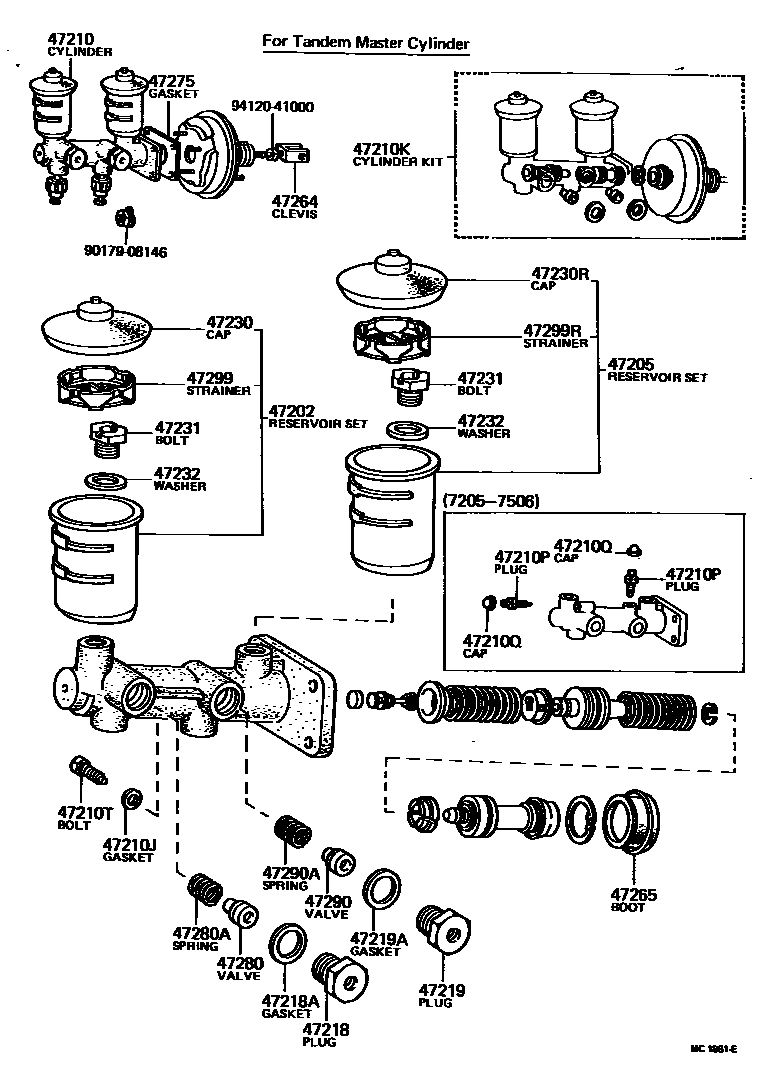

Toyota HILUX EPC diagram 4702, 制动总泵, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47202 | Brake master cylinder reservoir sub-assembly | 47202-22061 · 47202-22062 · 47202-22071 |
| 47205 | Brake master cylinder reservoir assembly (for rear side) | 47202-22071 |
| 47210 | Brake master cylinder assembly without booster | 47200-35070 · 47200-35110 · 47201-35020 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210K | Brake master cylinder assembly | 04471-35050 · 04493-35020 |
| 47210P | Bleed plug (for brake master cylinder) | 47547-30020 |
| 47210Q | Bleed plug cap (for brake master cylinder) | 47548-20010 |
| 47210T | Bolt (for brake master cylinder) | 90109-06055 · 90109-06077 |
| 47218 | Brake master cylinder brake fluid outlet screw plug | 47218-10010 · 47218-12010 · 47218-30010 |
| 47218A | Gasket (for brake fluid outlet plug) | 90430-20018 |
| 47218B | Connector bolt (for brake master cylinder fluid outlet) | 90401-10014 |
| 47218C | Pad (for brake master cylinder outlet) | 90430-10074 |
| 47218D | Connector (for brake master cylinder outlet) | 90405-10073 |
| 47219 | Master cylinder brake fluid outlet screw plug (for rear side) | 47218-10010 · 47218-30010 |
| 47219A | Gasket (for rear master cylinder brake fluid outlet plug) | 90430-20018 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12020 · 47230-12030 · 47230-20030 · 47230-20040 |
| 47230R | No. 2 fluid reservoir cap assembly (for rear side) | 47230-12030 · 47230-20040 |
| 47231 | Brake master cylinder reservoir fixing bolt | 47231-30010 · 47231-35010 |
| 47232 | Brake fluid reservoir retaining bolt washer | 47232-30010 · 47232-35010 |
| 47261 | Master cylinder push rod | 47261-35040 |
| 47264 | Master cylinder push rod U-shaped clamp | 31453-30020 |
| 47265 | Master pump dust jacket | 47265-30020 · 47265-35020 |
| 47275 | brake master cylinder gasket | 47275-22010 · 47275-30010 · 47275-35010 |
| 47276 | brake master cylinder bracket | 47276-30020 |
| 47278 | Brake master cylinder bracket gasket | 44785-35010 |
| 47280 | Brake master cylinder outlet check valve assembly | 47280-12010 · 47280-12020 · 47280-30020 |
| 47280A | compression spring | 90501-10074 · 90501-10698 |
| 47290 | Master pump outlet valve assembly (for rear side) | 47280-12010 · 47280-30020 |
| 47290A | Compression spring (for rear master pump outlet) | 90501-10074 · 90501-10698 |
| 47299 | Brake master cylinder reservoir filter | 47299-22010 · 47299-22020 |
| 47299R | Rear master cylinder reservoir filter | 47299-22010 |
