Toyota HILUX Brake Pedal & Bracket — Figure 4701

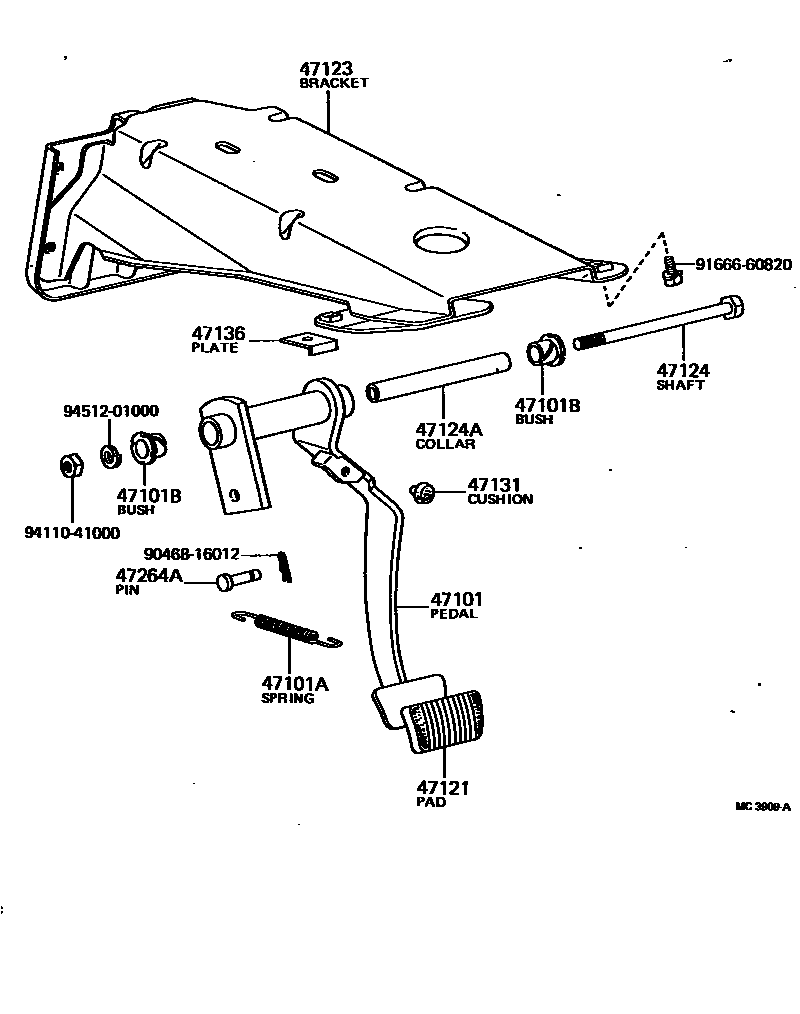

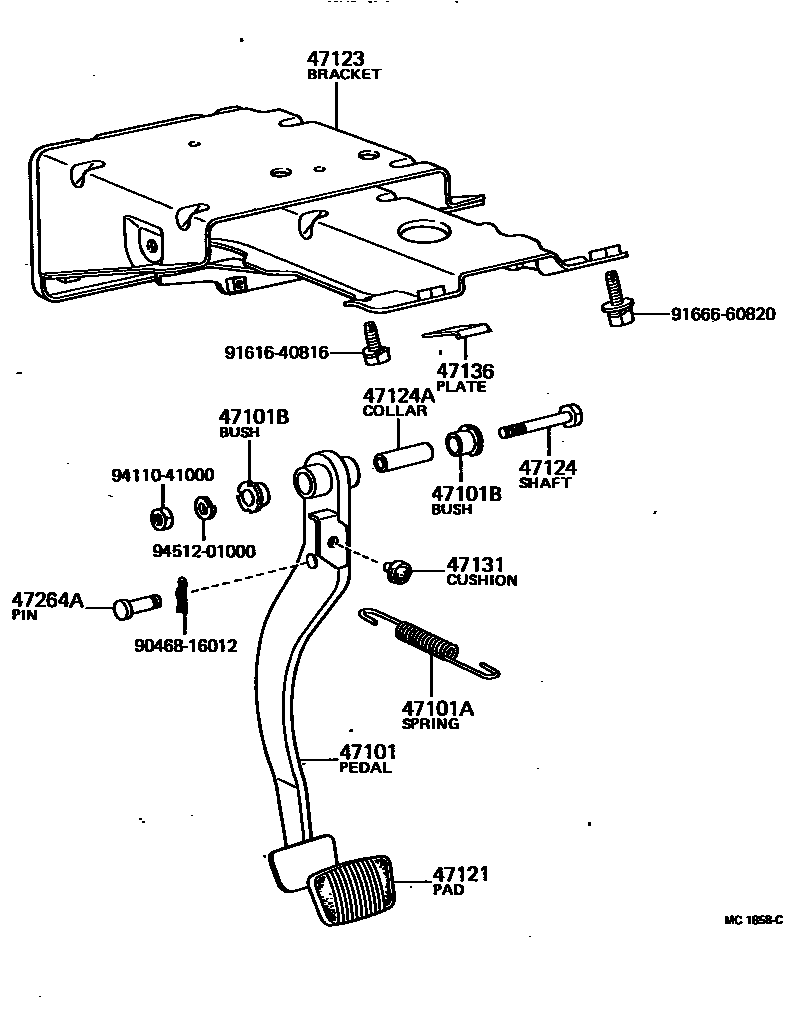

Toyota HILUX EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-35060 · 47101-35070 · 47101-35080 · 47101-35130 |
| 47101A | Spring (for brake pedal return) | 90506-16386 |
| 47101B | Bushing (for brake pedal) | 90386-13007 |
| 47121 | brake pedal pad | 31321-20020 · 47121-12011 · 47121-30050 |
| 47123 | brake pedal bracket | 55106-89105 · 55106-89106 · 55106-89107 · 55106-89109 · 55106-89110 |
| 47124 | brake pedal shaft | 90101-10170 · 91121-51060 |
| 47124A | Collar (for brake pedal shaft) | 47144-35010 · 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06008 |
| 47136 | Brake pedal bracket plate | 55159-89101 |
| 47264A | Pin (for push rod) | 90249-10048 |
