Toyota HILUX Parking Brake & Cable — Figure 4601

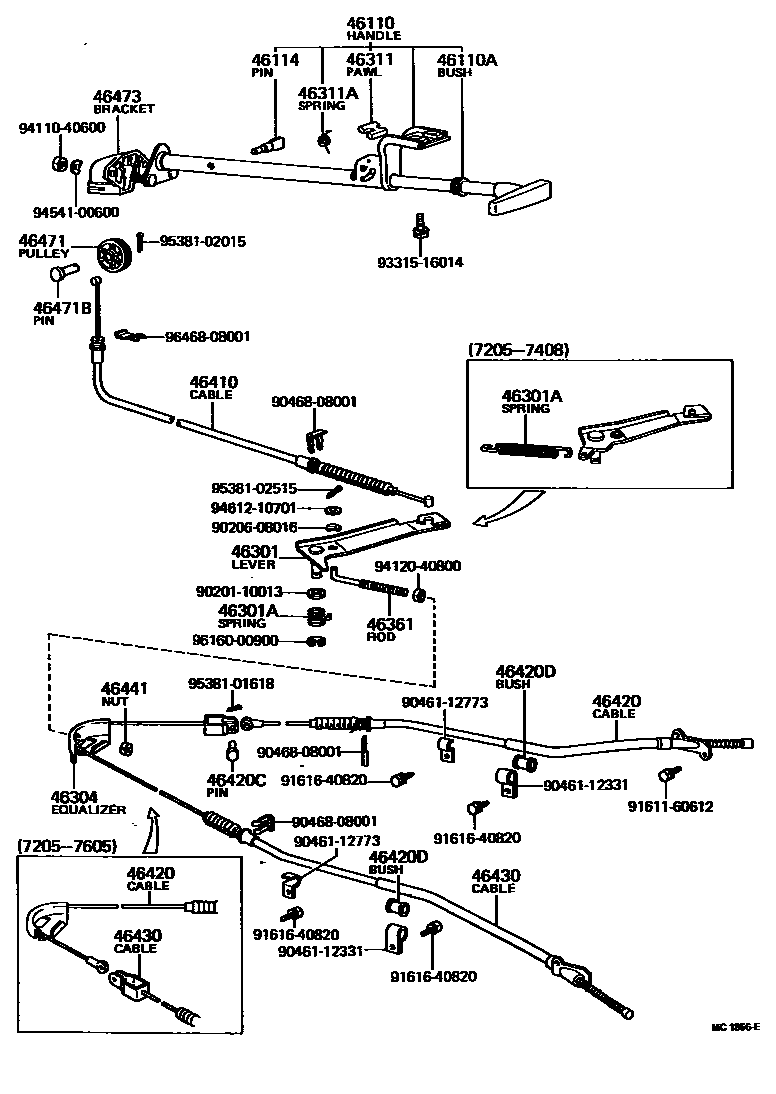

Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46110 | Parking brake control handle assembly | 46110-35070 · 46110-35071 · 46110-35080 · 46110-35081 |
| 46110A | Bushing or O-ring (for parking brake plunger) | 90386-12048 |
| 46114 | Parking brake plunger pin | 46114-30020 |
| 46301 | Parking brake intermediate lever sub-assembly | 46301-35030 · 46301-35040 · 46301-35050 · 46301-35051 · 46301-35060 · 46301-35071 |
| 46301A | Tension spring (for middle lever) | 90506-18210 · 90508-32446 · 90508-32447 |
| 46304 | Parking brake balancer sub-assembly | 46341-35010 |
| 46311 | parking brake pawl | 46311-30030 |
| 46311A | Spring (for parking brake pawl) | 90508-07040 |
| 46361 | Parking brake lever | 46361-35010 · 46361-35020 · 46361-35031 |
| 46410 | Parking brake cable assembly No. 1 | 46410-35050 · 46410-35051 · 46410-35090 · 46410-35091 · 46410-35092 · 46410-35121 · 46410-35130 · 46410-35140 |
| 46420 | Parking brake No. 2 cable assembly | 46420-35040 · 46420-35041 · 46420-35050 · 46420-35051 · 46420-35052 |
| 46420C | Pin with hole (for parking brake cable) | 90240-06032 |
| 46420D | Seal or bushing (for parking brake cable clip) | 90385-13051 |
| 46430 | Parking brake No. 3 cable assembly | 46430-35030 · 46430-35031 · 46430-35040 · 46430-35041 · 46430-35042 · 46430-35110 |
| 46441 | No. 1 cable adjustment nut | 90179-08020 |
| 46471 | Wiring harness pulley | 46471-20010 |
| 46471B | Holed pin (for harness pulley assembly) | 90240-08070 |
| 46473 | pulley bracket | 46473-35010 |
