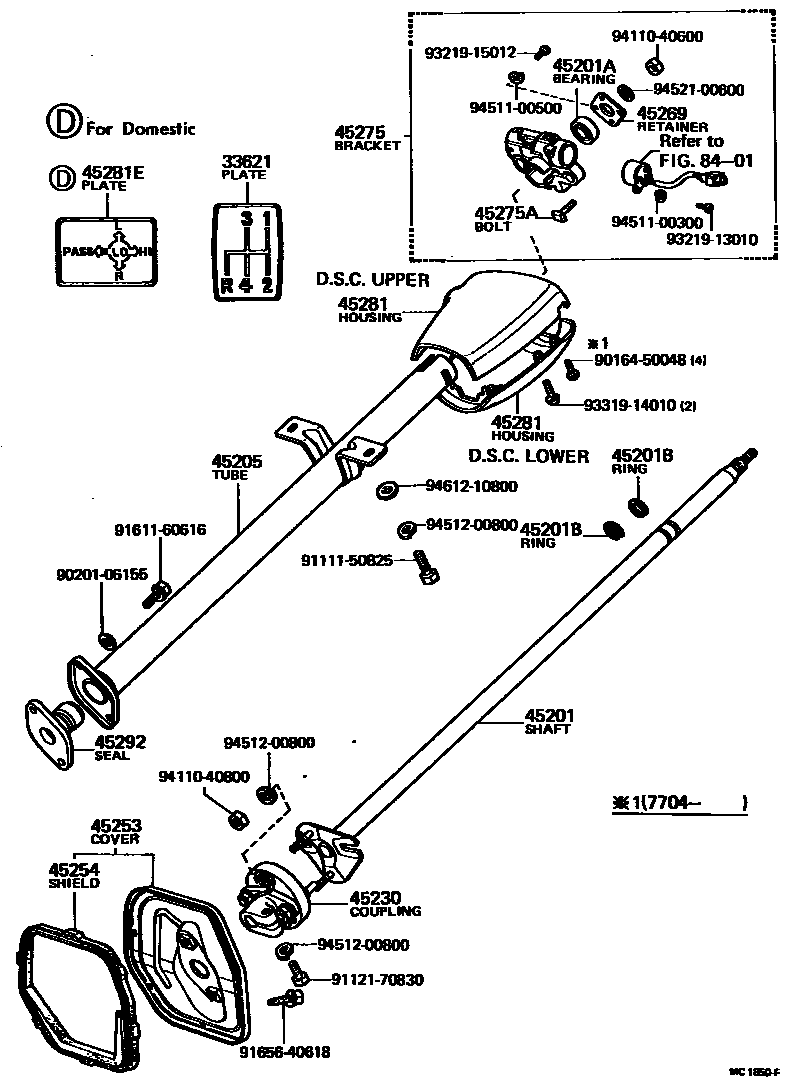

Toyota HILUX Steering Column & Shaft — Figure 4501
Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33621 | Control lever warning nameplate | 33621-20010 |
| 45201 | Steering spindle sub-assembly | 45201-35070 · 45201-35080 |
| 45201A | Bearings (for steering spindle) | 90363-18038 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 |
| 45205 | Steering column tube sub-assembly | 45250-35040 · 45250-35050 |
| 45230 | Flexible coupling assembly | 45230-35010 · 45230-35020 |
| 45240 | Steering worm assembly | 45240-14010 · 45240-20030 · 45240-20031 · 45240-35020 · 45240-35021 |
| 45240A | Bearings (for steering worm) | 90369-40018 · 90369-41017 |
| 45240B | Oil seal (for steering worm) | 90311-17092 · 90311-19001 |
| 45242 | Worm bearing adjustment screw | 45242-22020 · 45242-22030 · 45242-22031 · 45242-35040 |
| 45242A | O-ring (for worm bearing adjustment screw) | 90301-53181 |
| 45243 | Worm bearing adjustment screw lock nut | 45243-22020 · 45243-22030 |
| 45253 | Steering column hole cover | 55607-89102 · 55607-89103 · 55607-89104 · 55607-89105 · 55607-89106 · 55607-89107 |
| 45254 | steering column escutcheon | 55673-89102 · 55673-89103 · 55673-89104 · 55673-89105 |
| 45269 | Spindle bearing retainer | 45269-60010 |
| 45275 | Steering column upper bracket | 45280-35020 · 45280-35030 |
| 45275A | Hexagonal bolt (for steering column bracket) | 90108-06024 |
| 45281 | Steering column housing | 45286-35020 · 45286-35021 · 45286-35030 · 45286-35031 · 45286-35040 · 45286-35041 · 45286-35050 · 45286-35051 · 45286-35060 · 45286-35061 · 45286-35070 · 45286-35071 · 45287-35020 · 45287-35021 · 45287-35030 · 45287-35031 · 45287-35040 · 45287-35041 |
| 45292 | Dust-proof sealing ring under spindle | 45292-35020 |
| 45301 | Steering housing sub-assembly | 45301-35050 · 45301-35060 · 45301-35061 · 45301-35063 · 45301-35070 · 45301-35080 |
| 45301A | No. 1 sector gear shaft bushing or bearing | 90999-73008 |
| 45301B | Oil seal (for sector gear shaft) | 90310-28027 |
| 45301H | No. 2 sector gear shaft bushing or bearing | 90999-73008 |
| 45310 | Steering housing assembly | 45310-35040 · 45310-35050 · 45310-35051 · 45310-35052 · 45310-35060 · 45310-35070 |
| 45331 | Sector gear shaft end cover | 45304-35020 · 45304-35030 |
| 45332 | Sector gear shaft end cover gasket | 45332-20060 · 45332-35020 · 45332-35030 |
| 45351 | Steering sector gear shaft | 45351-22030 · 45351-22050 · 45351-35040 · 45351-35041 |
| 45351A | Hexagonal nut (used to fix the sector gear shaft to the steering rocker arm) | 90170-20147 |
| 45352 | Sector gear shaft thrust washer | 45352-14010 · 45352-14020 · 45352-14030 · 45352-14040 · 45352-14050 · 45352-14060 · 45352-20010 · 45353-20010 · 45354-20010 · 45355-20010 · 45356-20010 |
| 45357 | Sector gear shaft adjustment screw | 45357-20020 · 45357-30040 |
| 45372 | Steering case oil plug | 90930-03027 |
| 45376 | No. 2 steering column adjustment washer | 45376-35010 · 45377-35010 |
| 45401 | Steering rocker arm sub-assembly | 45401-39115 · 45401-39116 · 45401-39125 · 45401-39126 · 45401-39135 · 45401-39145 |
| 45401A | Castle nut (for steering rocker arm) | 90171-14042 |
| 45401E | O-ring (for steering rocker arm) | 90562-16107 |
