Toyota HILUX 后桥半轴和后桥轮毂 — Figure 4102

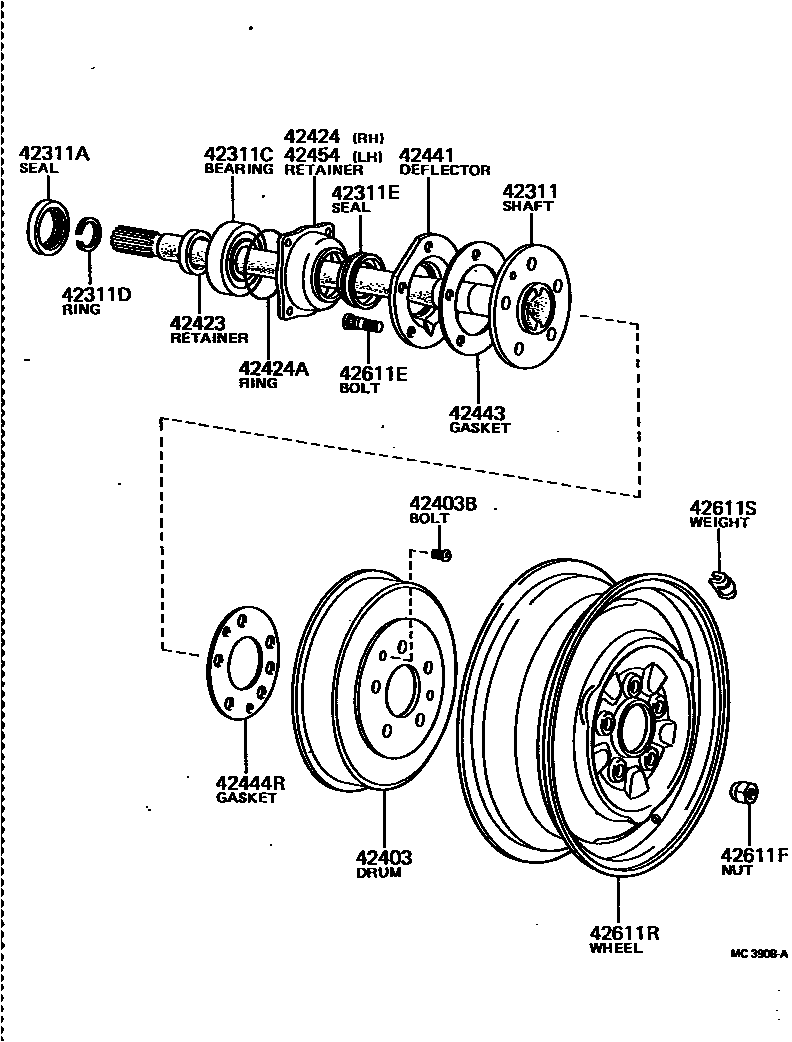

Toyota HILUX EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311 | Rear axle half shaft | 42311-35040 |
| 42311A | Oil seal (for rear axle half shaft) | 90310-50039 |
| 42311C | Bearings (for rear axle half shaft) | 97144-06308 |
| 42311D | Snap ring (for rear axle half shaft) | 90520-36045 |
| 42311E | External oil seal (for rear axle half shaft) | 90313-48005 |
| 42403 | Rear brake drum sub-assembly | 42431-35030 |
| 42403B | Fixing bolt (for fixing the rear brake drum) | 90113-10035 |
| 42423 | Rear axle bearing inner retainer | 42423-20010 |
| 42424 | Rear axle right bearing outer retainer | 42421-35020 |
| 42424A | O-ring (for bearing retainer assembly) | 90301-88077 |
| 42441 | brake drum oil baffle | 42441-26010 |
| 42443 | Brake drum oil deflector gasket | 42443-30010 |
| 42444R | Brake drum gasket (for rear axle) | 42444-35020 |
| 42454 | Rear axle left bearing outer retainer | 42421-35020 |
| 42611E | Hub bolts (for rear axle) | 90942-02017 · 90942-02037 |
| 42611F | Hub nut (for rear axle) | 90942-01007 · 90942-01021 |
| 42611R | Spoke wheels (for rear tires) | 42601-26110 · 42601-35080 · 42601-35081 · 42601-35121 |
| 42611S | Balance weight (for rear spoked wheels) | 90942-03010 · 90942-03011 · 90942-03012 · 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 |
