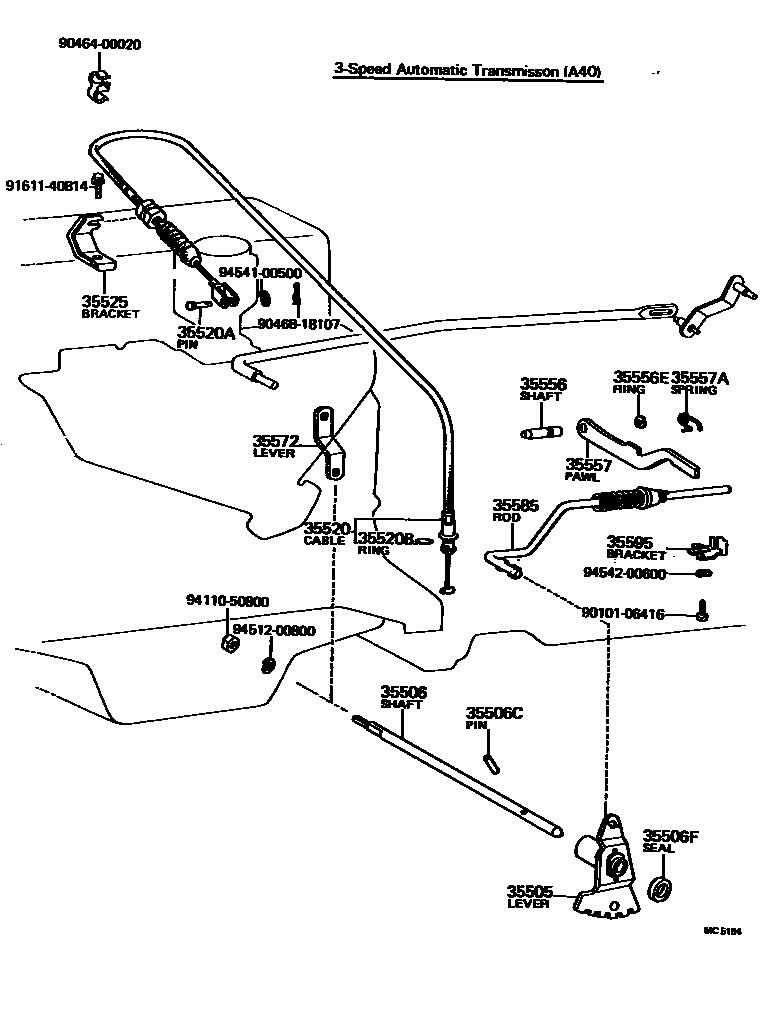

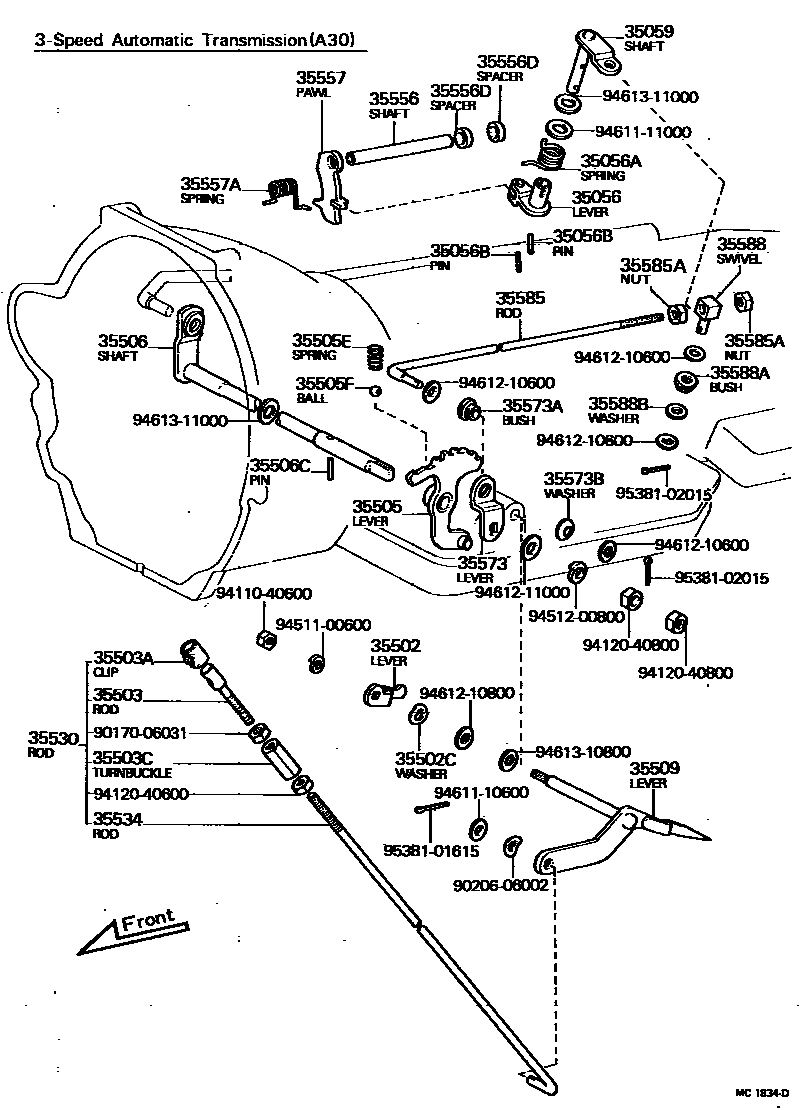

Toyota HILUX 节气阀连杆和阀杆(ATM) — Figure 3513
Toyota HILUX EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35056 | Parking lock lever sub-assembly with roller | 35056-30010 |
| 35056A | Parking lock lever spring | 90508-26122 |
| 35056B | Parking lock lever pin | 90254-04013 |
| 35059 | Parking lock shaft sub-assembly | 35059-22010 |
| 35502 | Throttle valve stem sub-assembly | 35532-30010 |
| 35502C | Wave washer (for throttle valve inner stem) | 90206-08024 |
| 35503 | Throttle valve stem first gear connecting rod sub-assembly | 35503-22020 |
| 35503A | Clamp (for throttle stem connecting rod) | 78197-10010 |
| 35503C | Turnbuckle (for throttle stem linkage) | 90587-06001 |
| 35505 | Manual valve stem sub-assembly | 35505-22010 · 35505-30010 |
| 35505E | Compression spring (for manual valve stem) | 90501-12324 |
| 35505F | Ball (for manual valve stem) | 90360-08009 |
| 35506 | Manual valve stem shaft sub-assembly | 35506-22010 · 35561-20021 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-03010 · 90254-03044 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-11128 |
| 35509 | Throttle valve outer rod sub-assembly | 35502-30011 |
| 35520 | Throttle valve cable assembly | 35520-22010 · 35520-22030 |
| 35520A | Throttle valve cable pin | 90240-05139 |
| 35520B | O-ring (for throttle valve cable) | 90301-09063 |
| 35525 | Throttle valve cable bracket | 35525-14020 |
| 35530 | Throttle valve rod connecting rod assembly | 35530-22050 |
| 35534 | Throttle valve rod first gear connecting rod | 35535-22050 |
| 35556 | Parking lock pawl shaft | 35556-22010 · 35556-30010 |
| 35556D | Spacer (for parking pawl shaft) | 90560-11253 |
| 35556E | E-ring (for parking lock pawl shaft) | 90523-08021 |
| 35557 | Parking pawl | 35557-30011 · 35557-35010 |
| 35557A | Torsion spring (for parking pawl) | 90508-16135 · 90508-25329 |
| 35572 | Transmission right control lever | 35572-22040 |
| 35573 | Transmission left control lever | 35573-14010 |
| 35573A | Bushing (for transmission control lever) | 90389-06014 |
| 35573B | Washer (for securing transmission control lever) | 90206-06002 |
| 35585 | Parking lock lever | 35501-22010 · 35585-14010 |
| 35585A | Nut (for securing the parking lock lever) | 90170-08103 |
| 35588 | Parking lock lever swivel joint | 35588-30010 |
| 35588A | Bushing (for parking lock lever swivel joint) | 90389-06014 |
| 35588B | Washer (for parking lock lever swivel joint) | 90206-06002 |
| 35595 | Parking lock pawl bracket | 35595-22010 |
