Toyota HILUX 后油泵和调速器(ATM) — Figure 3511

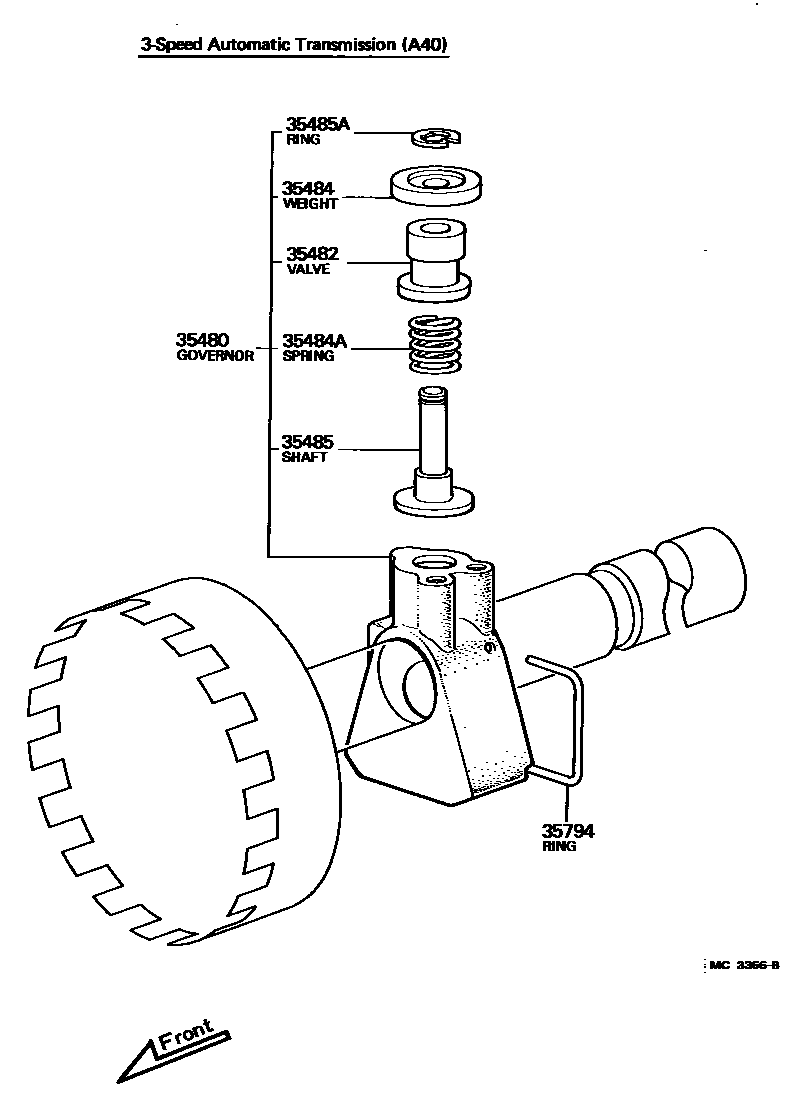

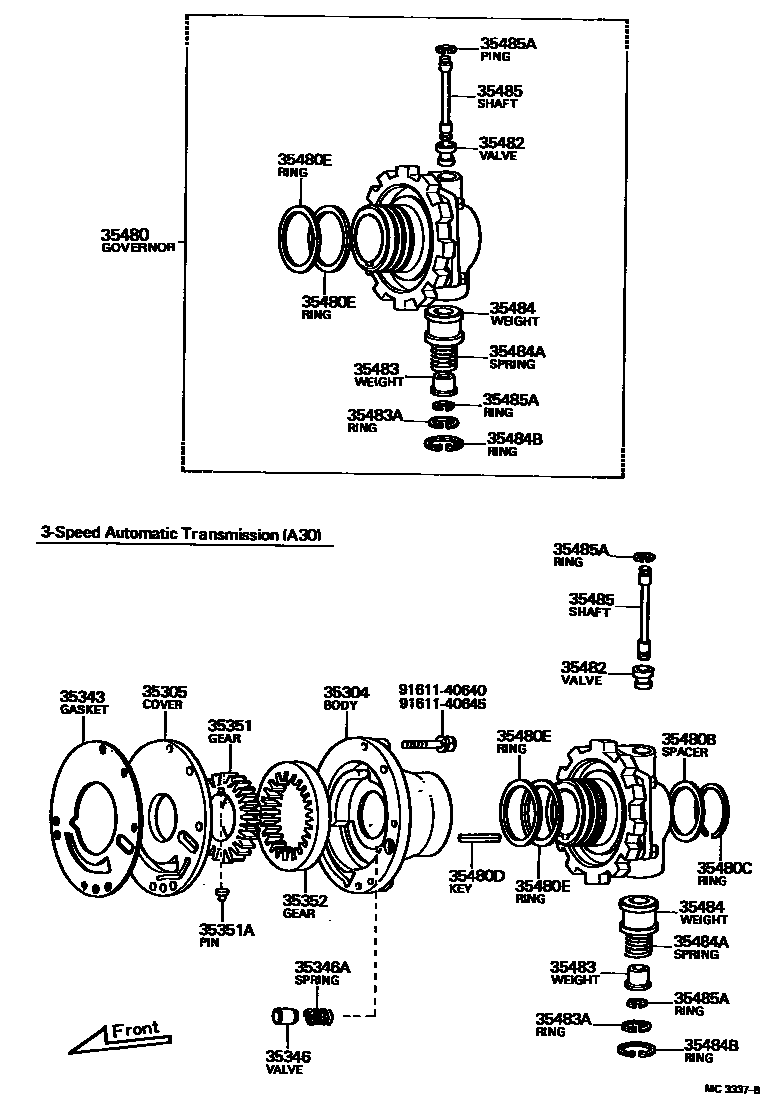

Toyota HILUX EPC diagram 3511, 后油泵和调速器(ATM), with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35304 | Rear oil pump body sub-assembly | 35304-30014 |
| 35305 | Rear oil pump cover sub-assembly | 35305-30011 |
| 35343 | Rear oil pump cover bushing | 35343-30021 |
| 35346 | Starting valve (for rear oil pump) | 35346-30011 |
| 35346A | Compression spring (for starter valve) | 90501-08478 |
| 35351 | Rear oil pump driving gear | 35351-30011 |
| 35351A | Direct sales (for rear oil pump driving gear) | 90241-05029 |
| 35352 | Rear oil pump driven gear | 35352-31010 |
| 35480 | governor | 35480-22020 · 35480-39025 |
| 35480B | Spacer (for governor body spacer or parking lock gear) | 90560-30223 |
| 35480C | Shaft snap ring (for output) | 90520-28009 |
| 35480D | Feather key (for governor body bracket) | 90281-05012 |
| 35480E | Ring (for rear oil pump governor) | 35323-31011 |
| 35482 | governor valve | 35482-22010 · 35482-30010 |
| 35483 | Counterweight in speed regulator | 35483-30011 |
| 35483A | Hole snap ring (for counterweight in speed regulator) | 96151-01900 |
| 35484 | Speed regulator external weight | 35484-22010 · 35484-31010 |
| 35484A | Compression spring (for governor weight) | 90501-09673 · 90501-12508 |
| 35484B | Hole snap ring (for external counterweight of speed regulator) | 96151-02500 |
| 35485 | governor valve shaft | 35485-22010 · 35485-31012 |
| 35485A | E-ring (for governor valve shaft) | 90523-03007 · 90523-05020 |
| 35794 | governor retaining ring | 35794-22010 |
