Toyota HILUX 制动带和多片式离合器(ATM) — Figure 3507

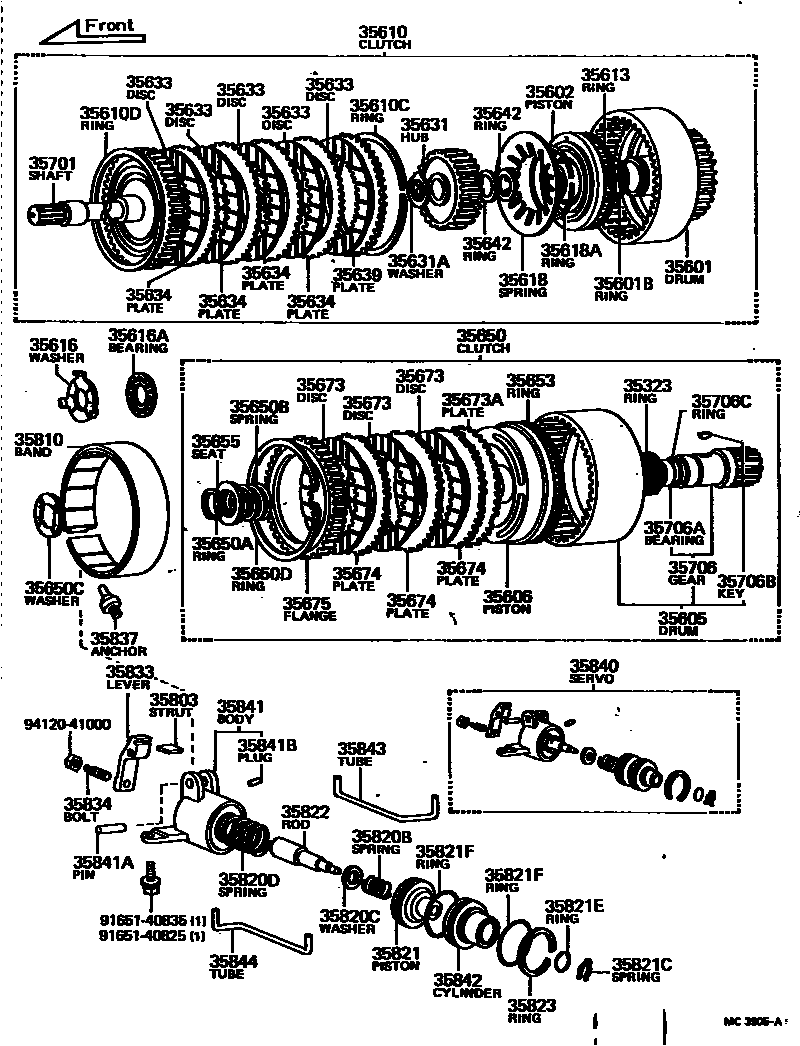

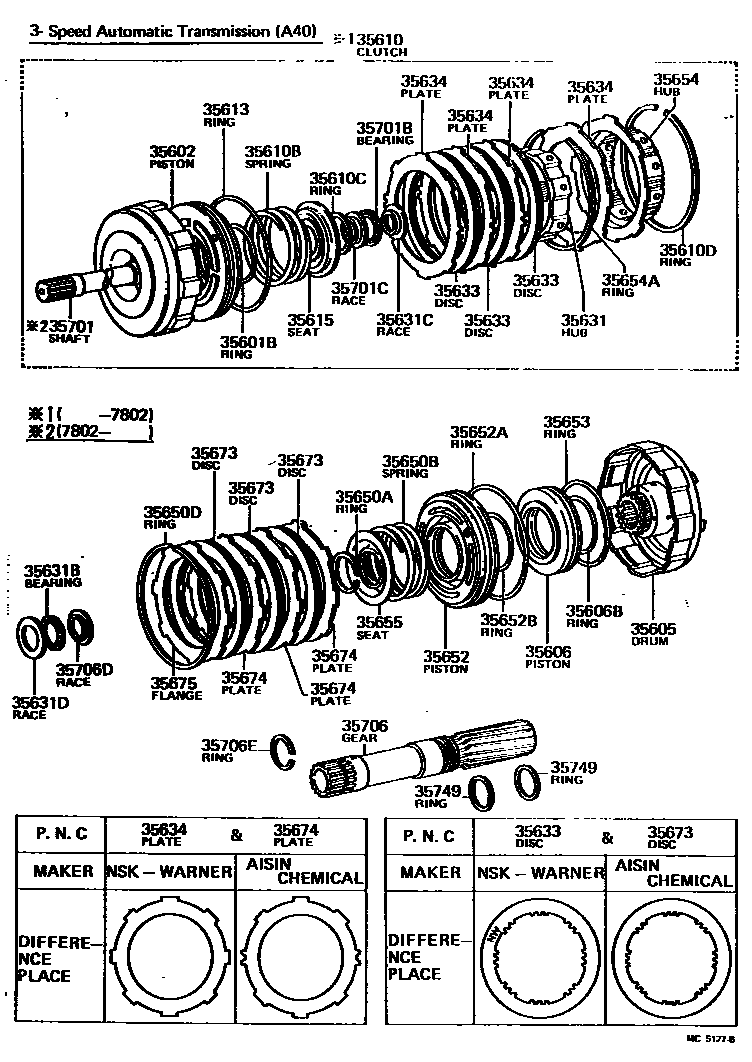

Toyota HILUX EPC diagram 3507, 制动带和多片式离合器(ATM), with 2 images and 73 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35323 | Ring (for oil seal) | 35323-31011 |
| 35601 | Clutch drum sub-assembly | 35611-30011 |
| 35601B | O-ring (for front clutch drum) | 90301-30113 · 90301-57188 |
| 35602 | Front clutch piston sub-assembly | 35602-22010 · 35602-30030 |
| 35605 | Rear clutch drum sub-assembly with second gear sun gear | 35605-22010 · 35605-30011 |
| 35606 | Rear clutch piston sub-assembly | 35606-22010 · 35606-30012 |
| 35606B | Inner O-ring (for rear clutch piston) | 90301-57188 |
| 35610 | Front multi-plate clutch assembly | 35610-22010 · 35610-30040 |
| 35610B | Compression spring (for front clutch piston return) | 90501-60672 |
| 35610C | Shaft snap ring (for front clutch piston return spring) | 90520-39261 · 90521-99098 |
| 35610D | Hole snap ring (for front multi-plate clutch) | 90521-99099 · 90521-99106 · 90521-99139 |
| 35613 | Clutch piston outer oil ring | 35613-30010 · 90301-99192 |
| 35615 | Clutch piston return spring seat | 35615-22010 |
| 35616 | Clutch drum thrust washer | 35616-30021 · 35616-30031 · 35616-30040 |
| 35616A | Front clutch thrust bearing | 90374-28006 |
| 35618 | Front clutch piston return spring | 35618-30011 |
| 35618A | Piston return spring positioning ring | 90522-64015 |
| 35631 | Clutch hub (for multi-plate clutches) | 35631-22010 · 35631-30020 |
| 35631A | Thrust washer (for TOYOGLIDE clutch hub) | 90214-16027 |
| 35631B | Thrust bearing (for front clutch hub) | 90374-28014 |
| 35631C | Front thrust bearing race (for front clutch hub) | 35789-22050 |
| 35631D | Rear thrust bearing race (for front clutch hub) | 35789-22020 |
| 35633 | Clutch disc (for front clutch) | 35633-40010 · 35677-22020 · 35677-22030 |
| 35634 | front clutch plate | 35634-22040 · 35634-22070 · 35634-30020 · 35634-30040 · 35634-30050 |
| 35639 | front clutch pressure plate | 35639-40010 |
| 35642 | Clutch hub oil ring | 35642-30011 |
| 35650 | Rear multi-plate clutch assembly | 35650-14011 |
| 35650A | Shaft snap ring (for rear clutch piston return spring) | 90520-39261 · 96152-00320 |
| 35650B | Compression spring (for rear clutch piston return) | 90501-55407 · 90501-60672 |
| 35650C | Claw washer (for rear multi-plate clutch) | 90214-32022 |
| 35650D | Hole snap ring (for rear multi-plate clutch) | 90521-99099 · 90521-99139 |
| 35652 | No. 2 rear clutch piston | 35607-20010 |
| 35652A | Outer O-ring (for rear clutch) | 90301-99192 |
| 35652B | Inner O-ring (for rear clutch piston) | 90301-57188 |
| 35653 | Rear clutch outer oil ring | 35653-30010 · 90301-84184 |
| 35654 | rear clutch hub | 35654-22010 |
| 35654A | Hole snap ring (for rear clutch hub) | 90521-99146 |
| 35655 | Rear clutch piston return spring seat | 35615-22010 · 35655-30010 |
| 35673 | rear clutch disc | 35633-40010 · 35677-22020 · 35677-22030 |
| 35673A | Rear clutch cushion | 35673-14010 |
| 35674 | rear clutch plate | 35634-22040 · 35634-22070 · 35674-30010 |
| 35675 | rear clutch flange | 35675-22010 · 35675-30011 |
| 35701 | Input shaft sub-assembly | 35701-22010 · 35701-30012 |
| 35701B | Rear thrust needle roller bearing (for input shaft) | 90374-23012 |
| 35701C | Rear thrust bearing race (for input shaft) | 35789-22010 |
| 35706 | Planetary gear train sun gear sub-assembly | 35706-22011 · 35706-30010 |
| 35706A | Needle roller bearing (for second gear sun gear) | 90364-20020 |
| 35706B | Half-moon pin (for second gear sun gear) | 90280-05008 |
| 35706C | O-ring (for second gear sun gear) | 90301-25107 |
| 35706D | Front thrust bearing race (for sun gear) | 35789-22030 |
| 35706E | Front axle snap ring (for sun gear) | 90520-34260 |
| 35749 | Sun gear shaft oil ring | 35749-22010 |
| 35803 | Low speed brake belt oil supply spool sub-assembly | 35803-30020 · 35803-30030 |
| 35810 | Transmission brake band assembly (for front) | 35801-40020 |
| 35820B | Internal compression spring (for low-speed servo piston) | 90501-32335 |
| 35820C | Flat washer (for low-speed assist piston return spring) | 90201-12259 |
| 35820D | Compression spring (for low-speed assist piston return) | 90501-26330 |
| 35821 | Low speed assist piston | 35821-30010 |
| 35821C | Low speed gear assist piston spring lock retainer spring | 90524-07007 |
| 35821E | O-ring (for power-assisted piston to power-assisted piston rod) | 90301-24128 |
| 35821F | O-ring (for power assist piston to servo body) | 90301-48148 |
| 35822 | Low gear assist piston rod | 35822-30010 |
| 35823 | Booster piston ring | 90521-58097 |
| 35833 | Front brake with oil supply lever | 35833-30012 |
| 35834 | Front brake belt oil supply bolt | 35834-30010 |
| 35837 | Front brake strap anchor | 35837-30012 |
| 35840 | Front servo mechanism assembly | 35840-30010 |
| 35841 | front servo body | 35084-30011 |
| 35841A | Pin (for front servo body) | 90245-10043 |
| 35841B | Straight thread plug (for front servo body) | 90334-05013 |
| 35842 | Front assist piston rod | 35842-30010 |
| 35843 | Front servo oil supply pipe | 35843-30010 |
| 35844 | Front servo split tube | 35844-30010 |
