Toyota HILUX 速度表从动齿轮(ATM) — Figure 3505

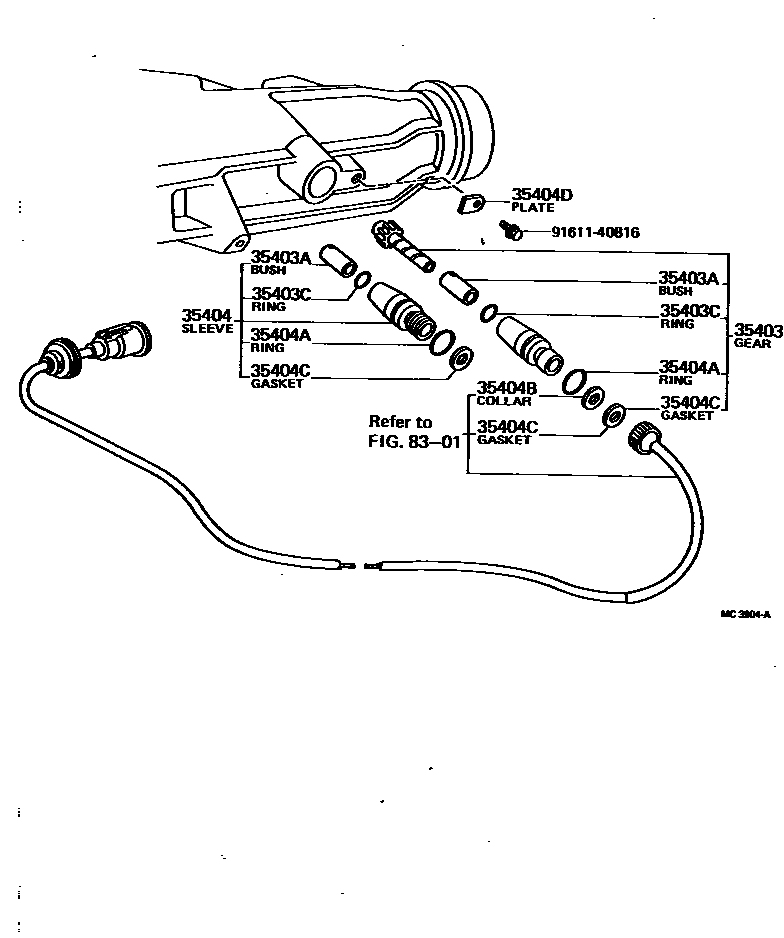

Toyota HILUX EPC diagram 3505, 速度表从动齿轮(ATM), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35403 | Speedometer driven gear sub-assembly (ATM) | 33403-39036 |
| 35403A | Bushing (for automatic transmission speedometer shaft sleeve) | 90386-09078 |
| 35403C | O-ring (for automatic transmission speedometer shaft) | 90301-09017 |
| 35404 | Speedometer shaft sleeve sub-assembly (ATM) | 33404-39016 |
| 35404A | O-ring (for automatic transmission speedometer shaft sleeve) | 90301-18018 |
| 35404B | Speedometer Flexible Tube Shaft Pad Collar (ATM) | 90201-07069 |
| 35404C | Speedometer flexible tube shaft gasket (ATM) | 90303-06017 |
| 35404D | Speedometer sleeve locking plate (ATM) | 33485-30010 |
