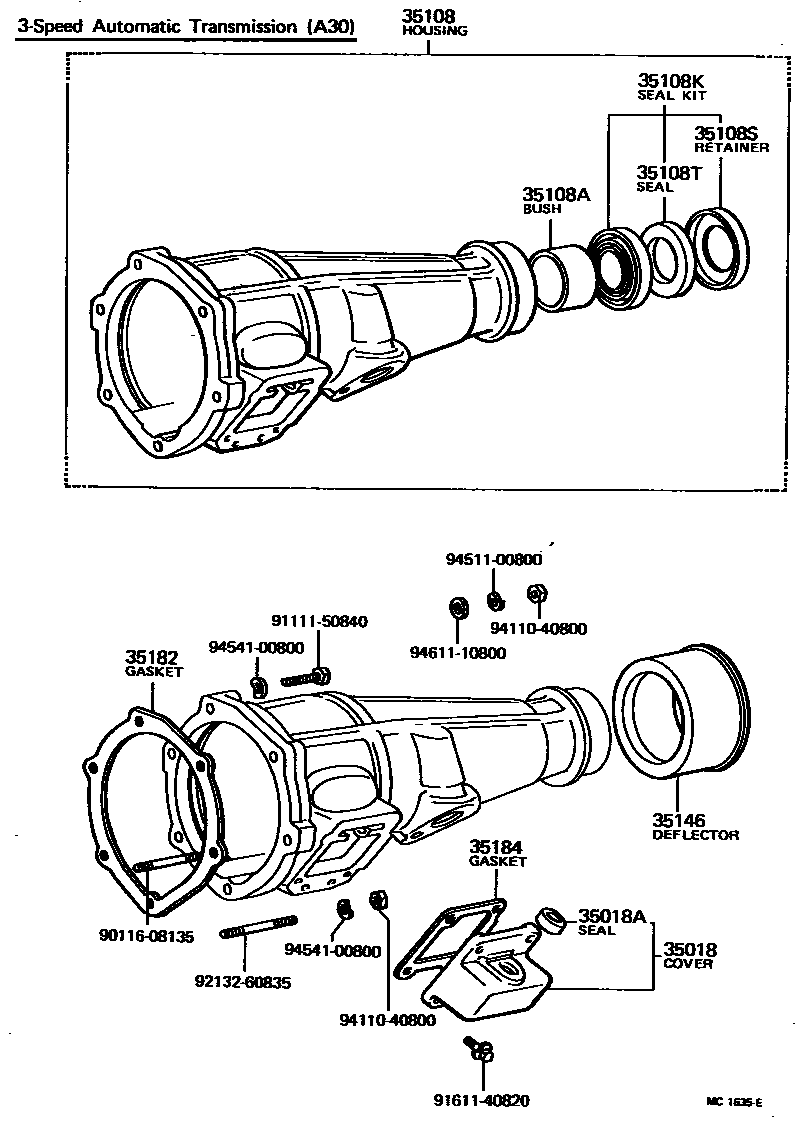

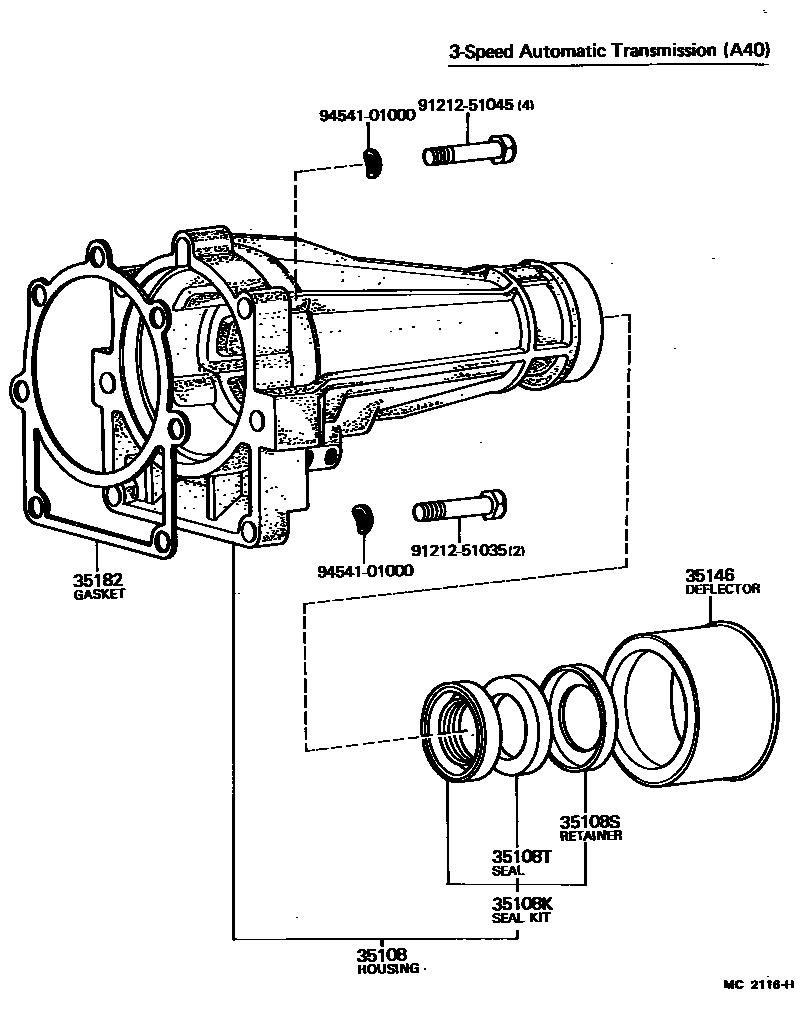

Toyota HILUX Extension shell (ATM) — Figure 3504
Toyota HILUX EPC diagram 3504, Extension shell (ATM), with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35018 | Extended housing cover sub-assembly | 35018-30011 |
| 35018A | Oil seal (for extension housing cover) | 90311-10082 |
| 35108 | Extended shell sub-assembly (ATM) | 35108-22030 · 35108-22902 · 35108-22903 |
| 35108A | Bimetallic bushing (for automatic transmission extension housing) | 90999-73035 |
| 35108K | Oil seal assembly (for automatic transmission extension housing) | 04332-30020 |
| 35108S | Extension housing dust seal (ATM) | 33145-30010 |
| 35108T | Dust seal (for automatic transmission extension housing) | 90303-38010 |
| 35146 | Extension case dust cover (ATM) | 33146-30010 |
| 35182 | Extension shell liner (ATM) | 35182-22010 · 35182-30021 |
| 35184 | Extended cover gasket | 35184-30011 |
