Toyota HILUX 变速器壳和油底壳(ATM) — Figure 3503

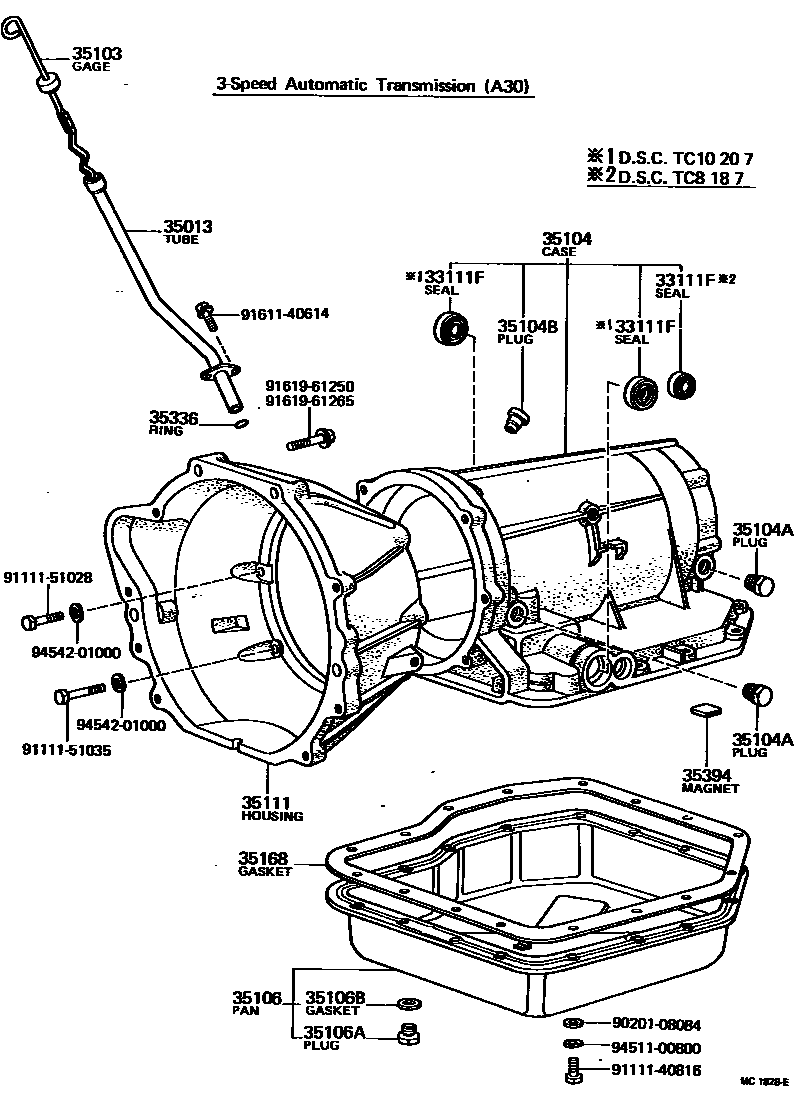

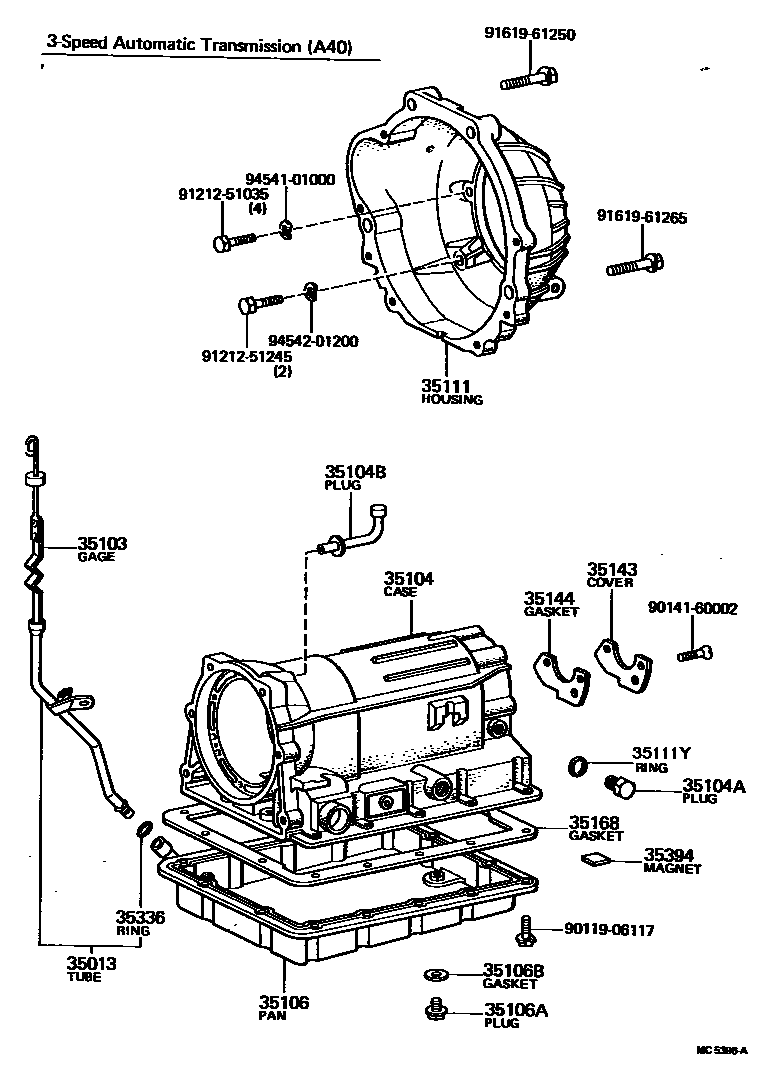

Toyota HILUX EPC diagram 3503, 变速器壳和油底壳(ATM), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33111F | Oil seal (for gearbox) | 90311-08044 · 90311-10082 |
| 35013 | Transmission oil pipe sub-assembly | 35013-20050 · 35013-22011 · 35013-35010 |
| 35103 | Transmission oil level scoring assembly | 35103-22012 · 35103-22030 |
| 35104 | Automatic transmission housing sub-assembly | 35104-22022 · 35104-30034 · 35104-30035 |
| 35104A | automatic transmission plug | 44681-36020 · 90341-08079 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03001 · 90930-03061 |
| 35106 | Automatic transmission oil pan sub-assembly | 35106-22020 · 35106-30902 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-10078 · 90341-18049 |
| 35106B | Drain plug gasket (ATM) | 12157-10010 · 90202-10110 |
| 35111 | automatic transmission housing | 35111-22012 · 35111-22030 |
| 35111Y | O-ring (for automatic transmission) | 90301-06196 |
| 35143 | Gearbox rear cover | 35143-22010 |
| 35144 | Transmission rear cover gasket | 35144-22010 |
| 35168 | Automatic transmission oil pan gasket | 35168-22010 · 35168-30010 |
| 35336 | O-ring (for transmission filler pipe) | 35336-31011 · 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30010 · 35394-30011 |
