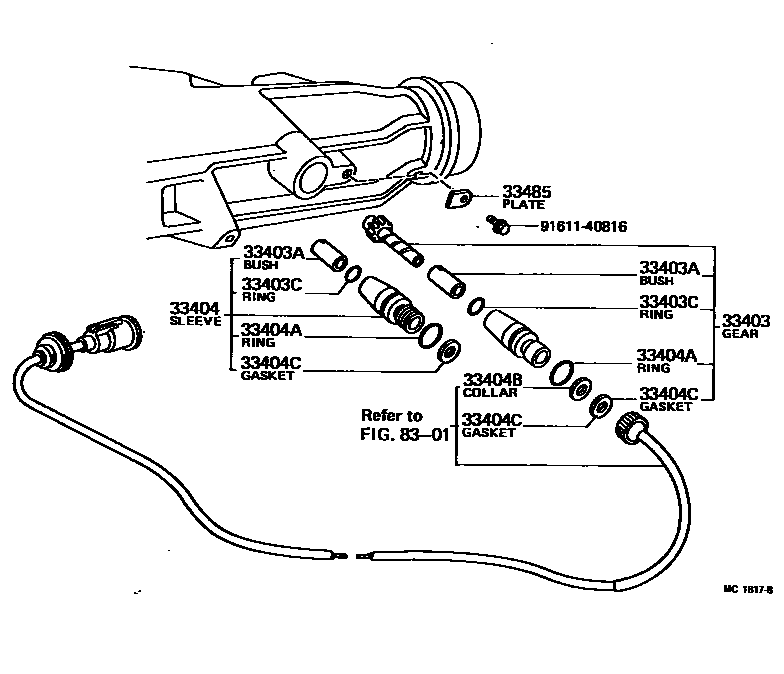

Toyota HILUX 速度表从动齿轮(MTM) — Figure 3304
Toyota HILUX EPC diagram 3304, 速度表从动齿轮(MTM), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33403 | Speedometer driven gear sub-assembly (MTM) | 33403-29016 · 33403-29065 · 33403-39016 · 33403-39036 |
| 33403A | Bushing (for manual transmission speedometer shaft sleeve) | 90386-09078 |
| 33403C | O-ring (for manual transmission speedometer shaft) | 90301-09017 |
| 33404 | Speedometer shaft sleeve sub-assembly (MTM) | 33404-39016 |
| 33404A | O-ring (for manual transmission speedometer shaft sleeve) | 90301-18018 |
| 33404B | Speedometer Flexible Tube Shaft Pad Collar (MTM) | 90201-07069 |
| 33404C | Speedometer Flexible Tube Shaft Pad (MTM) | 90303-06017 |
| 33485 | Speedometer sleeve locking plate (MTM) | 33485-30010 |
