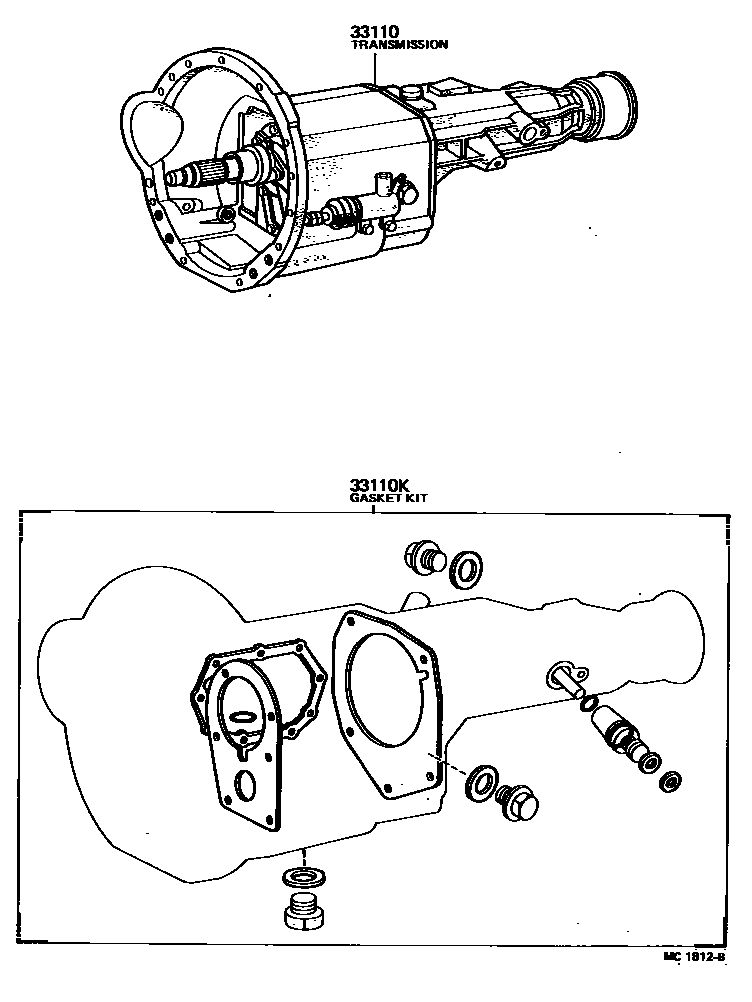

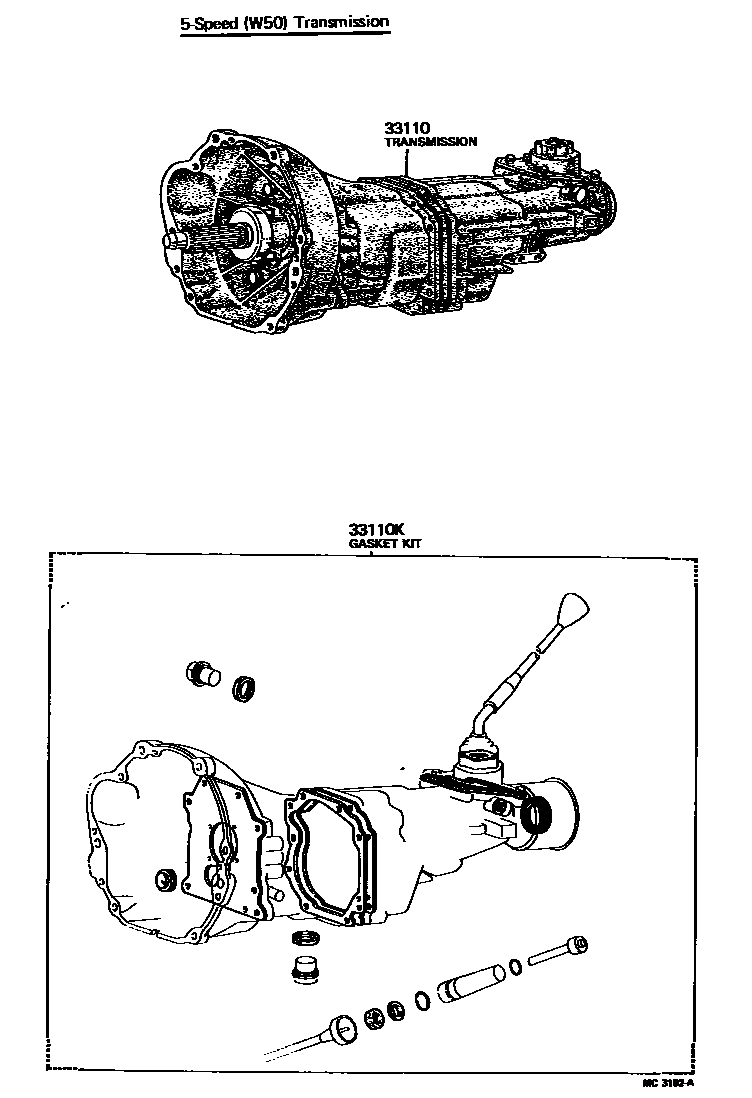

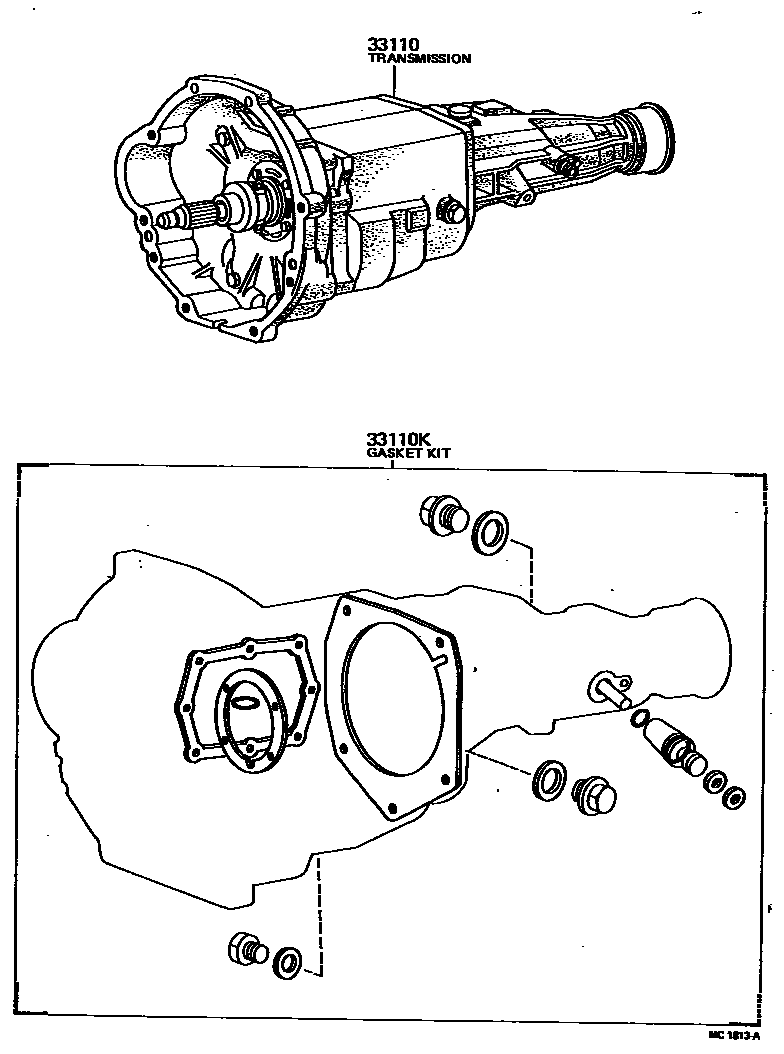

Toyota HILUX 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota HILUX EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33110 | Manual transmission assembly | 33020-35020 · 33020-35030 · 33020-35040 · 33020-35090 · 33020-35100 · 33020-35110 · 33030-35030 · 33030-35040 · 33110-35370 · 33110-35371 · 33110-35380 · 33110-35381 · 33110-35400 · 33110-35410 · 33110-35490 · 33110-35500 · 33110-35510 · 33110-35520 · 33110-35530 · 33110-35550 · 33110-35560 |
| 33110K | Manual transmission overhaul gasket assembly | 04331-22030 · 04331-26010 |
