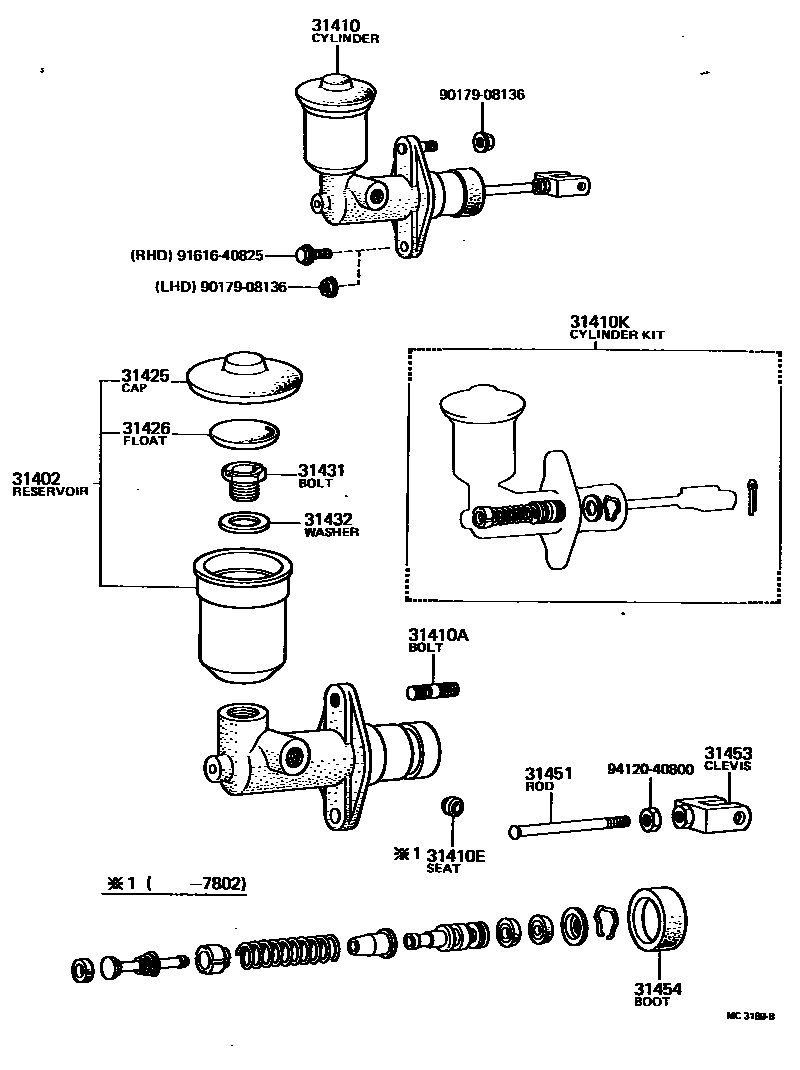

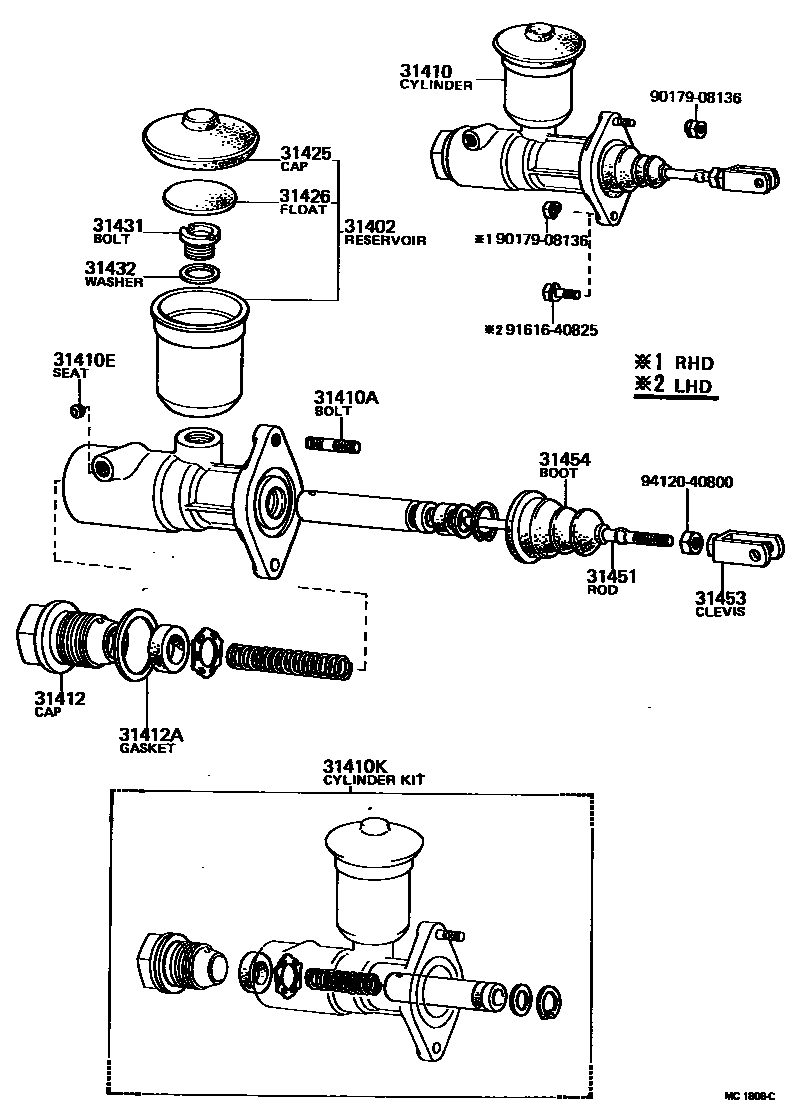

Toyota HILUX 离合器总泵 — Figure 3103
Toyota HILUX EPC diagram 3103, 离合器总泵, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 47202-12010 |
| 31410 | Clutch master cylinder assembly | 31410-35070 · 31410-35071 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08205 |
| 31410E | Connector seat (for clutch master cylinder) | 90410-03015 |
| 31410K | Clutch master cylinder assembly | 04311-20033 · 04311-20050 |
| 31412 | Clutch master cylinder cover | 31412-22010 |
| 31412A | Gasket (for clutch master cylinder cover) | 90430-28137 |
| 31425 | Clutch master cylinder reservoir tank filler cap | 47230-12011 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31431 | Clutch master cylinder reservoir fixing bolt | 47231-30010 · 47231-35010 |
| 31432 | Clutch reservoir retaining bolt washer | 47232-30010 · 47232-35010 |
| 31451 | Clutch master cylinder push rod | 31451-22040 · 31451-22050 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 47264-10011 |
| 31454 | Clutch master cylinder dust boot | 31454-14010 · 47265-20010 |
