Toyota HILUX 离合器踏板和挠性软管 — Figure 3102

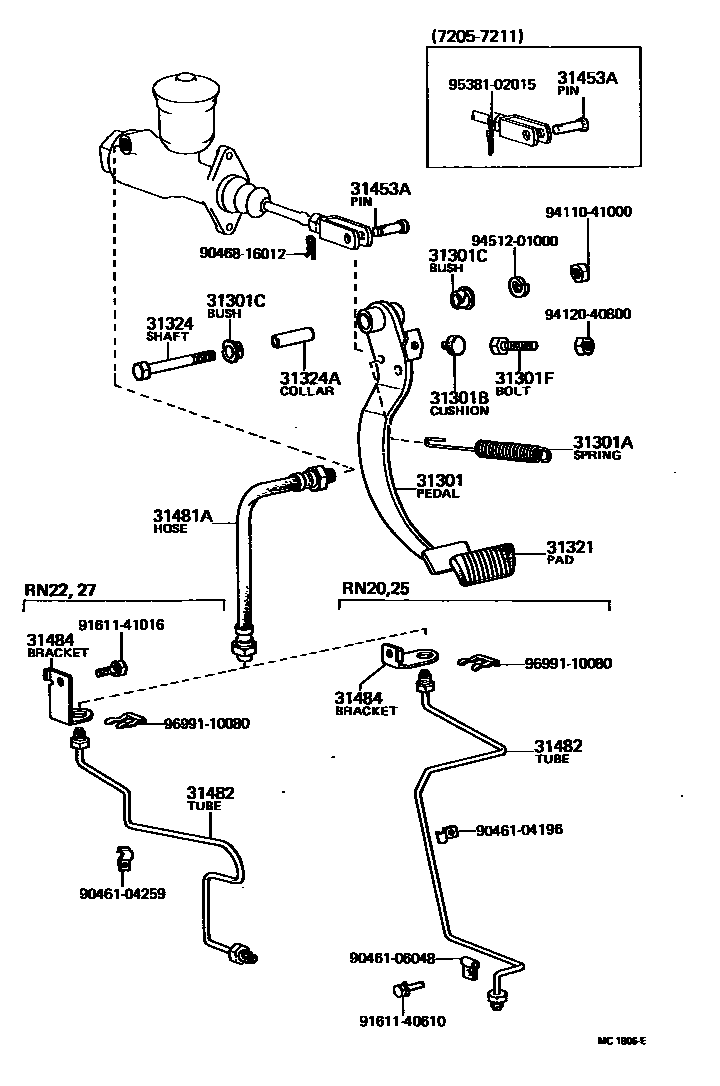

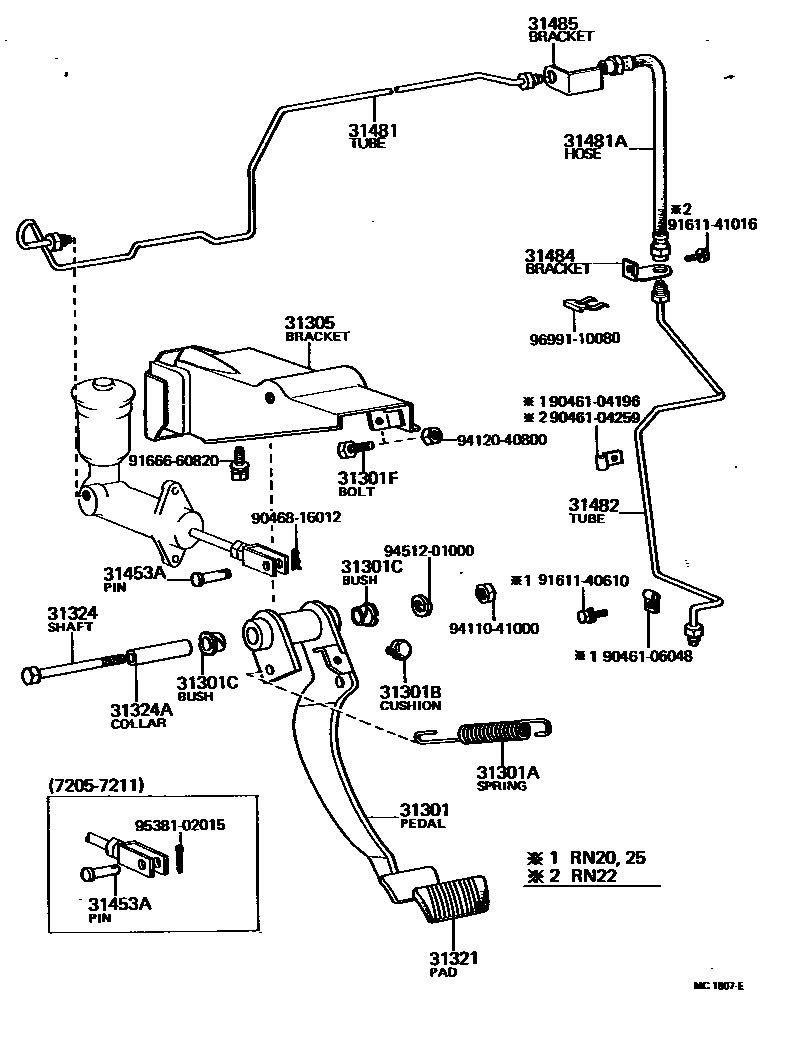

Toyota HILUX EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-35060 · 31301-35061 · 31301-35070 · 31301-35071 |
| 31301A | Spring (for clutch pedal) | 90506-12424 · 90506-14429 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06008 |
| 31301C | Bushing (for clutch pedal) | 90386-13007 |
| 31301F | Bolt (for clutch pedal stop) | 90109-08001 |
| 31305 | Clutch pedal bracket sub-assembly | 55016-89101 |
| 31321 | clutch pedal pad | 31321-20020 |
| 31324 | clutch pedal shaft | 90101-10129 · 91121-51060 |
| 31324A | clutch pedal collar | 31328-35010 · 90387-10003 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-08040 · 90249-08011 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-35070 · 31481-35090 |
| 31481A | No. 1 clutch hose | 96910-31262 · 96910-31263 · 96930-31342 · 96930-31344 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-35060 · 31482-35070 |
| 31484 | Flexible hose bracket (for clutch) | 31484-35060 · 31484-35070 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31485-35050 |
