Toyota HILUX 燃油泵和燃油管 — Figure 2301

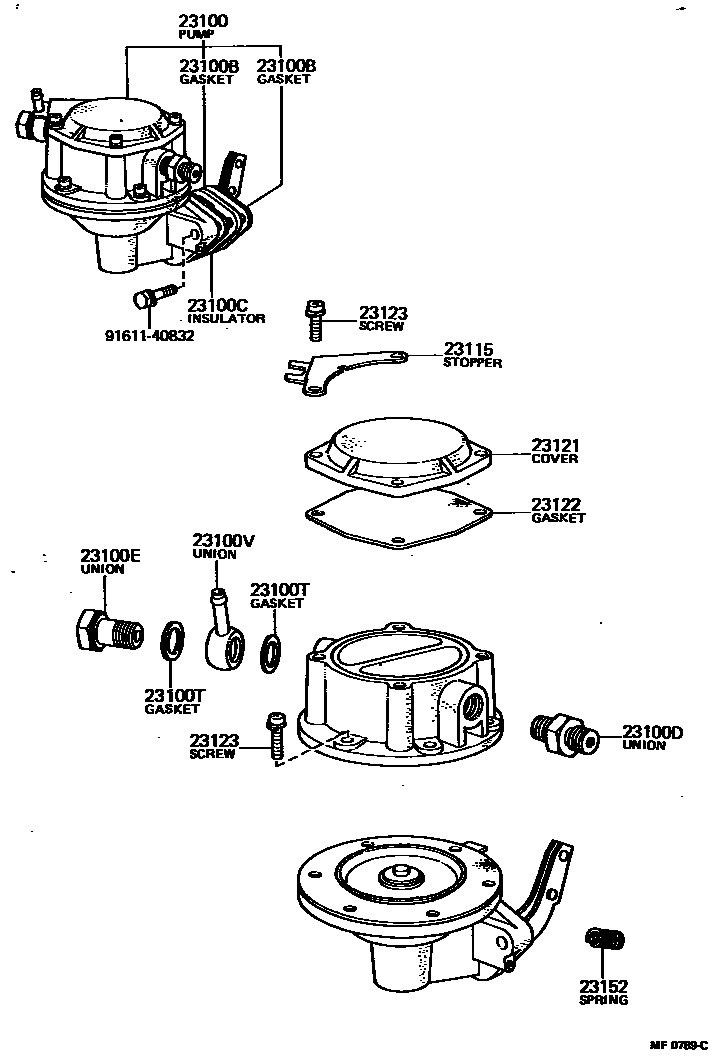

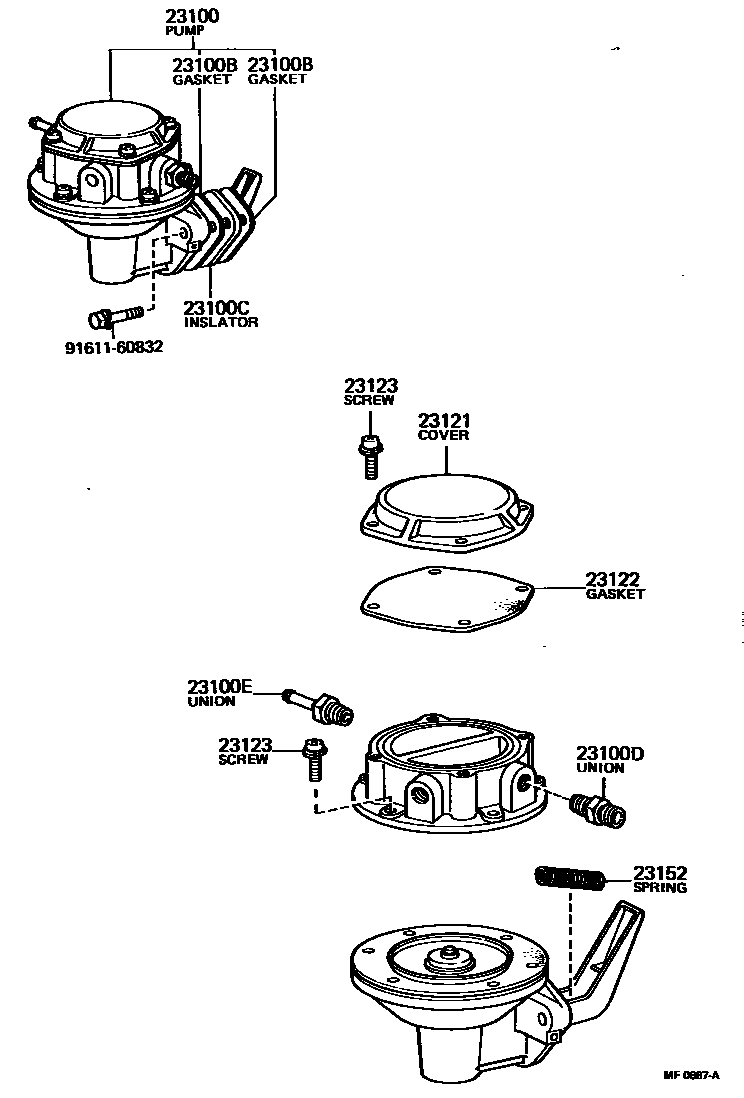

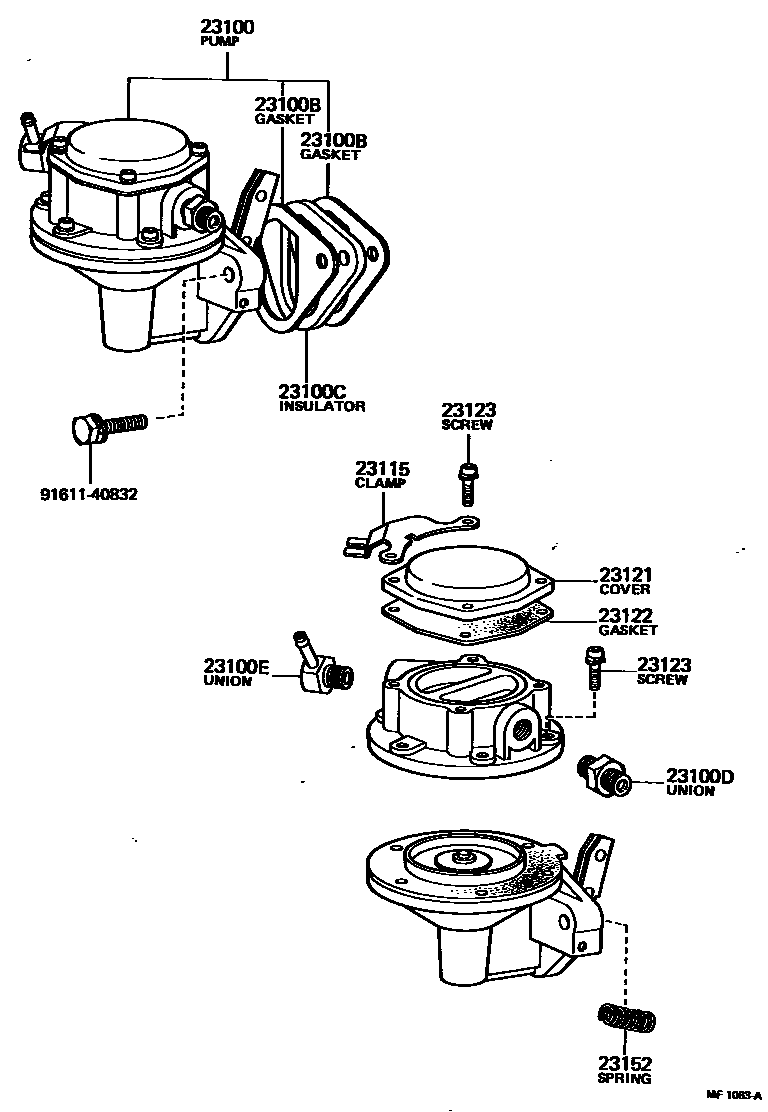

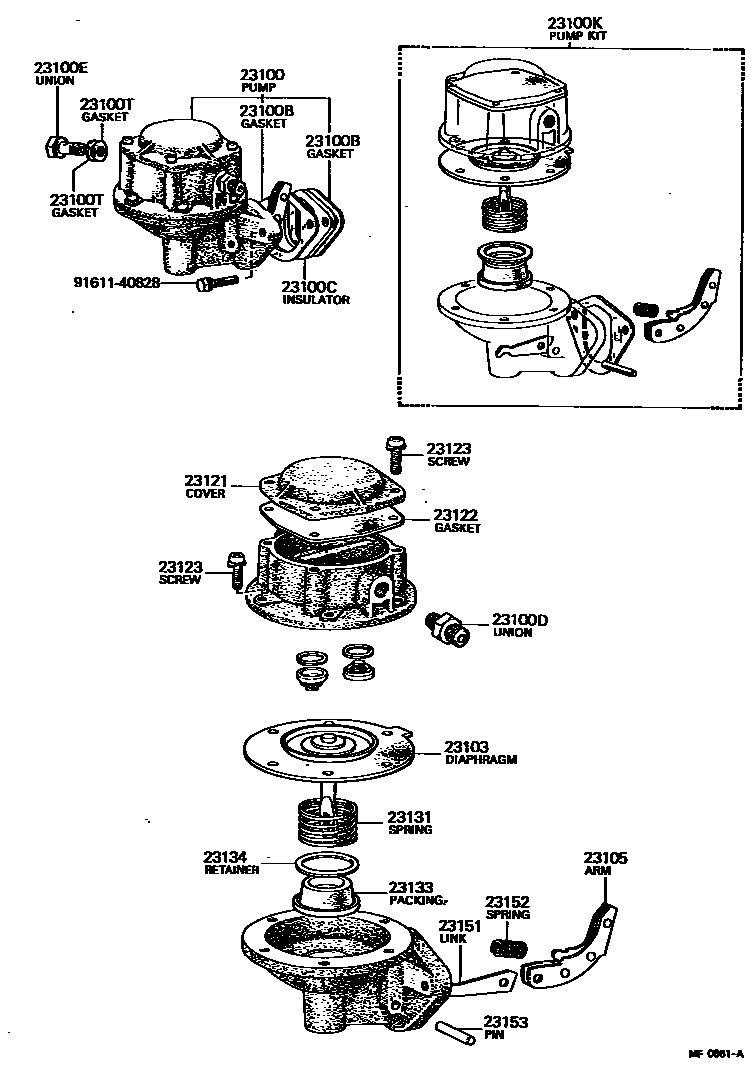

Toyota HILUX EPC diagram 2301, 燃油泵和燃油管, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-39016 · 23100-39067 · 23100-39085 · 23100-39095 · 23100-39117 |
| 23100B | fuel pump gasket | 90923-05005 |
| 23100C | Fuel pump vibration isolation pad | 90923-06001 |
| 23100D | Oil pipe joint (for fuel outlet pipe) | 23119-36020 · 90404-13105 |
| 23100E | Fuel pipe joint (for fuel inlet pipe) | 23116-31020 · 23116-31040 · 23116-41020 · 23119-45020 · 90401-13013 · 90404-51266 |
| 23100K | fuel pump assembly | 04231-25010 |
| 23100T | Fuel pipe joint gasket (for fuel inlet pipe) | 90430-13195 |
| 23100V | Connector (for No. 2 fuel inlet pipe) | 90405-08144 |
| 23103 | Diaphragm sub-assembly | 23103-25010 |
| 23105 | Rocker arm sub-assembly | 23105-30030 |
| 23115 | Oil pipe joint stopper | 23115-31030 · 23115-31031 · 23115-31040 |
| 23121 | fuel pump cover | 23121-34020 · 23121-34050 · 23121-41030 |
| 23122 | fuel pump cover gasket | 23122-34020 · 23122-34050 · 23122-41030 |
| 23123 | No. 1 cover fixing screw | 23123-33011 · 23123-60022 · 93319-15014 |
| 23131 | Diaphragm spring (for fuel pump) | 23131-25010 |
| 23133 | Oil seal (for fuel pump) | 23133-33011 |
| 23134 | Oil seal retaining ring (for fuel pump) | 23134-22011 |
| 23151 | rocker link | 23151-30020 |
| 23152 | rocker spring | 23152-30020 · 23152-33010 · 23152-34040 · 23152-42012 |
| 23153 | rocker arm pin | 23153-60011 |
