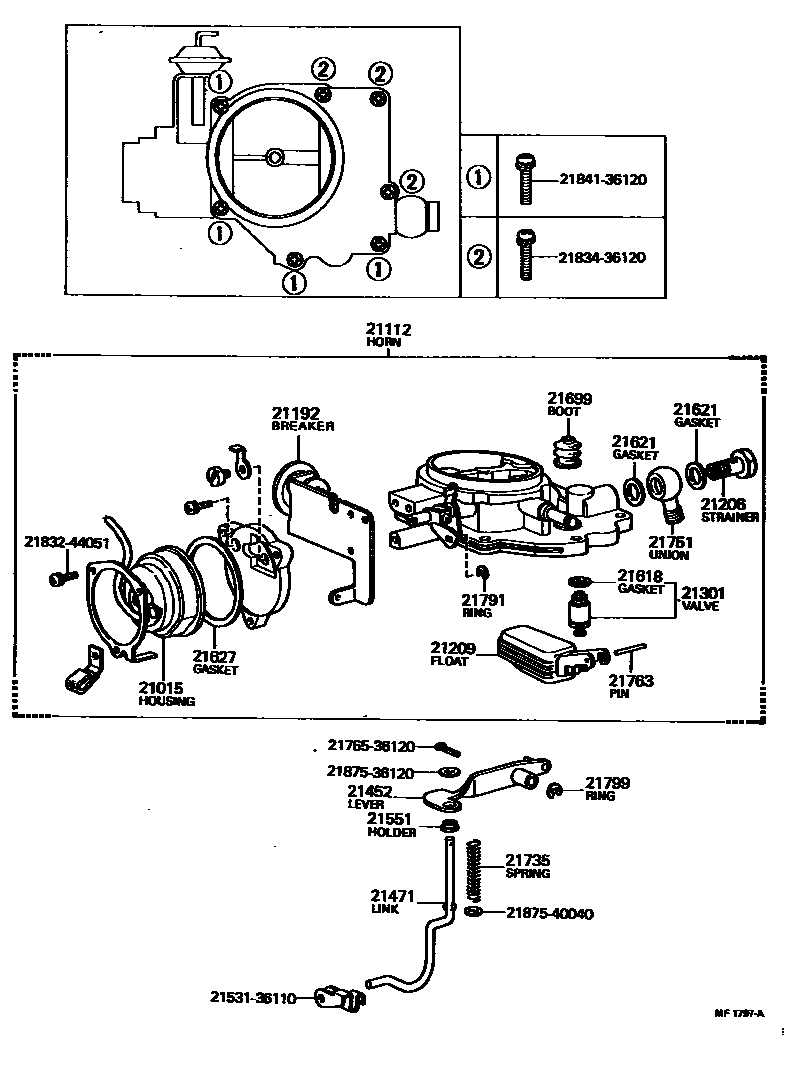

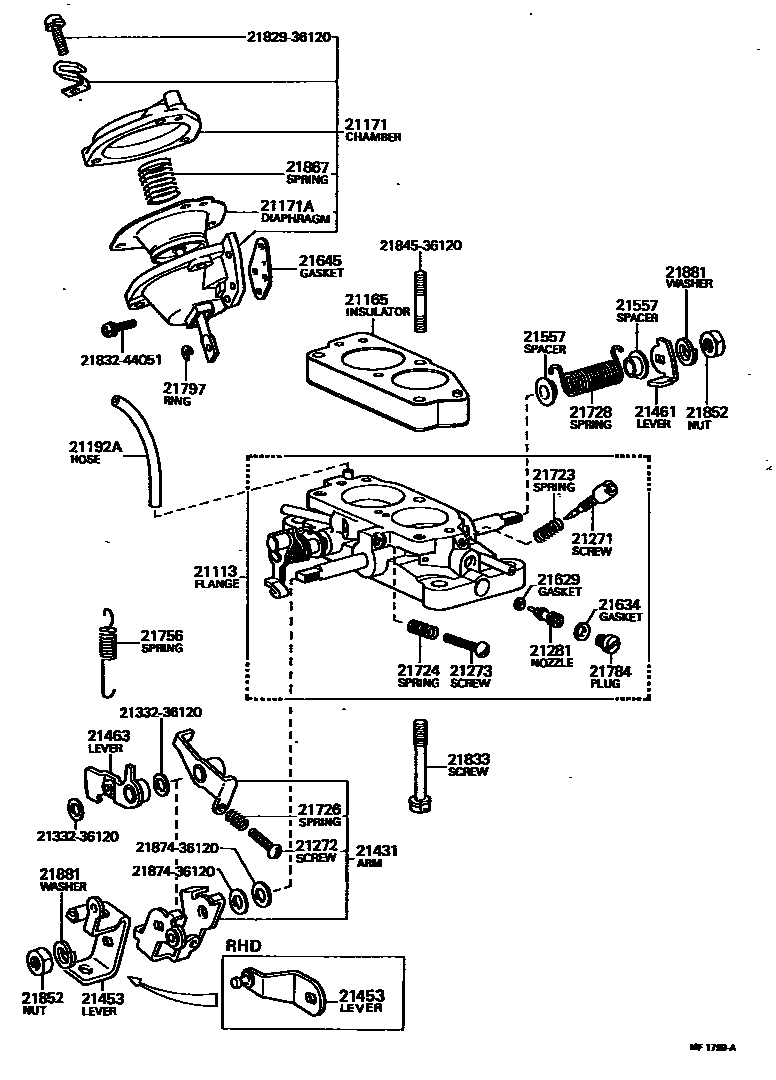

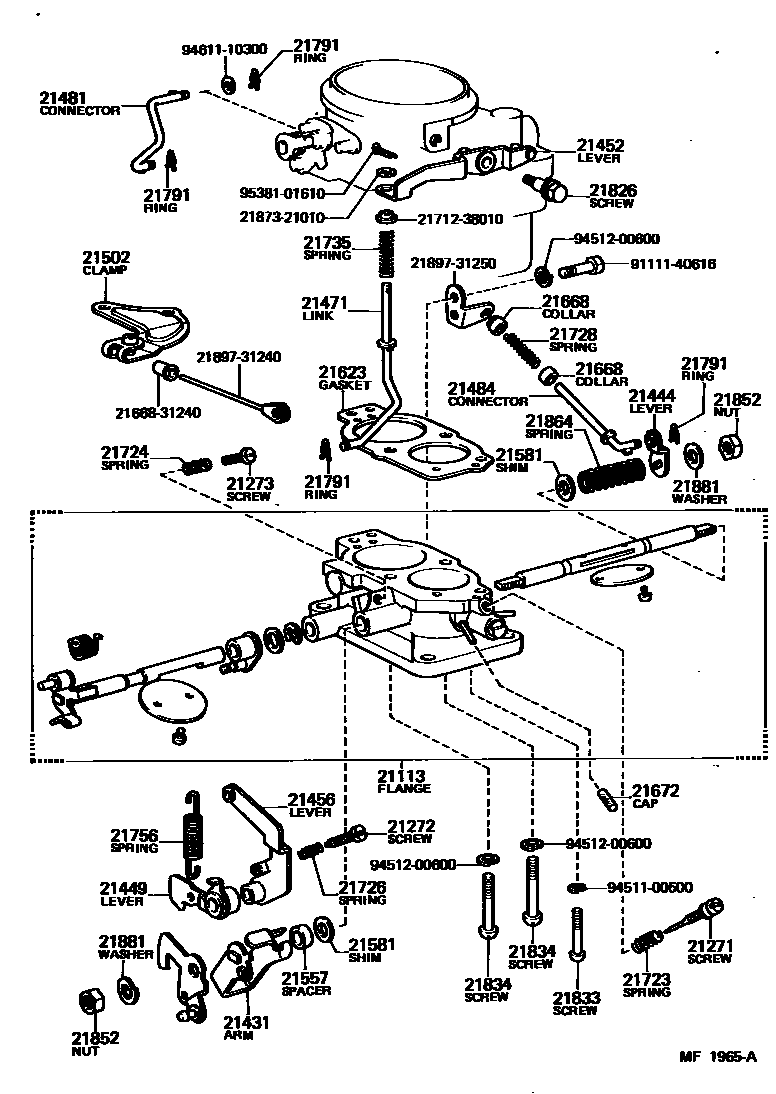

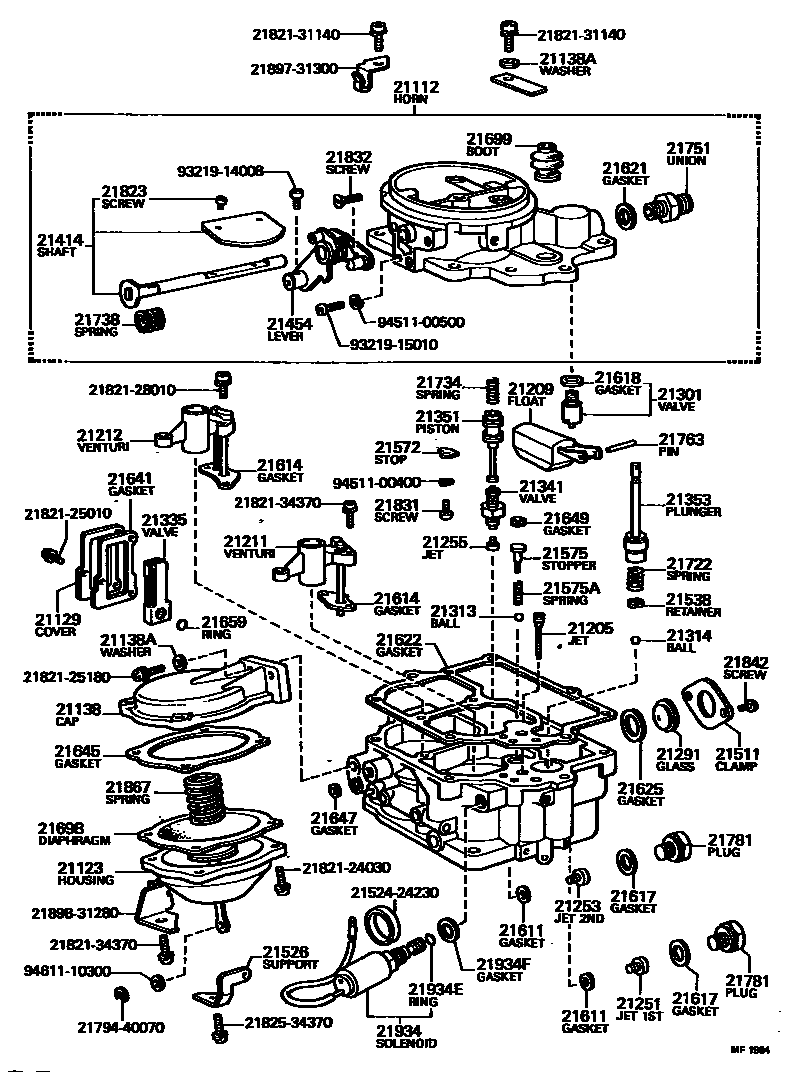

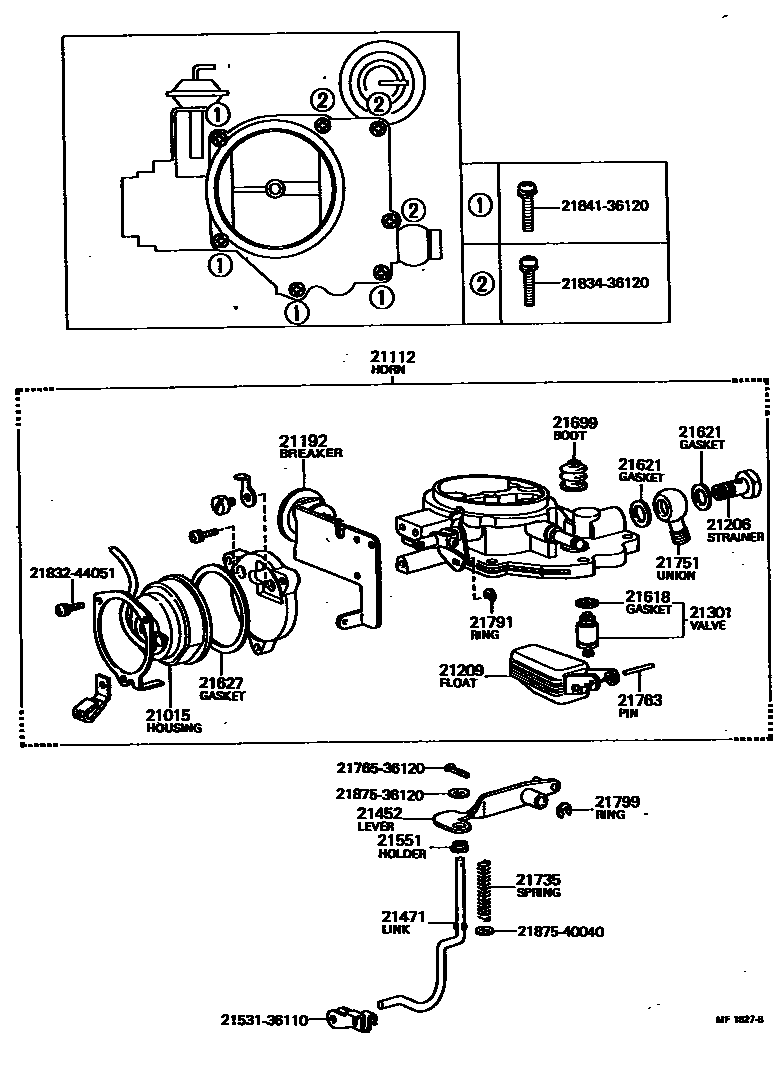

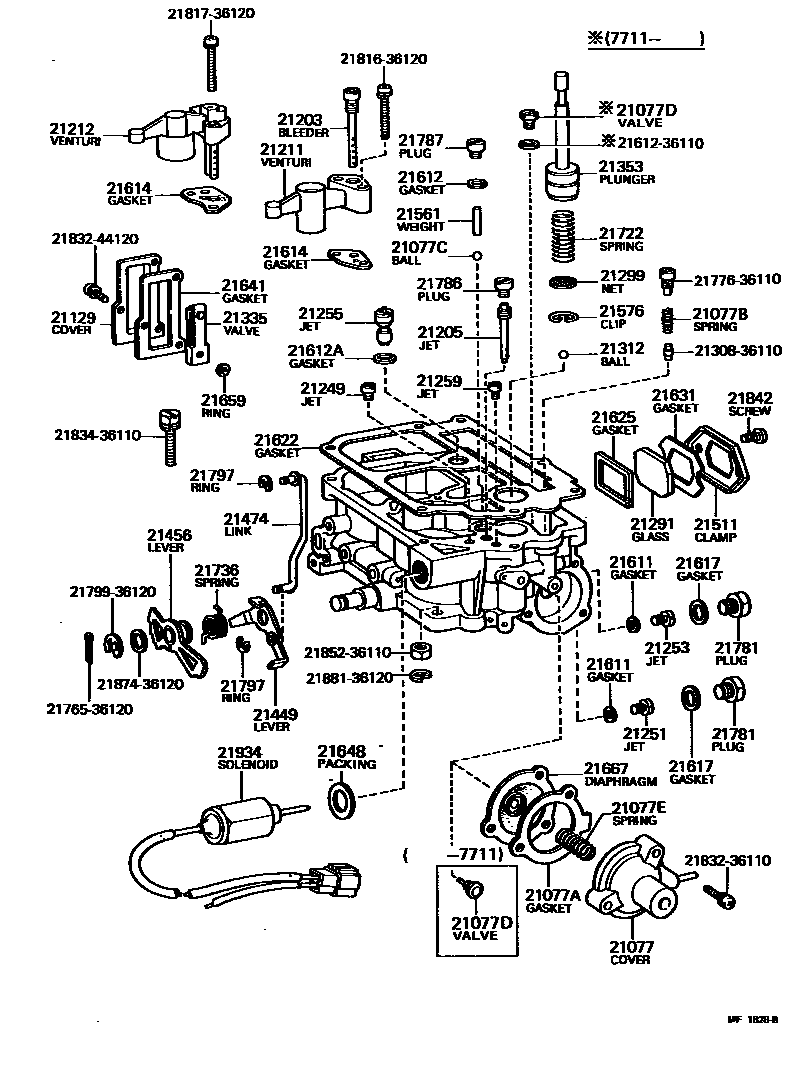

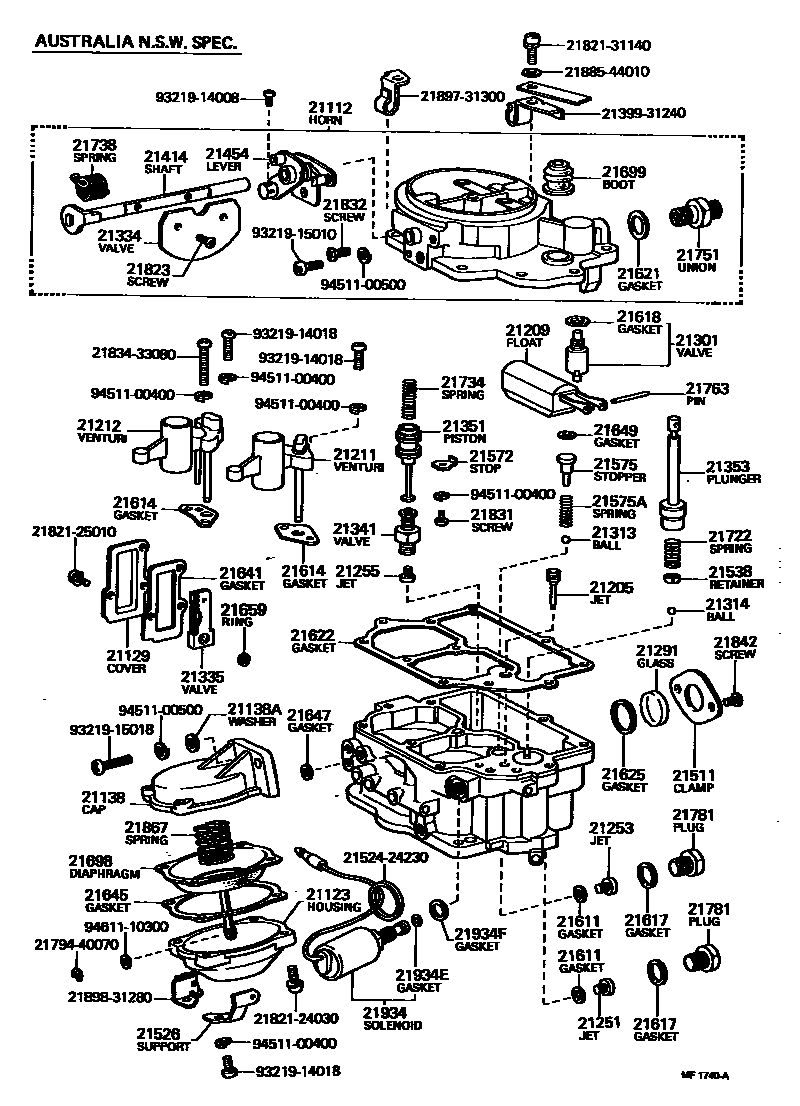

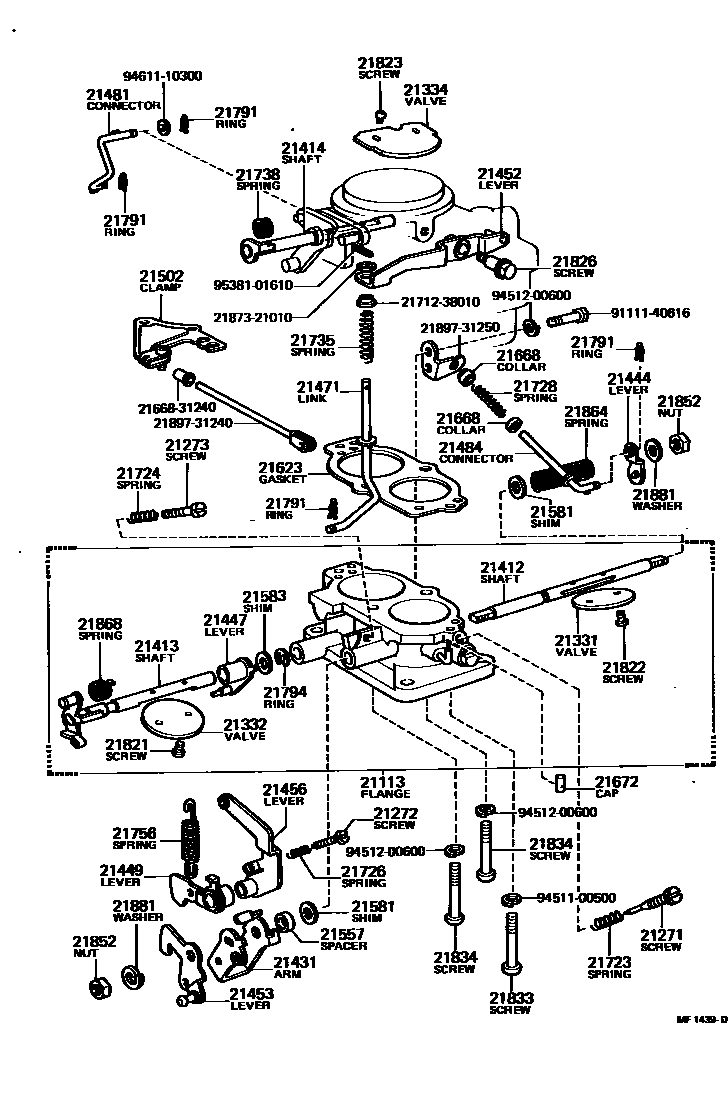

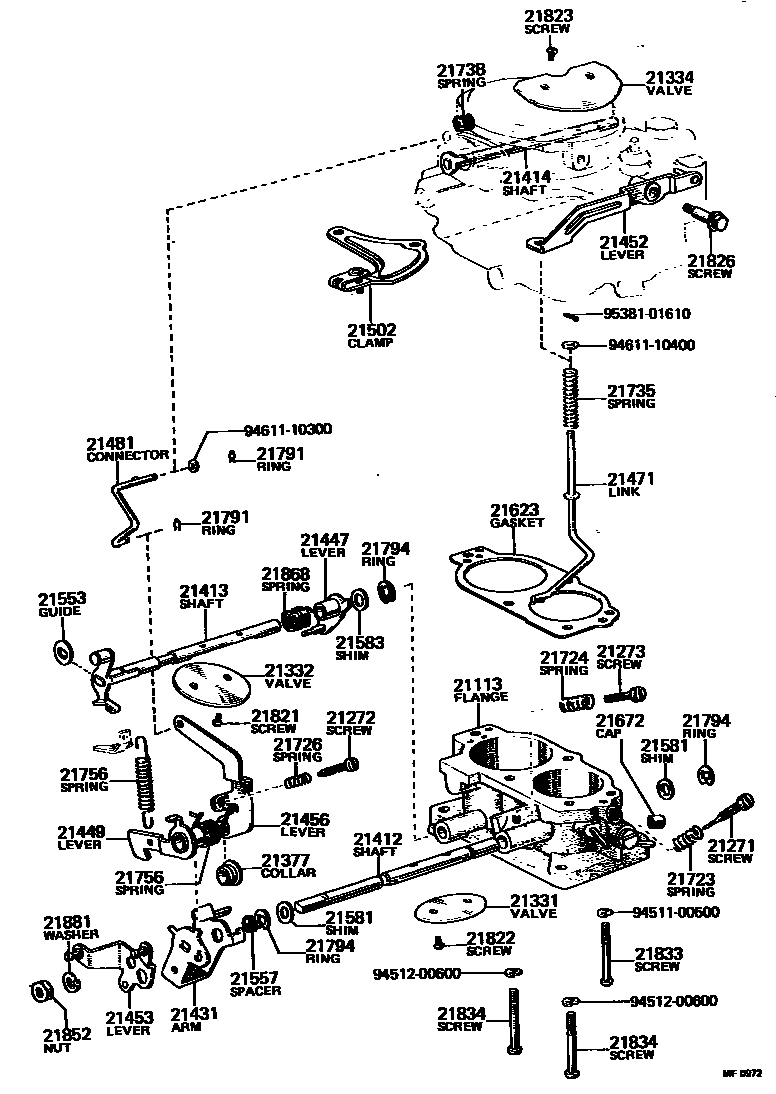

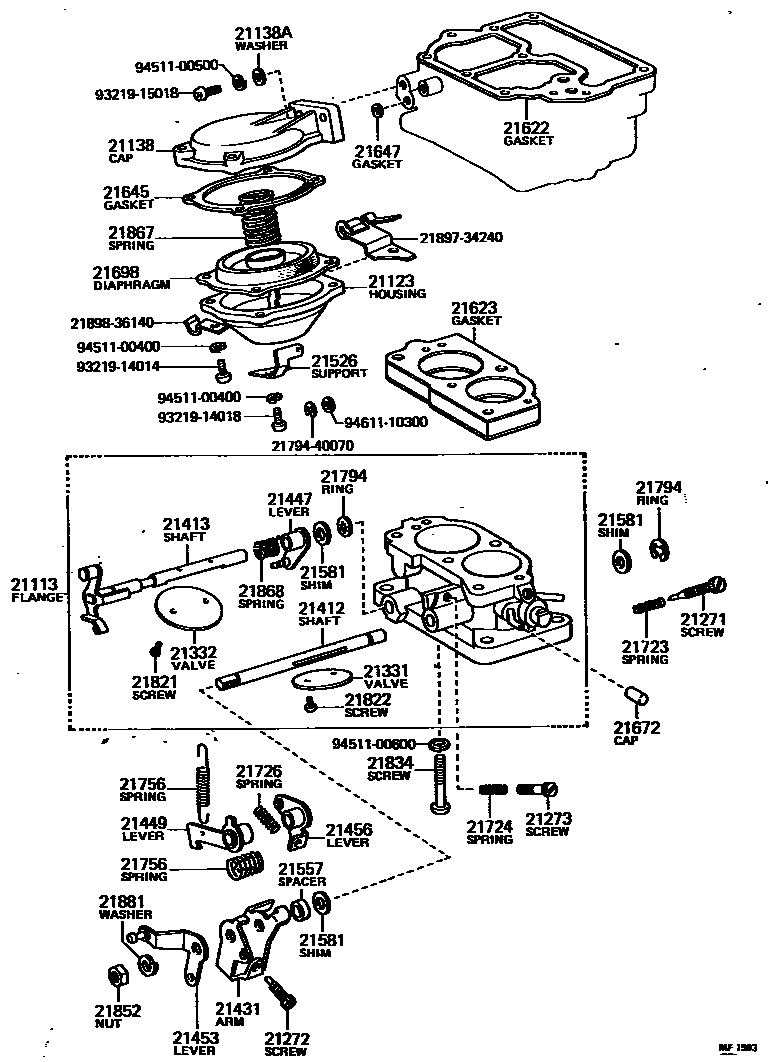

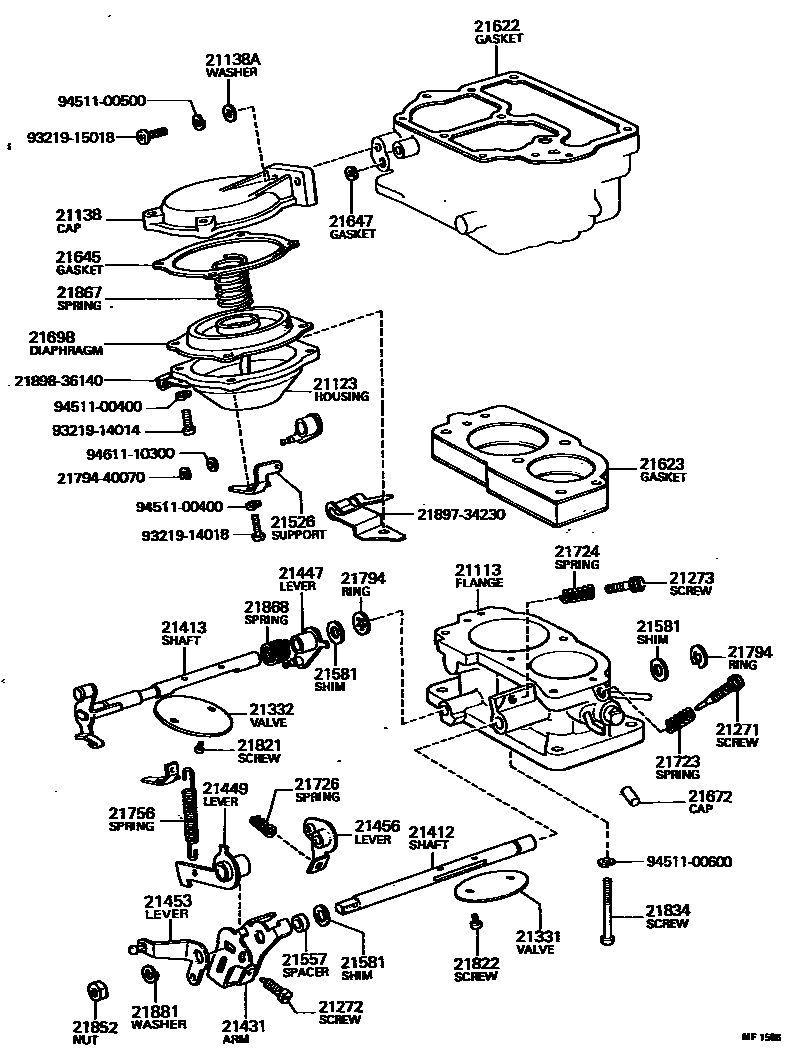

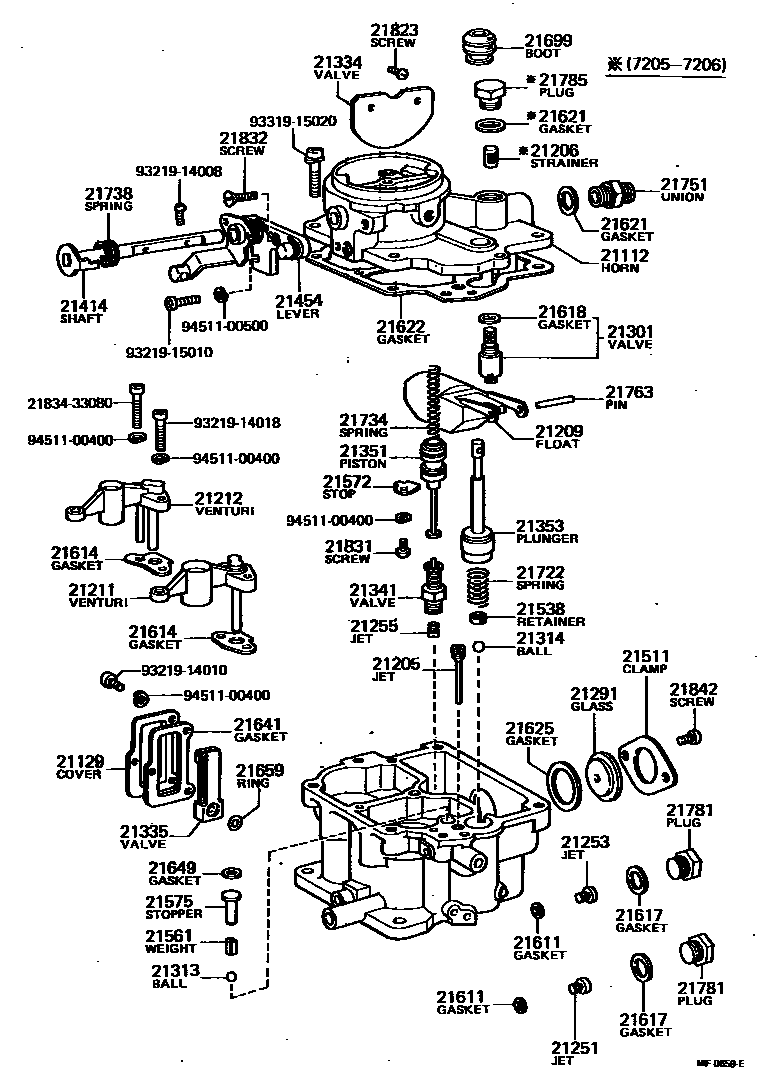

Toyota HILUX 化油器 — Figure 2103

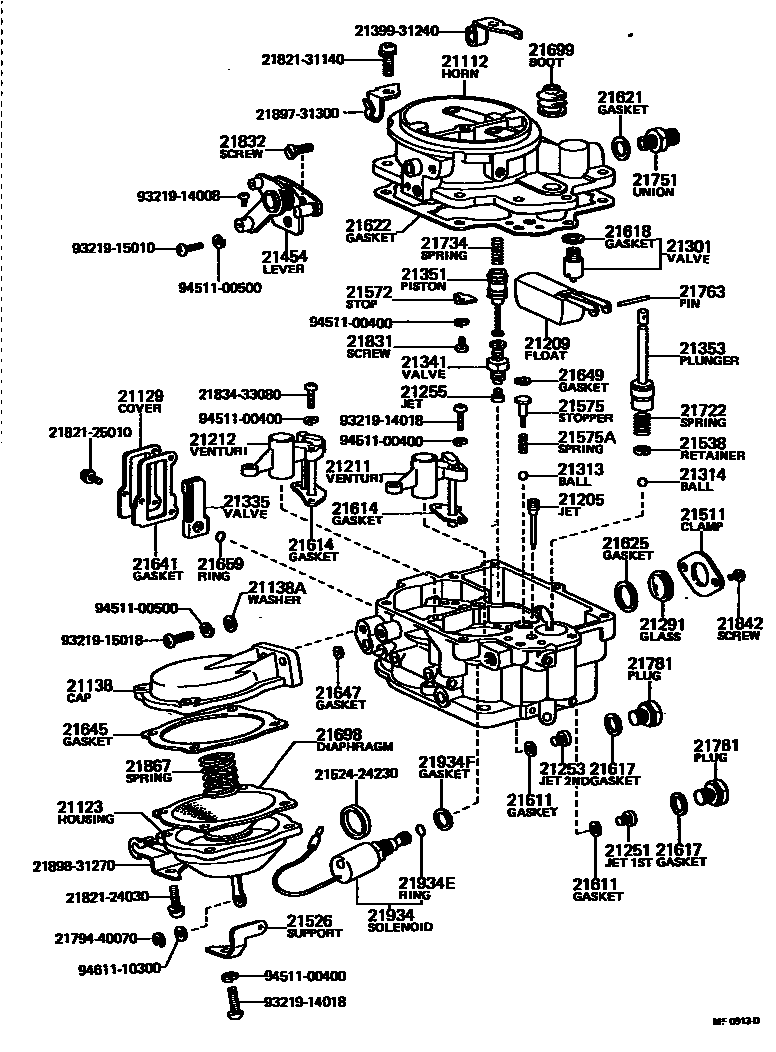

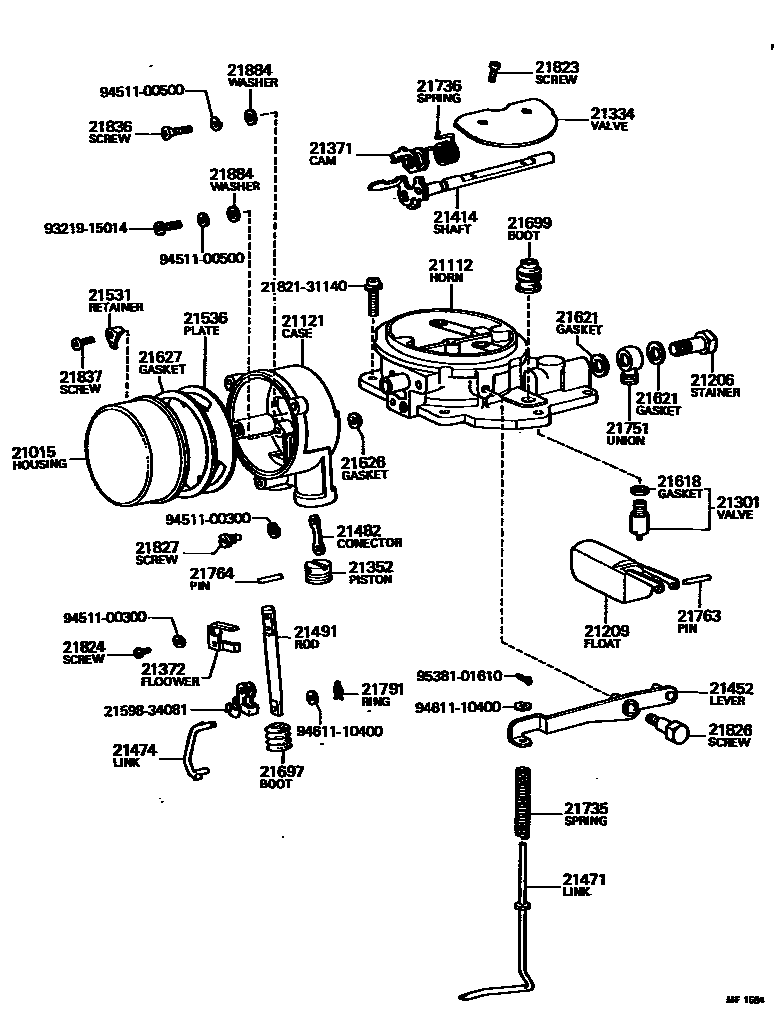

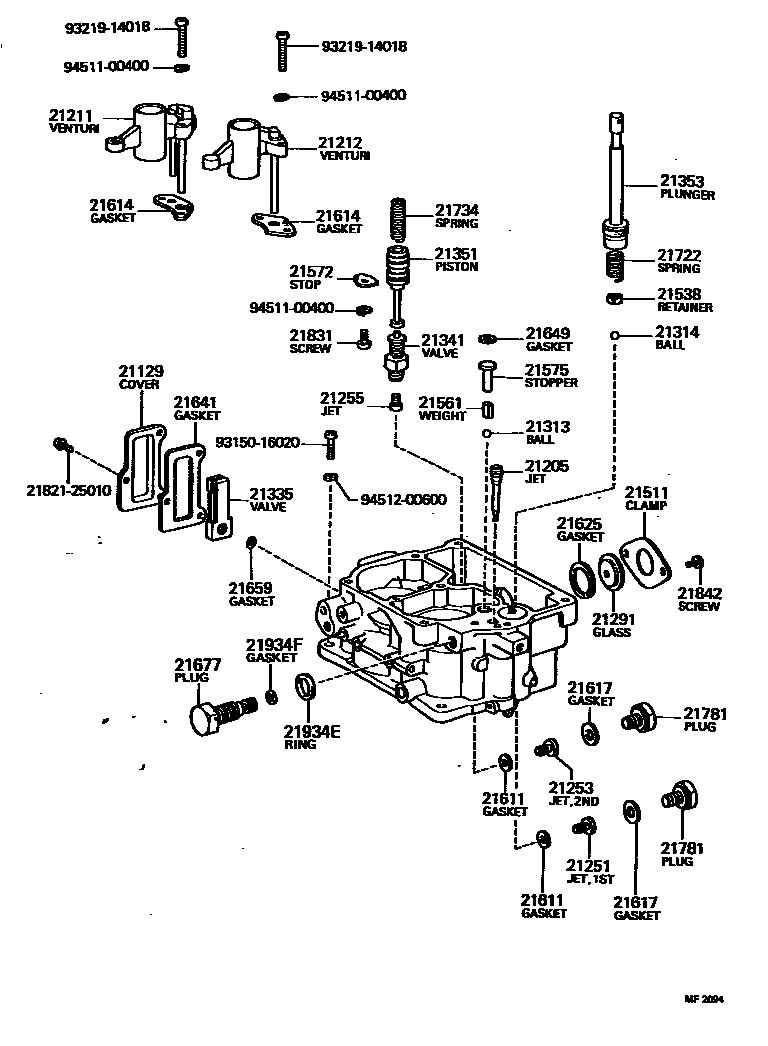

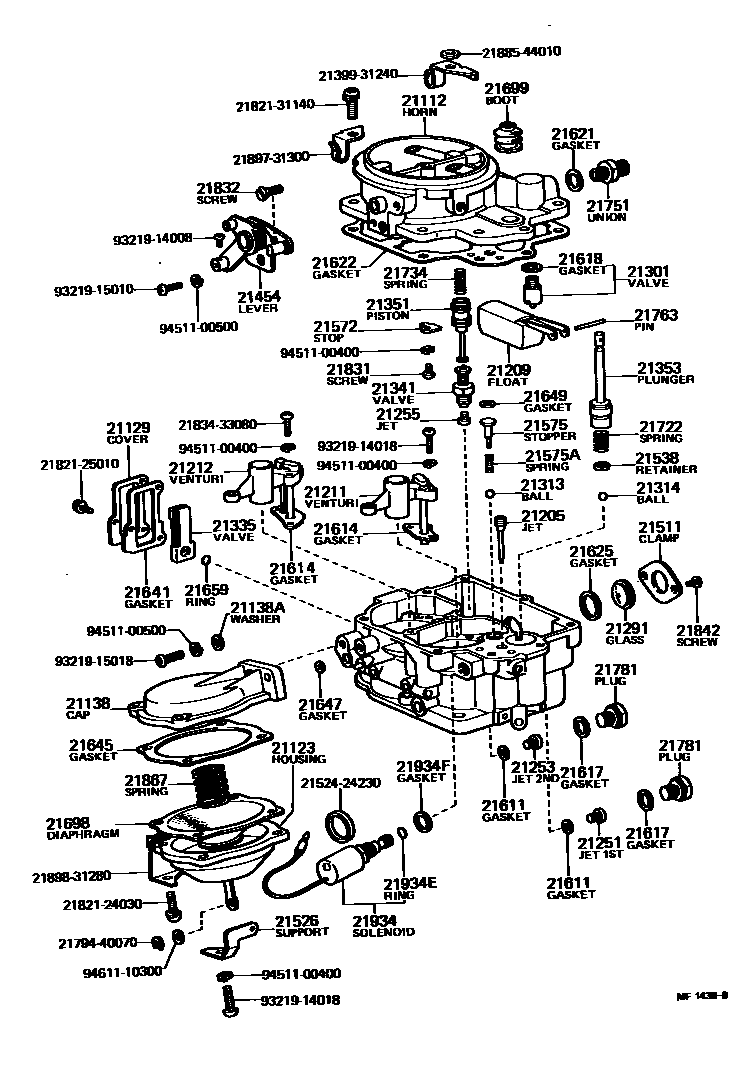

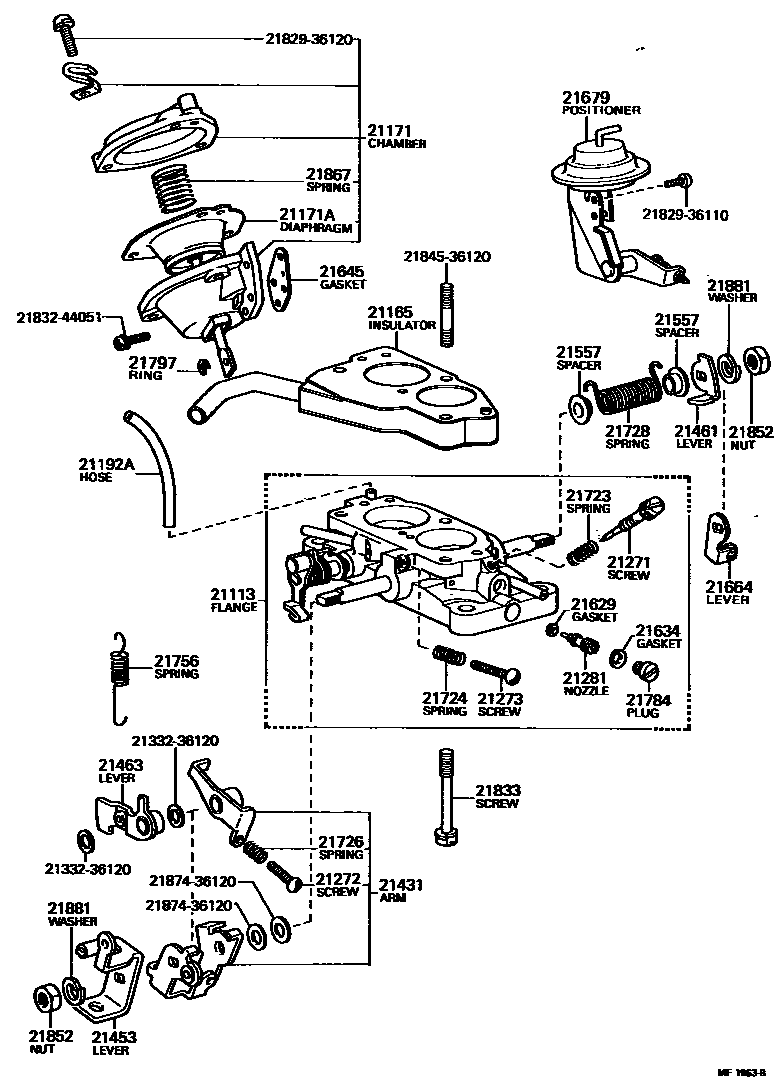

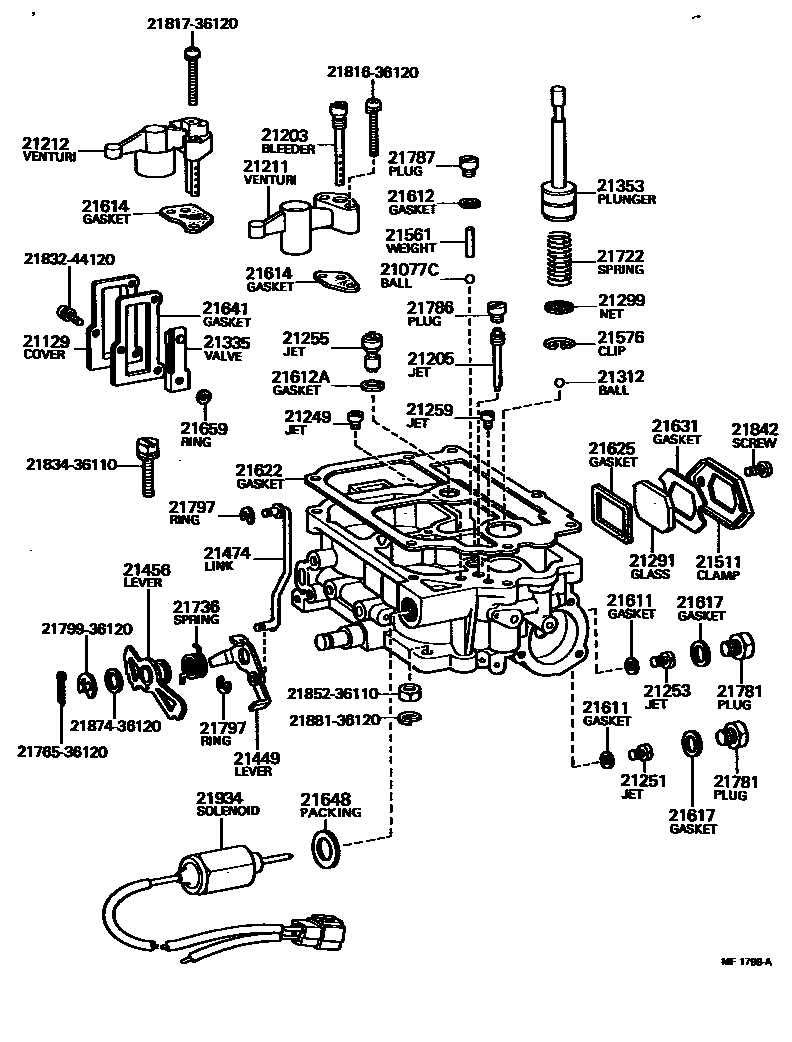

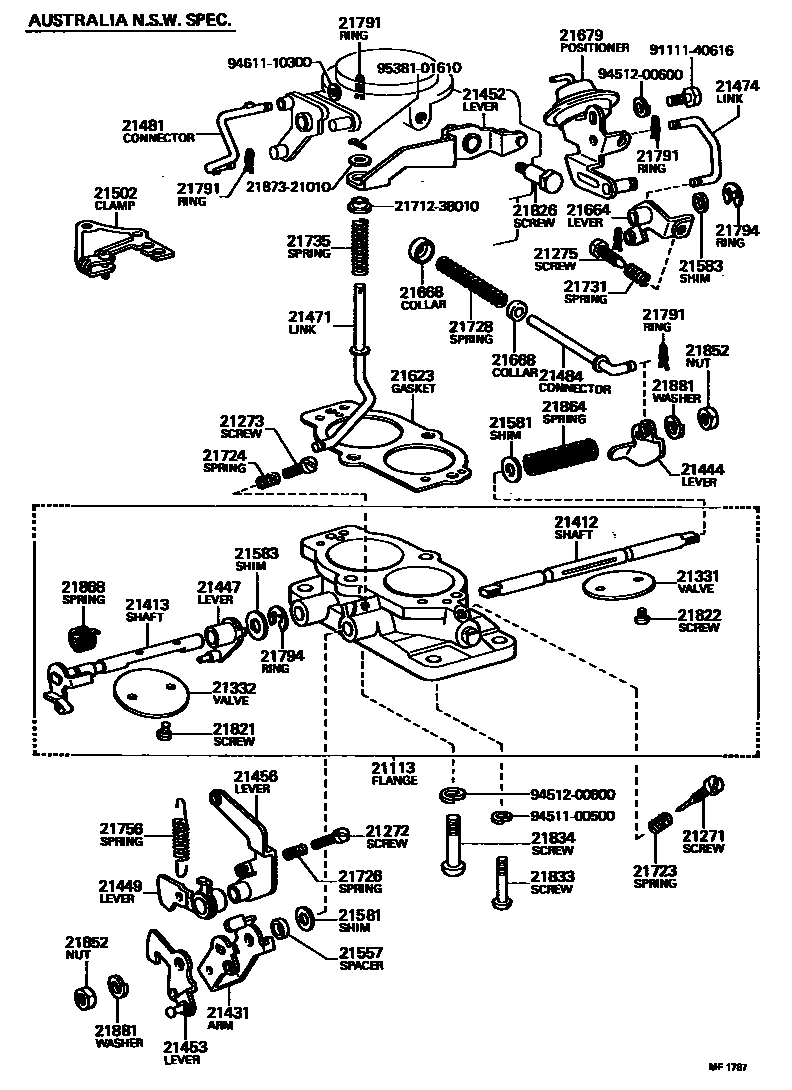

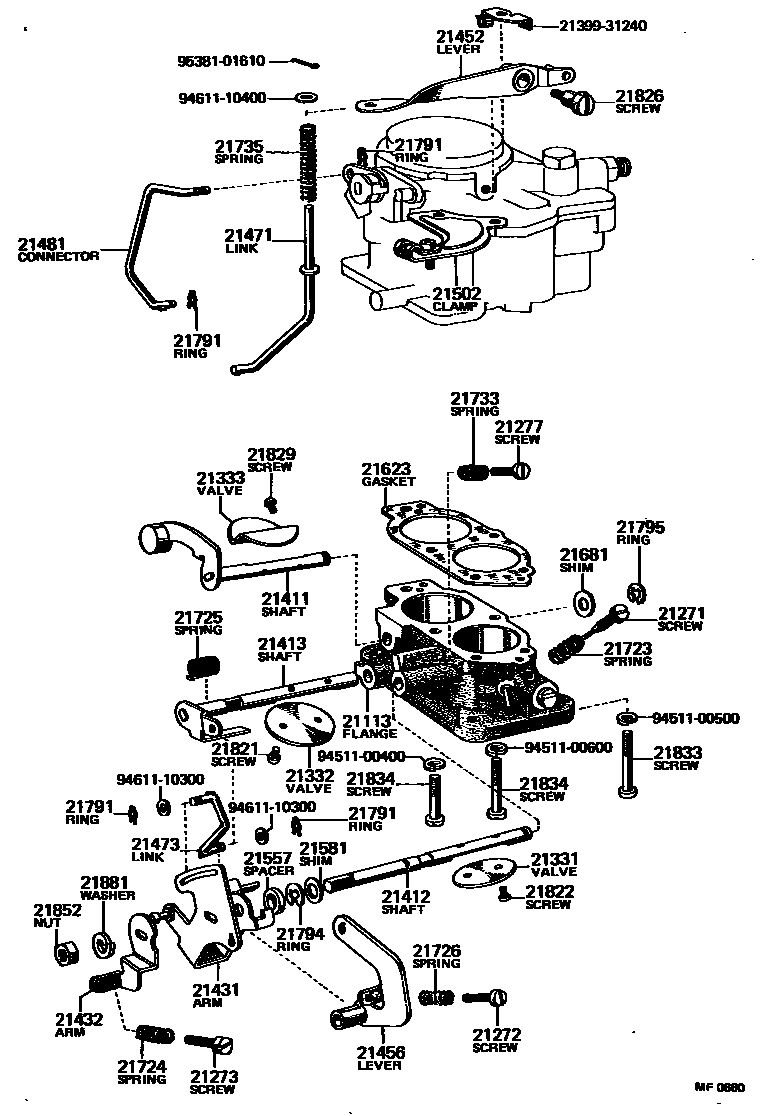

Toyota HILUX EPC diagram 2103, 化油器, with 20 images and 172 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-36040 · 21122-34240 · 21141-34400 · 21141-34430 |
| 21077 | Cover (for auxiliary accelerator pump) | 21399-34400 |
| 21077A | Pad (for auxiliary accelerator pump) | 21638-36110 |
| 21077B | Spring (for auxiliary accelerator pump) | 21737-36110 |
| 21077C | Steel ball (for auxiliary accelerator pump) | 21312-40020 |
| 21077D | Check valve (for auxiliary accelerator pump) | 21308-34400 · 21505-36110 |
| 21077E | Spring (for auxiliary accelerator pump cover) | 21747-36110 |
| 21112 | Air intake bell mouth | 21012-31350 · 21012-34430 · 21012-34510 · 21112-31160 · 21112-31161 · 21112-31380 · 21112-34060 · 21112-34180 |
| 21113 | carburetor flange | 21013-34430 · 21013-34440 · 21103-31220 · 21103-31370 · 21103-34300 · 21113-31220 · 21113-31230 · 21113-31250 · 21113-31380 · 21113-34132 |
| 21121 | thermostat shell | 21121-34080 |
| 21123 | diaphragm housing | 21123-44100 |
| 21129 | Cover (thermostat valve) | 21129-24030 · 21129-38010 · 21398-36120 |
| 21138 | Diaphragm cover | 21138-34080 · 21138-34230 · 21138-44100 |
| 21138A | Gasket (for diaphragm cover assembly) | 21885-44010 |
| 21165 | Vibration isolation pad | 21106-34400 · 21106-34420 |
| 21171 | diaphragm chamber | 21171-34400 · 21171-36120 |
| 21171A | Diaphragm (for diaphragm chamber) | 21173-36120 |
| 21192 | breaker | 21502-36110 |
| 21192A | Hose No. 1 (for breaker) | 95411-10730 |
| 21203 | First main bleed device sub-assembly | 21203-34400 · 21203-36120 |
| 21205 | Idle speed measuring hole assembly | 21205-33070 · 21205-34031 · 21205-34400 · 21205-36120 · 90999-44046 · 90999-44048 · 90999-44154 |
| 21206 | Filter sub-assembly | 21294-33080 · 21811-11060 · 21811-36110 |
| 21209 | Float sub-assembly | 21209-33011 · 21209-33080 · 21209-34400 · 21209-36120 |
| 21211 | first small venturi | 21201-36120 · 21211-31140 · 21211-31270 · 21211-33081 · 21211-34060 · 21211-34230 |
| 21212 | Second small venturi | 21202-36120 · 21212-31180 · 21212-31270 · 21212-31280 · 21212-34031 |
| 21249 | No. 2 air release hole | 21249-34400 · 21249-34410 · 21249-36120 |
| 21251 | first main measuring hole | 21251-31180 · 21251-34400 · 21251-36110 · 90999-41104 · 90999-41106 · 90999-41110 · 90999-41116 |
| 21253 | Deputy main measuring hole | 21253-34400 · 21253-36110 · 90999-42162 · 90999-42165 |
| 21255 | Power measuring hole | 21255-33080 · 21255-41081 · 21302-36110 · 21302-44122 · 90999-43047 · 90999-43050 · 90999-43053 |
| 21259 | Bleeding hole | 21259-34400 · 21259-36120 |
| 21271 | Idle speed adjustment screw | 21271-31140 · 21271-31250 · 21271-31280 · 21271-31330 · 21271-34080 · 21271-34400 · 21271-38010 |
| 21272 | First gear idle speed adjustment screw | 21273-30052 · 21814-33010 · 21833-36110 |
| 21273 | Throttle adjustment screw | 21273-31100 · 21273-51010 · 21844-33010 · 21844-34060 |
| 21275 | Adjustment screw | 21842-31280 |
| 21277 | Low idle speed adjustment screw | 21844-33010 |
| 21281 | Idle fuel injector | 21281-36110 |
| 21291 | oil level gauge glass | 21291-33010 · 21291-36120 · 21291-60200 |
| 21299 | pump filter strainer | 21299-36120 |
| 21301 | Needle valve sub-assembly | 21301-26350 · 21301-33010 · 21301-33081 · 21301-34061 · 21301-34400 |
| 21312 | steel ball | 21312-40020 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 · 21314-60010 |
| 21331 | first throttle | 21331-26350 · 21331-33080 · 21331-34030 |
| 21332 | second throttle | 21332-33080 · 21332-34031 |
| 21333 | High speed valve | 21333-31180 |
| 21334 | choke | 21334-33080 · 21334-44011 |
| 21335 | thermostat valve | 21038-34400 · 21038-36120 · 21335-25010 · 21335-33010 · 21335-33080 |
| 21341 | enrichment valve | 21304-30010 |
| 21351 | enrichment piston | 21351-33080 · 21708-22010 |
| 21352 | vacuum piston | 21352-34060 |
| 21353 | pump plunger | 21353-33010 · 21353-44101 |
| 21371 | First gear idle cam | 21371-34060 · 21371-34230 |
| 21372 | First gear idle cam lifter | 21372-44100 |
| 21377 | Collar (for second throttle shaft) | 21377-31250 |
| 21411 | High speed axis | 21411-31180 |
| 21412 | first throttle shaft | 21412-25012 · 21412-31181 · 21412-31281 · 21412-34033 |
| 21413 | Second throttle shaft | 21413-26350 · 21413-31180 · 21413-33080 · 21413-34032 |
| 21414 | choke shaft | 21054-31280 · 21414-31022 · 21414-34081 · 21414-44100 |
| 21431 | first throttle shaft arm | 21044-36110 · 21431-31230 · 21431-31250 · 21431-31280 · 21431-44100 |
| 21432 | throttle arm | 21428-31180 |
| 21444 | Rod (for the linkage mechanism of the enrichment device) | 21444-31250 · 21444-31281 |
| 21447 | diaphragm rod | 21447-44100 |
| 21449 | Second gear starting pedal | 21404-36110 · 21449-25010 · 21449-31281 · 21449-44101 |
| 21452 | pump rod | 21407-36120 · 21452-31010 · 21452-31250 · 21452-31280 · 21452-44100 |
| 21453 | first throttle lever | 21406-34460 · 21406-36110 · 21453-31220 · 21453-31280 · 21453-34030 · 21455-36110 |
| 21454 | choke lever | 21454-31024 · 21454-31250 · 21454-31251 |
| 21456 | No. 1 first throttle idle speed adjustment lever | 21307-36110 · 21456-31180 · 21456-31250 · 21456-31280 · 21456-44100 |
| 21461 | First gear idle lever | 21431-36120 |
| 21463 | Second throttle lever | 21409-36120 |
| 21471 | pump connecting rod | 21471-31250 · 21471-31280 · 21471-33010 · 21471-34081 · 21471-36120 |
| 21473 | Throttle valve shaft connecting rod | 21473-33010 |
| 21474 | connecting rod | 21474-31280 · 21474-34080 · 21475-36110 |
| 21481 | First gear idle connector | 21481-23011 · 21481-31250 · 21481-31251 · 21481-31280 |
| 21482 | Piston connector | 21482-31010 |
| 21484 | Connector (for opener) | 21484-26350 |
| 21491 | sliding link | 21491-44100 |
| 21502 | Choke door wiring harness clamp sub-assembly | 21399-31220 · 21502-23010 · 21523-31251 · 21523-31280 |
| 21511 | Oil level gauge clip | 21511-33010 · 21511-36120 |
| 21526 | return spring bracket | 21526-31140 · 21526-44100 |
| 21531 | Coil housing fixings | 21531-30010 |
| 21536 | coil housing plate | 21536-44100 |
| 21538 | One way ball fixing | 21538-31010 |
| 21551 | Return spring retainer | 21551-36120 |
| 21553 | catheter | 21553-33080 |
| 21557 | Spacer (for first gear idle cam) | 21552-36120 · 21557-25010 · 21557-44100 · 21557-60200 |
| 21561 | Pump drain counterweight | 21561-22010 · 21561-30010 · 21561-36120 |
| 21572 | Enrichment piston block | 21572-22010 · 21572-33080 · 21572-38010 |
| 21575 | Stopper B (for oil drain counterweight) | 21575-26020 · 21575-33011 |
| 21575A | Spring (for stopper B) | 21864-26020 |
| 21576 | Pump filter clip | 21576-36120 |
| 21581 | First throttle shaft gasket | 21581-21010 · 21581-25010 · 21581-32010 · 21581-41010 · 21582-21010 · 21582-25010 · 21583-21010 · 21583-25010 · 21583-32010 · 21583-41010 · 21585-25010 · 21588-21010 |
| 21583 | Second throttle shaft gasket | 21583-21010 |
| 21611 | Main gage hole gasket | 21611-22010 · 21611-40021 |
| 21612 | Enrichment valve gasket | 21612-36120 |
| 21612A | Power gauge hole gasket | 21612-31100 |
| 21614 | Venturi gasket | 21614-33010 · 21614-33080 · 21614-34031 · 21614-36120 · 21615-44010 · 21639-36120 |
| 21617 | Main oil gallery plug gasket | 21617-30010 · 21633-44150 |
| 21618 | Needle seat gasket | 21618-24030 · 21618-60010 · 21643-36110 |
| 21621 | Oil pipe joint gasket | 21619-22010 · 21633-24030 · 21637-36120 |
| 21622 | Air intake bell gasket | 21622-33081 · 21622-33083 · 21622-36120 · 21622-44100 |
| 21623 | Body hem pads | 21623-25180 · 21623-31140 · 21623-34080 |
| 21625 | oil level gauge gasket | 21625-36120 · 21641-33040 · 21655-60200 |
| 21626 | shell liner | 21649-33080 |
| 21627 | Coil housing gasket | 21627-34080 · 21642-36110 |
| 21629 | Idle injector gasket | 21626-36110 |
| 21631 | main duct gasket | 21631-36120 |
| 21634 | Idle oil gallery plug gasket | 21634-36120 |
| 21641 | Gasket (for thermostat valve cover) | 21626-36120 · 21641-23010 · 21641-23012 |
| 21645 | Diaphragm cover gasket | 21638-36120 · 21645-33080 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21648 | Seal (for idle valve cover) | 21637-36120 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 |
| 21659 | O-ring (for thermostat valve) | 21641-24030 · 21655-31100 · 23532-40010 |
| 21664 | Rod (for deceleration buffer or positioner) | 21409-36110 · 21664-31280 |
| 21667 | Diaphragm | 21173-36110 |
| 21668 | collar | 21377-26160 · 21668-31280 |
| 21672 | cover | 21672-31140 · 90339-03005 |
| 21677 | Screw plug | 21677-42010 |
| 21679 | locator | 21099-36110 · 21679-31281 |
| 21681 | Spacers (for high speed shafts) | 21681-21060 · 21682-21060 |
| 21697 | Dust boot (for sliding link) | 21699-33010 |
| 21698 | Diaphragm | 21669-34080 · 21669-44100 |
| 21699 | Dust boot (for pump plunger) | 21656-36110 · 21699-21061 |
| 21722 | Pump damping spring | 21722-22010 · 21722-34060 · 21735-36120 |
| 21723 | Idle speed adjustment spring | 21723-21030 · 21723-30030 |
| 21724 | Throttle valve adjustment spring | 21724-30010 · 21724-30030 · 21726-40010 |
| 21725 | Second throttle return spring | 21725-33040 |
| 21726 | First gear idle speed adjustment spring | 21723-21030 · 21723-30030 · 21726-40010 |
| 21728 | Throttle return spring | 21728-36120 · 21756-31280 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21726-40010 |
| 21733 | Low idle adjustment spring | 21726-40010 |
| 21734 | Thickening piston spring | 21734-33081 |
| 21735 | Pump rod spring | 21722-36120 · 21735-21032 · 21735-22010 |
| 21736 | First gear idle cam spring | 21736-40010 · 21748-36110 |
| 21738 | Choke pressure reducing spring | 21738-23011 · 21738-31250 |
| 21751 | Oil pipe joint | 21751-33080 · 21751-34240 · 21751-36110 · 21751-44011 · 90404-13105 |
| 21756 | Return spring (for throttle shaft) | 21727-36120 · 21756-31170 · 21756-31250 · 21756-33080 · 21756-34080 · 21756-34081 · 21756-34240 |
| 21763 | floating lever pin | 21763-21010 · 21763-29270 · 21763-31280 · 21768-36110 |
| 21764 | Piston pin (for vacuum piston) | 21764-40010 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-30020 · 21781-44150 |
| 21784 | Idle oil passage plug | 21787-36110 |
| 21785 | Carburetor fuel inlet filter plug | 21781-60010 |
| 21786 | Pump oil passage plug | 21787-36120 |
| 21787 | Acceleration nozzle plug | 21787-31030 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-60010 · 21797-44050 |
| 21794 | No. 1 retaining ring (for throttle shaft) | 21794-40010 · 21795-41010 |
| 21795 | No. 2 retaining ring (for high-speed shaft) | 21795-30010 |
| 21797 | No. 4 snap ring (for carburetor connecting rod) | 21797-44050 |
| 21799 | Top E-ring | 21799-40020 |
| 21821 | Second throttle fixing screw | 21821-34031 |
| 21822 | First throttle fixing screw | 21822-34031 · 21822-44101 |
| 21823 | Choke door fixing screw | 21822-10011 · 21822-34031 |
| 21824 | Set screw (for first idle cam lifter assembly) | 21824-33010 |
| 21826 | Pump rod fixing screw | 21826-25010 · 21826-31011 · 21826-31012 · 21826-31280 |
| 21827 | Connector fixing screw | 21827-33010 |
| 21829 | High speed valve fixing screw | 21823-60011 |
| 21831 | Enrichment piston limit screw | 21842-33010 |
| 21832 | Screw (for choke lever adapter assembly) | 21832-31020 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21804-36120 · 21833-33010 · 21844-34400 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21834-31140 · 21834-33010 · 21834-34030 |
| 21836 | Thermostat housing fixing screws | 21832-44010 |
| 21837 | Coil housing fixing screws | 21842-33010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21832-36120 · 21842-33010 |
| 21852 | Throttle lever retaining nut | 21852-30010 · 21852-36120 |
| 21864 | Spring (for first throttle arm) | 21864-26160 |
| 21867 | diaphragm spring | 21747-34400 · 21749-36120 · 21867-26040 · 21867-31280 · 21867-33080 · 21867-34060 |
| 21868 | Diaphragm pressure reducing spring | 21868-33080 |
| 21881 | Lock washer (for throttle shaft) | 21881-31030 · 21881-60010 |
| 21884 | Thermostat housing retaining gasket | 21885-44010 |
| 21934 | Throttle solenoid valve | 21062-24230 · 21062-38010 · 21391-36110 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21617-10010 |
