Toyota HILUX 燃油管和卡箍 — Figure 2101

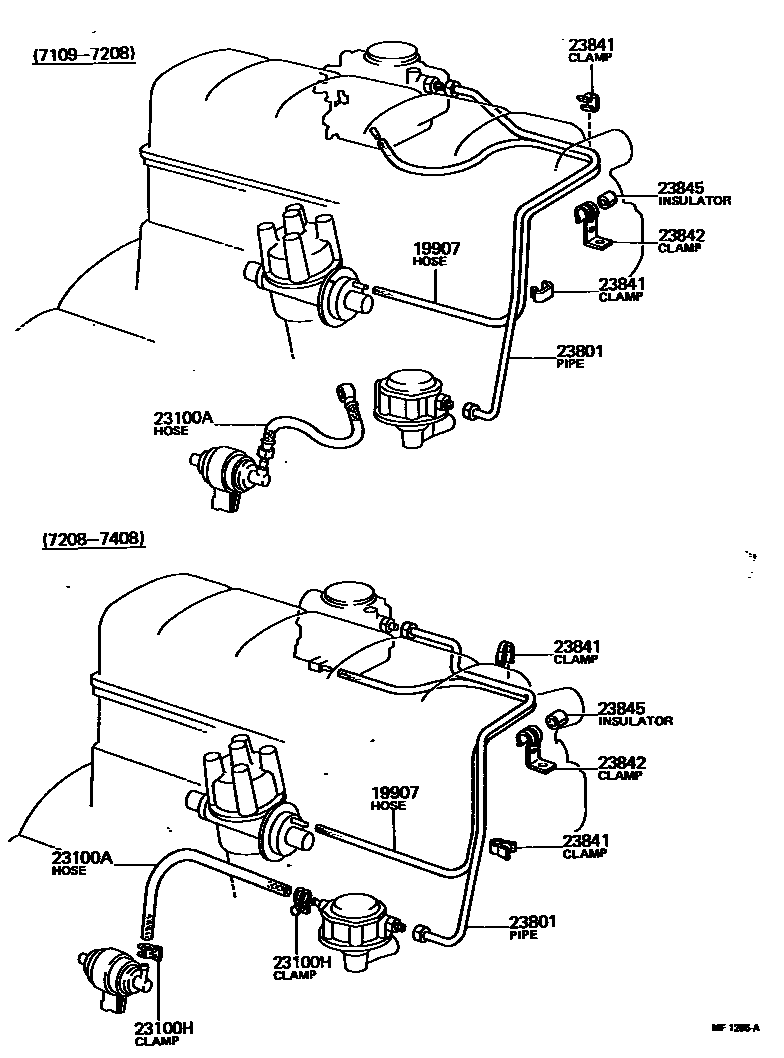

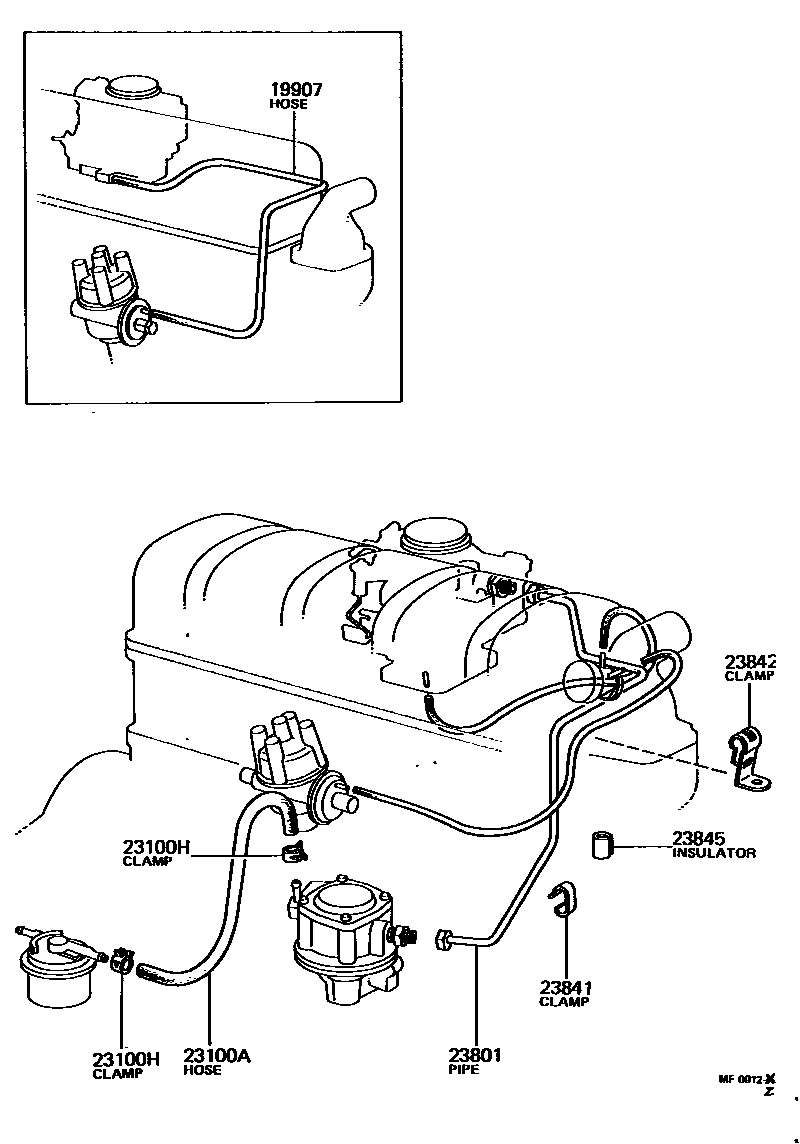

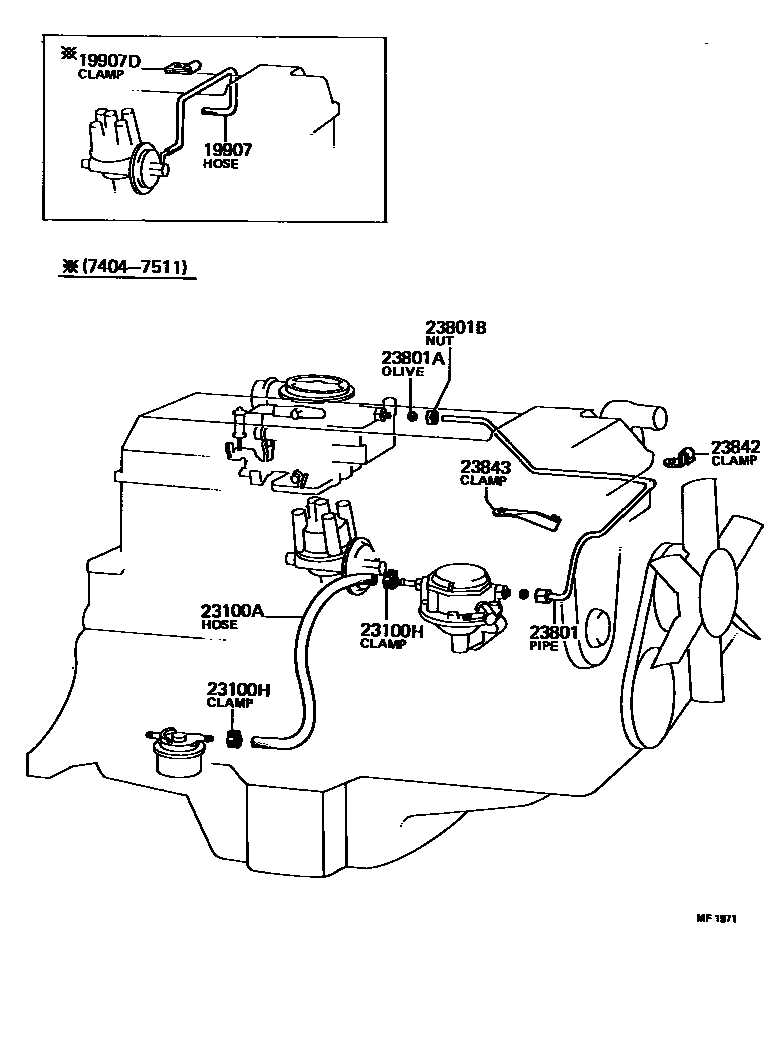

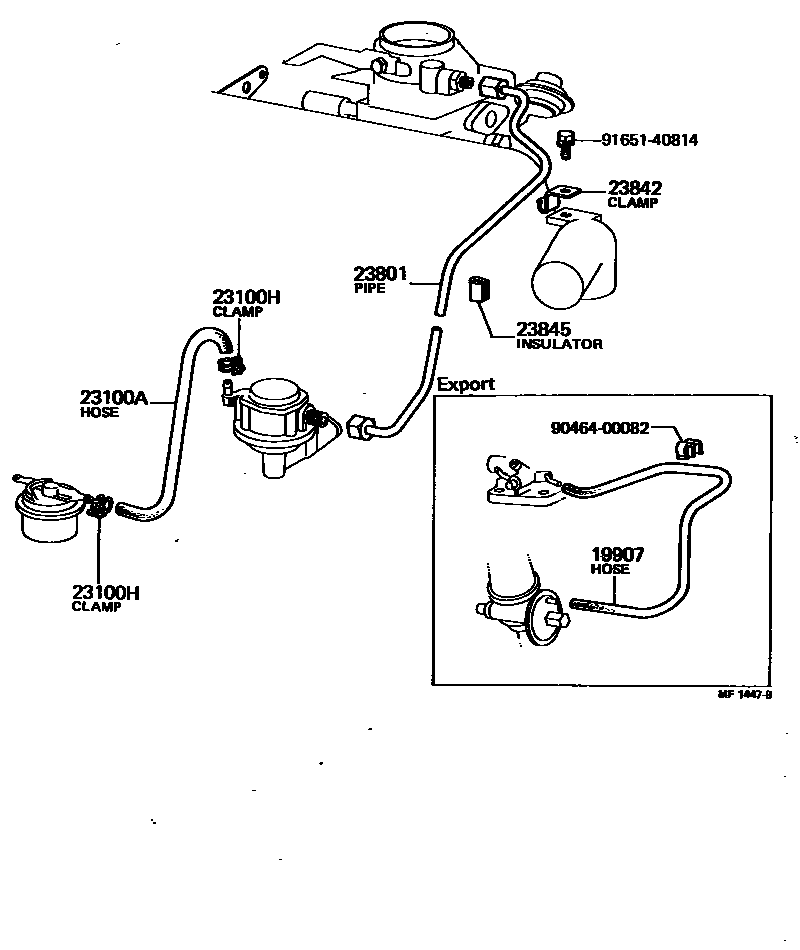

Toyota HILUX EPC diagram 2101, 燃油管和卡箍, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19907 | No. 1 vacuum hose | 90445-07007 · 90445-07106 · 95411-10195 · 95411-19995 |
| 19907D | Distributor vacuum hose clamp | 90461-08847 |
| 23100A | fuel hose | 95324-07020 · 95331-06032 · 95331-06034 · 95331-08020 · 95331-08024 · 95332-06024 · 95332-06028 · 95332-06034 |
| 23100H | Clamp (for fuel hose) | 90467-13138 · 96113-10150 · 96132-30600 · 96132-30800 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23801-31040 · 23801-31042 · 23811-34020 · 23811-34030 · 23811-34031 |
| 23801A | Olive nut (for fuel pipe) | 96395-71400 |
| 23801B | Connecting nut (for fuel pipe) | 90402-13041 |
| 23841 | No. 1 fuel pipe (hose) clamp | 90468-04007 |
| 23842 | No. 2 fuel pipe (hose) clamp | 23841-40010 · 23842-31010 · 23842-34040 · 23842-34041 · 90461-10407 |
| 23843 | No. 3 fuel pipe (hose) clamp | 23841-34020 · 90461-10080 |
| 23845 | Fuel pipe vibration isolation pad | 23845-20010 |
