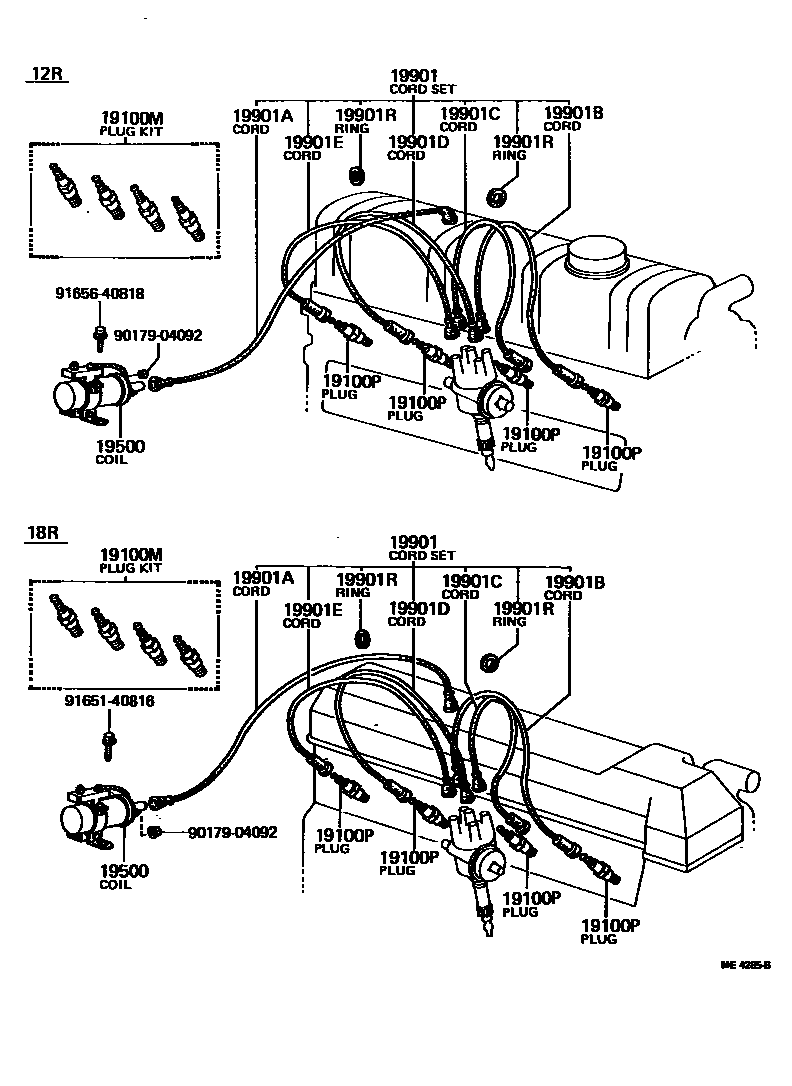

Toyota HILUX 点火线圈和火花塞 /电热塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100M | spark plug assembly | 04195-34010 · 04195-34020 |
| 19100P | spark plug | 90919-01027 · 90919-01041 · 90919-01051 · 90919-01059 · 90999-09001 |
| 19500 | Ignition coil assembly | 90919-02015 · 90919-02040 · 90919-02053 · 90919-02067 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21003 · 90919-21015 |
| 19901A | coil damping line | 90919-13025 · 90919-13042 · 90919-13090 · 99231-10360 |
| 19901B | No. 1 spark plug damper wire | 90919-12082 · 90919-12146 · 99221-10290 |
| 19901C | No. 2 spark plug damper wire | 90919-12145 · 90919-12146 · 99221-10240 · 99221-10290 |
| 19901D | No. 3 spark plug damper wire | 90919-12145 · 90919-12146 · 99221-10240 · 99221-10290 |
| 19901E | No. 4 spark plug damper wire | 90919-12146 · 99221-10290 |
| 19901R | Rubber spark plug damping wire ring | 90202-11067 |
