Toyota HILUX Air Cleaner — Figure 1703

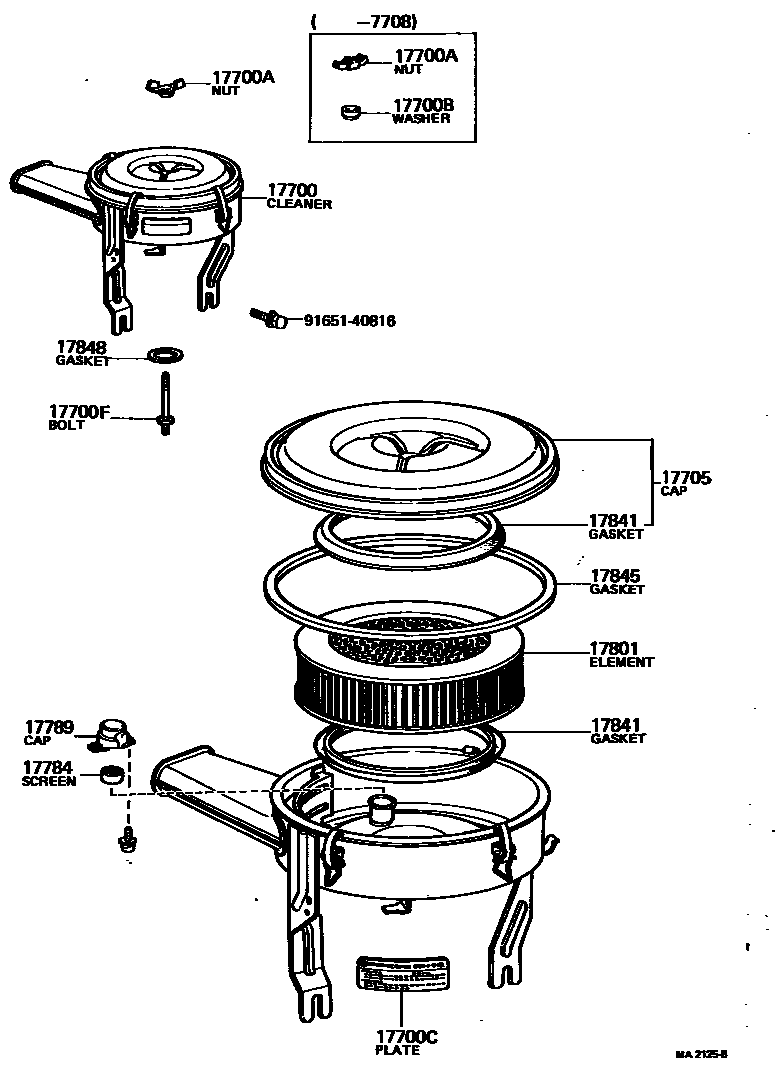

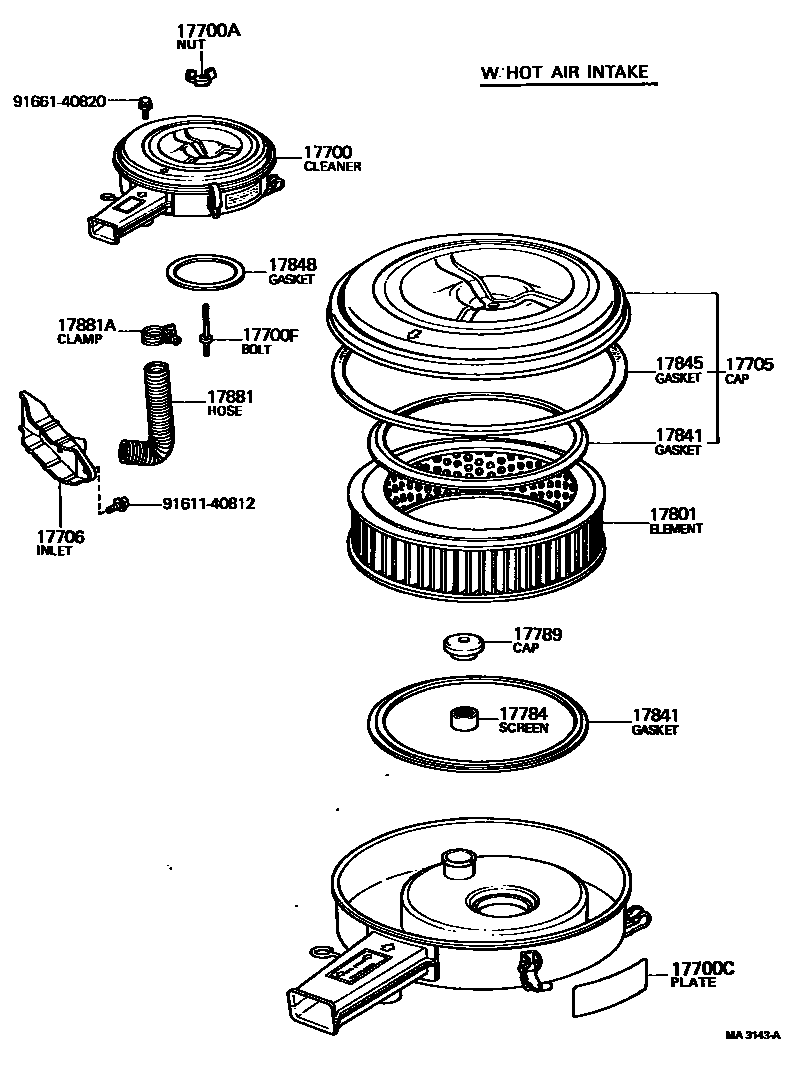

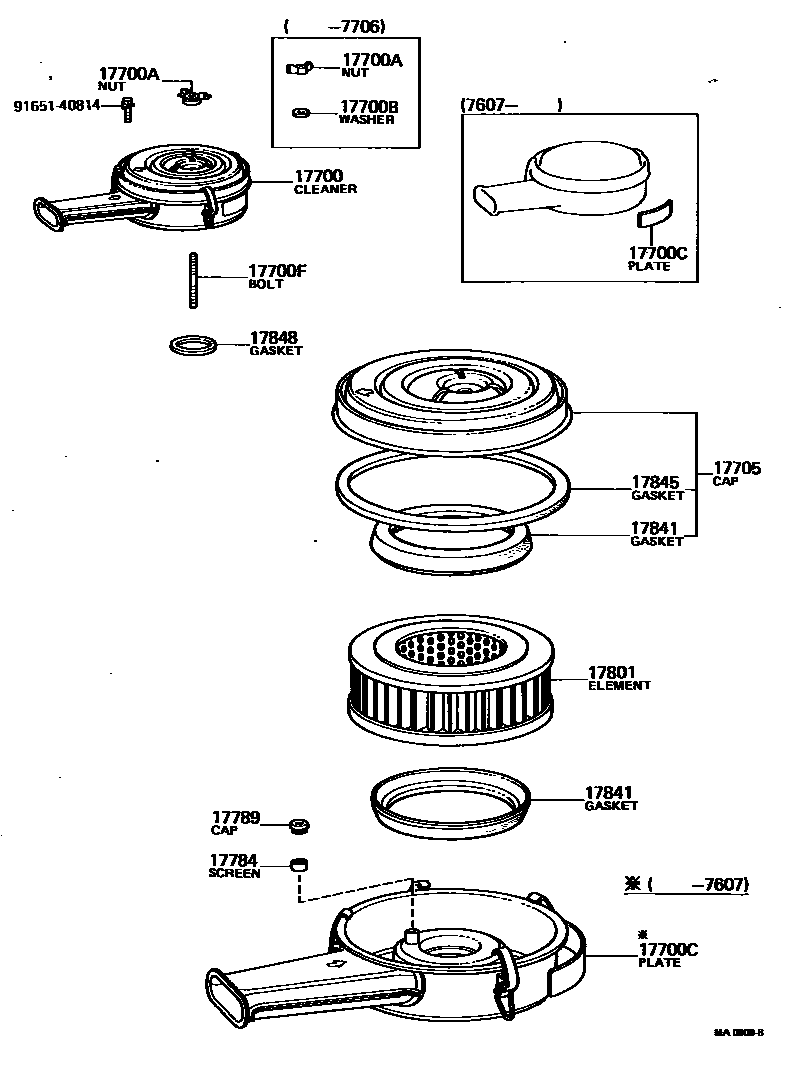

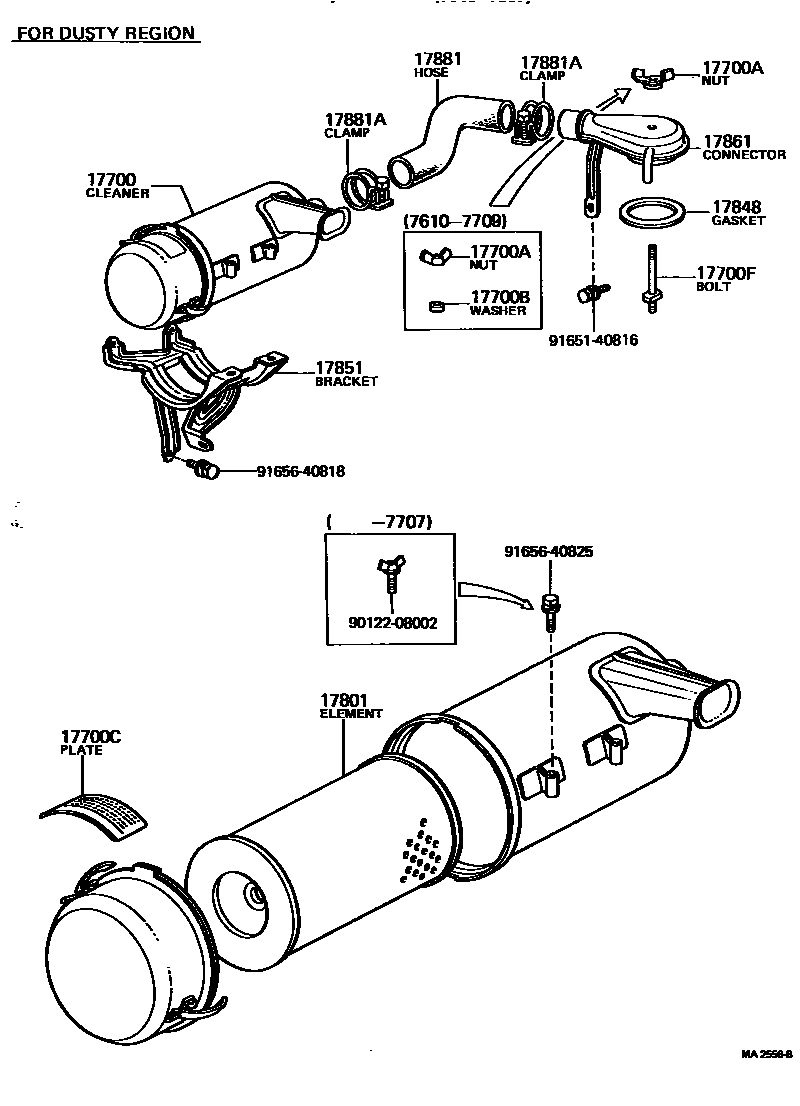

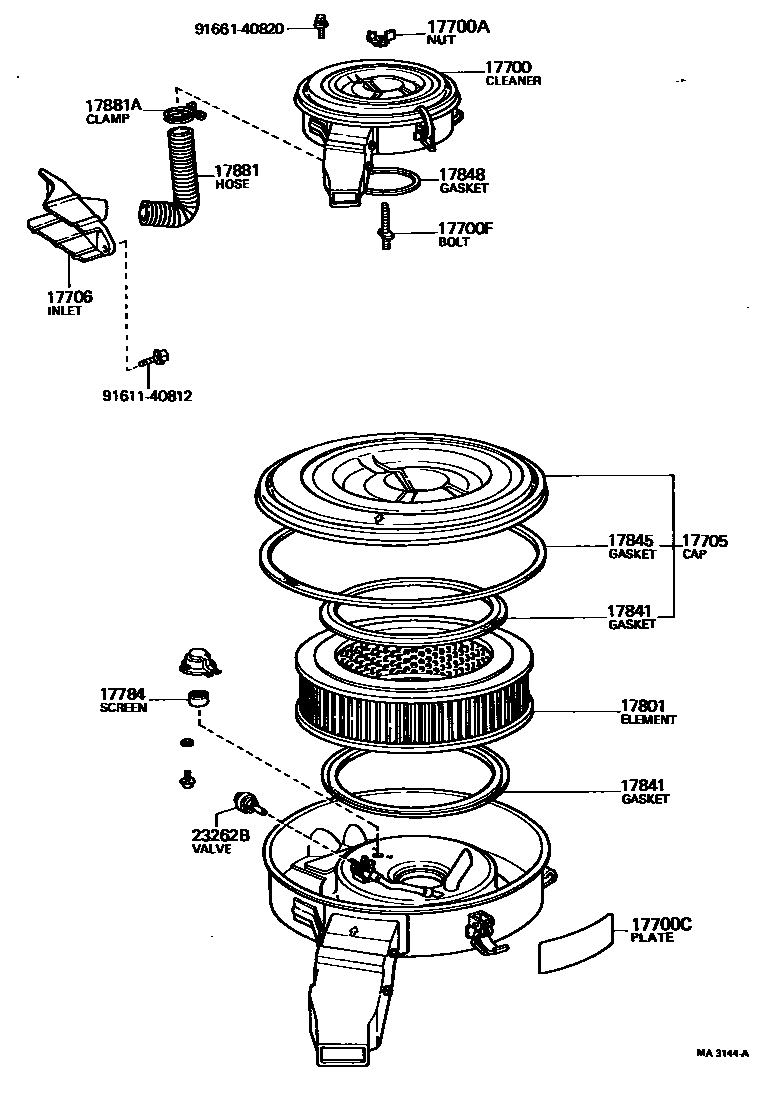

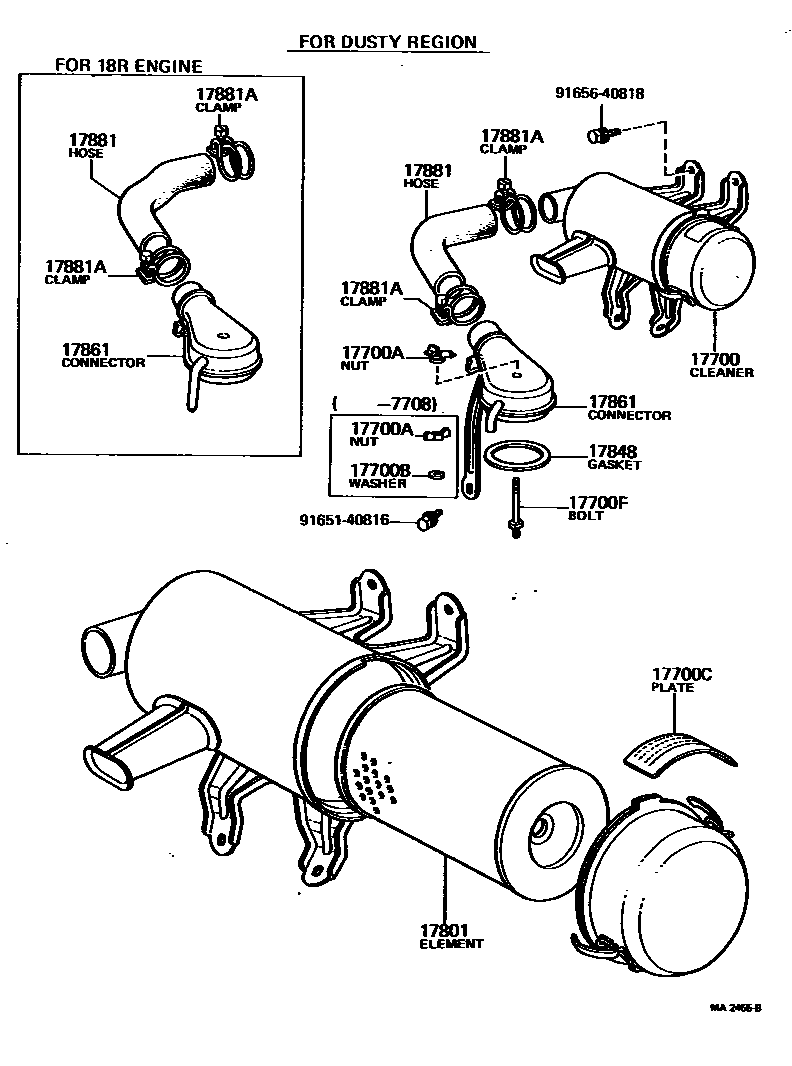

Toyota HILUX EPC diagram 1703, Air Cleaner, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-31161 · 17700-31162 · 17700-31163 · 17700-31164 · 17700-31165 · 17700-31181 · 17700-31182 · 17700-31261 · 17700-31290 · 17700-31320 · 17700-31330 · 17700-31331 · 17700-31901 · 17700-34203 · 17700-34354 · 17700-34370 · 17700-34371 · 17700-36152 · 17700-36153 · 17700-36163 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-06026 · 94270-00600 · 94271-00600 |
| 17700B | Gasket (for air cleaner) | 90210-06001 · 90210-06023 · 90210-09026 |
| 17700C | Air filter warning plate (for engine models) | 90917-07052 · 90917-07053 · 90917-07070 |
| 17700F | Stud bolt (for securing air filter) | 90116-06106 · 90116-06142 · 90116-06143 · 90116-06230 |
| 17705 | Air filter cover sub-assembly | 17705-31030 · 17705-31031 · 17705-31032 · 17705-34071 · 17705-34141 · 17705-34160 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17895-34011 · 17895-34060 |
| 17784 | air filter partition | 17784-31010 |
| 17789 | Air filter partition cover | 17789-31010 · 17789-31020 |
| 17801 | Air filter element sub-assembly | 17801-25010 · 17801-31010 · 17801-31040 · 17801-33030 · 17801-34060 |
| 17841 | filter liner | 17841-21010 · 17841-31020 · 17841-33011 |
| 17845 | air cleaner cover gasket | 17845-31020 · 17845-33010 · 17845-33011 |
| 17848 | Gasket from air cleaner to carburetor | 90430-63187 · 90430-72114 |
| 17851 | air filter bracket | 17851-31010 · 17851-31011 |
| 17861 | Intake connecting pipe | 17861-31050 · 17861-31051 · 17861-31060 · 17861-31061 · 17861-34040 · 17861-34041 · 17861-34050 · 17861-34051 |
| 17881 | No. 1 air cleaner hose | 17881-31010 · 17881-34110 · 17882-34050 · 90910-06035 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-47036 · 96111-10460 · 96111-10580 |
| 23262B | No. 1 bimetallic vacuum switch valve | 90925-05025 |
