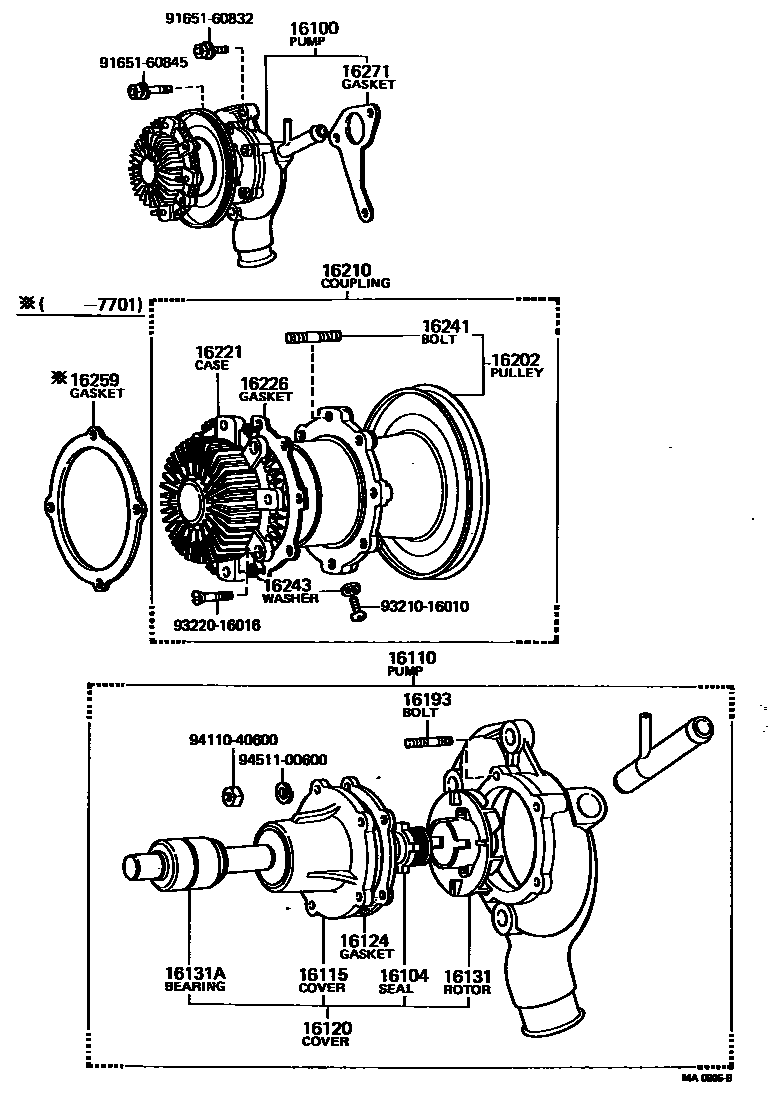

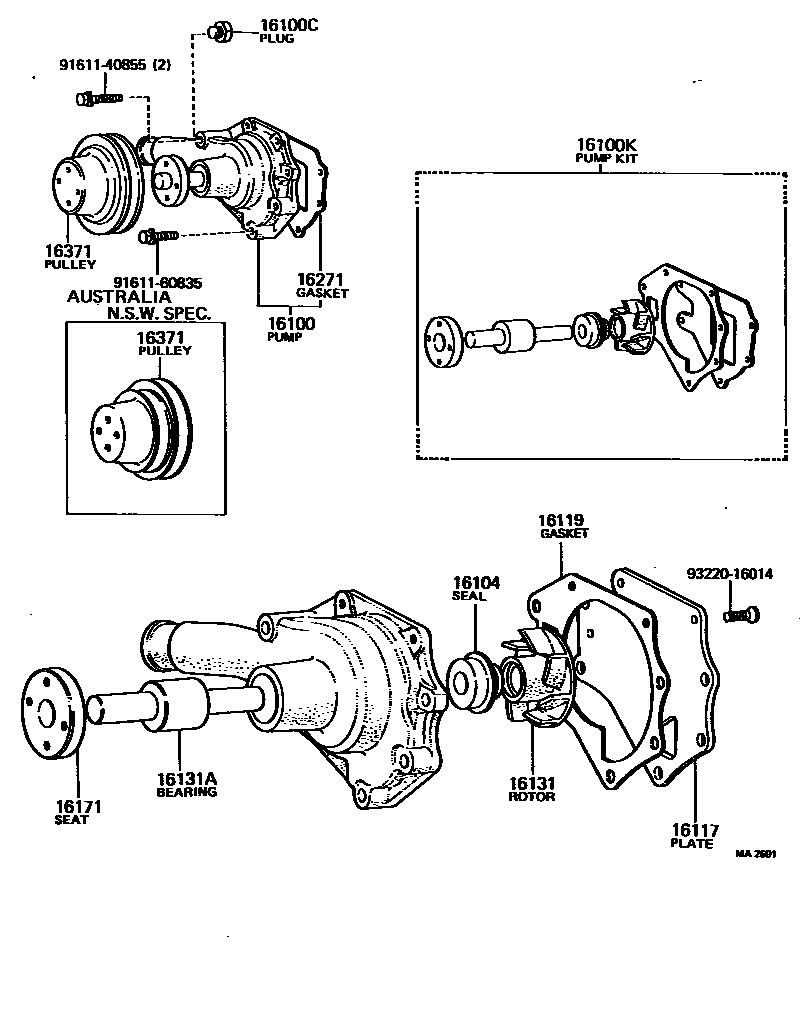

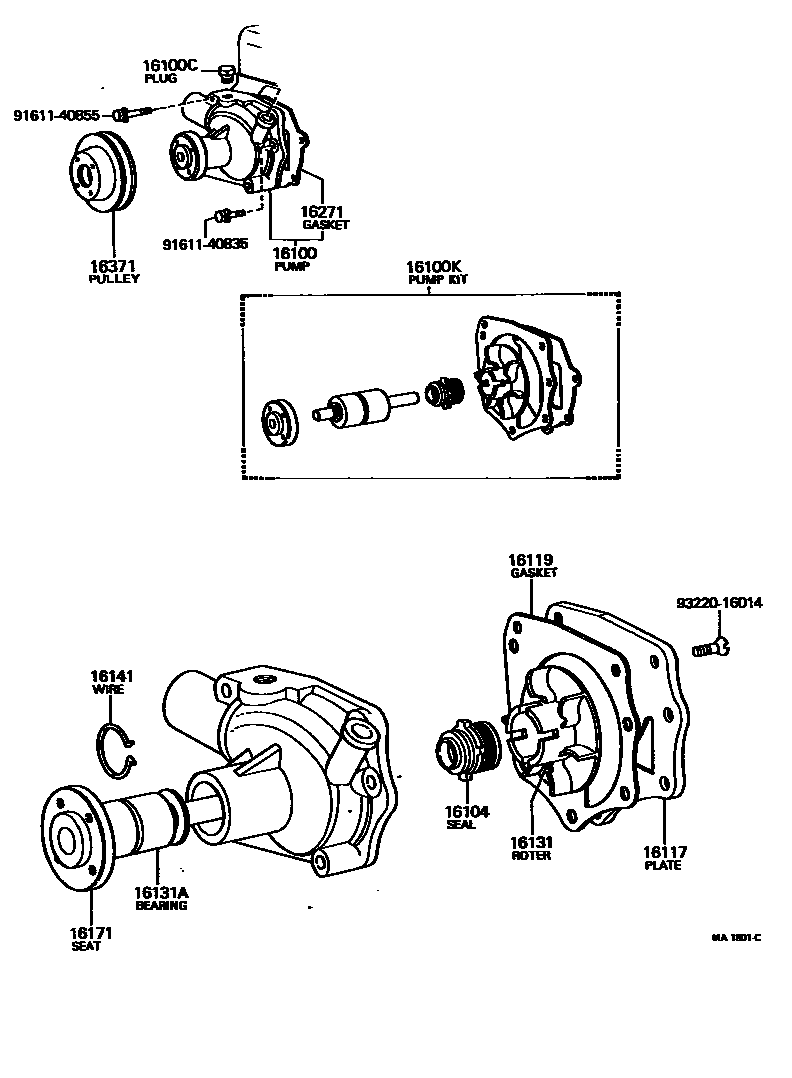

Toyota HILUX Water Pump — Figure 1601
Toyota HILUX EPC diagram 1601, Water Pump, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-39115 · 16100-39116 · 16100-39125 · 16100-39175 · 16100-39176 · 16100-39215 · 16100-39245 |
| 16100C | Headed tapered thread plug | 90345-54002 · 90345-54021 |
| 16100K | Water pump components | 04161-31020 · 04161-31021 · 04161-31023 |
| 16104 | Water pump seal components | 16104-30011 · 16104-41040 · 16104-41110 |
| 16110 | Water pump assembly without coupling | 16110-34060 · 16110-34061 · 16110-34090 · 16110-34110 |
| 16115 | water pump cover | 16115-40010 · 16115-41110 |
| 16117 | water pump plate | 16117-31010 · 16117-31011 · 16117-31031 |
| 16119 | Water pump body gasket | 16124-31010 · 16124-31011 · 16124-31031 |
| 16120 | water pump cover assembly | 16120-33010 · 16120-34090 · 16120-34110 |
| 16124 | water pump cover gasket | 16129-33030 |
| 16131 | water pump rotor | 16131-31010 · 16131-31031 · 16131-31032 · 16131-33010 · 16131-41110 |
| 16131A | water pump bearings | 90369-30003 · 90369-30005 · 90369-30028 · 90369-30035 |
| 16141 | Water pump bearing retainer wire harness | 16141-60010 |
| 16171 | water pump pulley seat | 16171-24031 · 16171-31030 |
| 16193 | Studs (for water pump cover) | 16193-33030 |
| 16202 | Hydraulic coupler pulley and bearing housing sub-assembly | 16202-33030 · 16202-34090 · 16202-34110 |
| 16210 | Hydraulic coupler assembly | 16210-34030 · 16210-34090 · 16210-34110 |
| 16221 | Fluid coupler housing | 16221-33030 · 16221-45010 |
| 16226 | Fluid coupling shell gasket | 16226-45010 |
| 16241 | Stud bolts (for water pump coupling) | 16241-40030 |
| 16243 | Flat washer (for water pump) | 16243-40030 |
| 16259 | fan gasket | 16259-33010 |
| 16271 | water pump gasket | 16271-30010 · 16271-30011 · 16271-33010 |
| 16371 | fan pulley | 16308-31010 · 16371-31020 · 16371-31021 · 16371-31022 |
