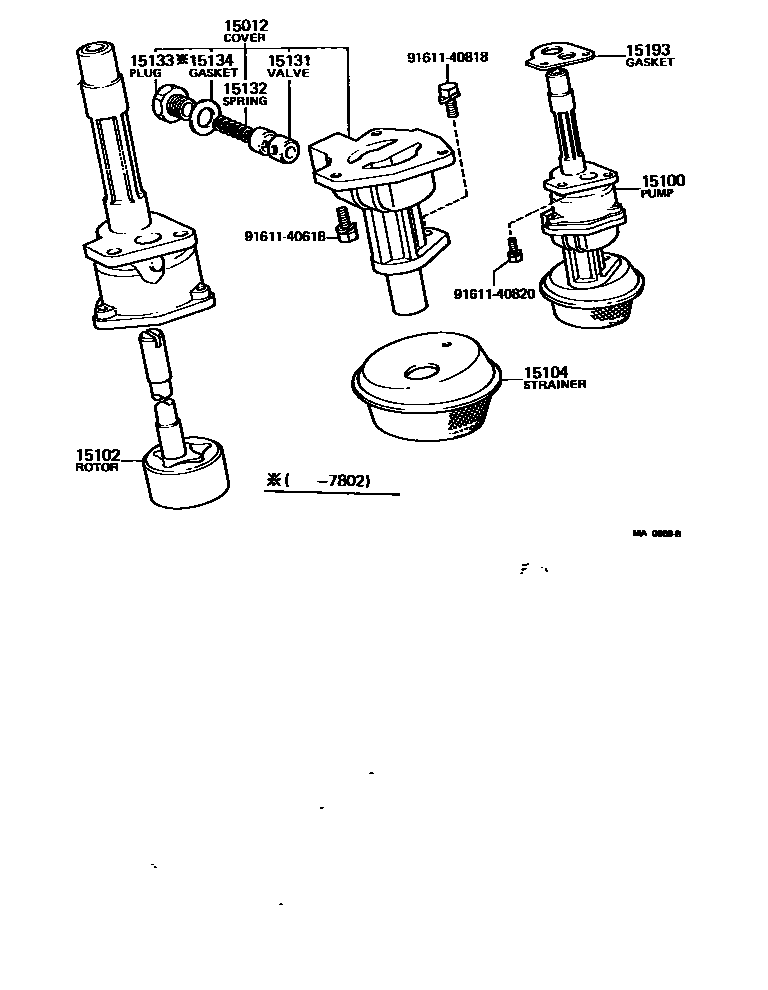

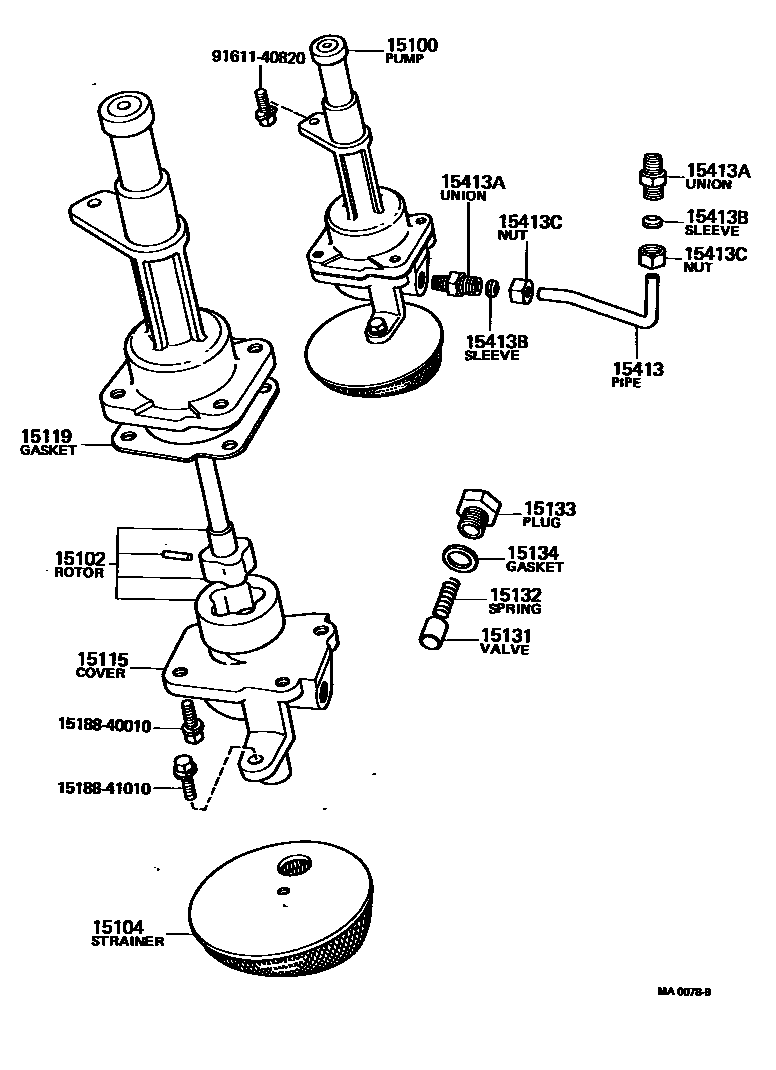

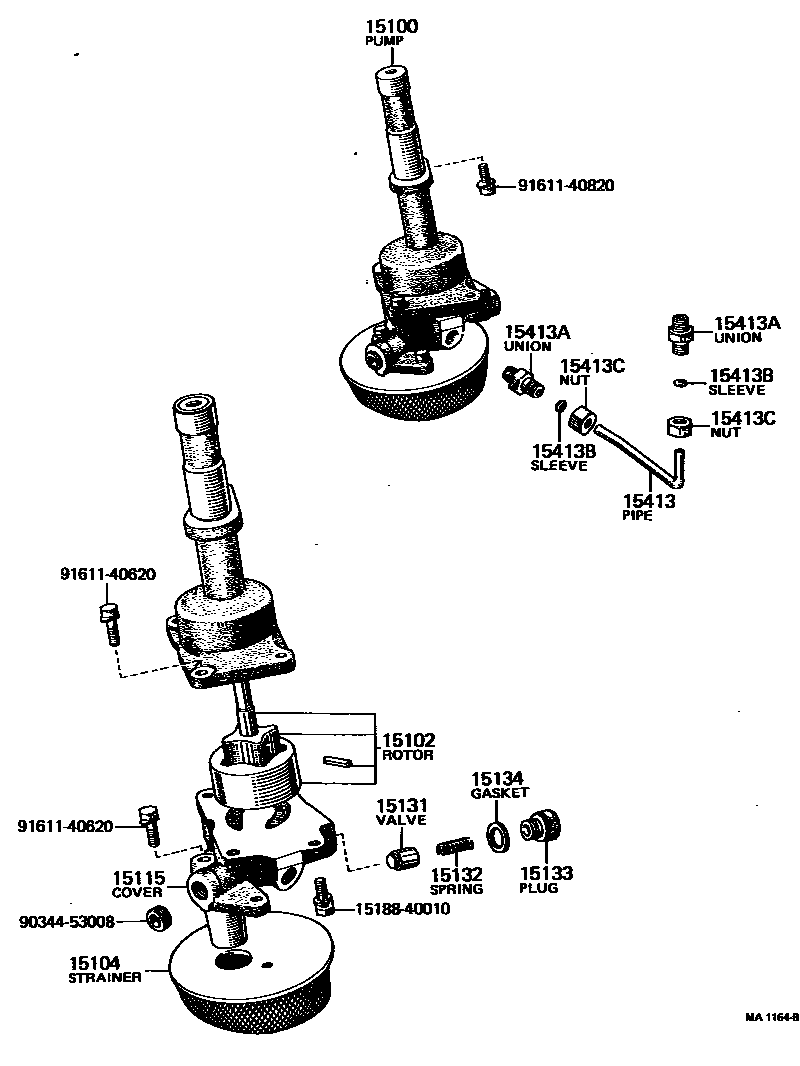

Toyota HILUX Engine Oil Pump — Figure 1501
Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-33010 · 15012-33011 |
| 15100 | Oil pump assembly | 15100-31030 · 15100-33011 · 15200-31011 |
| 15102 | Oil pump rotor assembly | 15101-31011 · 15102-33011 · 15102-36010 |
| 15104 | Oil filter sub-assembly | 15103-31010 · 15104-31030 · 15104-33010 |
| 15115 | oil pump cover | 15012-31031 · 15115-31011 · 15115-31030 |
| 15119 | Oil pump cover gasket | 15119-40010 |
| 15131 | Oil pump pressure reducing valve | 15131-40010 · 15131-41010 |
| 15132 | Oil pump pressure reducing valve spring | 15132-40010 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 · 15133-41030 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-20010 |
| 15193 | oil pump gasket | 15193-33010 · 15193-33011 |
| 15413 | Oil pump outlet pipe | 15413-31010 |
| 15413A | Connector (for oil pump outlet pipe) | 90404-16008 |
| 15413B | Ball sleeve (for oil pump outlet pipe) | 90410-11005 |
| 15413C | Connector nut (for oil pump outlet pipe) | 90402-16042 |
