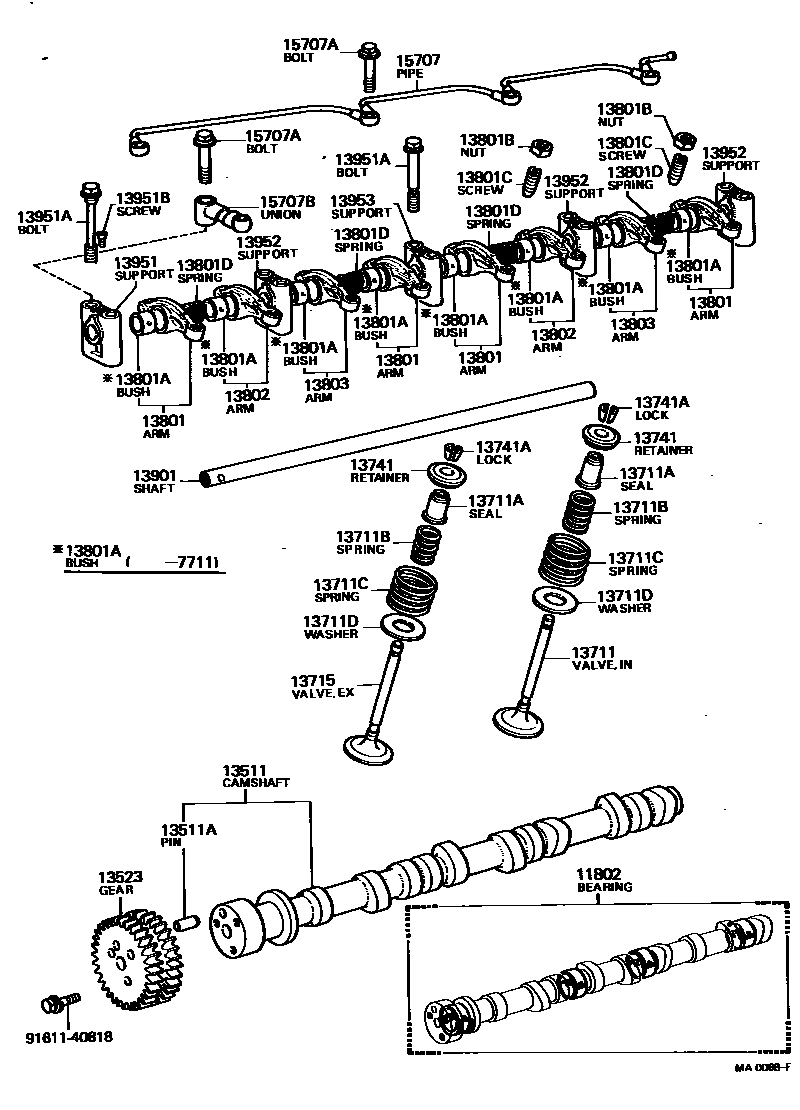

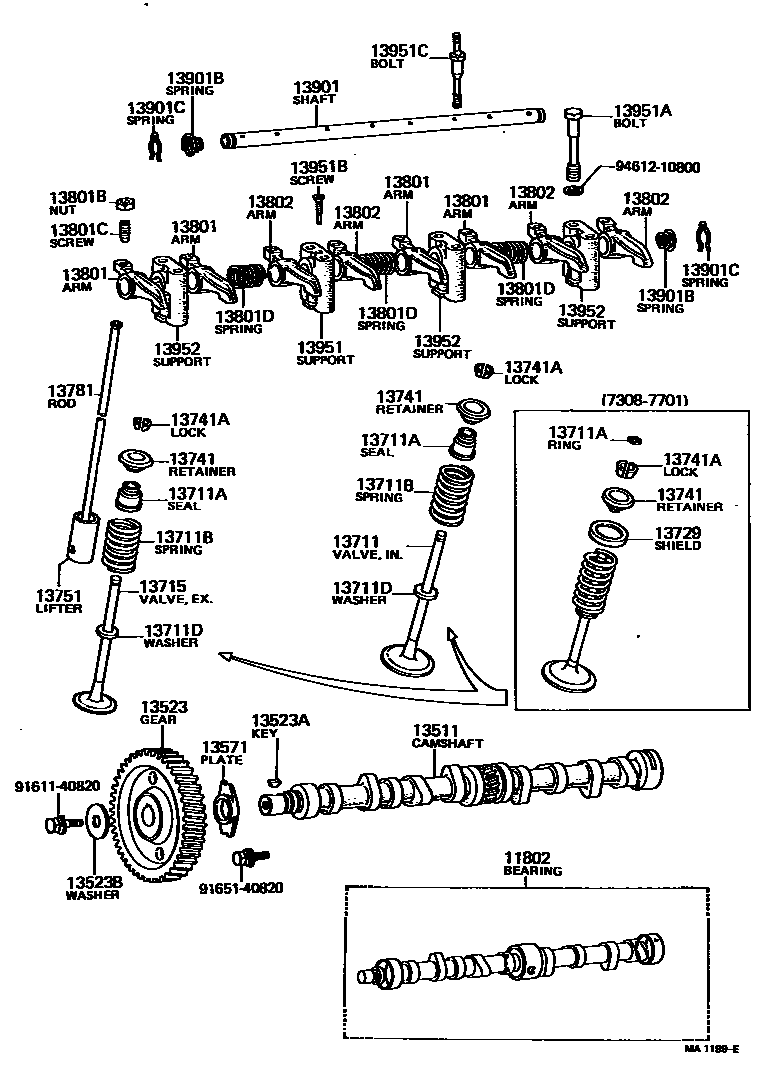

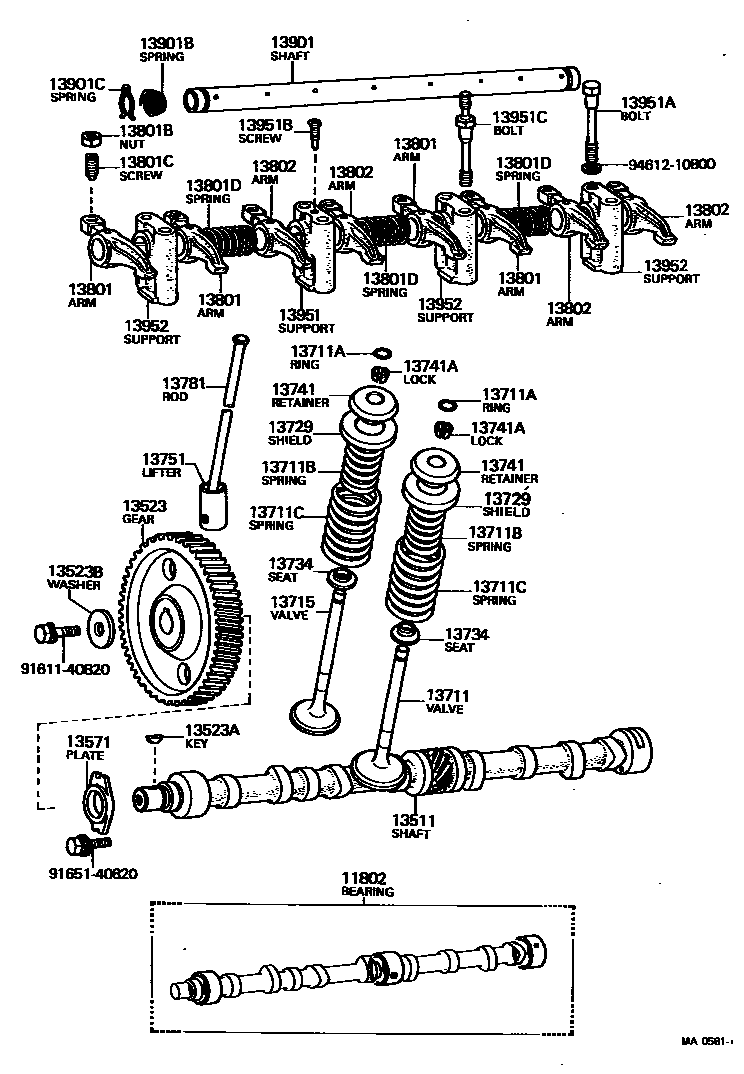

Toyota HILUX Camshaft & Valve — Figure 1302
Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 3 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11802 | Camshaft bearing assembly | 11802-31010 · 11802-33010 · 11803-31010 · 11804-31010 · 11804-33010 · 11805-31010 · 11805-33010 |
| 13511 | camshaft | 13511-31020 · 13511-33013 · 13511-33904 · 13511-33905 |
| 13511A | Direct pin (for camshaft locking pin) | 90250-08074 |
| 13523 | Camshaft timing gear or sprocket | 13523-31010 · 13523-31011 · 13523-33010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05010 · 95161-10519 |
| 13523B | Flat washer (for timing gear) | 90201-08120 |
| 13571 | Camshaft thrust plate | 13571-31010 |
| 13711 | intake valve | 13711-31030 · 13711-31050 · 13711-34031 · 13711-36021 |
| 13711A | Oil seal or O-ring (for valve stem) | 90301-06096 · 90913-02016 · 90913-02033 |
| 13711B | Compression spring (for inner side) | 90501-26005 · 90501-26398 · 90501-26608 · 90501-45005 · 90501-47751 |
| 13711C | Compression spring (for outside) | 90501-45009 · 90501-45459 · 90501-45609 |
| 13711D | Flat washer (for valve spring seat) | 90201-13308 · 90201-15387 |
| 13715 | exhaust valve | 13715-31030 · 13715-31050 · 13715-31070 · 13715-34012 |
| 13729 | Valve stem oil stop | 13729-31031 |
| 13734 | Valve spring seat | 13734-31010 |
| 13741 | Valve spring seat ring | 13741-25012 · 13741-31012 · 13741-31013 · 13741-31014 · 13741-33010 |
| 13741A | Valve spring seat lock plate | 90913-03005 · 90913-03014 |
| 13751 | valve lifter | 13751-31010 · 13751-31020 · 13751-44011 · 13755-25010 · 13755-31010 · 13755-31020 · 13755-44011 |
| 13781 | valve pushrod | 13781-31020 · 13781-31021 · 13781-31022 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-33012 · 13811-31020 · 13811-31021 · 13811-31022 · 13811-33014 |
| 13801A | Bimetallic bushing (for rocker arm) | 90999-73001 |
| 13801B | Hex nut (for valve adjustment) | 90170-08094 · 90170-10074 · 90170-10116 |
| 13801C | valve adjustment screw | 90913-05010 · 90913-05011 · 90913-05013 |
| 13801D | Compression spring (for rocker arm) | 90501-16098 · 90501-16163 |
| 13802 | No. 2 valve rocker arm sub-assembly | 13802-33012 · 13812-31020 · 13812-31021 · 13812-31022 · 13812-33014 |
| 13803 | No. 3 valve rocker arm sub-assembly | 13803-33012 · 13813-33014 |
| 13901 | No. 1 valve rocker arm shaft sub-assembly | 13901-31020 · 13901-33010 · 13901-33011 |
| 13901B | Conical spring (for valve rocker arm shaft) | 90502-16004 |
| 13901C | Stop spring (for valve rocker arm shaft) | 90524-15008 |
| 13951 | No. 1 valve rocker arm bracket | 13951-31020 · 13951-33010 · 13951-36010 |
| 13951A | Bolts (for rocker arm bracket assembly) | 90105-08016 · 90910-01007 · 90910-01010 |
| 13951B | Locking screw or locking bolt (for valve rocker arm shaft) | 90151-40010 |
| 13951C | Stud bolts (for rocker arm bracket) | 13955-31010 · 90116-08244 |
| 13952 | No. 2 valve rocker arm bracket | 13952-31010 · 13952-33010 · 13952-36010 |
| 13953 | No. 3 valve rocker arm bracket | 13953-33010 · 13953-36010 |
| 15707 | Oil pipe sub-assembly | 15707-33010 |
| 15707A | Joint bolt (for oil pipe) | 90401-10050 · 90401-10051 |
| 15707B | Connector (for oil pipe) | 90406-08008 |
