Toyota HILUX Engine Mounting — Figure 1107

Toyota HILUX EPC diagram 1107, Engine Mounting, with 2 images and 5 PNC and OE references.

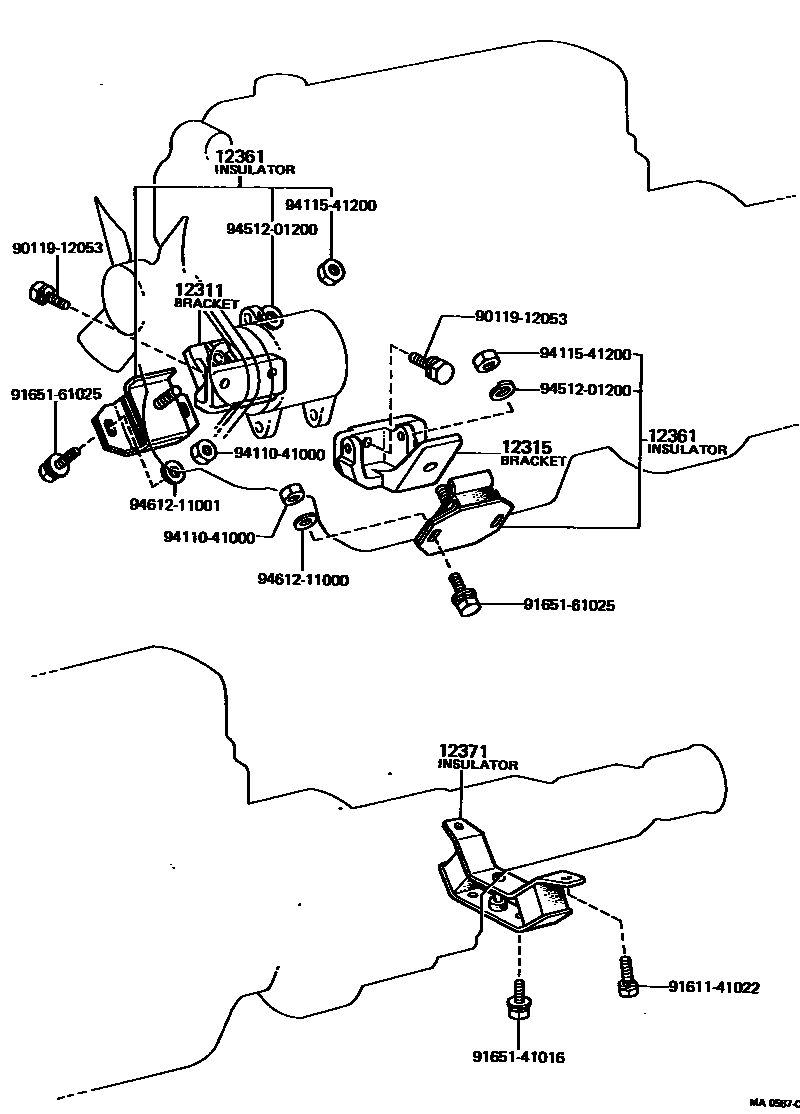

Toyota HILUX Engine Mounting EPC diagram — MA0587C
Engine Mounting — MA0587C (197205 – 197807)

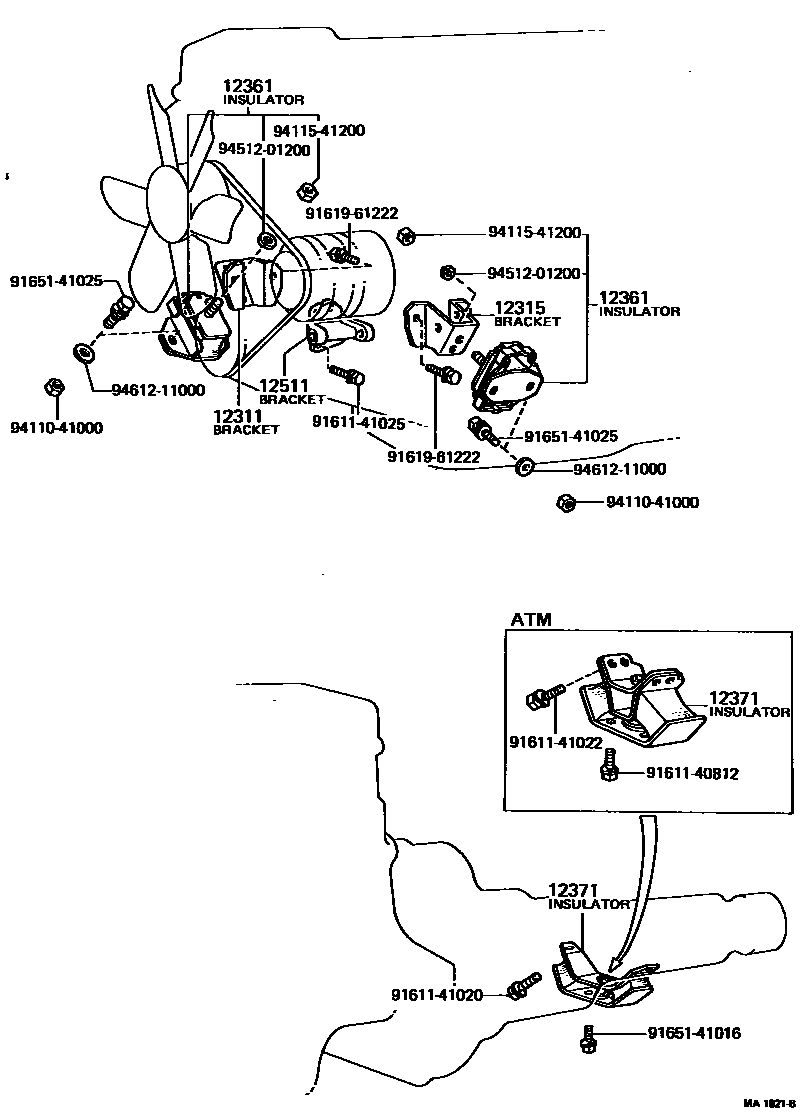

Toyota HILUX Engine Mounting EPC diagram — MA1821B
Engine Mounting — MA1821B (197404 – 197807)

PNC and OE references

PNCPart nameOE numbers
12311Engine Mounting Bracket No. 1, Front RH12311-30010 · 12311-33010 · 12311-33011
12315Engine No. 1 left front suspension bracket12315-31010 · 12315-31011 · 12315-33010 · 12315-33011
12361Engine front mounting vibration isolation pad12361-39017 · 12361-39018 · 12361-39027 · 12361-39125 · 12361-39145 · 12362-39015 · 12362-39055 · 12362-39065
12371Engine No. 1 rear mount vibration isolation pad12371-31020 · 12371-34020 · 12371-34030
12511No. 1 generator bracket12511-33011
