Toyota HILUX Cylinder Block — Figure 1105

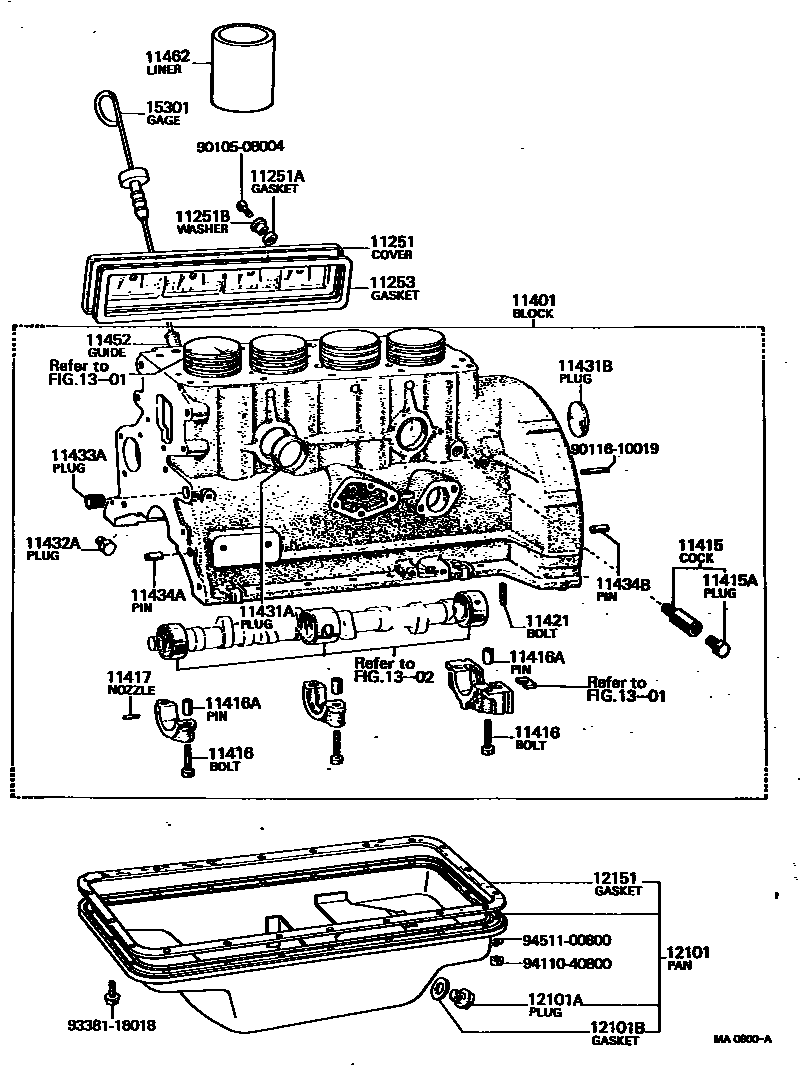

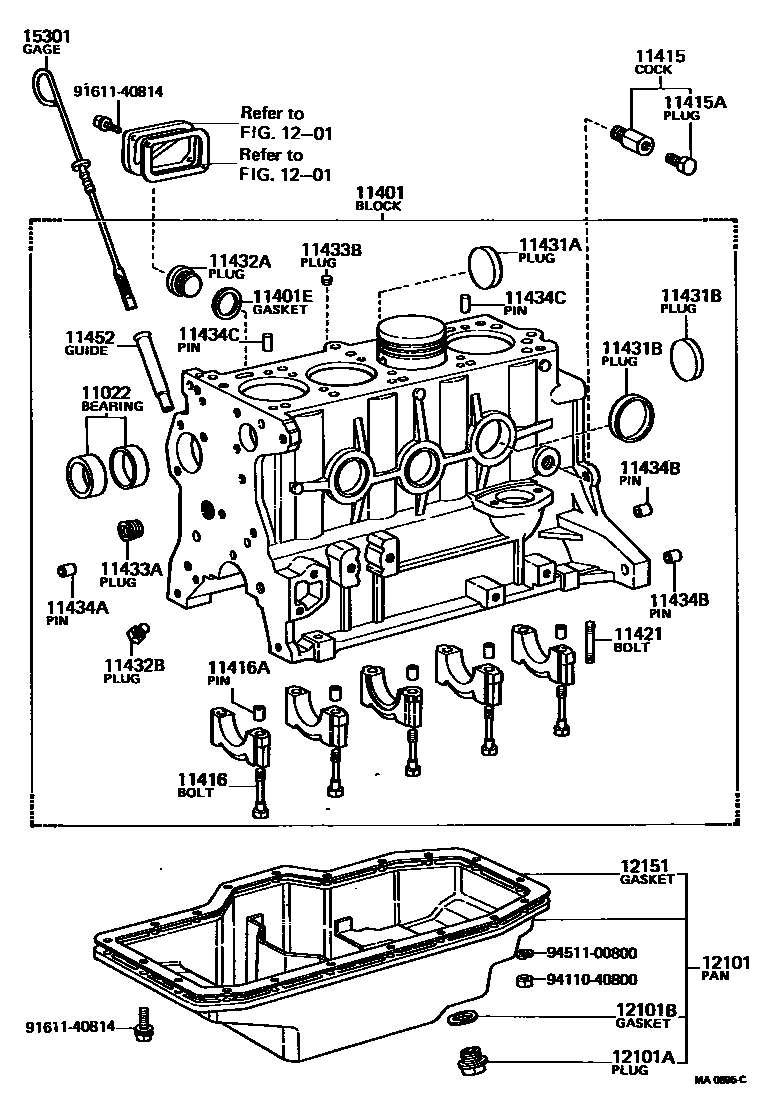

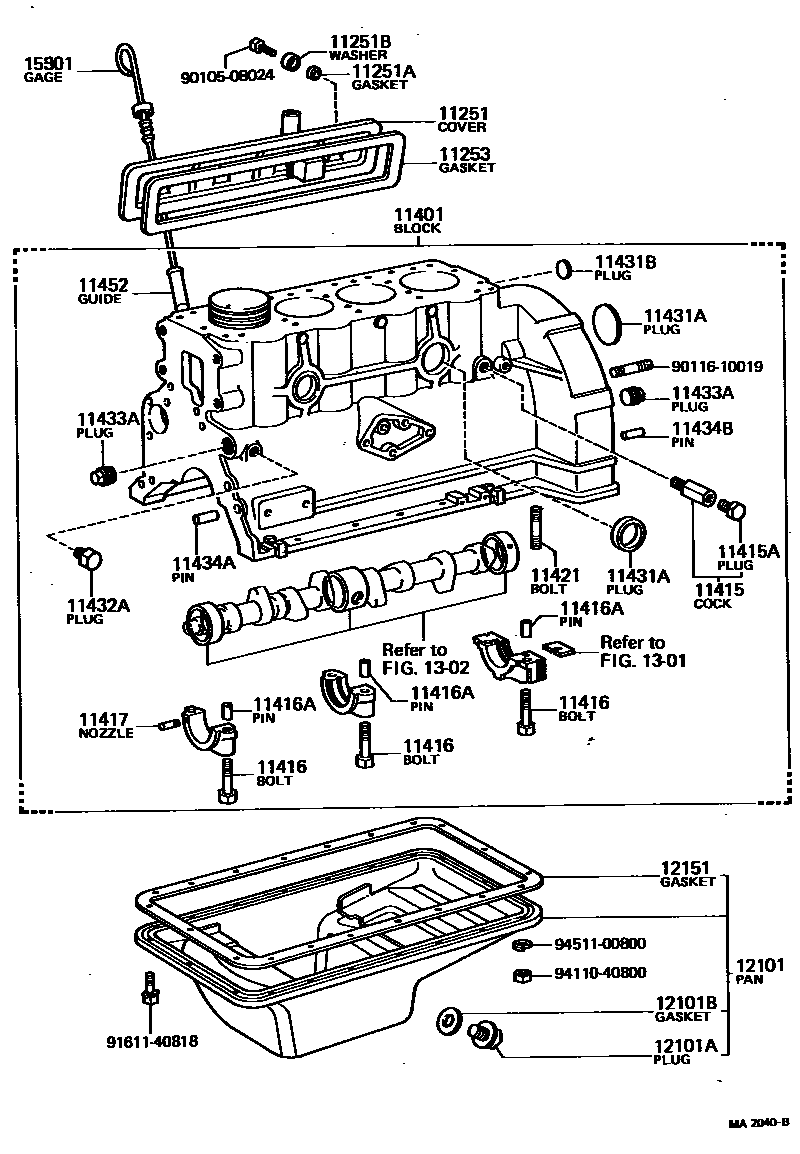

Toyota HILUX EPC diagram 1105, Cylinder Block, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11022 | Pump drive shaft bearing assembly | 11022-33010 |
| 11251 | Valve push rod cover | 11203-31010 · 11251-31010 |
| 11251A | Gasket (for valve pushrod cover bolt) | 90430-07121 |
| 11251B | Gasket (for valve pushrod cover bolt) | 90210-08006 |
| 11253 | Valve pushrod cover gasket | 11253-31010 · 11253-31011 |
| 11401 | Cylinder block sub-assembly | 11401-39125 · 11401-39126 · 11401-39205 · 11401-39206 · 11401-39207 |
| 11401E | Gasket (for cylinder block plug) | 90430-32052 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 96431-03833 |
| 11415A | Water drain switch screw plug (for cylinder block) | 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02032 · 90910-02042 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-15005 · 90253-16014 |
| 11417 | oil nozzle | 90915-01002 |
| 11421 | Stud bolts (for oil pan) | 90116-08229 · 92122-40814 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-50015 · 96411-44500 · 96411-45000 |
| 11431B | No. 2 sealing plug (for cylinder block) | 90331-30013 · 96411-43000 · 96411-44000 |
| 11432A | No. 1 headed tapered thread plug | 90341-32038 · 90345-51025 |
| 11432B | No. 2 headed tapered thread plug | 90072-34107 |
| 11433A | No. 1 straight screw plug | 90344-53011 · 90345-53026 · 90345-53030 |
| 11433B | No. 2 straight screw plug | 90334-09015 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-10052 · 90250-10192 · 90253-11001 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10052 · 90250-10192 · 90253-17012 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 |
| 11452 | Engine oil level gauge guide | 11452-31010 · 11452-40010 |
| 11462 | cylinder liner | 11462-31020 |
| 12101 | Oil pan sub-assembly | 12101-39015 · 12101-39016 · 12101-39017 · 12101-39025 · 12101-39026 · 12101-39027 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-18089 · 90341-25054 |
| 12101B | Gasket (for oil pan drain plug) | 90430-18244 · 90430-25013 |
| 12151 | oil pan gasket | 12151-30010 · 12151-33010 |
| 15301 | Engine oil level scoring assembly | 15301-31040 · 15301-33011 · 15301-33013 · 15301-36020 |
