Toyota HILUX Short Block Assembly — Figure 1102

Toyota HILUX EPC diagram 1102, Short Block Assembly, with 2 images and 1 PNC and OE references.

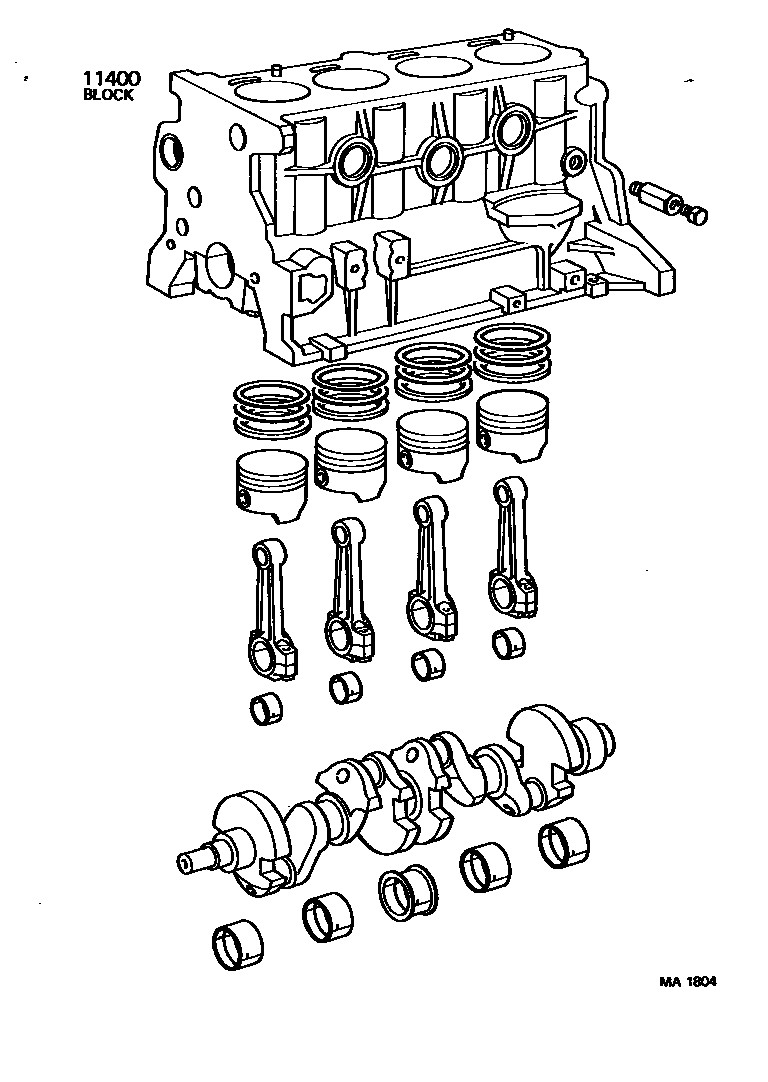

Toyota HILUX Short Block Assembly EPC diagram — MA1804
Short Block Assembly — MA1804 (197404 – 197807)

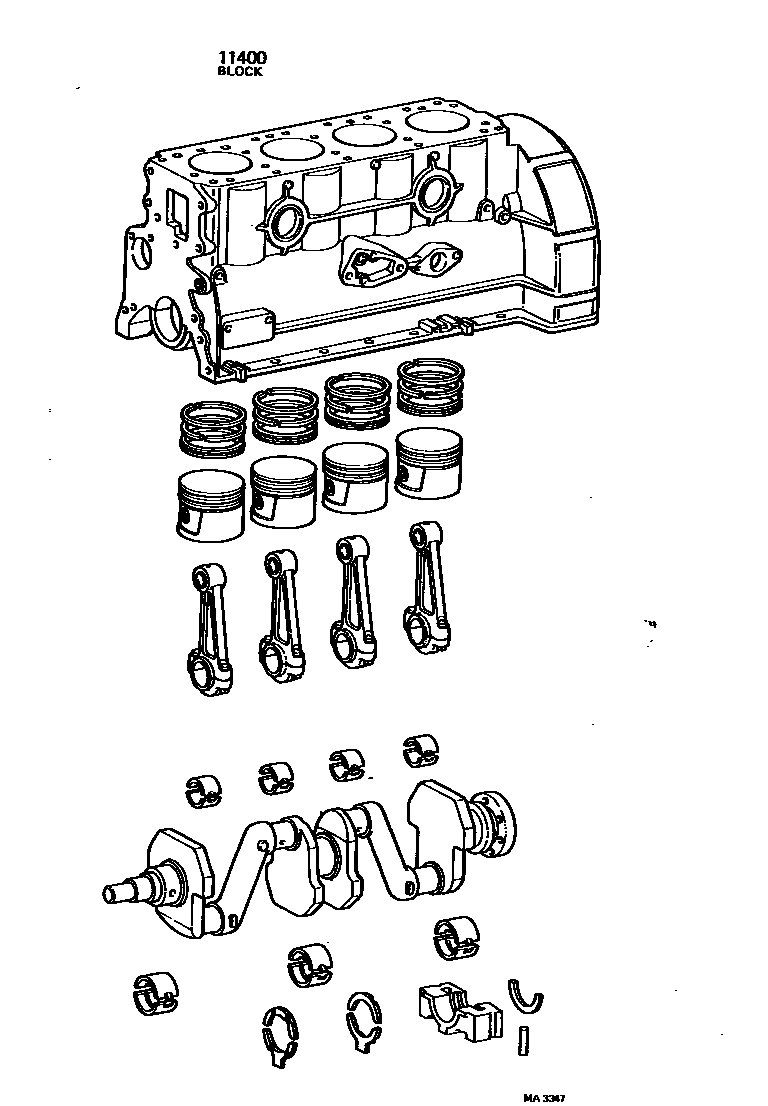

Toyota HILUX Short Block Assembly EPC diagram — MA3347
Short Block Assembly — MA3347 (197205 – 197807)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-31021 · 11400-31022 · 11400-34040 · 11400-34041 · 11400-34042 · 11400-34043
