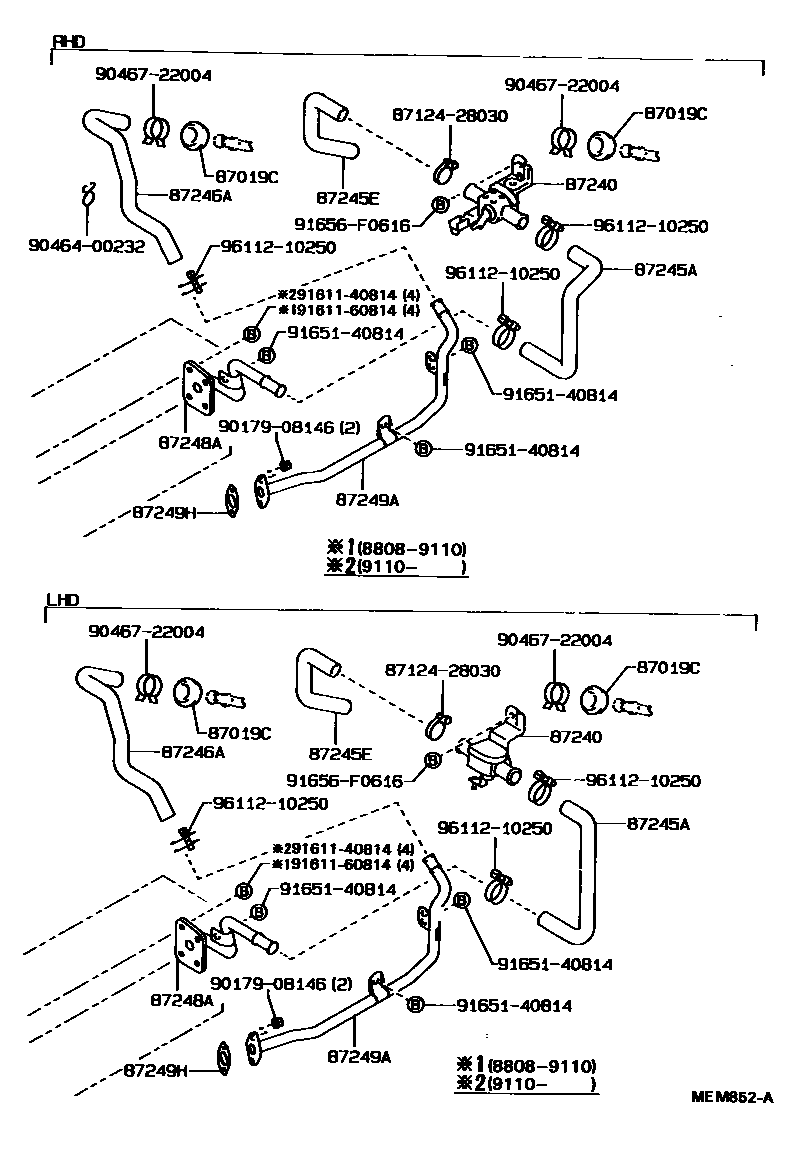

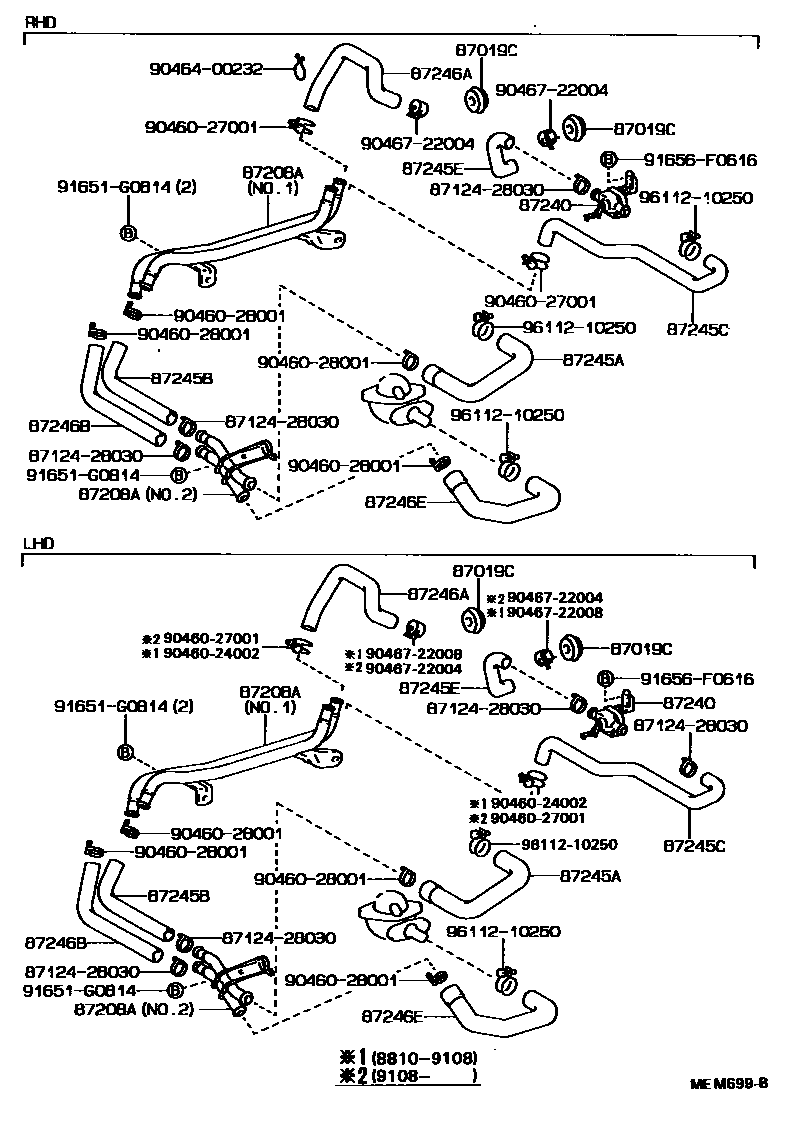

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716
Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-36005 |
| 87208A | Heater water pipe sub-assembly A | 87208-89143 · 87208-89144 |
| 87240 | Heater water valve assembly | 87240-89124 · 87240-89125 · 87240-89126 |
| 87245A | Heater water inlet hose A | 87245-89226 · 87245-89228 · 87245-89279 |
| 87245B | Heater water inlet hose B | 87245-89281 |
| 87245C | Heater water inlet hose C | 87245-89240 · 87245-89243 |
| 87245E | Heater water inlet hose E | 87245-89231 · 87245-89232 · 87245-89233 |
| 87246A | Heater outlet hose A | 87245-89217 · 87245-89227 · 87245-89241 · 87245-89242 |
| 87246B | Heater outlet hose B | 87245-89282 |
| 87246E | Heater outlet hose E | 87245-89280 |
| 87248A | Heater water inlet pipe A | 87208-35140 · 87208-89134 |
| 87249A | Heater outlet pipe A | 87208-35150 · 87208-89135 |
| 87249H | Outlet pipe gasket | 17175-72010 · 17175-72011 |
