Toyota HILUX antenna — Figure 8604

Toyota HILUX EPC diagram 8604, antenna, with 2 images and 5 PNC and OE references.

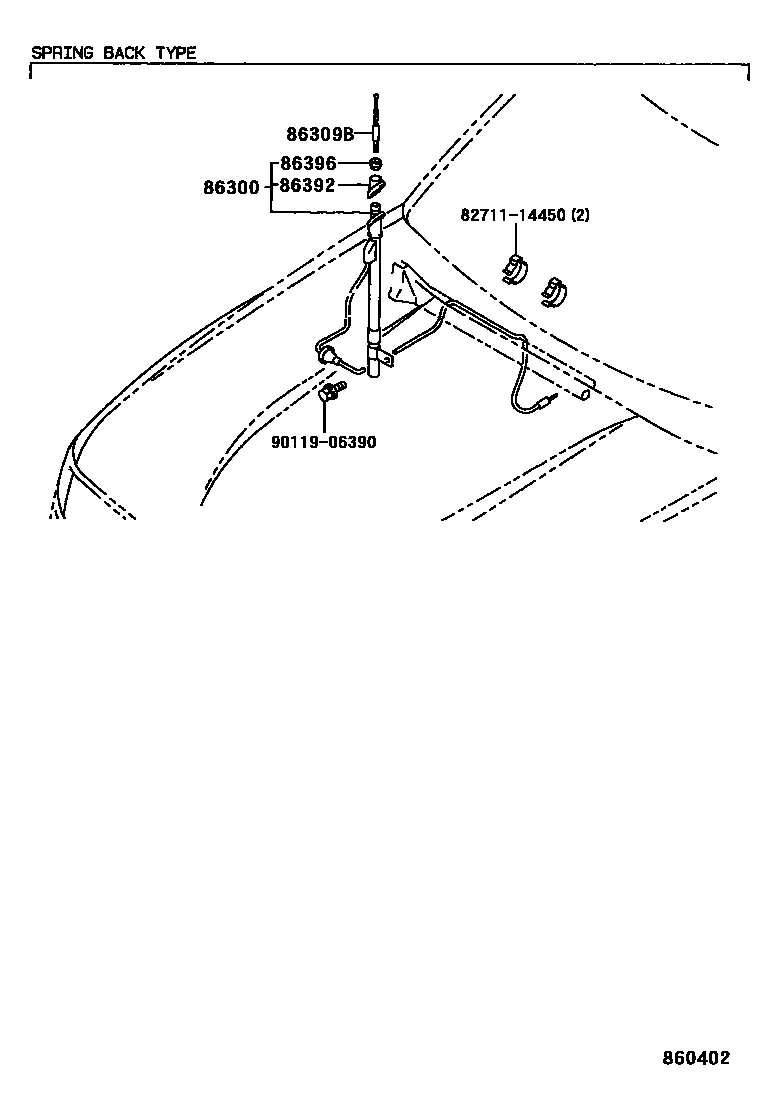

Toyota HILUX antenna EPC diagram — 860402
antenna — 860402 (198901 – 999999)

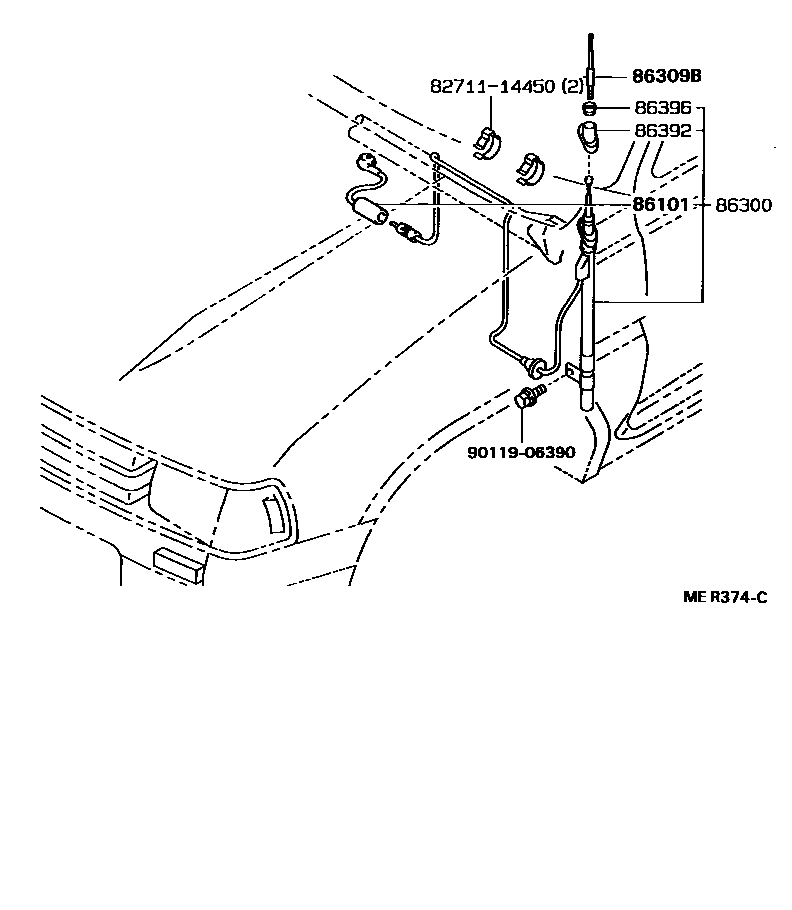

Toyota HILUX antenna EPC diagram — MER374C
antenna — MER374C (198901 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-35010
86300Antenna assembly with fixing parts86300-35030 · 86300-89123
86309BTensile roof antenna sub-assembly86309-35011 · 86309-35012
86392Antenna decorative parts86392-89105
86396Antenna nut86396-16020
