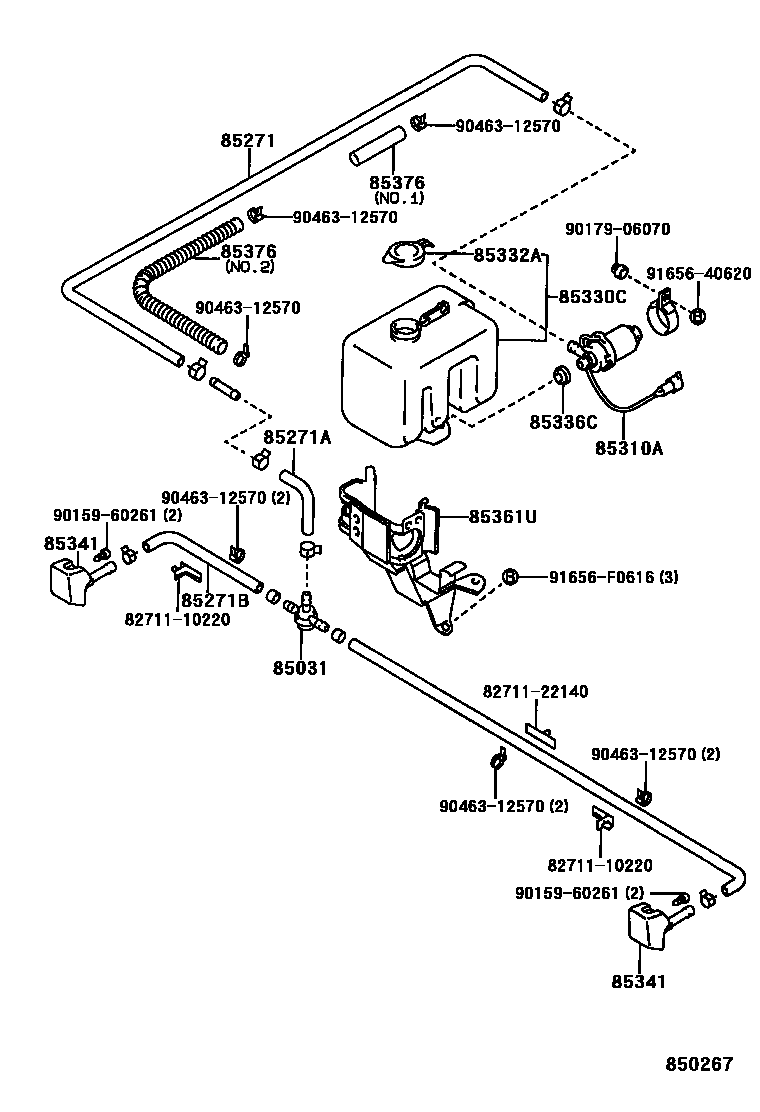

Toyota HILUX 前大灯清洗器 — Figure 8505
Toyota HILUX EPC diagram 8505, 前大灯清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-12010 |
| 85271A | No. 2 headlight washer hose | 85343-95700 |
| 85271B | No. 3 headlight washer hose | 85375-12510 |
| 85310A | Headlight washer motor and pump assembly | 85310-22100 |
| 85330C | Headlight washer cleaning fluid tank assembly | 85330-89112 · 85351-35060 |
| 85332A | Headlight washer washer fluid tank cap | 85332-89112 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-89116 |
| 85361U | Headlight washer bracket | 85361-89105 |
| 85376 | No. 1 headlight washer hose protection device | 85375-24010 · 85376-89124 |
