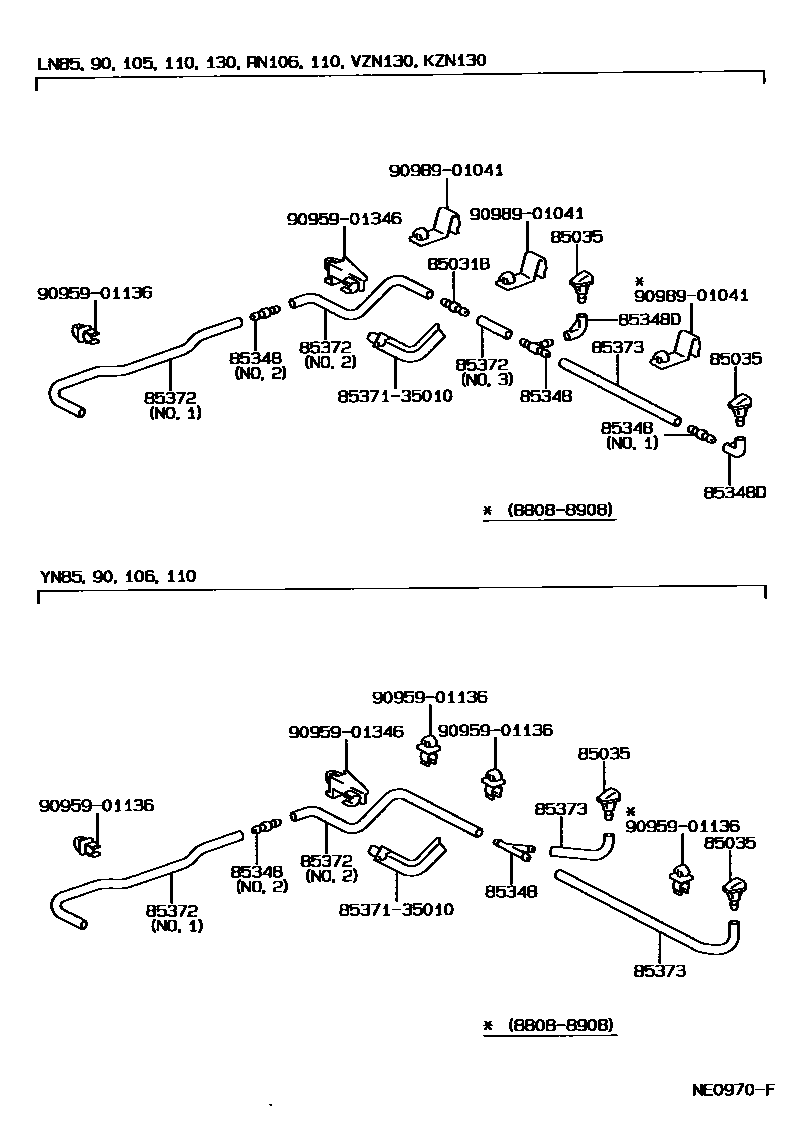

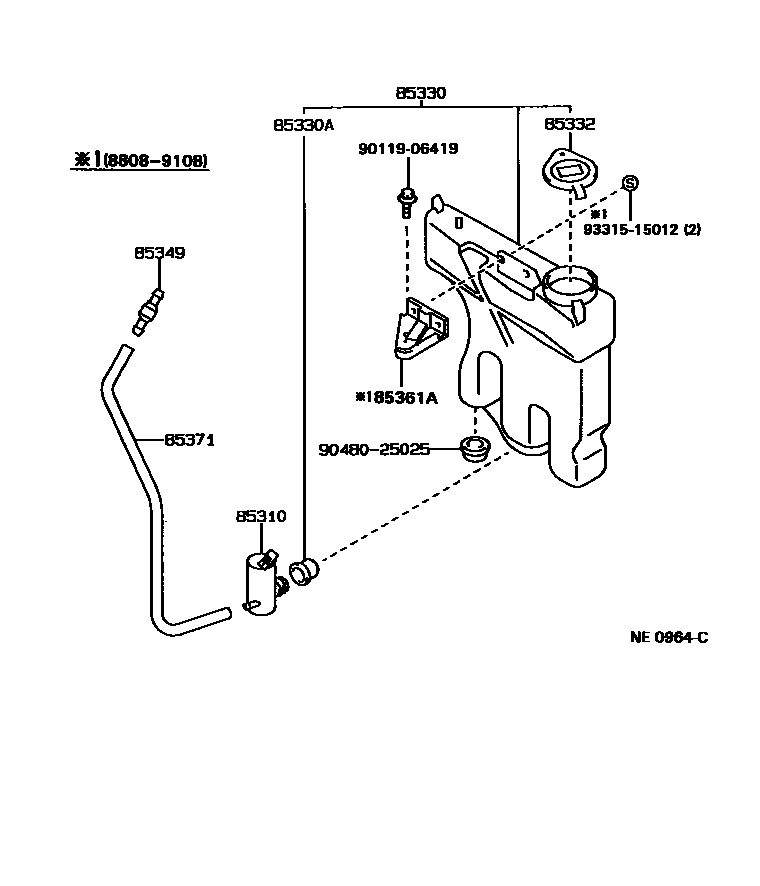

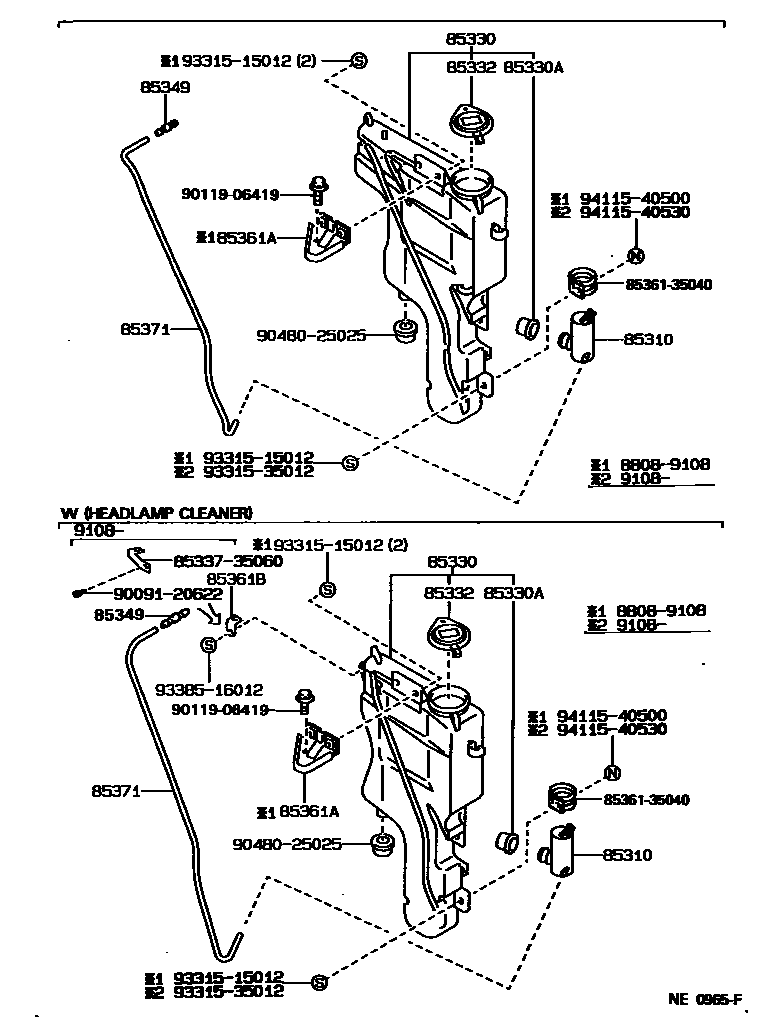

Toyota HILUX 挡风玻璃清洗器 — Figure 8503
Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-12250 |
| 85035 | Cleaner nozzle sub-assembly | 85035-89114 · 85035-89115 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 · 85330-35040 · 85330-35060 |
| 85330 | Windshield washer fluid tank assembly | 85315-04010 · 85315-35020 · 85315-35060 · 85330-22120 · 85331-89134 · 85331-89135 · 85331-89138 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-34040 · 85332-12320 · 85332-12650 · 85332-89134 |
| 85348 | Windshield washer hose connector No. 1 | 85327-04010 · 85348-12250 · 85348-89118 · 85349-89118 · 85349-89122 · 85357-04010 · 85375-89141 · 85376-89141 · 85378-04010 · 85378-04020 |
| 85348D | No. 1 windshield washer elbow joint | 85317-04010 · 85355-14481 |
| 85349 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85361A | Windshield washer bracket No. 1 | 85361-89135 · 85361-89138 |
| 85361B | Windshield washer bracket No. 2 | 85361-35040 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90080-44030 · 90080-44032 · 90080-44035 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90080-44031 · 90080-44033 · 90080-44034 · 90099-33354 |
