Toyota HILUX 开关和继电器和ECU — Figure 8401

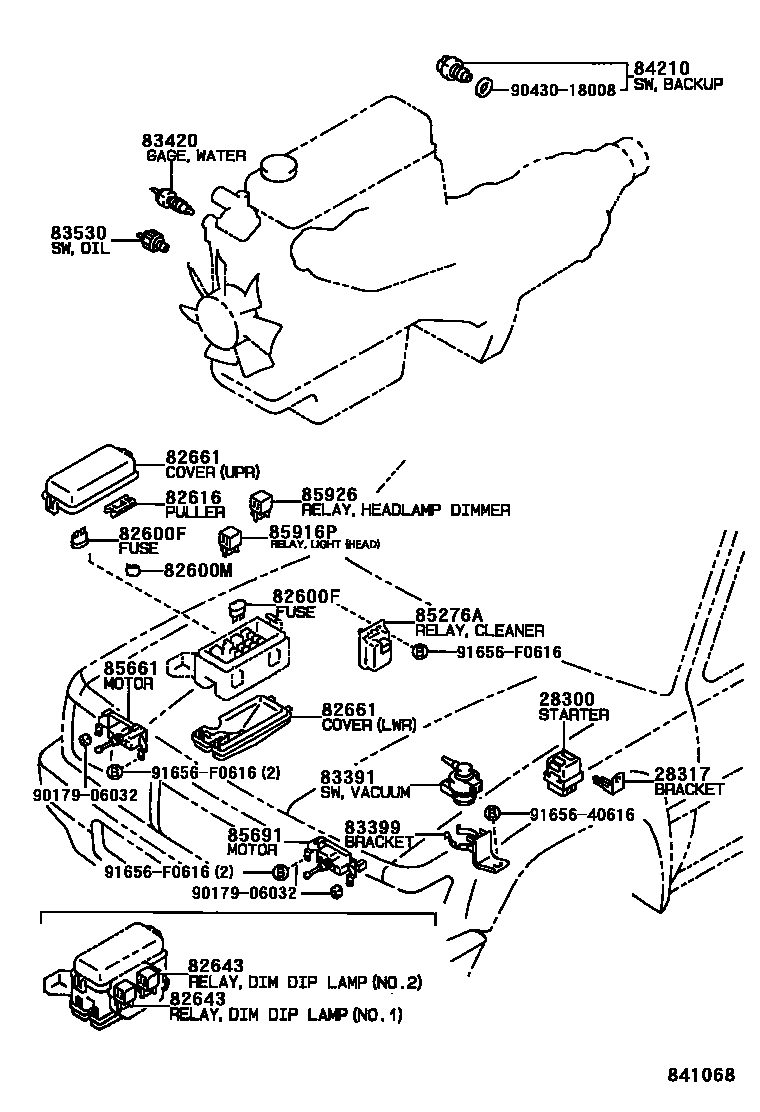

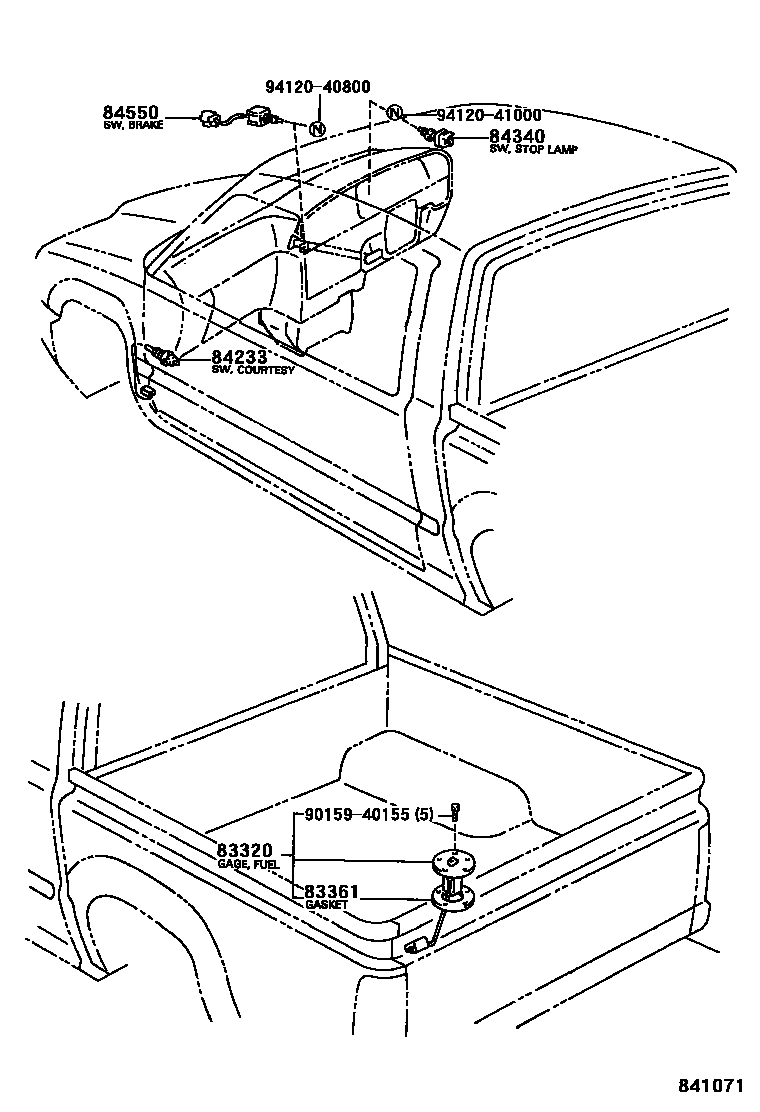

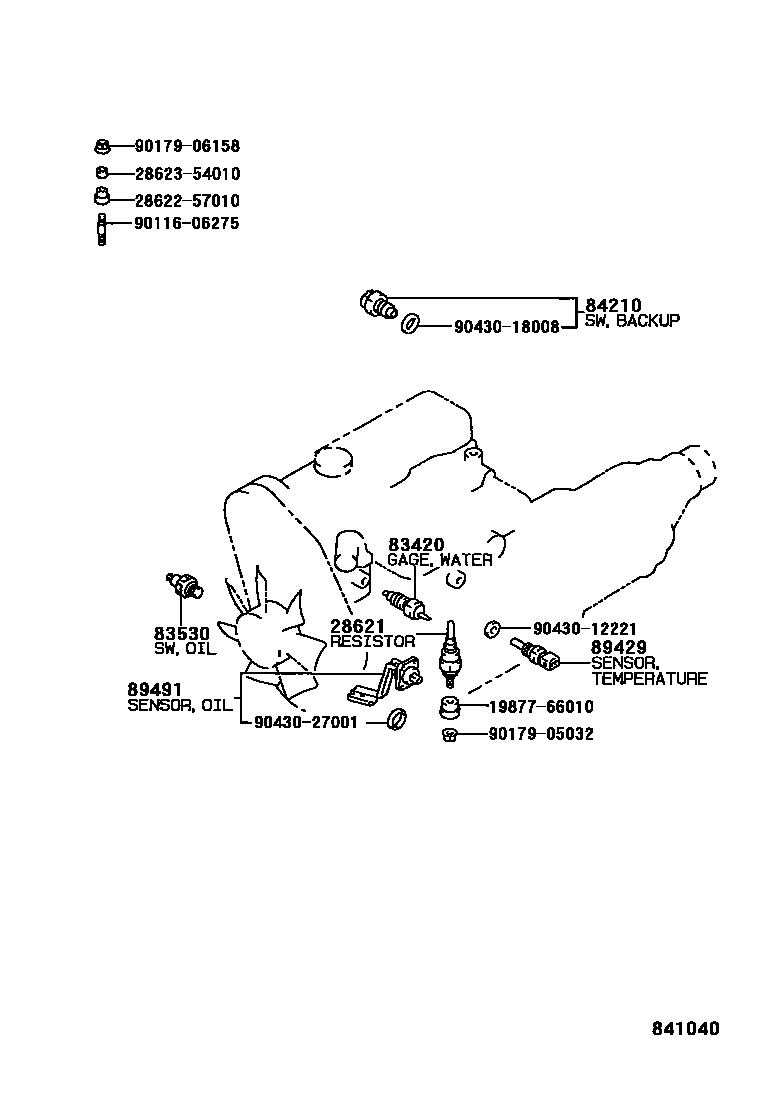

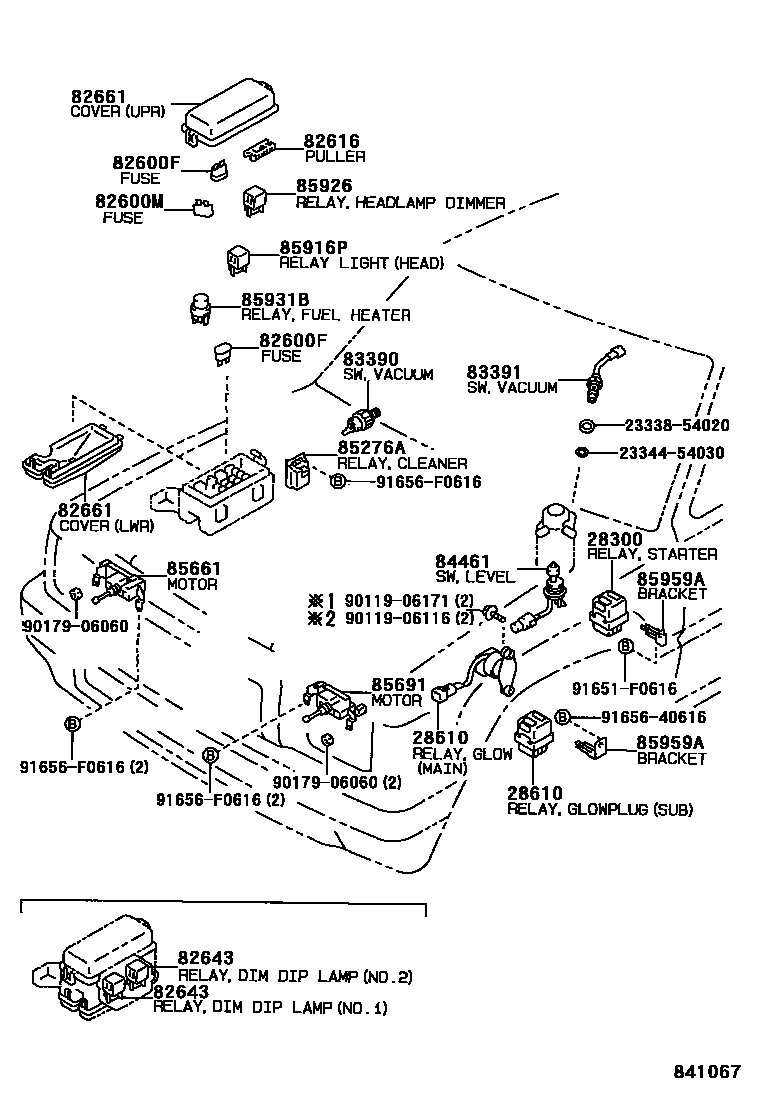

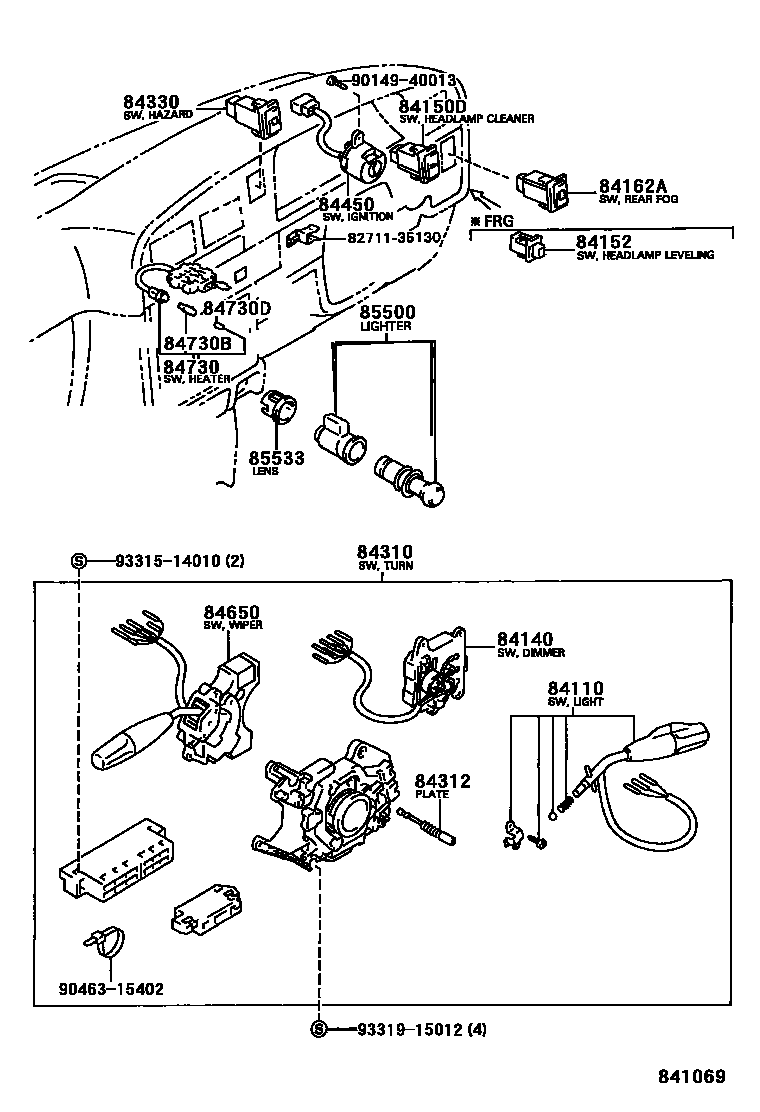

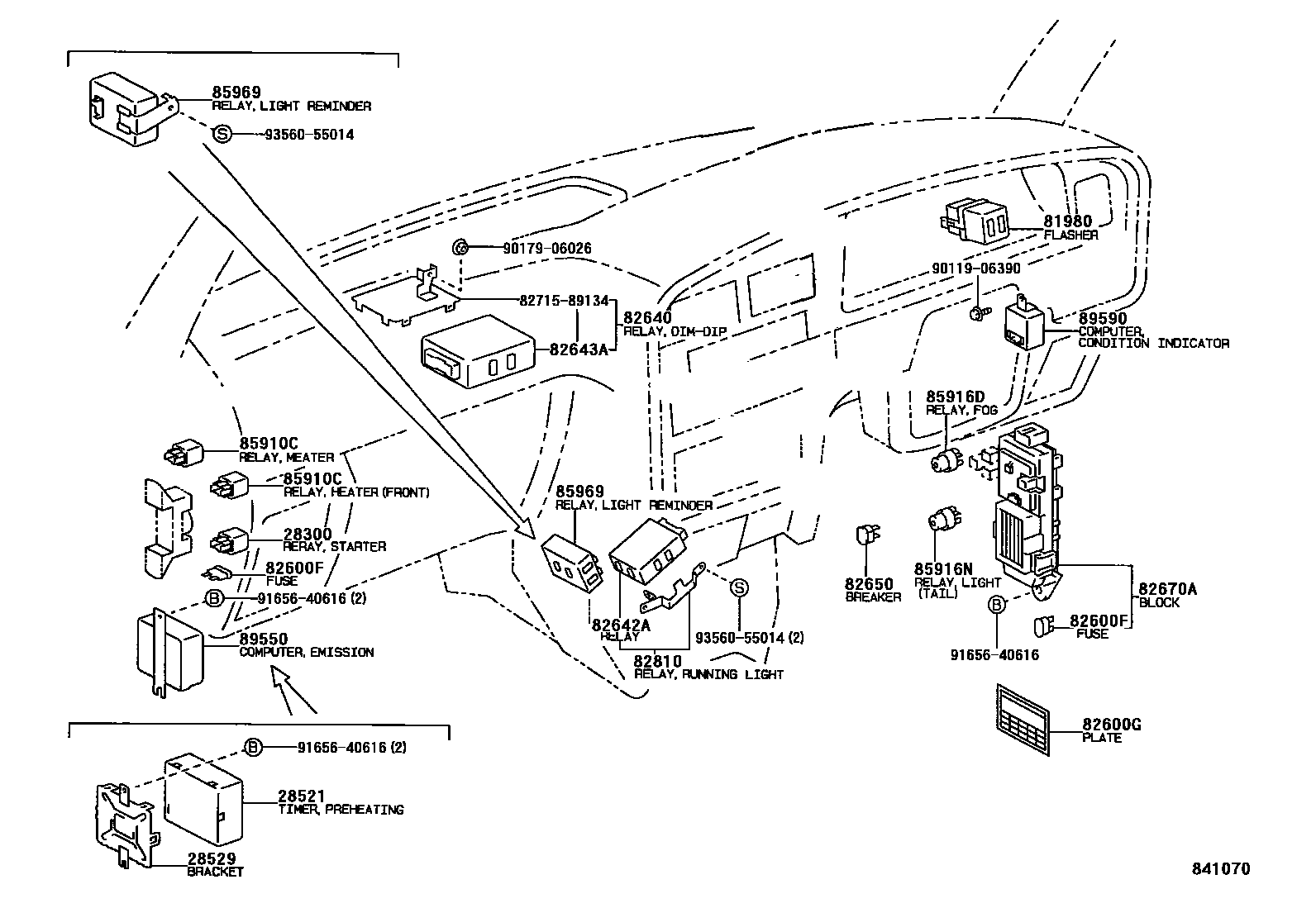

Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 6 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 · 28300-54070 · 28300-54110 · 28341-11010 · 28341-11040 · 90987-02009 |
| 28317 | Starter relay bracket | 85959-35020 |
| 28521 | Preheat timer | 28521-54360 · 28521-54430 · 28521-54460 |
| 28529 | Preheat timer bracket No. 1 | 28529-54160 |
| 28610 | Glow plug relay assembly | 28610-54280 · 28610-54300 · 28610-54370 · 28610-64110 |
| 28621 | glow plug resistor | 28621-54080 |
| 81980 | Turn signal flasher relay assembly | 81980-12070 |
| 82600F | Spare fuse | 90080-82012 · 90080-82013 · 90080-82014 · 90080-82015 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82683-35010 · 82683-35020 · 82683-35021 · 82683-89102 · 82683-89103 · 82683-89104 · 82683-89114 |
| 82600M | medium current fuse | 90982-10001 |
| 82616 | fuse puller | 82616-89102 |
| 82640 | Low beam relay assembly | 82640-89102 |
| 82642A | driving light relay | 82642-13010 |
| 82643 | low beam relay | 90987-02006 · 90987-04002 |
| 82643A | low beam relay | 82643-12020 |
| 82650 | No. 1 circuit breaker assembly | 82650-20011 |
| 82661 | No. 1 relay box cover | 82662-35020 · 82662-35030 · 82662-35040 · 82662-35050 · 82662-35060 · 82662-35070 · 82662-35180 · 82662-35190 · 82662-89102 · 82662-89103 · 82662-89104 · 82662-89105 · 82662-89106 · 82662-89107 · 82663-35010 · 82663-89101 |
| 82670A | No. 1 junction box assembly | 82670-35010 · 82670-35020 · 82670-35040 · 82670-35050 · 82670-89109 · 82670-89110 |
| 82810 | Driving light relay assembly | 82810-89101 |
| 83320 | Fuel gauge sensor assembly | 83320-80118 |
| 83361 | fuel gauge sensor gasket | 83361-20030 |
| 83390 | Vacuum warning switch assembly | 83390-30020 · 83390-30100 |
| 83391 | Vacuum switch | 83391-20050 · 83391-32020 |
| 83399 | Vacuum switch bracket | 83399-35020 |
| 83420 | Water temperature sensor assembly | 83420-16040 · 83420-20020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14030 · 83530-14070 · 83530-30060 |
| 84110 | No. 1 light control switch assembly | 84112-39615 · 84112-39625 |
| 84140 | Headlight dimmer switch assembly | 84140-35090 · 84140-35100 |
| 84150D | Headlight washer switch assembly | 84150-35010 · 84150-89101 |
| 84152 | Headlight beam height adjustment switch | 84152-89101 |
| 84162A | Rear fog light switch | 84162-89104 · 84162-89105 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84230-12120 |
| 84310 | Turn signal switch assembly | 84310-35270 · 84310-35310 · 84310-35410 · 84310-35420 · 84310-35460 · 84310-35470 |
| 84312 | Speaker contact piece | 84312-12040 |
| 84330 | Hazard warning signal switch assembly | 84332-89110 |
| 84340 | brake light switch assembly | 84340-30030 · 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-35090 · 84450-35130 |
| 84461 | Liquid level warning switch | 84461-35050 · 84461-35060 |
| 84550 | Parking brake switch assembly | 84550-35010 |
| 84650 | Windshield wiper switch assembly | 84652-35170 · 84652-35210 · 84652-35310 · 84652-35320 · 84652-35360 · 84652-35370 |
| 84730 | Heater blower switch assembly | 84732-89113 · 84732-89114 · 84732-89115 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84730D | Heater blower switch bulb cover | 84998-10050 |
| 85276A | Cleaner control relay | 85276-89101 |
| 85500 | Cigarette lighter assembly | 85500-89106 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-10010 |
| 85661 | Right headlight beam height adjustment motor | 85661-89101 · 85661-89102 · 85661-89103 |
| 85691 | Left headlight beam height adjustment motor | 85691-89101 · 85691-89102 · 85691-89103 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85916D | fog light relay | 90987-02004 · 90987-02009 |
| 85916N | Tail light relay | 90987-01003 |
| 85916P | headlight relay | 90987-02006 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85931B | Fuel heater relay | 90987-02004 · 90987-02009 |
| 85959A | Relay mounting parts | 85959-35020 |
| 85969 | car light reminder relay | 85969-17010 · 85969-89102 · 85969-89103 |
| 89429 | oil temperature sensor | 89422-20010 |
| 89491 | Engine oil level sensor | 89491-26110 |
| 89550 | Emission control ECU assembly | 89550-35360 · 89550-35450 |
| 89590 | Status indicator light ECU assembly | 89590-35010 |
