Toyota HILUX 仪表 — Figure 8301

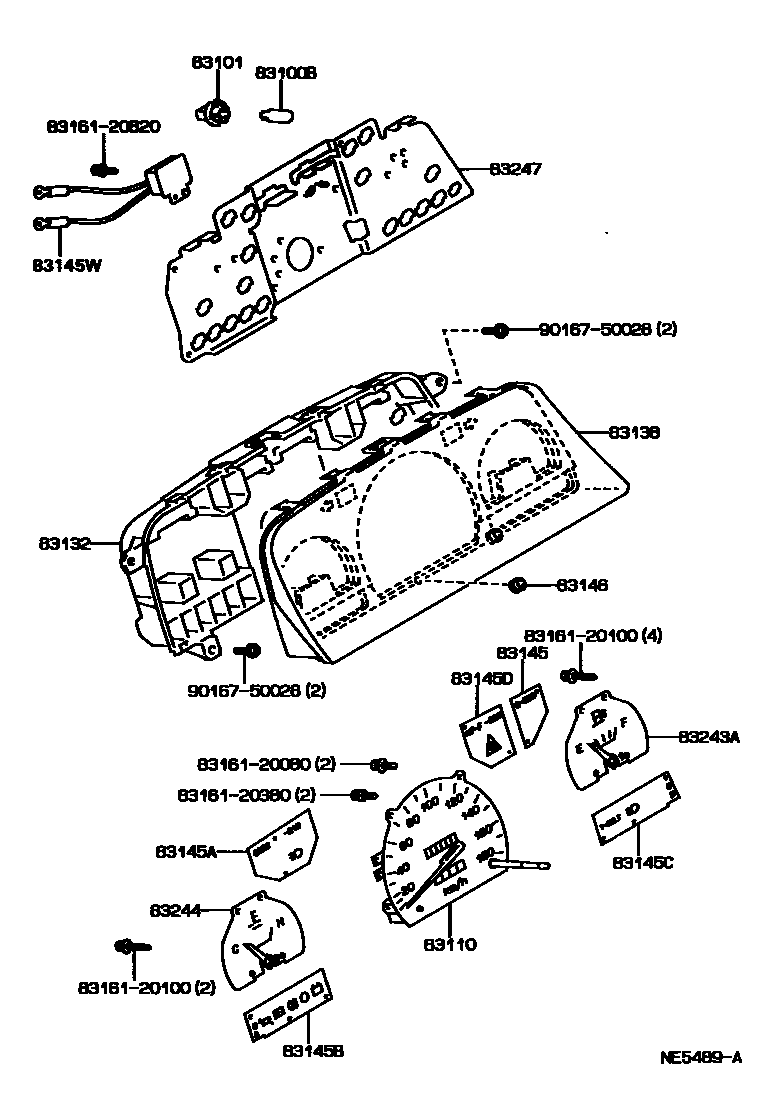

Toyota HILUX EPC diagram 8301, 仪表, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14040 · 83101-20040 |
| 83110 | Speedometer assembly | 83110-35230 · 83110-35240 · 83110-35290 · 83110-35300 · 83110-3D310 · 83110-3D320 · 83110-89292 · 83110-89295 · 83110-89309 |
| 83132 | Instrument cluster housing | 83132-35020 · 83132-89504 |
| 83138 | speedometer glass | 83138-89406 · 83138-89524 · 83138-89528 |
| 83145 | Instrument No. 1 lampshade | 83145-89504 |
| 83145A | Instrument No. 2 lampshade | 83145-89408 |
| 83145B | Instrument No. 3 lampshade | 83145-89518 |
| 83145C | Instrument No. 4 lampshade | 83145-89404 · 83145-89604 |
| 83145D | Instrument No. 5 lampshade | 83145-89410 |
| 83145W | Spare resistor assembly | 83145-35020 · 83145-35280 |
| 83146 | Instrument glass seal | 83145-89318 |
| 83181A | speedometer sensor | 83181-35040 |
| 83243A | Fuel gauge sub-assembly | 83243-35040 · 83243-35120 · 83243-89506 |
| 83244 | Water temperature meter sub-assembly | 83244-35040 · 83244-35100 · 83244-89506 · 83244-89508 · 83244-89510 |
| 83247 | Instrument circuit board | 83247-35120 · 83247-35320 · 83247-35840 · 83247-89410 · 83247-89544 · 83247-89608 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-35310 · 83710-35430 · 83710-89166 · 83710-89175 |
| 83910 | clock assembly | 83910-89107 · 83910-89108 |
