Toyota HILUX 后牌照灯 — Figure 8113

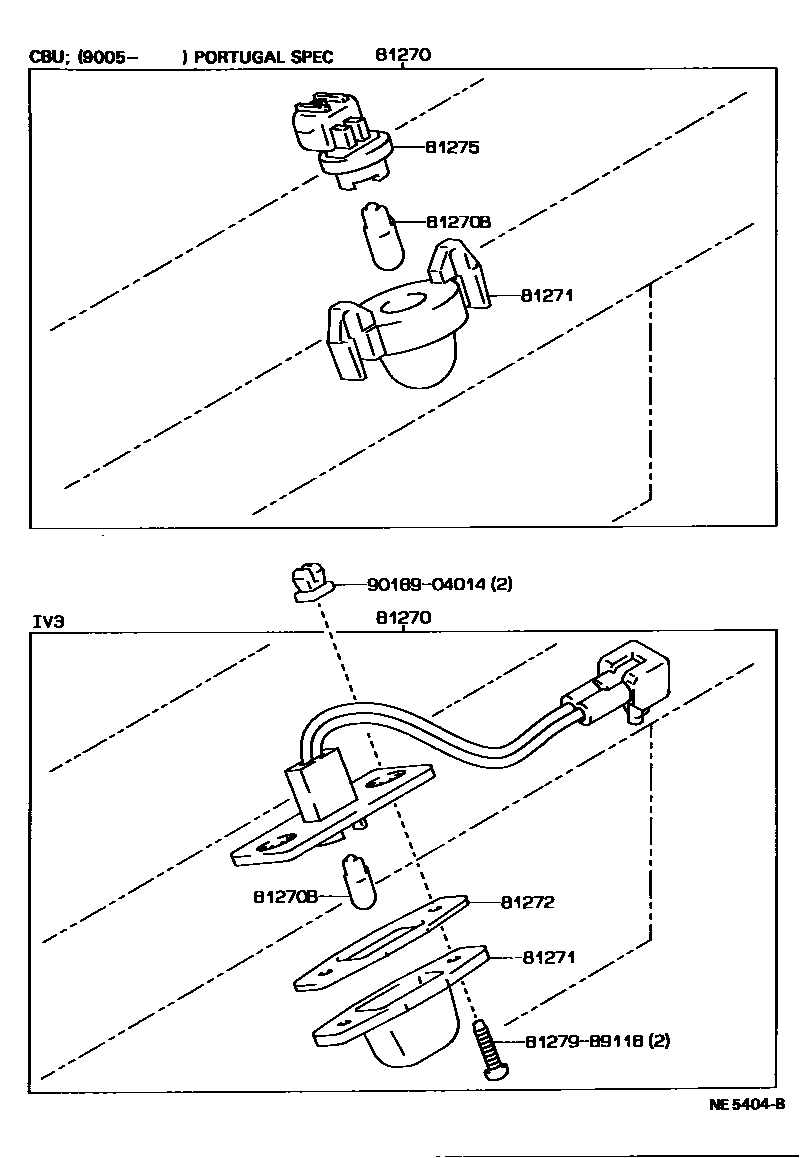

Toyota HILUX EPC diagram 8113, 后牌照灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-04020 · 81270-89122 · 81270-89126 |
| 81270B | Bulb (for license plate light) | 90080-81026 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-04020 · 81271-89110 · 81271-89126 |
| 81272 | License plate lamp shade gasket | 81272-89110 |
| 81275 | License plate lamp holder and wiring harness | 81945-04010 · 90075-99012 |
