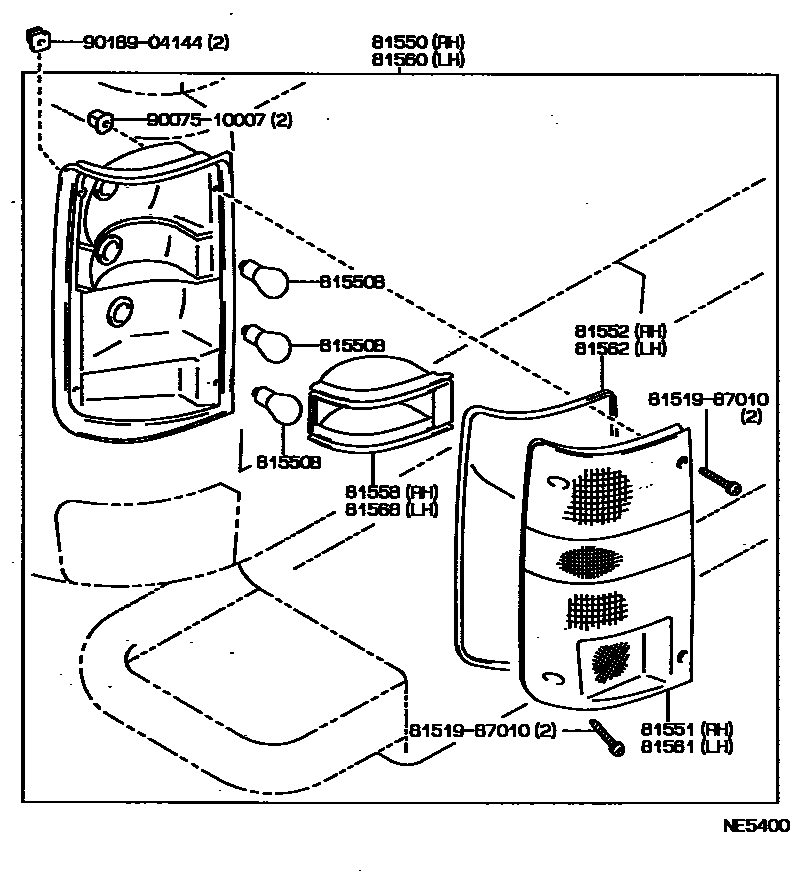

Toyota HILUX 后组合灯 — Figure 8111
Toyota HILUX EPC diagram 8111, 后组合灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-35060 · 81550-35061 · 81550-35100 · 81550-35101 · 81550-89164 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-26040 · 81551-35061 · 81551-35100 · 81551-35101 · 81551-89164 |
| 81552 | Right rear combination lamp shade gasket | 81552-26040 · 81552-89163 |
| 81558 | No. 1 right rear combination light lampshade | 81557-26040 · 81557-89163 |
| 81560 | Left rear combination light assembly | 81560-35060 · 81560-35061 · 81560-35100 · 81560-35101 · 81560-89164 |
| 81561 | Left rear combination lamp shade | 81561-26040 · 81561-35061 · 81561-35100 · 81561-35101 · 81561-89164 |
| 81562 | Left rear combination lamp shade gasket | 81552-89163 · 81562-26040 |
| 81568 | No. 1 left rear combination light lampshade | 81557-26040 · 81567-89163 |
