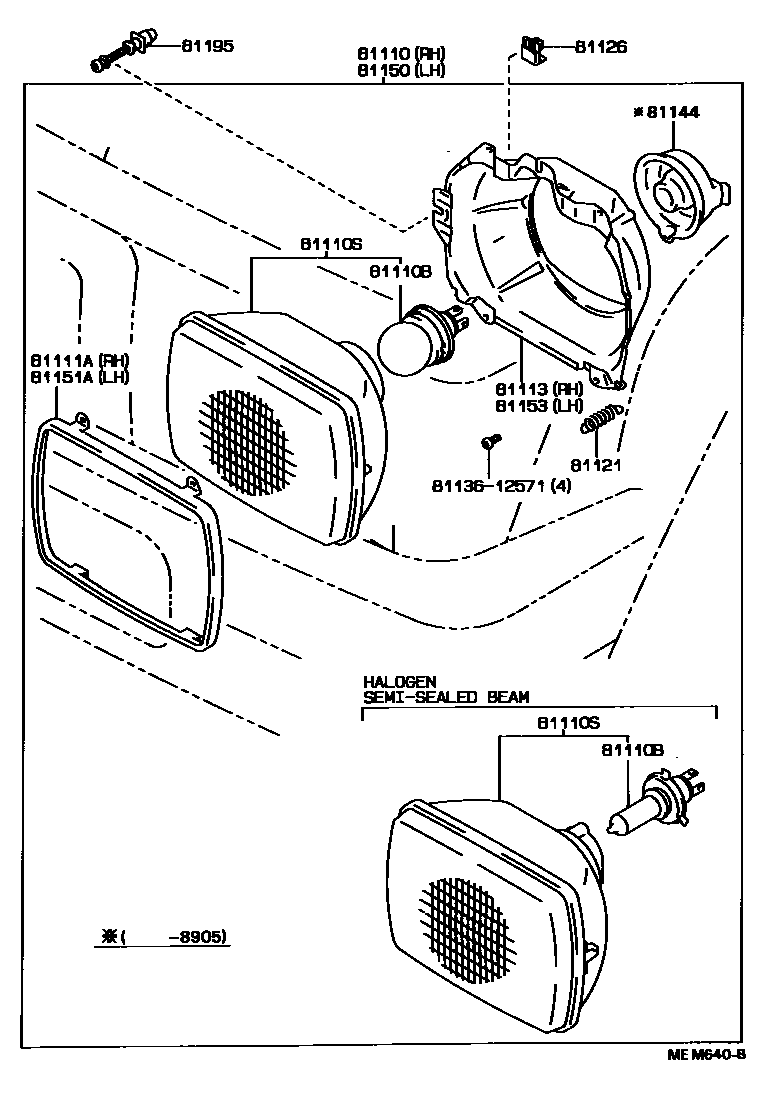

Toyota HILUX Headlamp — Figure 8101
Toyota HILUX EPC diagram 8101, Headlamp, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-04020 · 81110-04021 · 81110-04030 · 81110-04031 · 81110-04040 · 81110-04041 · 81110-04050 · 81110-04080 · 81110-04081 · 81110-89153 |
| 81110B | Bulb (for headlight No. 1) | 90080-81021 · 90080-81023 · 90981-13013 · 90981-13015 · 90981-13016 |
| 81110S | No. 1 enclosed lamp assembly | 90080-81015 · 90080-81019 · 90080-81020 · 90080-81024 · 90080-81025 · 90981-04006 · 90981-04008 · 90981-04009 · 90981-04011 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-16020 · 81111-89161 |
| 81113 | Right No. 1 closed lamp seat | 81113-35180 · 81113-89149 · 81113-89161 · 81113-89164 |
| 81121 | headlight spring | 81121-14670 |
| 81126 | headlight panel | 81124-89101 |
| 81144 | No. 1 headlight cover | 81141-35020 |
| 81150 | Left headlight assembly | 81150-04020 · 81150-04021 · 81150-04030 · 81150-04031 · 81150-04040 · 81150-04041 · 81150-04050 · 81150-04080 · 81150-04081 · 81150-89153 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-16020 · 81111-89161 |
| 81153 | No. 1 closed lamp seat on the left | 81153-35160 · 81153-89149 · 81153-89161 · 81153-89164 |
| 81195 | headlight screw | 81195-35010 · 81195-89101 · 81195-89102 |
