Toyota HILUX accelerator pedal connecting rod — Figure 7851

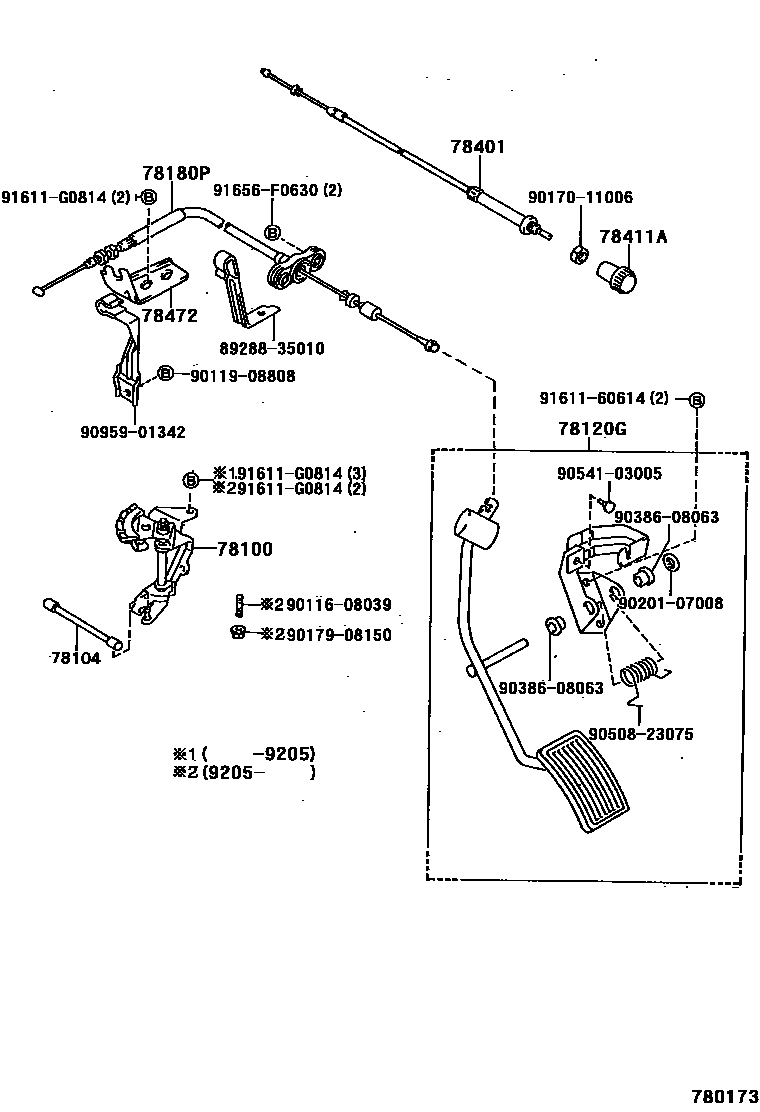

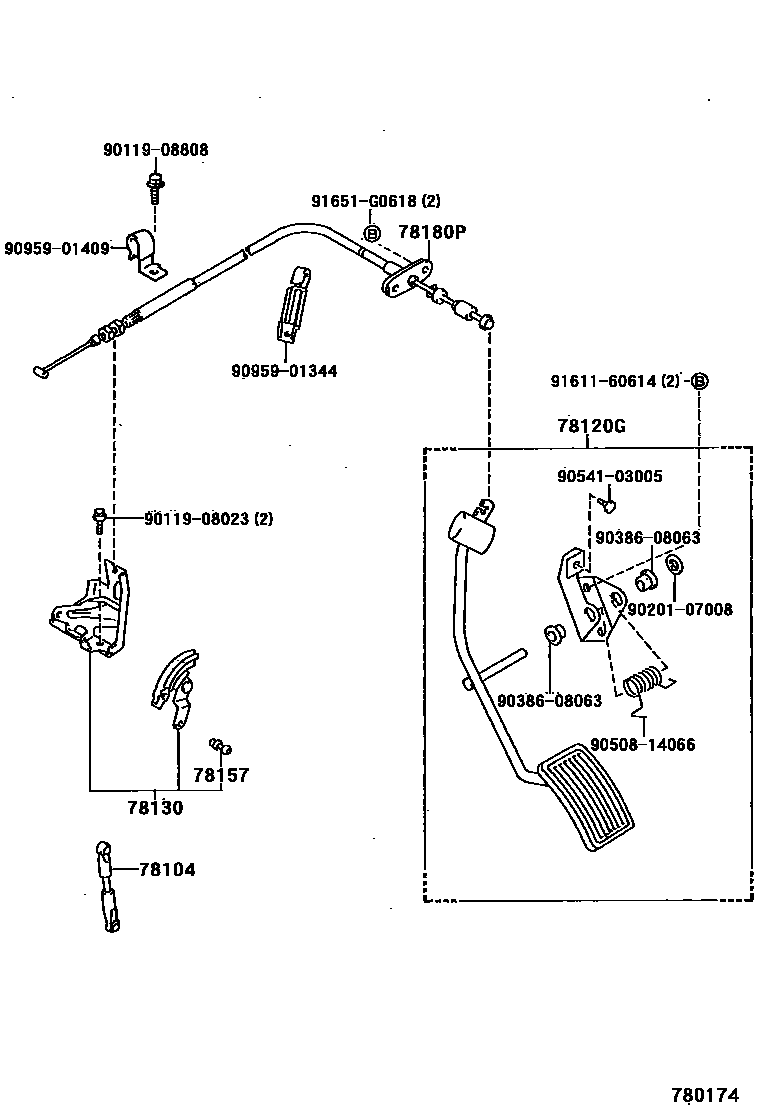

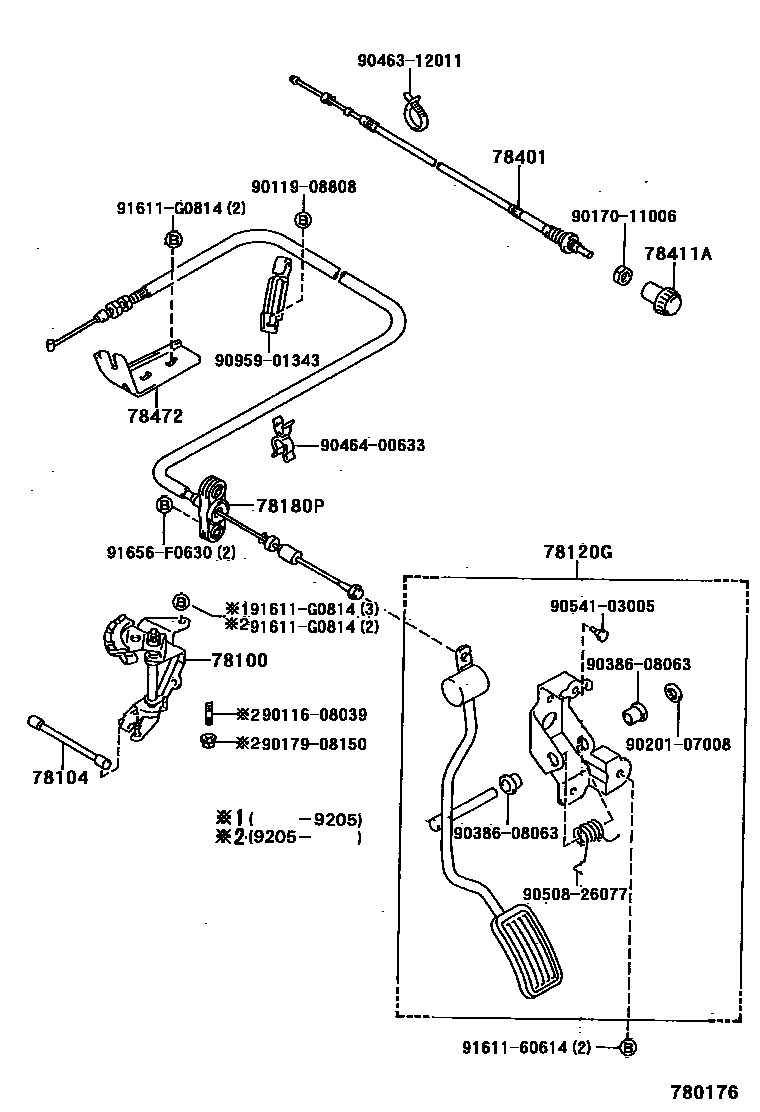

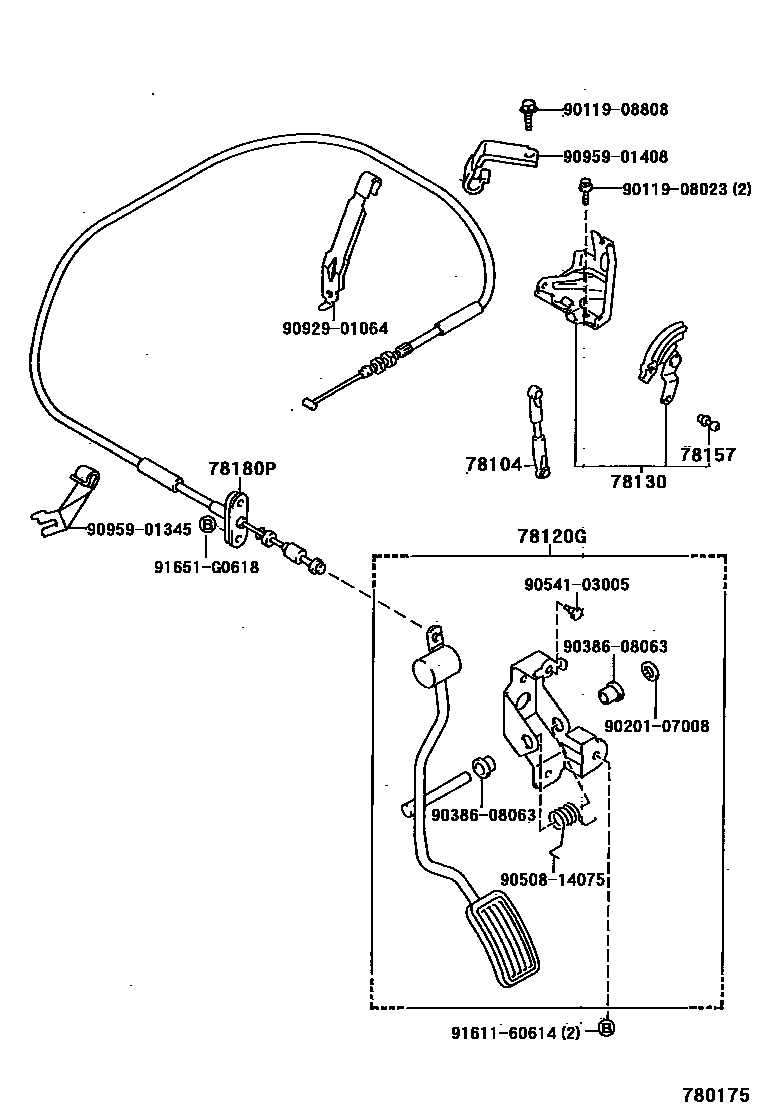

Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78100 | Accelerator pedal connecting rod assembly | 78100-22100 · 78100-22101 · 78100-35071 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-22140 · 78104-89106 |
| 78120G | Accelerator pedal lever assembly | 78120-89139 · 78120-89141 · 78120-89145 · 78120-89146 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-35020 |
| 78157 | accelerator pedal ball joint | 78157-10010 |
| 78180P | Accelerator pedal control cable assembly | 78180-35040 · 78180-35080 · 78180-89150 · 78180-89151 · 78180-89155 · 78180-89157 |
| 78401 | Throttle valve control cable sub-assembly | 78401-89109 · 78401-89113 |
| 78411A | Throttle control cable button | 78411-89104 · 78411-89105 |
| 78472 | Throttle control cable bracket | 78472-35010 |
