Toyota HILUX 燃油箱和燃油管 — Figure 7751

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 3 images and 27 PNC and OE references.

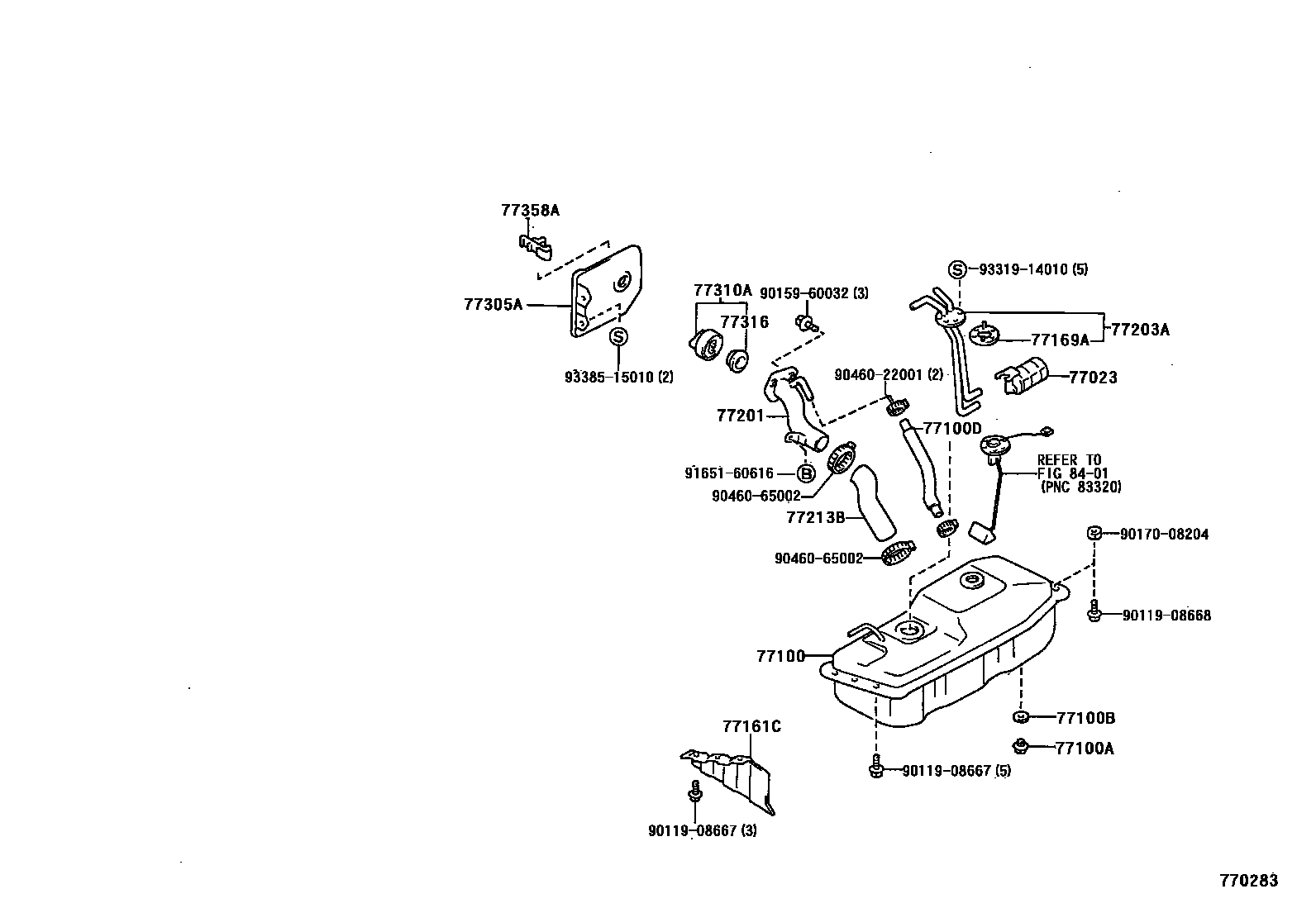

Toyota HILUX 燃油箱和燃油管 EPC diagram — 770283
燃油箱和燃油管 — 770283 (198901 – 999999)

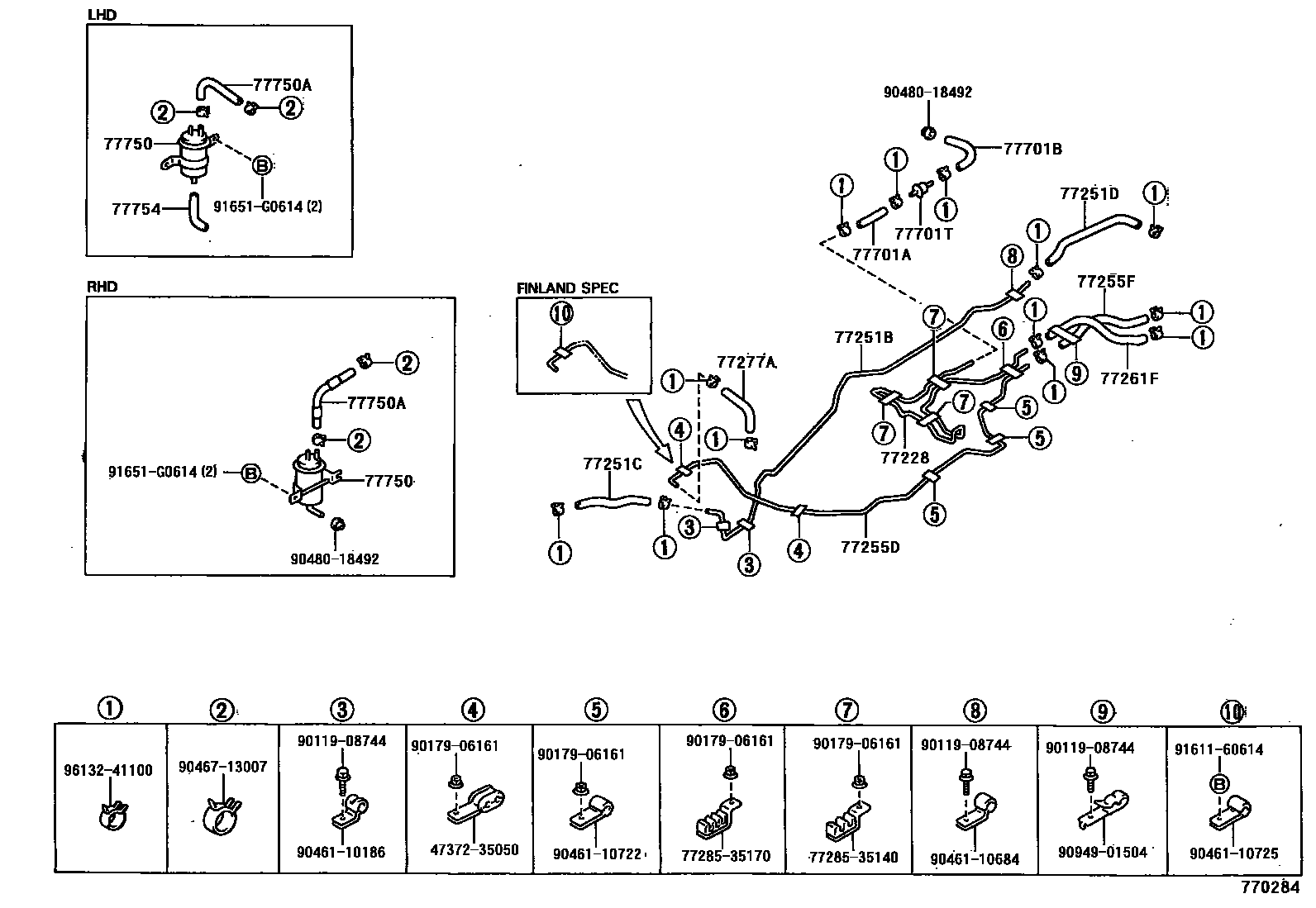

Toyota HILUX 燃油箱和燃油管 EPC diagram — 770284
燃油箱和燃油管 — 770284 (198901 – 999999)

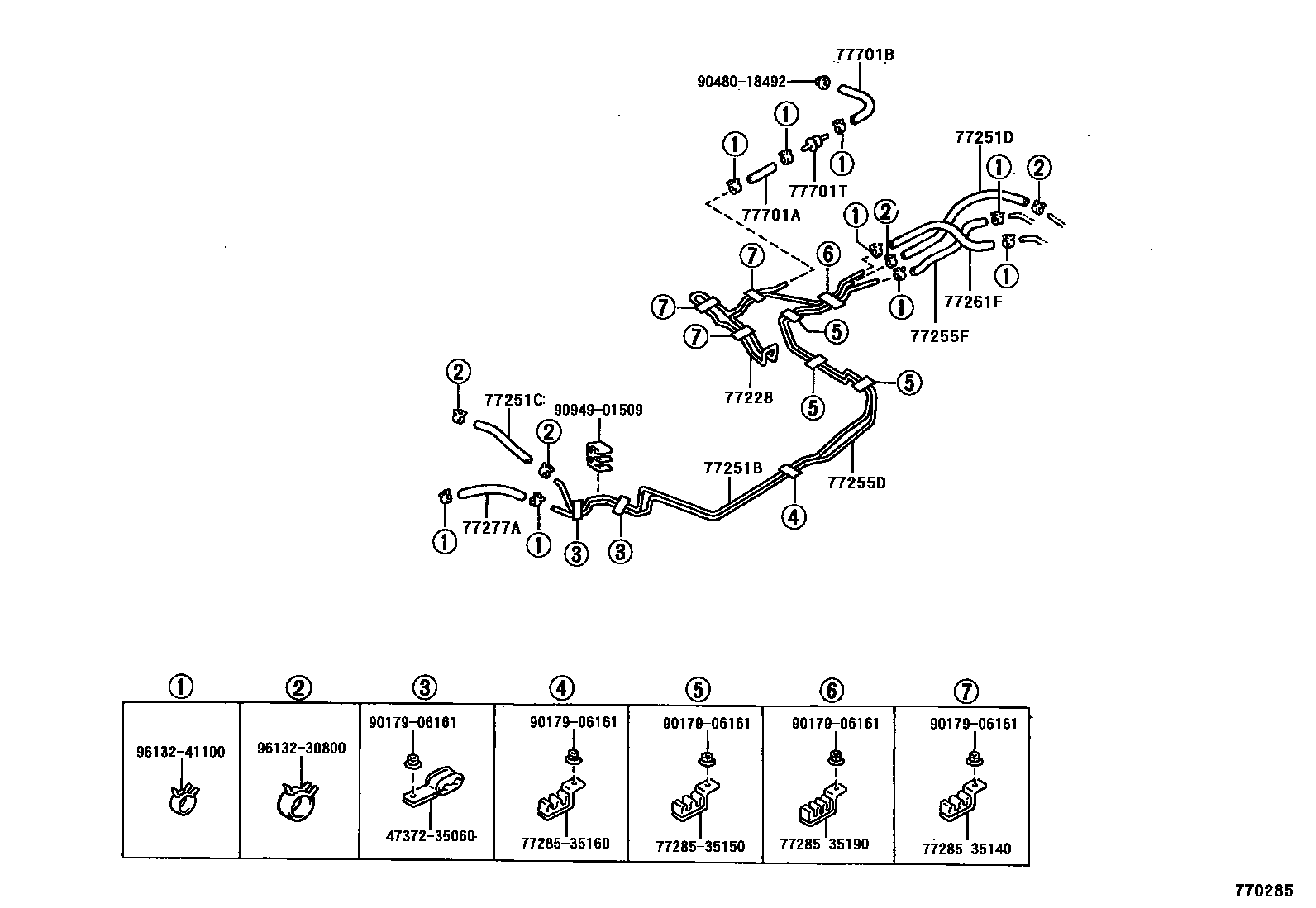

Toyota HILUX 燃油箱和燃油管 EPC diagram — 770285
燃油箱和燃油管 — 770285 (198901 – 999999)

PNC and OE references

PNCPart nameOE numbers
77023Fuel suction pipe filter sub-assembly77023-12050 · 77023-22040
77100fuel tank assembly77001-35977 · 77001-35989
77100AScrew plug (for fuel tank)90105-12018
77100BGasket (for fuel tank)90430-12245
77100DNo. 1 fuel hose (for fuel tank)77408-35020
77161CFuel tank lower protective shell77161-35050 · 77161-35051
77169AFuel suction pipe fixed gasket77169-14020
77201Fuel tank inlet pipe sub-assembly77201-35380 · 77201-35390 · 77201-35450 · 77201-35460
77203AFuel suction pipe sub-assembly77203-35380 · 77203-35390
77213BFuel tank to filler pipe hose77213-35200
77228No. 2 fuel evaporation vent pipe77228-35090
77251Bmain fuel pipe77251-35720 · 77251-35770
77251CNo. 1 fuel hose (for main fuel line)77259-35180 · 77259-35190 · 95333-06040
77251DNo. 2 fuel hose (for main fuel line)77259-35160
77255Dfuel return pipe77255-35530 · 77255-35600 · 77255-35621
77255FNo. 2 fuel hose (for fuel return pipe)90445-12165 · 90445-12223
77261FNo. 2 fuel hose (for fuel tank to canister pipe)77209-35290
77277ANo. 1 fuel hose (for No. 1 return pipe)90445-12238 · 90447-12110 · 90447-12135 · 95333-06040
77305AFuel filler cap sub-assembly77305-89110
77310AFuel tank cap assembly77310-12100 · 77310-35061 · 77310-35080 · 77310-35110
77316fuel tank cap gasket77316-12050 · 77316-16010
77358AFuel filler cap stopper77358-24010 · 77358-89101
77701BNo. 2 fuel hose (for breather valve)77249-35070
77701TCheck valve (for main fuel tank)90917-10054
77750Carbon canister assembly77740-35170 · 77740-35220 · 77740-35340
77750ANo. 1 fuel hose (for canister)90445-14090 · 90447-14039 · 90447-14073
77754No. 1 carbon canister outlet hose77754-35140
