Toyota HILUX 车身镶条 — Figure 7553

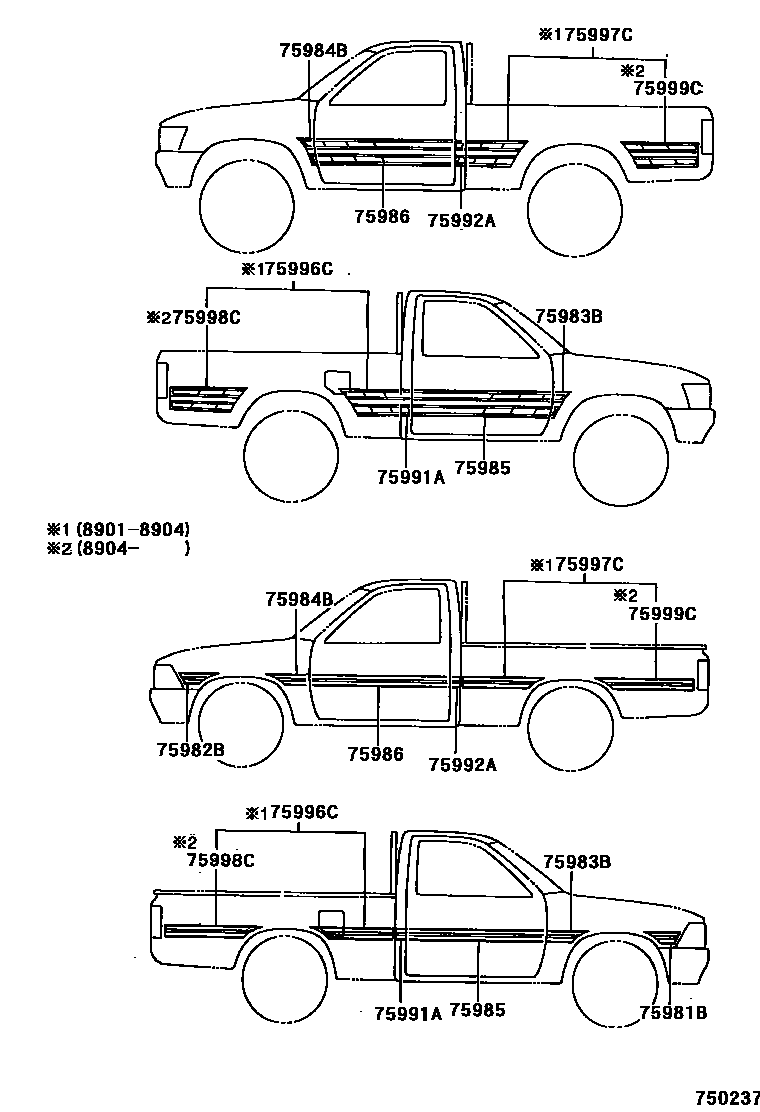

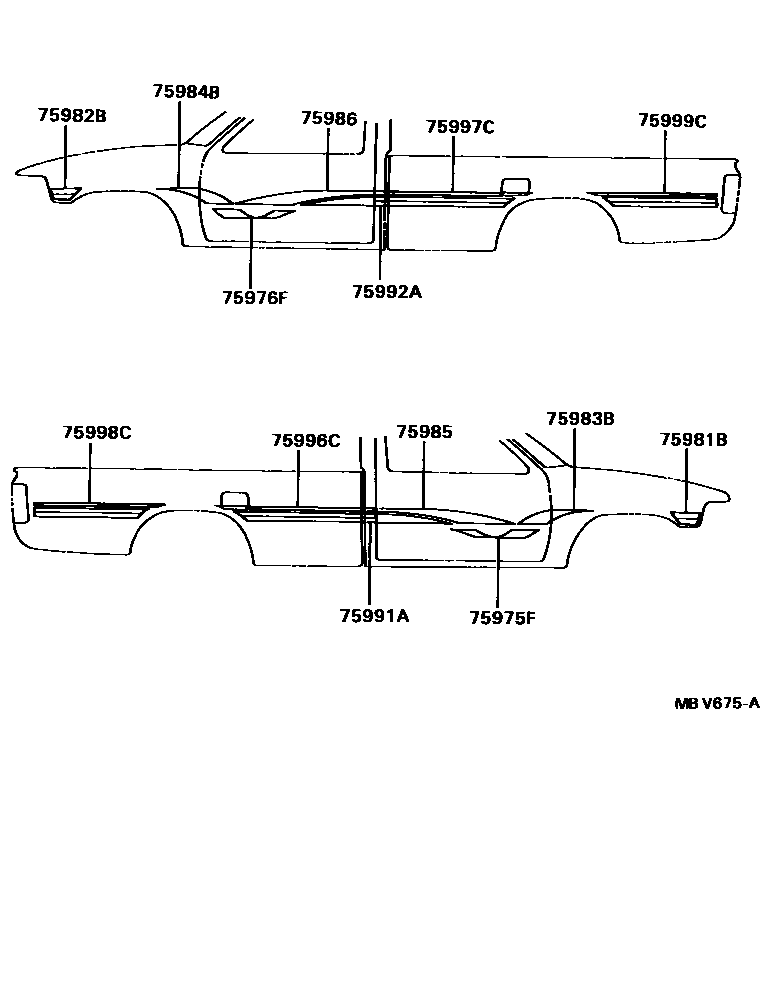

Toyota HILUX EPC diagram 7553, 车身镶条, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75975F | Right front door outer lower trim strip | 75975-35080 |
| 75976F | Left front door outer lower trim strip | 75976-35080 |
| 75981B | Right fender panel | 75981-35050 · 75981-89117 |
| 75982B | Left fender panel | 75982-35050 · 75982-89116 |
| 75983B | Right front fender rear trim | 75983-35010 · 75983-89103 |
| 75984B | Left front fender rear trim | 75984-35010 · 75984-89103 |
| 75985 | Right front door trim | 75985-35200 · 75985-89171 · 75985-89181 |
| 75986 | Left front door trim | 75986-35200 · 75986-89169 · 75986-89179 |
| 75991A | Right side surround strip | 75991-35080 · 75991-89104 |
| 75992A | Left side surround strip | 75992-35080 · 75992-89104 |
| 75996C | Right rear body trim | 75988-89132 · 75996-35210 · 75996-89171 |
| 75997C | Left rear body trim | 75989-89131 · 75997-35210 · 75997-89155 |
| 75998C | Right rear floor panel rear trim strip | 75998-35070 · 75998-89130 |
| 75999C | Left rear floor panel rear trim strip | 75999-35070 · 75999-89130 |
