Toyota HILUX 徽标和铭牌 — Figure 7551

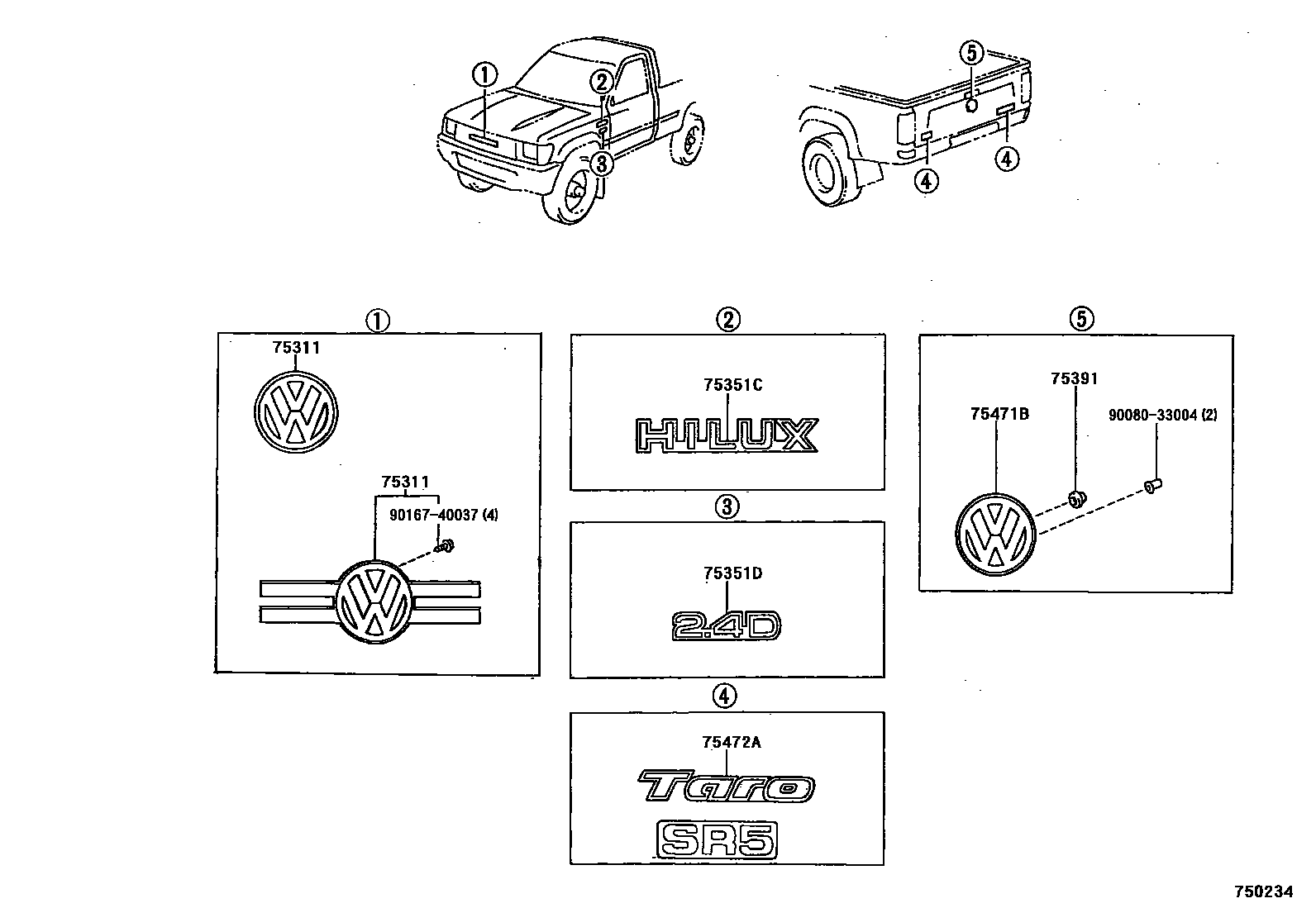

Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-35040 · 75311-35050 · 75311-35070 · 75311-35160 · 75311-35180 · 75311-89118 |
| 75351C | fender markings | 75351-89125 |
| 75351D | No. 2 fender mark | 75351-89126 |
| 75391 | Nameplate fixings | 75391-04010 |
| 75471B | No. 1 nameplate on rear body | 75471-04010 |
| 75472A | No. 2 nameplate on rear body | 75472-35011 |
